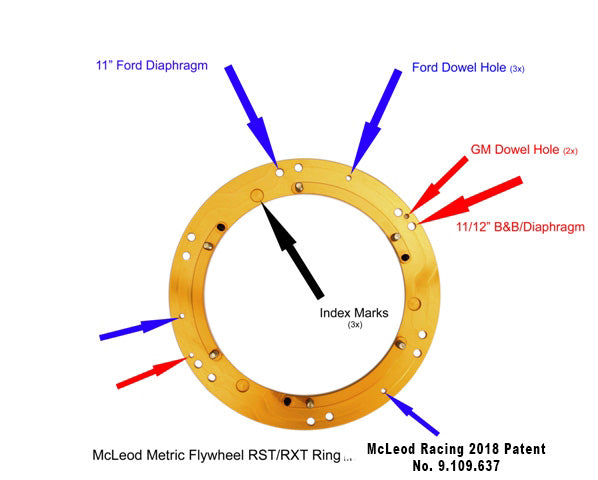

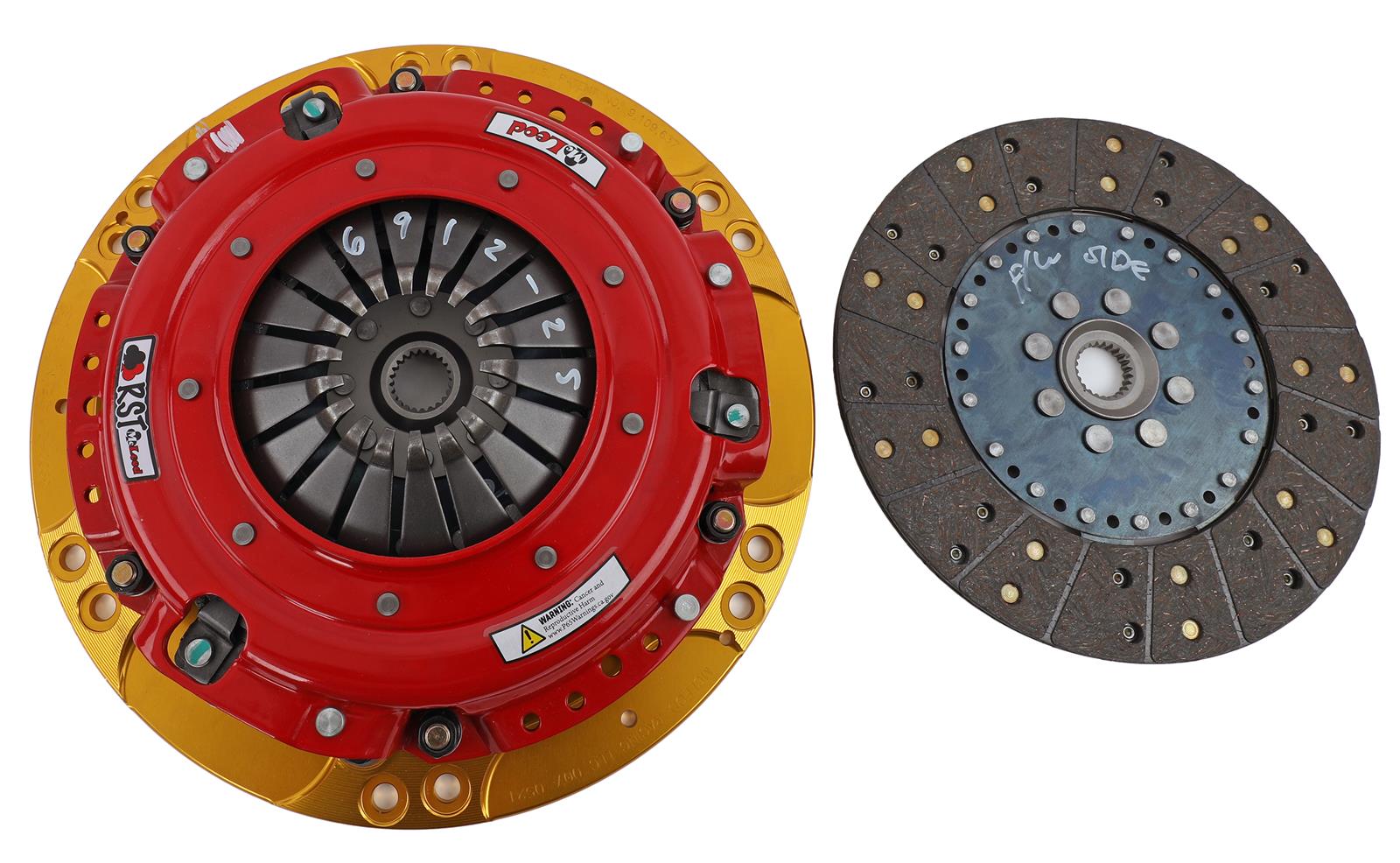

Intended for the high horsepower street fan, the McLeod RST twin disc clutch kit is an economically priced twin disc clutch kit. Able to handle 800hp, this clutch can handle almost any horse-power you can throw at it and still remain street-able. Organic lined clutch discs will provide smooth engagement with a soft pedal effort to make this clutch kit ideal for the street only performance enthusiast. This unit is not intended for competition use! Look to our RXT and RXT 1200 for those applications. This series of clutch comes in 3 different configurations to best suit your needs. Adapter ring version. Another McLeod Racing exclusive. We build a twin disc clutch using a Patented Approved adapter ring to bolt to your supplied flywheel. Complete Unit with Dedicated Flywheel. No need to search for the clutch as one number and the flywheel as another number. McLeod Racing has you covered with one part number and a complete dedicated unit ready to plug and play. You have the choice of running a Billet Steel flywheel for your street applications or a Billet Aluminum flywheel for your track cars.
Specifications:
| Description_ASC |
NOTE: 1999 to 2010 Mustang 4.6L/5.4L factory flywheels may not work due to the large crank relief in the center of the flywheel. Crank relief must be 6.250" or smaller for correct disc to flywheel contact. |
| Description_ASM |
Ford: Mustang 01 - 04 4.6 L Engine |
| Description_DEF |
Transmission Clutch Kit |
| Description_DES |
RST:9.687" Dia. Disc:2001.5-10 Ford Mustang 4.6L:1-1/8x26:Cable Linkage |
| Description_FAB |
McLeod Racing is proud to offer the RST, RXT & RXT 1200 twin disc systems. These units have a soft pedal and the capacity to hold serious power! |
| Description_EXT |
RST:9.687" Dia. Disc:2001.5-10 Ford Mustang 4.6L:1-1/8x26:Cable Linkage |
| Description_INV |
Clutch Kit |
| Description_SHO |
Clutch Kit |
| Description_MKT |
Intended for the high horsepower street fan, the McLeod RST twin disc clutch kit is an economically priced twin disc clutch kit. Able to handle 800hp, this clutch can handle almost any horse-power you can throw at it and still remain street-able. Organic lined clutch discs will provide smooth engagement with a soft pedal effort to make this clutch kit ideal for the street only performance enthusiast. This unit is not intended for competition use! Look to our RXT and RXT 1200 for those applications. This series of clutch comes in 3 different configurations to best suit your needs. Adapter ring version. Another McLeod Racing exclusive. We build a twin disc clutch using a Patented Approved adapter ring to bolt to your supplied flywheel. Complete Unit with Dedicated Flywheel. No need to search for the clutch as one number and the flywheel as another number. McLeod Racing has you covered with one part number and a complete dedicated unit ready to plug and play. You have the choice of running a Billet Steel flywheel for your street applications or a Billet Aluminum flywheel for your track cars. |
| Pilot Bushing Included |
No |
| Number of Discs |
Double |

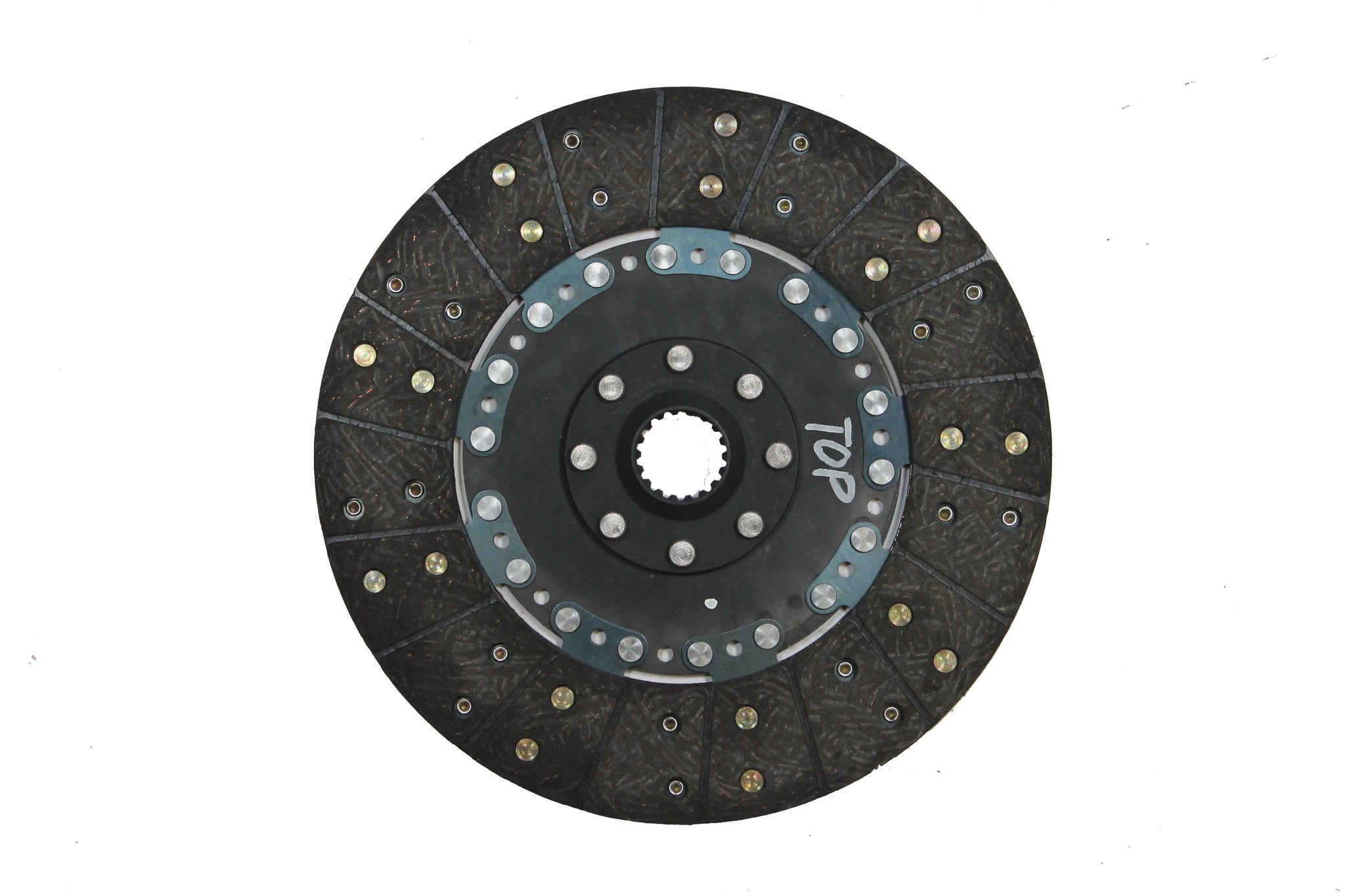

| Disc Material |
Organic |
| Clutch Patterns |
11In. Mustang with Dowel Pin Holes 2000 and up |
| Pressure Plate Style |
Diaphragm |
| NOTE: |
This application is intended for transmission with aftermarket 1-1/8 x 26 spline input shafts. This kit also comes with a Cable linkage T.O. Bearing and adjustable Pivot Stud. |
| Spline |
1 1/8In. x 26 |
| Linkage Type |
Cable |
| Throwout Bearing Style |
Standard |
| Disc Diameter |
9-11/16In. |
| Clutch Usage |
Street |
| Hub Style |
Solid |
| Alignment Tool Included |
Yes |
| Disc Style |
Solid Hub |
| Horsepower Rating |
800 |
| Application |
2001-2004 Ford Mustang 4.6L |
| Flywheel Fitment |
Fits 164 Tooth Flywheel |
| Pivot Ball Included |
Yes |
| Flywheel Included |
No |
| Pilot Bushing Material |
N/A |
| Hardware Included |
Yes |
| Make |
Ford |
| Throwout Bearing Included |
Yes |
| Length |
6.0000 |
| Width |
17.0000 |
| Height |
16.0000 |
| Weight |
23.0000 |
