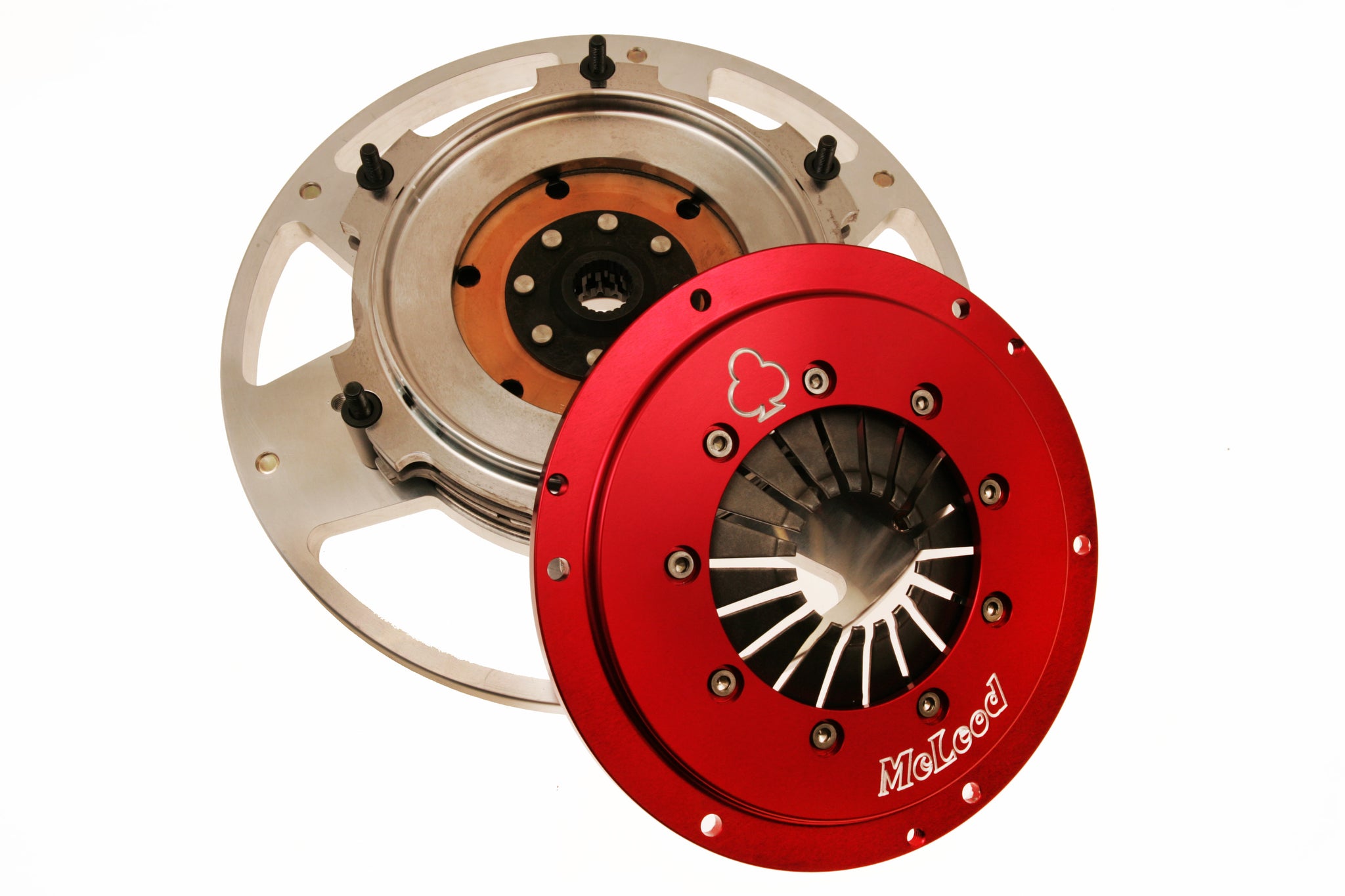

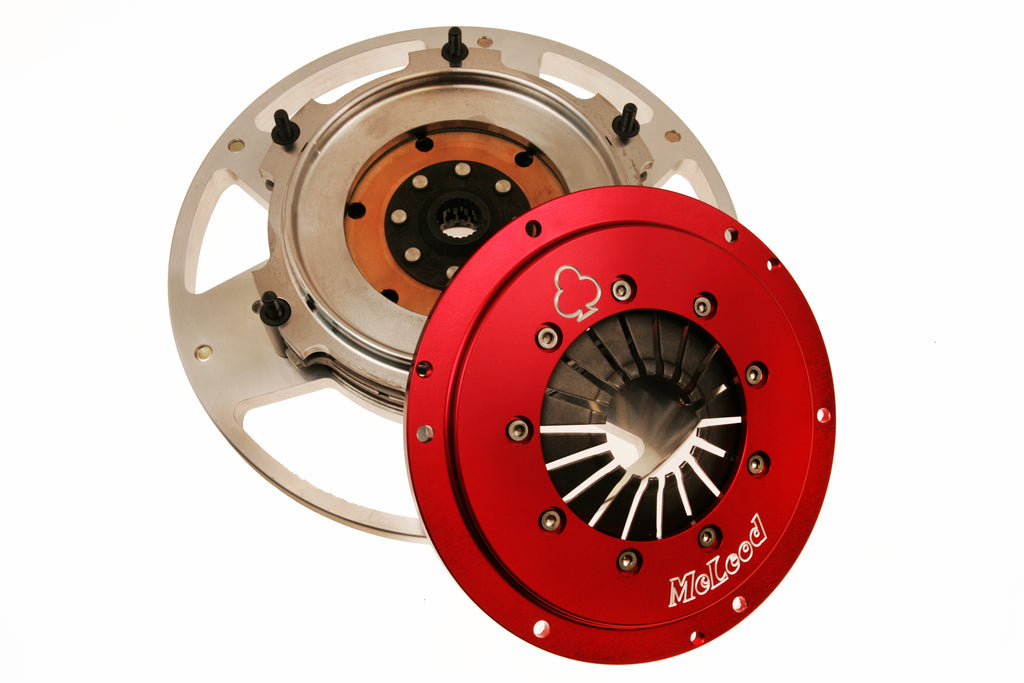

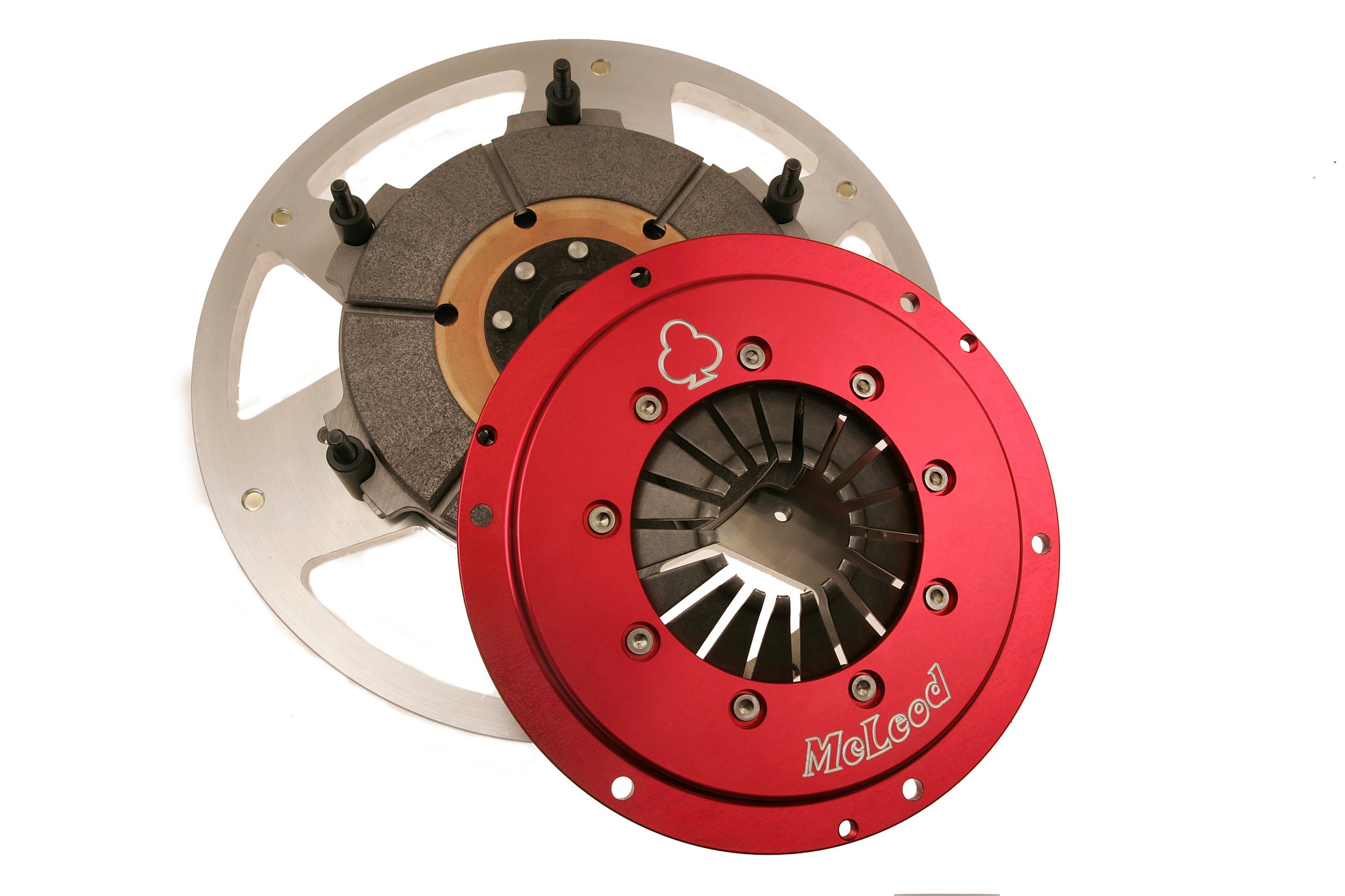

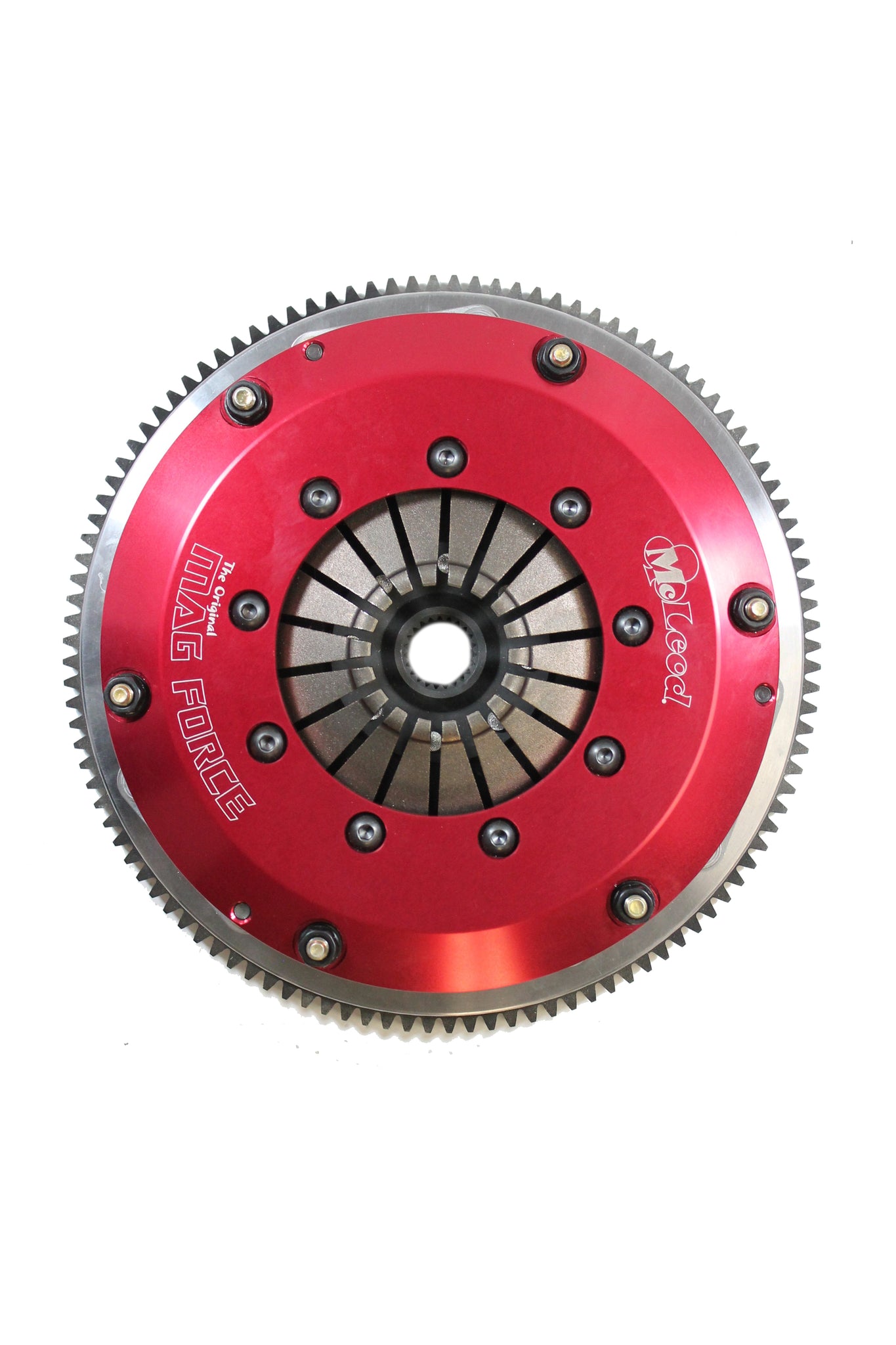

Mag Force - These Clutches Are The Perfect Choice For Racers Looking For A Lightweight, High Torque Capacity Unit. They Are Designed To Be Used For Oval Track, Road Racing And Dry Lakes Applications. These Units Are Offered In Single Disc (500Ft Tq) Double Disc (900 Ft Tq) And Triple Disc (1500 Ft Tq) Configurations To Meet The Harshest Needs In The Industry. These Units Rely On A Pin Drive Actuation System Where The Floater Plate Slides On 6 Evenly Spaced Pins For Quick Release In A Racing Application. Our Mag Force Units Also Offer Bolt On External Balance Weights For Most Applications.
Specifications:
| Description_DEF |
Transmission Clutch Kit |
| Description_DES |
Mag Force:Double Disc:Steel:Pin Drive:Toyota:1989-04 2RZ/3RZ:1-3/16x18 |
| Description_FAB |
The Mag Force is perfect for Road Racing, Drag Racing and Salt Flats Time trials. |
| Description_INV |
Clutch Kit |
| Description_EXT |
Mag Force:Double Disc:Steel:Pin Drive:Toyota:1989-04 2RZ/3RZ:1-3/16x18 |
| Description_MKT |
Mag Force - These Clutches Are The Perfect Choice For Racers Looking For A Lightweight, High Torque Capacity Unit. They Are Designed To Be Used For Oval Track, Road Racing And Dry Lakes Applications. These Units Are Offered In Single Disc (500Ft Tq) Double Disc (900 Ft Tq) And Triple Disc (1500 Ft Tq) Configurations To Meet The Harshest Needs In The Industry. These Units Rely On A Pin Drive Actuation System Where The Floater Plate Slides On 6 Evenly Spaced Pins For Quick Release In A Racing Application. Our Mag Force Units Also Offer Bolt On External Balance Weights For Most Applications. |
| Description_SHO |
Clutch Kit |
| Disc Material |
Sintered Iron |
| Flywheel Included |
Yes |
| NOTE: |
This unit does not come with a Ring Gear. Customer must source the ring gear for this flywheel. Call McLeod Tech for more info at 714-630-2764 |
| Spline |
1 3/16In. x 18 |
| Number of Discs |
Double |
| Throwout Bearing Style |
Standard |
| Pilot Bushing Included |
No |
| Throwout Bearing Included |
No |
| Alignment Tool Included |
Yes |
| Engine |
1995-2004 2RZ |
| Racing Application |
Drag Racing |
| Disc Style |
Puck Style |
| Engine Balance |
Internal Balance |
| Hardware Included |
Yes |
| Flywheel Material |
Steel |
| Make |
Toyota |
| Pilot Bushing Material |
N/A |
| Engine 2 |
1995-2009 3RZ |
| Length |
6.0000 |
| Width |
17.0000 |
| Height |
16.0000 |
| Weight |
35.0000 |
