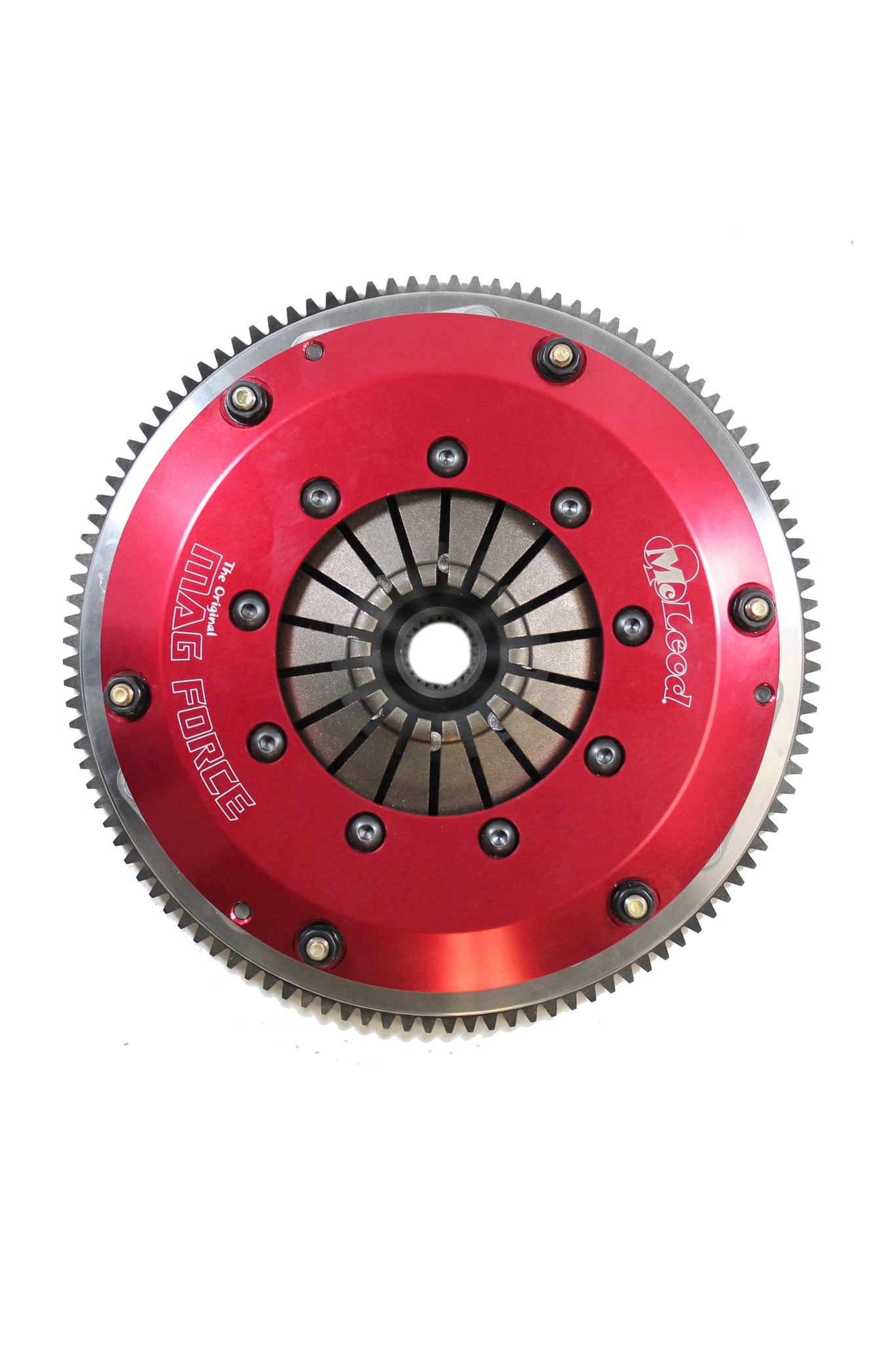

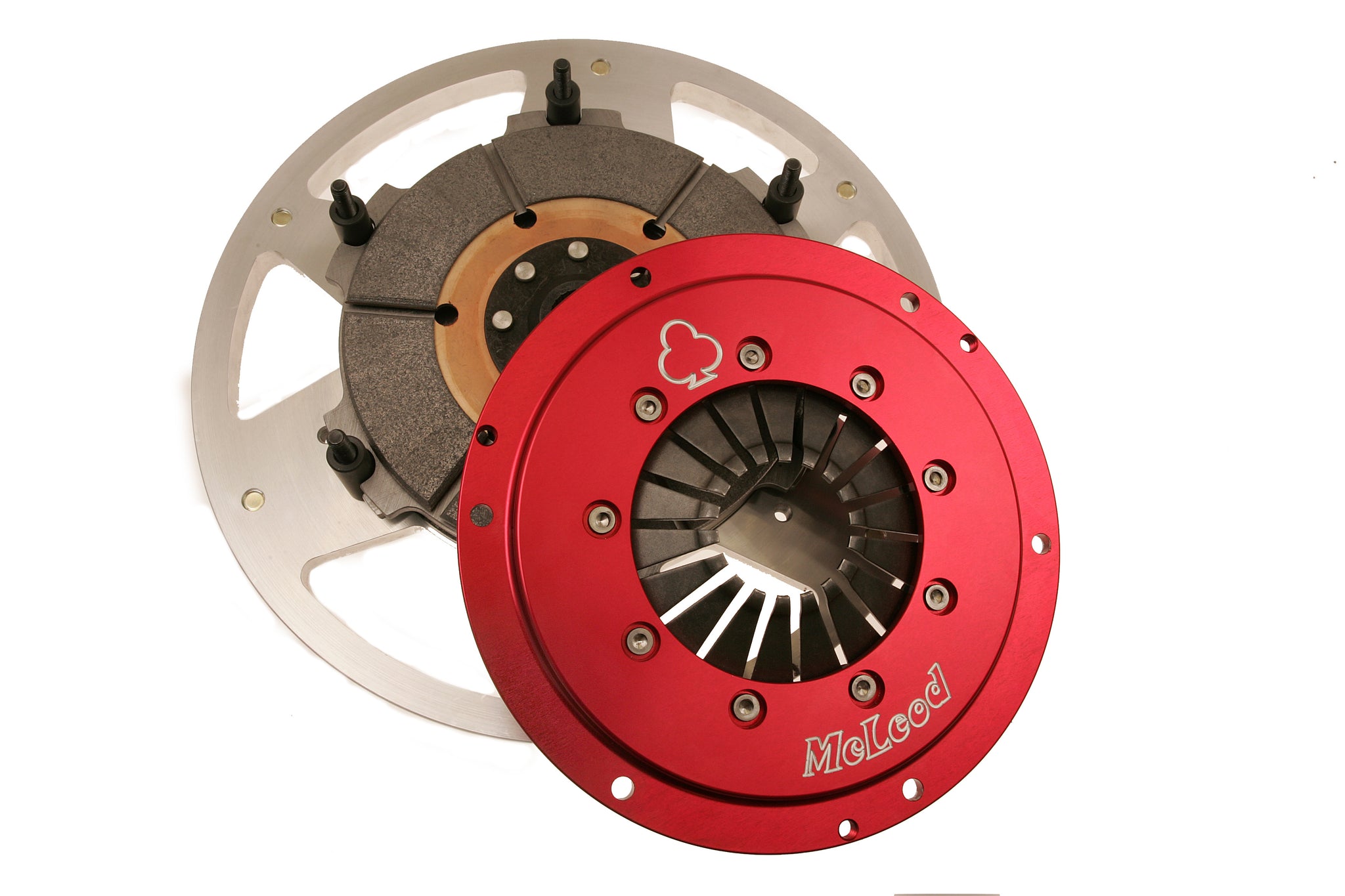

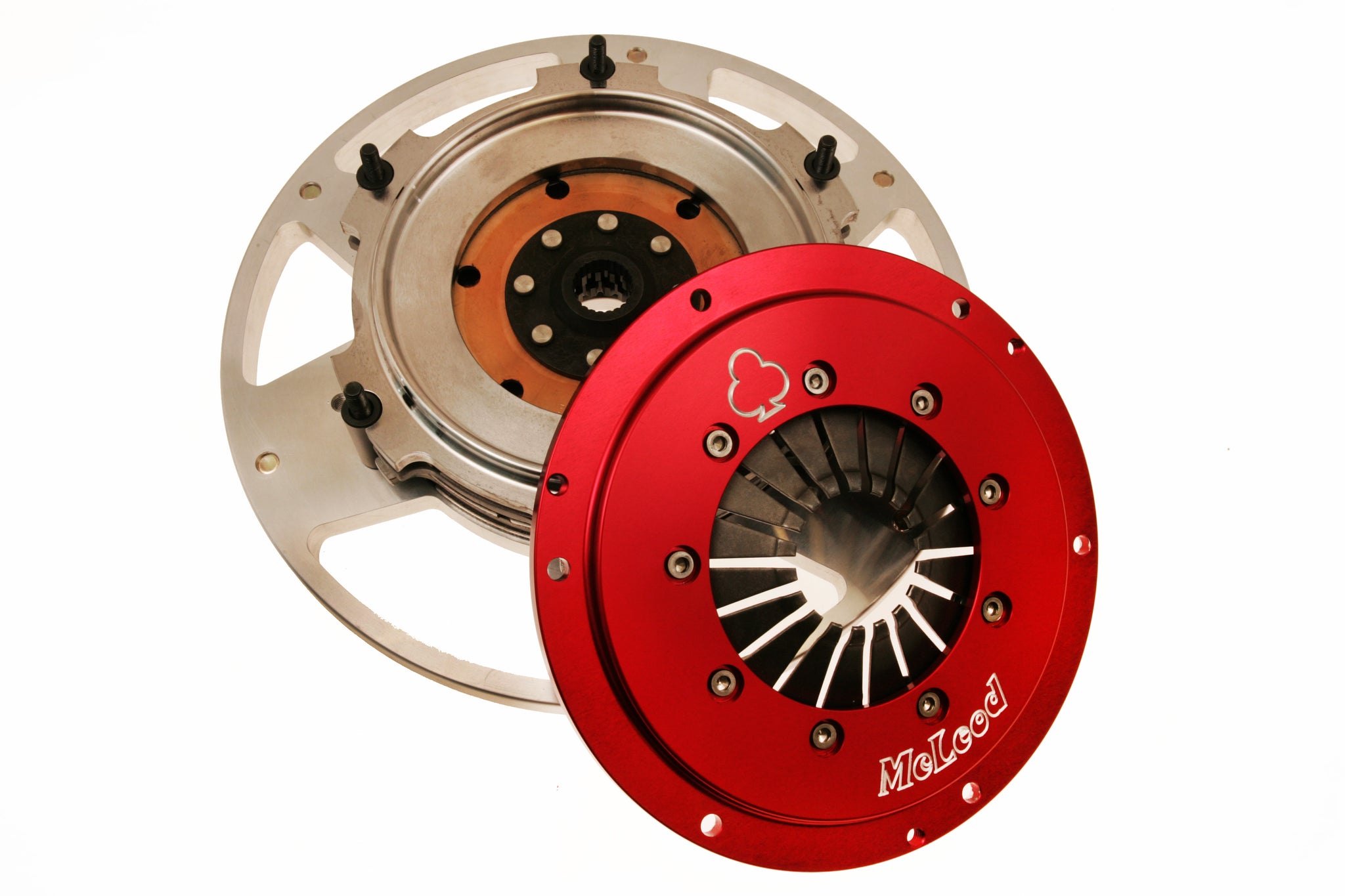

Mag Force - These Clutches Are The Perfect Choice For Racers Looking For A Lightweight, High Torque Capacity Unit. They Are Designed To Be Used For Oval Track, Road Racing And Dry Lakes Applications. These Units Are Offered In Single Disc (500Ft Tq) Double Disc (900 Ft Tq) And Triple Disc (1500 Ft Tq) Configurations To Meet The Harshest Needs In The Industry. These Units Rely On A Pin Drive Actuation System Where The Floater Plate Slides On 6 Evenly Spaced Pins For Quick Release In A Racing Application. Our Mag Force Units Also Offer Bolt On External Balance Weights For Most Applications.
Specifications:
| Description_DEF |
Transmission Clutch Kit |
| Description_DES |

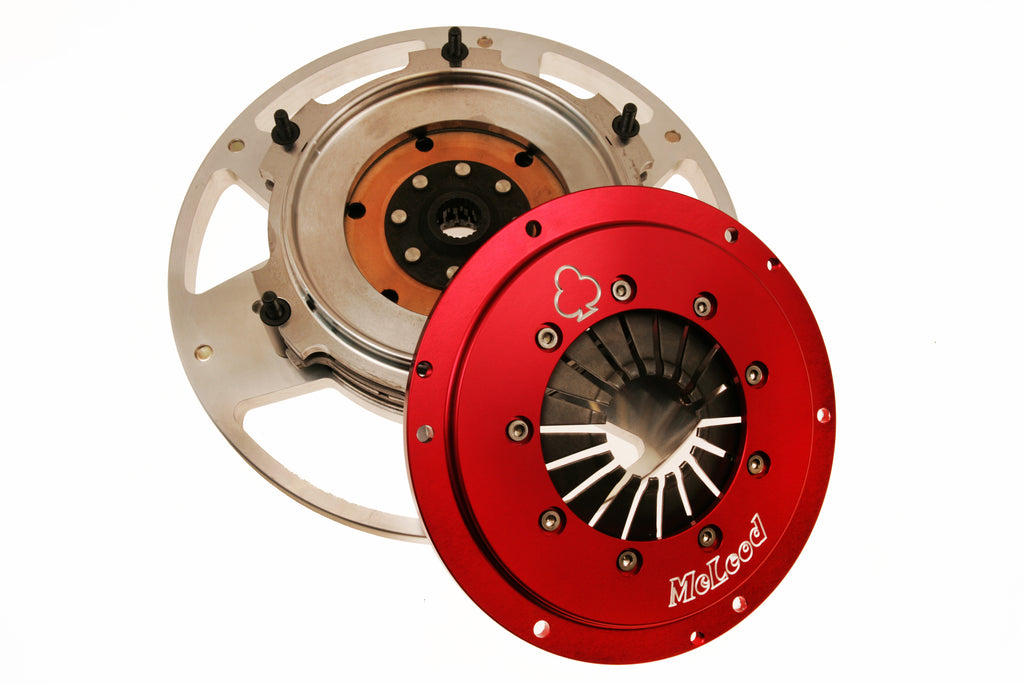

Mag Force: Double Disc: Steel: Pin Drive: Nissan: 1989-02 SR-20: RWD: 1-3/16x18 |
| Description_FAB |
The Mag Force is perfect for Road Racing, Drag Racing and Salt Flats Time trials. |
| Description_EXT |
Mag Force: Double Disc: Steel: Pin Drive: Nissan: 1989-02 SR-20: RWD: 1-3/16x18 |
| Description_INV |
Clutch Kit |
| Description_MKT |
Mag Force - These Clutches Are The Perfect Choice For Racers Looking For A Lightweight, High Torque Capacity Unit. They Are Designed To Be Used For Oval Track, Road Racing And Dry Lakes Applications. These Units Are Offered In Single Disc (500Ft Tq) Double Disc (900 Ft Tq) And Triple Disc (1500 Ft Tq) Configurations To Meet The Harshest Needs In The Industry. These Units Rely On A Pin Drive Actuation System Where The Floater Plate Slides On 6 Evenly Spaced Pins For Quick Release In A Racing Application. Our Mag Force Units Also Offer Bolt On External Balance Weights For Most Applications. |
| Description_SHO |
Clutch Kit |
| Pilot Bushing Included |
No |
| Hub Style |
Solid |
| Additional Counter Weight Kit Required |
N/A |
| Alignment Tool Included |
Yes |
| Disc Material |
Sintered Iron |
| Throwout Bearing Included |
No |
| Clutch Usage |
Drifting,Land Speed, Road Race |
| Engine Balance |
Neutral |
| Spline |
1-3/16 x 18 |
| Clutch Patterns |
Proprietery McLeod Mag Force |
| Pressure Plate Style |
Diaphragm |
| Flywheel Material |
Aluminum |
| Flywheel Included |
Yes |
| Disc Style |
Segmented |
| Torque Rating |
900 Ft. Lbs. |
| Throwout Bearing Style |
Standard |
| Engine |
SR20DE/DET 2.0L |
| Ring Gear |
Factory |
| Number of Discs |
Double |
| Pilot Bushing Material |
N/A |
| Make |
Nissan |
| Disc Diameter |
8In. |
| Hardware Included |
Yes |
| Length |
6.0000 |
| Width |
17.0000 |
| Height |
16.0000 |
| Weight |
21.0000 |
