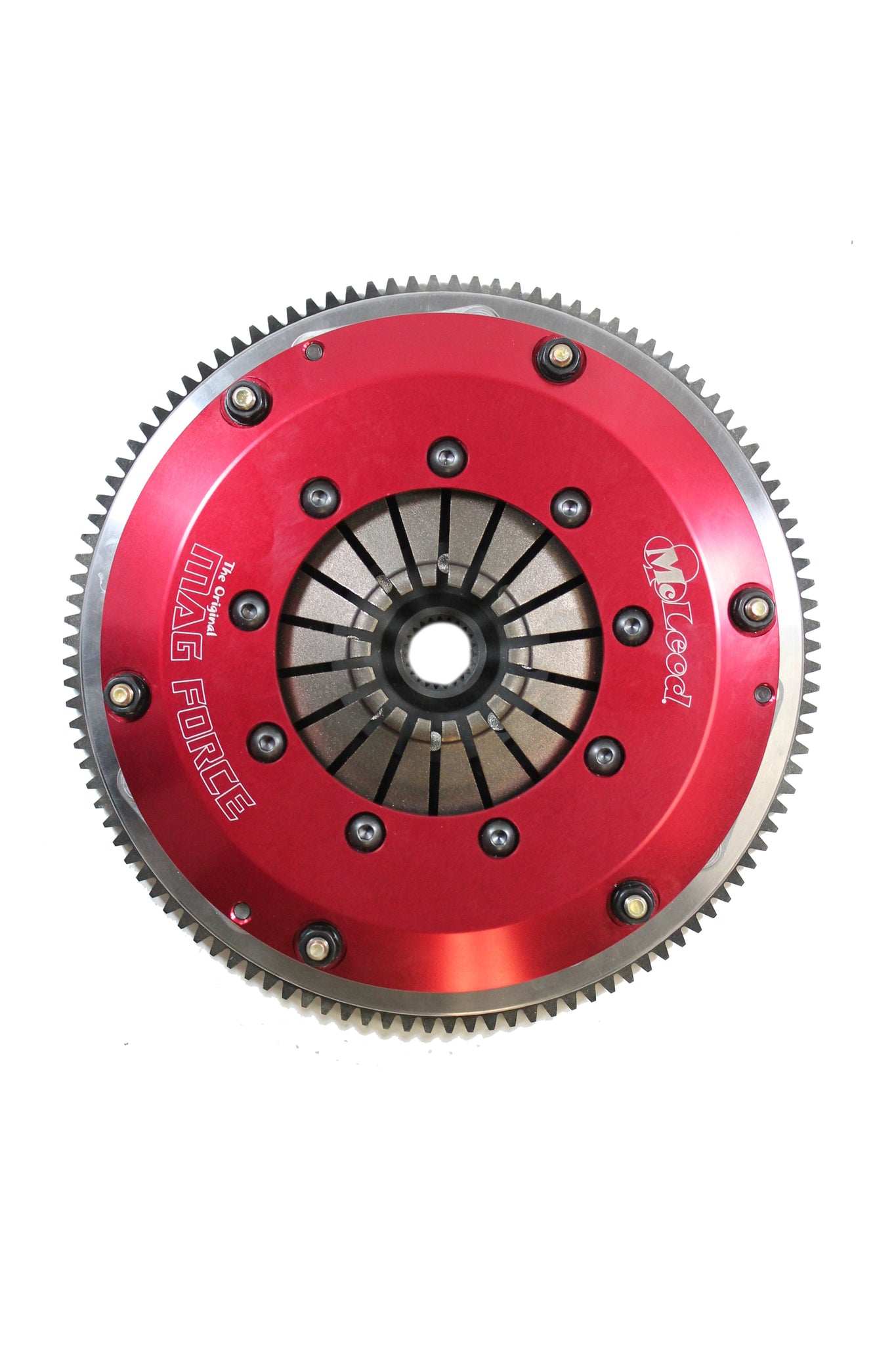

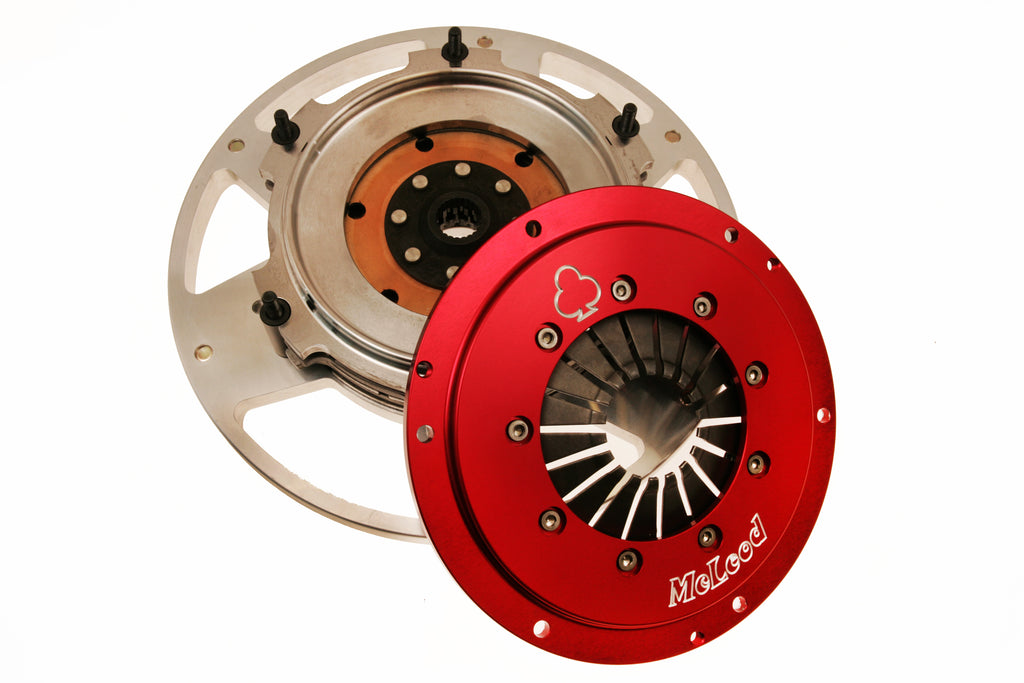

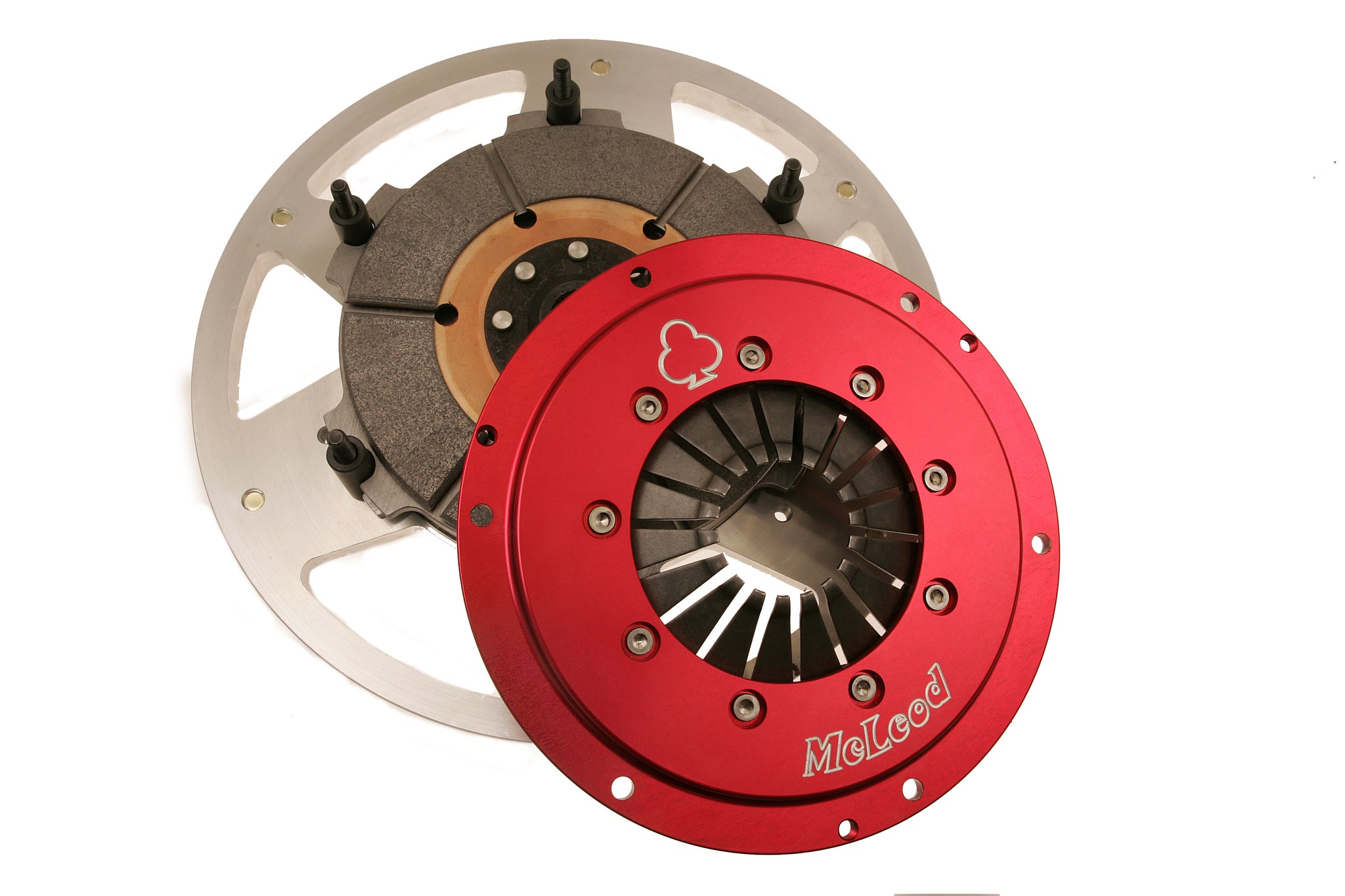

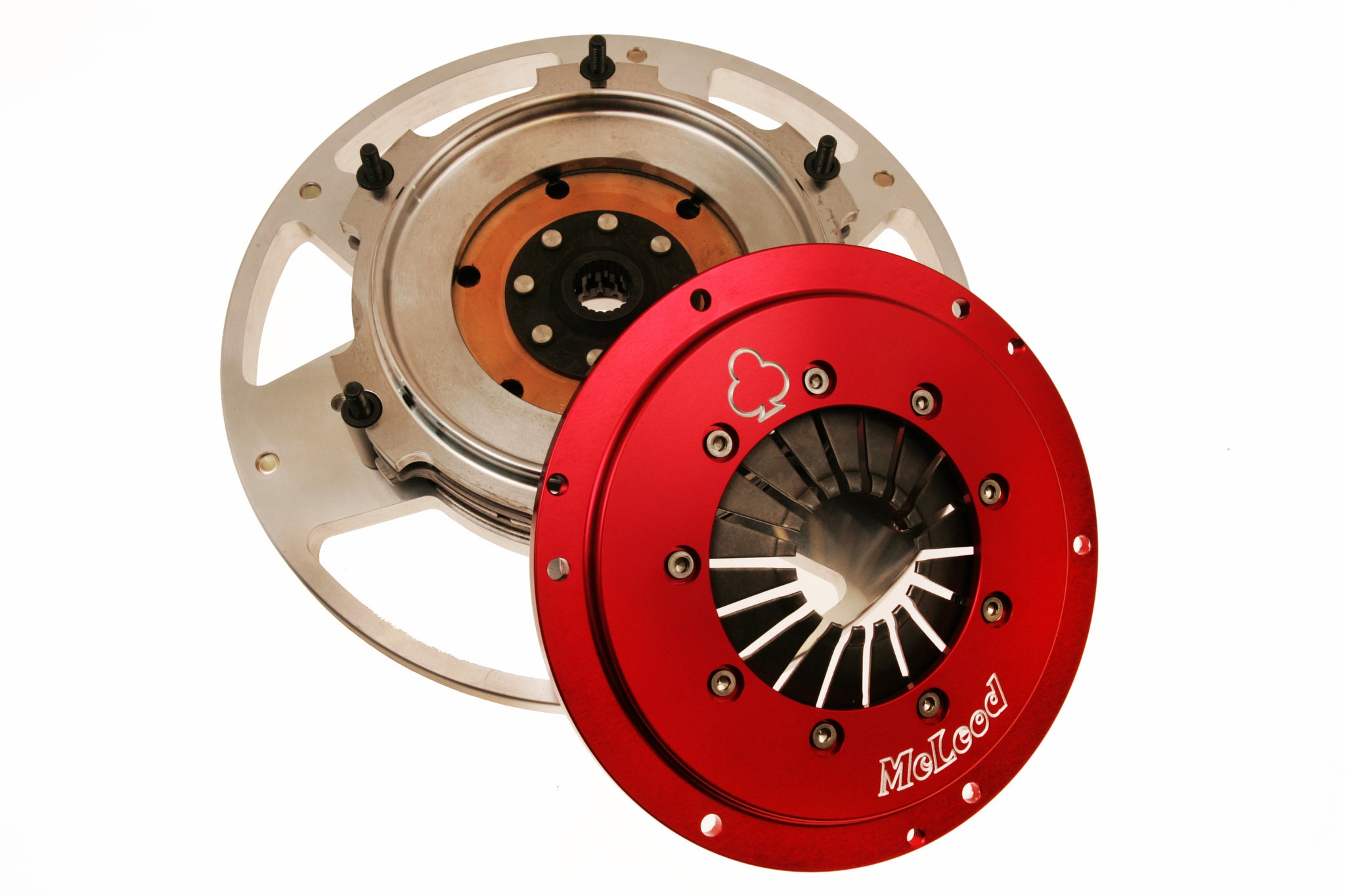

Mag Force - These Clutches Are The Perfect Choice For Racers Looking For A Lightweight, High Torque Capacity Unit. They Are Designed To Be Used For Oval Track, Road Racing And Dry Lakes Applications. These Units Are Offered In Single Disc (500Ft Tq) Double Disc (900 Ft Tq) And Triple Disc (1500 Ft Tq) Configurations To Meet The Harshest Needs In The Industry. These Units Rely On strapped drive system where the floater plate is bolted to the flywheel using a spring steel strap. This keeps the twin disc system quiet during clutch release and gets away from the stigma of "noisey twin discs" associated with pin drive units. Our Mag Force Units Also Offer Bolt On External Balance Weights For Most Applications.
Specifications:
| Description_ASM |
Ford: Mustang 96 - 04 4.6 L Engine, Ford: Mustang 11 - 17 5 L Engine, Ford: Mustang 00 - 09 5.4 L Engine |
| Description_DEF |
Transmission Clutch Kit |
| Description_EXT |
Mag Force: Double Disc: Strap Drive: Ford: 1996-17 Mod: 8 Bolt Crank: 1-1/8x26: 164T |
| Description_DES |
Mag Force: Double Disc: Strap Drive: Ford: 1996-17 Mod: 8 Bolt: 1-1/8x26: 164T |
| Description_MKT |
Mag Force - These Clutches Are The Perfect Choice For Racers Looking For A Lightweight, High Torque Capacity Unit. They Are Designed To Be Used For Oval Track, Road Racing And Dry Lakes Applications. These Units Are Offered In Single Disc (500Ft Tq) Double Disc (900 Ft Tq) And Triple Disc (1500 Ft Tq) Configurations To Meet The Harshest Needs In The Industry. These Units Rely On strapped drive system where the floater plate is bolted to the flywheel using a spring steel strap. This keeps the twin disc system quiet during clutch release and gets away from the stigma of "noisey twin discs" associated with pin drive units. Our Mag Force Units Also Offer Bolt On External Balance Weights For Most Applications. |
| Description_FAB |
The Mag Force is perfect for Road Racing, Drag Racing and Salt Flats Time trials. |
| Description_INV |
Clutch Kit |
| Description_SHO |
Clutch Kit |
| Make |
Ford |
| Disc Style |
Segmented |
| Torque Rating |
900 Ft. Lbs. |
| Flywheel Included |
Yes |
| Clutch Usage |
Drifting,Land Speed, Road Race |
| Pressure Plate Style |
Diaphragm |
| Engine Balance |
Neutral |
| Engine |
1996-2017 4.6L/5.0L/5.4L Modular with 8 Bolt Crank |
| Spline |
1-1/8 x 26 |
| Throwout Bearing Style |
Standard |
| Throwout Bearing Included |
Yes |
| Ring Gear |
164T |
| Disc Material |
Sintered Iron |
| Hub Style |
Solid |
| Clutch Patterns |
Proprietery McLeod Mag Force |
| Additional Counter Weight Kit Required |
N/A |
| Pilot Bushing Material |
N/A |
| Hardware Included |
Yes |
| Alignment Tool Included |
Yes |
| Flywheel Material |
Aluminum |
| Number of Discs |
Double |
| Pilot Bushing Included |
No |
| Disc Diameter |
8In. |
| Length |
6.0000 |
| Width |
17.0000 |
| Height |
16.0000 |
| Weight |
21.0000 |
