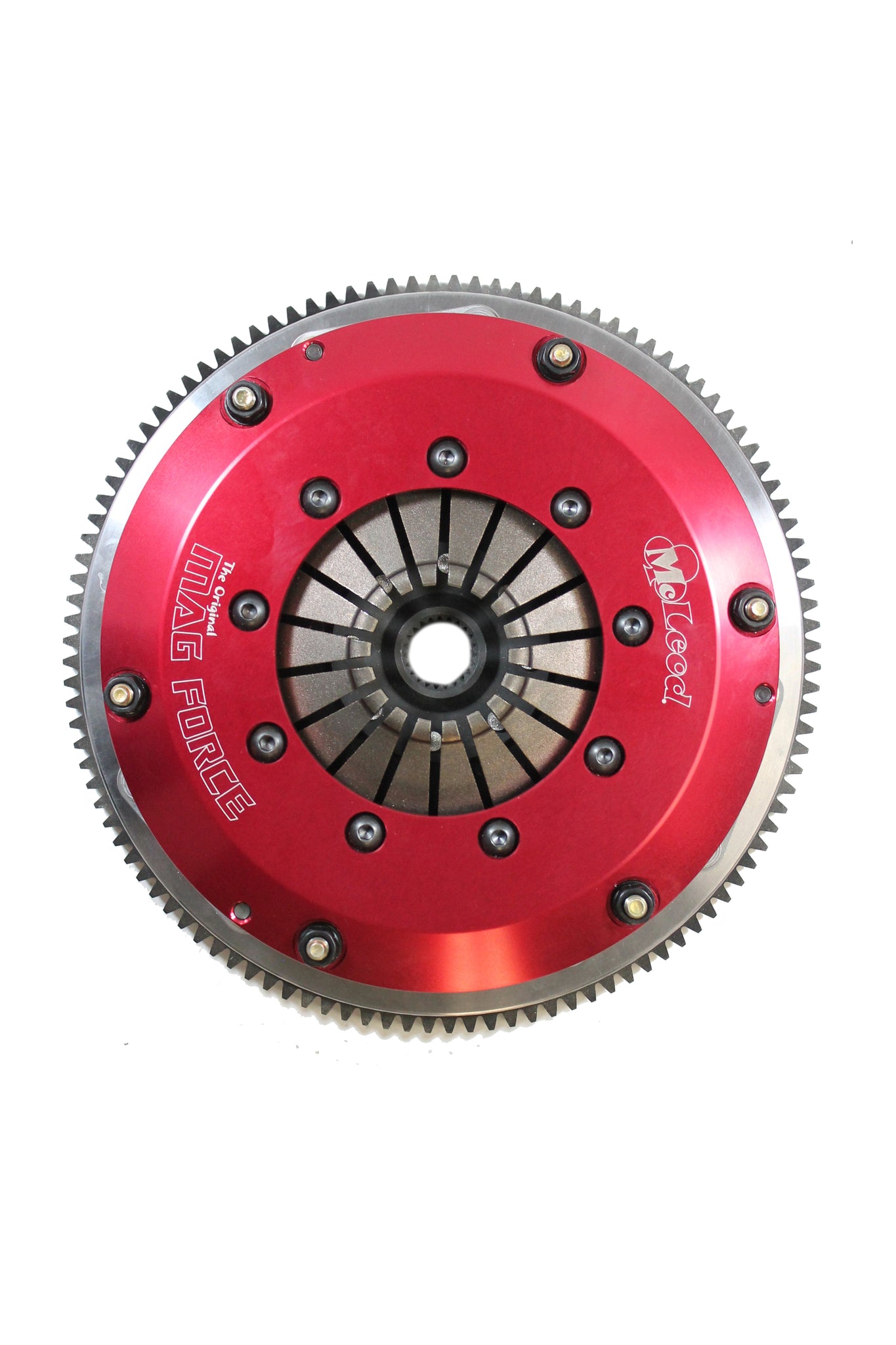

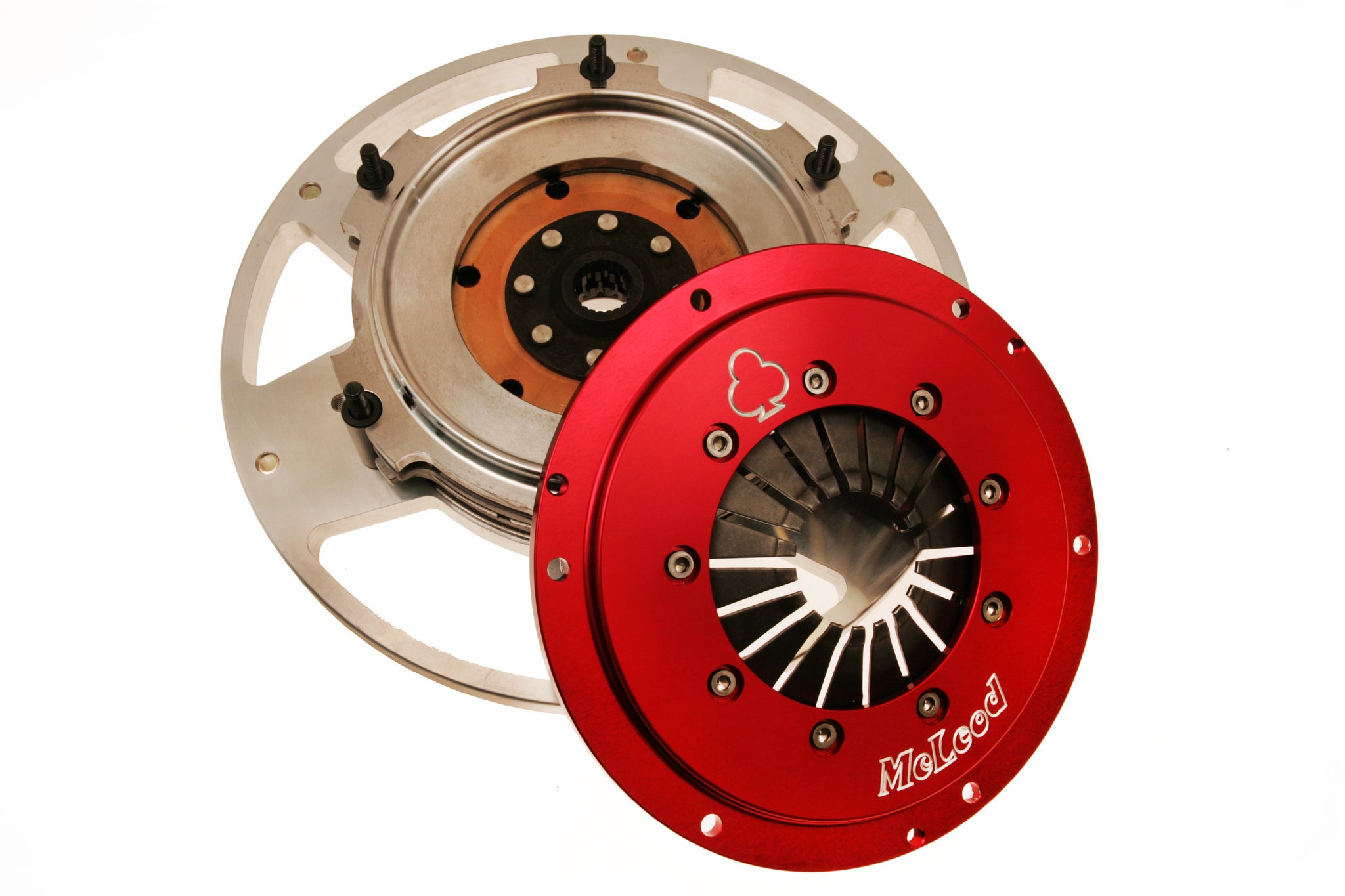

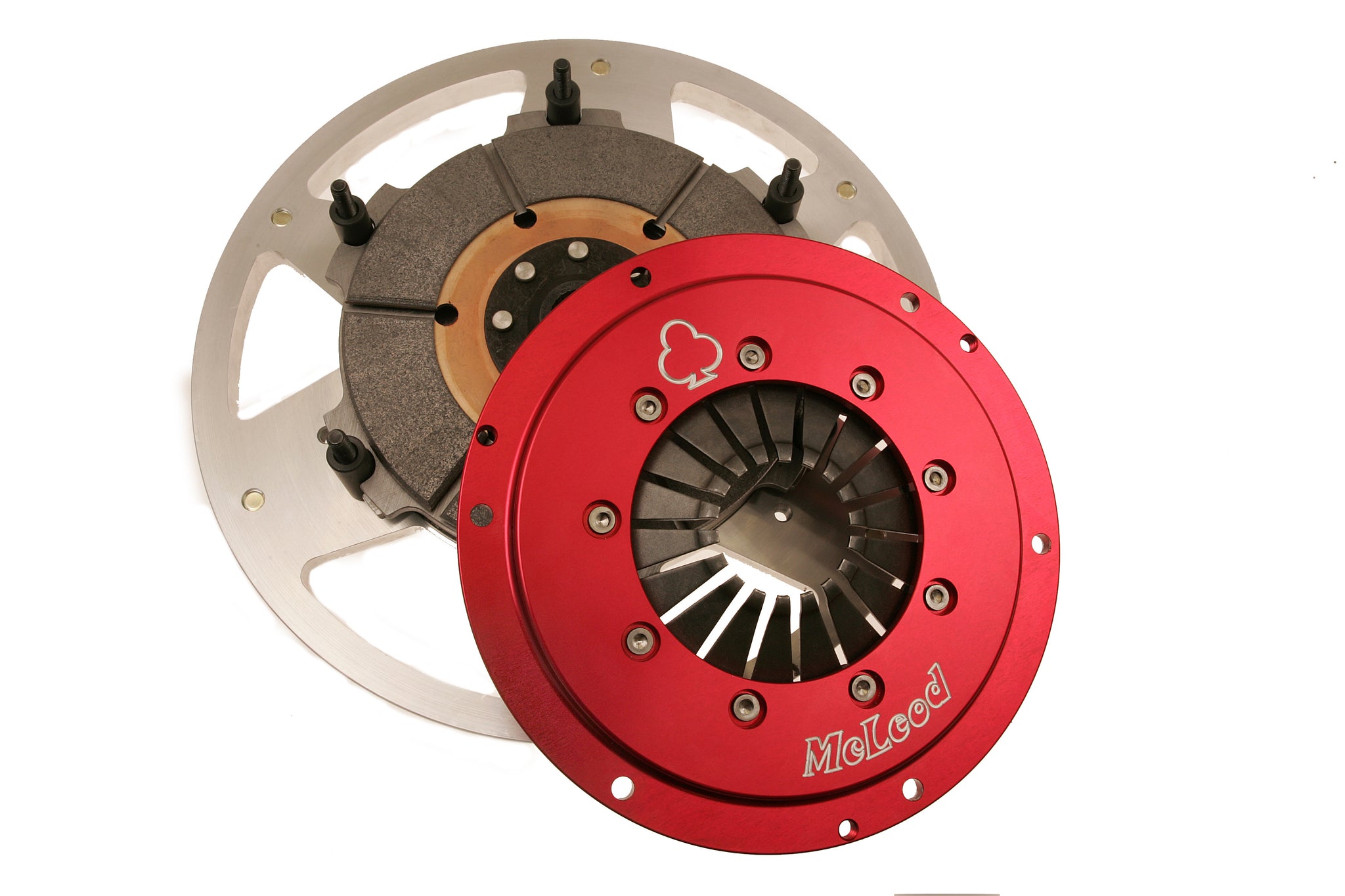

Mag Force - These Clutches Are The Perfect Choice For Racers Looking For A Lightweight, High Torque Capacity Unit. They Are Designed To Be Used For Oval Track, Road Racing And Dry Lakes Applications. These Units Are Offered In Single Disc (500Ft Tq) Double Disc (900 Ft Tq) And Triple Disc (1500 Ft Tq) Configurations To Meet The Harshest Needs In The Industry. These Units Rely On strapped drive system where the floater plate is bolted to the flywheel using a spring steel strap. This keeps the twin disc system quiet during clutch release and gets away from the stigma of "noisey twin discs" associated with pin drive units. Our Mag Force Units Also Offer Bolt On External Balance Weights For Most Applications.
Specifications:
| Description_ASM |
Ford: Mustang 96 - 04 4.6 L Engine, Ford: Mustang 00 - 09 5.4 L Engine |
| Description_DEF |
Transmission Clutch Kit |
| Description_DES |

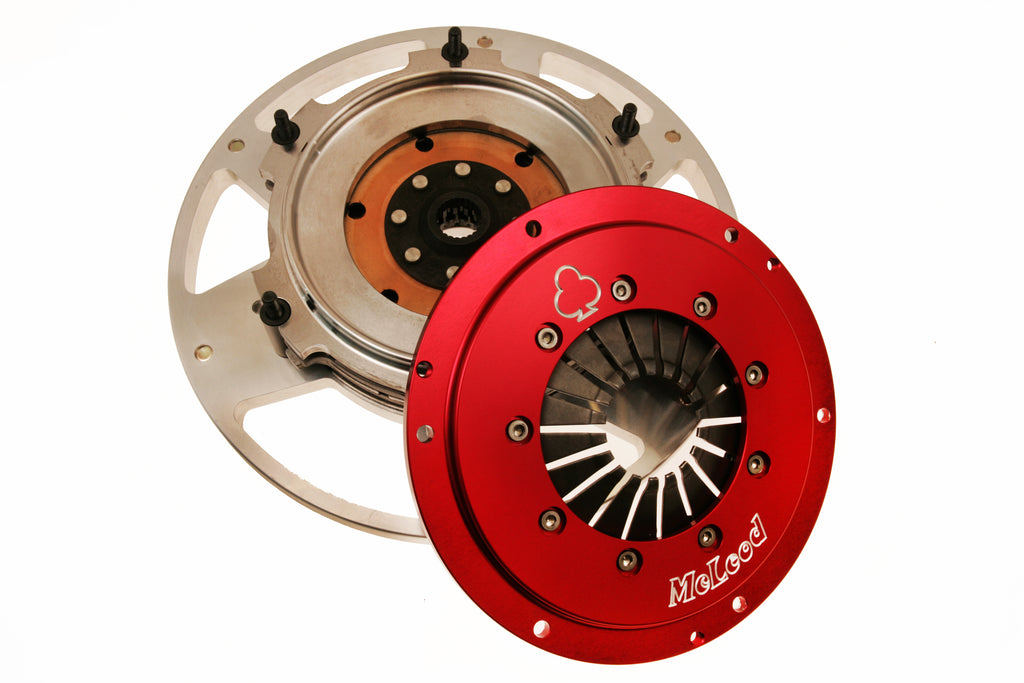

Mag Force: Double Disc: Strap Drive: Ford: 1996-04 4.6L: 8 Bolt: 1-1/16x10: 164T |
| Description_EXT |
Mag Force: Double Disc: Strap Drive: Ford: 1996-04 4.6L: 8 Bolt Crank: 1-1/16x10: 164T |
| Description_INV |
Clutch Kit |
| Description_FAB |
The Mag Force is perfect for Road Racing, Drag Racing and Salt Flats Time trials. |
| Description_SHO |
Clutch Kit |
| Description_MKT |
Mag Force - These Clutches Are The Perfect Choice For Racers Looking For A Lightweight, High Torque Capacity Unit. They Are Designed To Be Used For Oval Track, Road Racing And Dry Lakes Applications. These Units Are Offered In Single Disc (500Ft Tq) Double Disc (900 Ft Tq) And Triple Disc (1500 Ft Tq) Configurations To Meet The Harshest Needs In The Industry. These Units Rely On strapped drive system where the floater plate is bolted to the flywheel using a spring steel strap. This keeps the twin disc system quiet during clutch release and gets away from the stigma of "noisey twin discs" associated with pin drive units. Our Mag Force Units Also Offer Bolt On External Balance Weights For Most Applications. |
| Disc Material |
Sintered Iron |
| Disc Style |
Segmented |
| Clutch Usage |
Drifting,Land Speed, Road Race |
| Spline |
1-1/16 x 10 |
| Ring Gear |
164T |
| Engine |
1996-2017 4.6L/5.0L/5.4L Modular with 8 Bolt Crank |
| Number of Discs |
Double |
| Hub Style |
Solid |
| Alignment Tool Included |
Yes |
| Clutch Patterns |
Proprietery McLeod Mag Force |
| Pilot Bushing Included |
No |
| Engine Balance |
Neutral |
| Additional Counter Weight Kit Required |
N/A |
| Make |
Ford |
| Hardware Included |
Yes |
| Flywheel Included |
Yes |
| Disc Diameter |
8In. |
| Pilot Bushing Material |
N/A |
| Flywheel Material |
Aluminum |
| Throwout Bearing Included |
Yes |
| Pressure Plate Style |
Diaphragm |
| Throwout Bearing Style |
Standard |
| Torque Rating |
900 Ft. Lbs. |
| Length |
6.0000 |
| Width |
17.0000 |
| Height |
16.0000 |
| Weight |
21.0000 |
