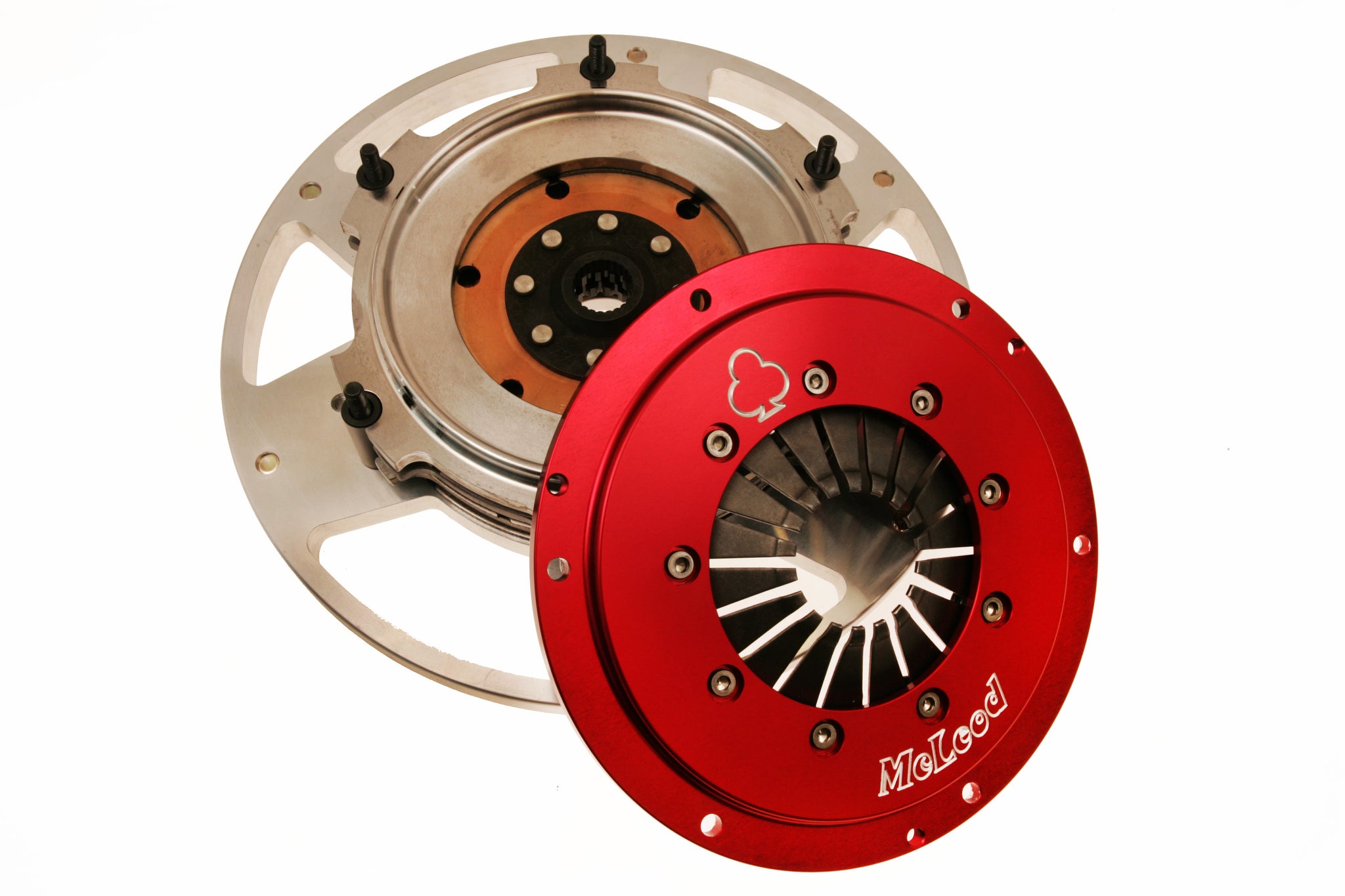

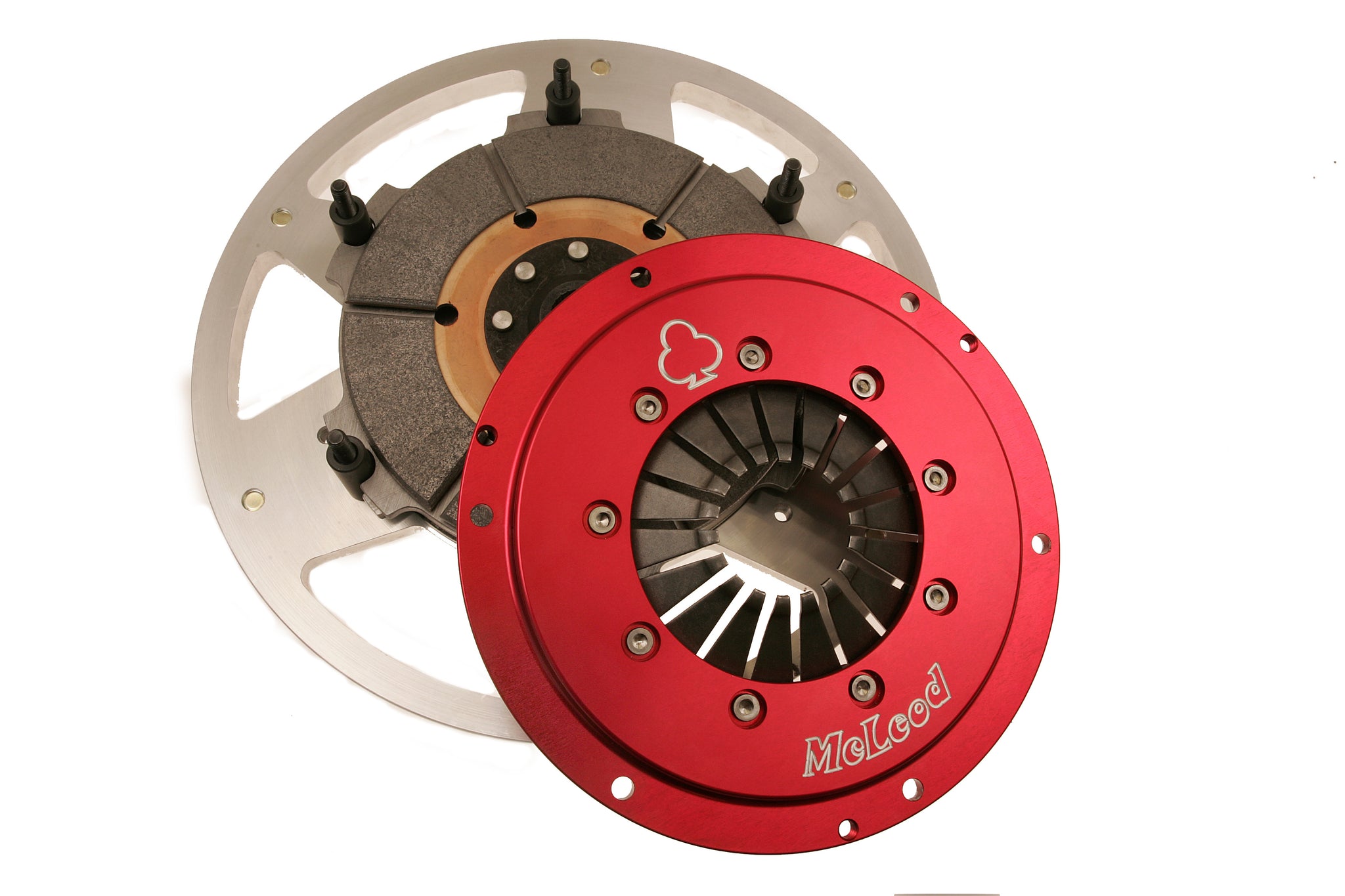

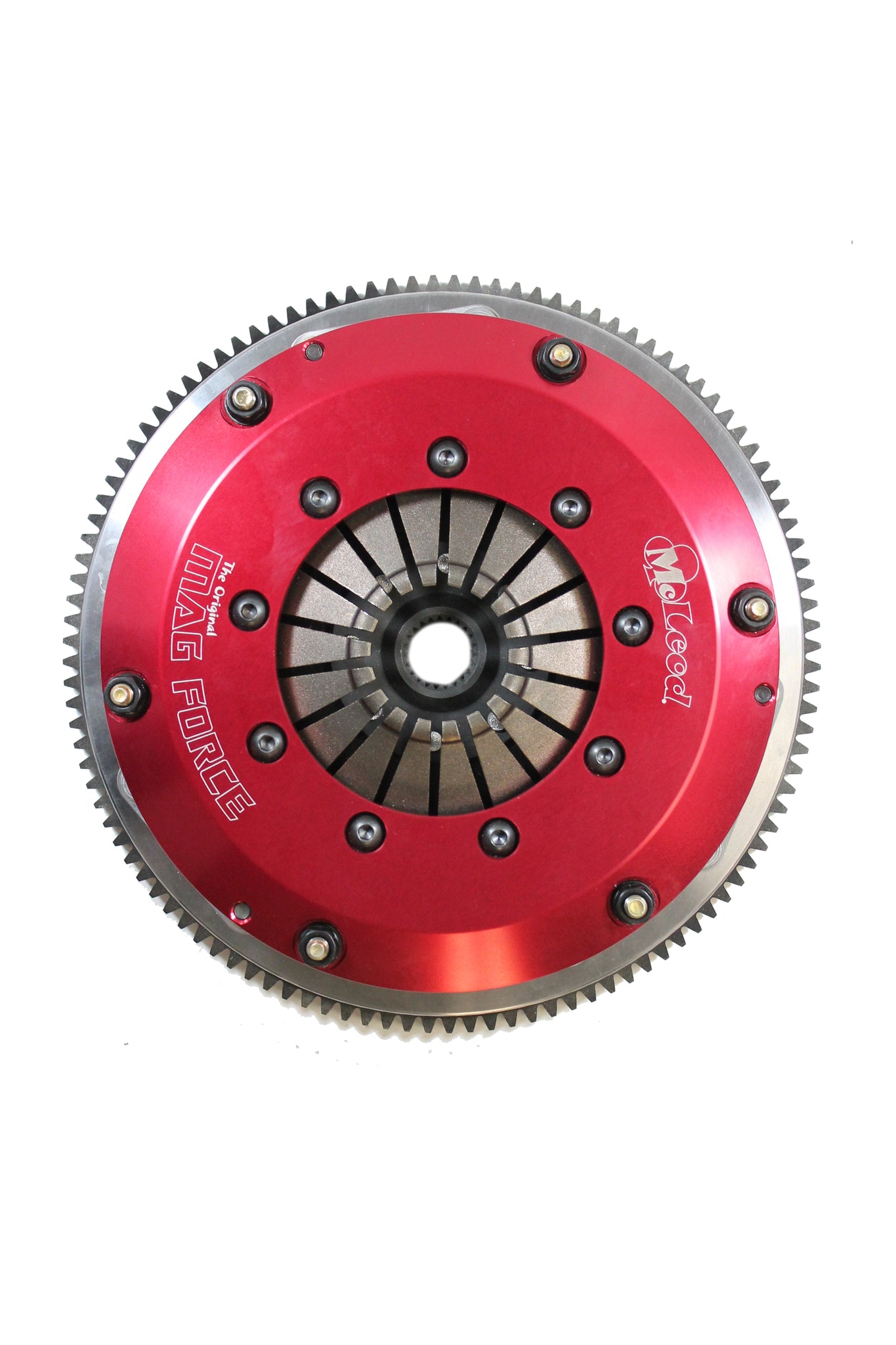

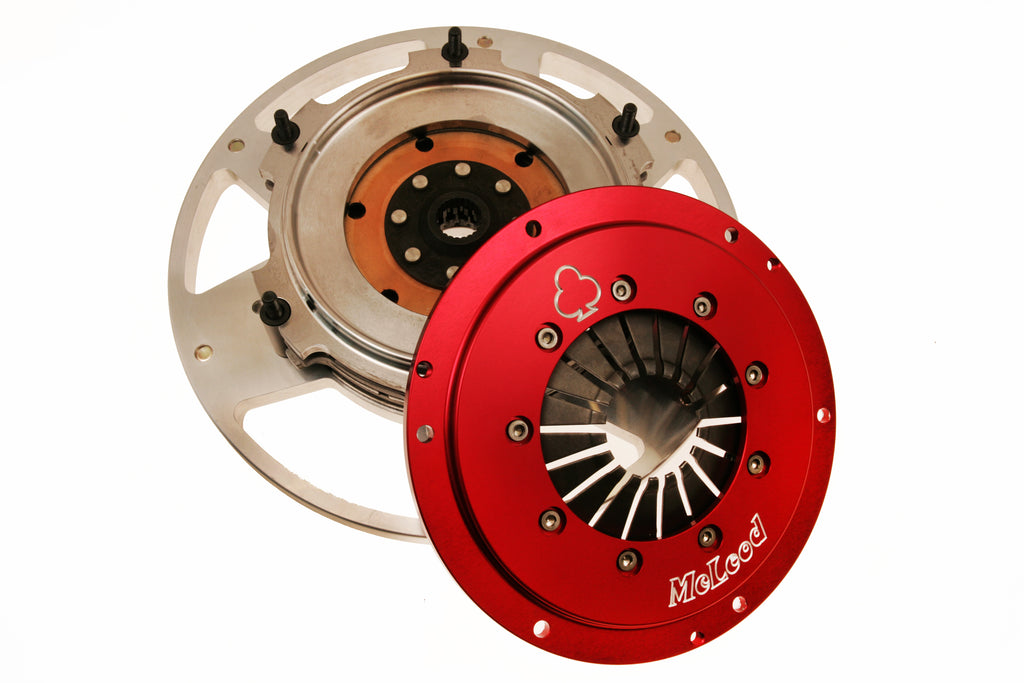

Mag Force - These Clutches Are The Perfect Choice For Racers Looking For A Lightweight, High Torque Capacity Unit. They Are Designed To Be Used For Oval Track, Road Racing And Dry Lakes Applications. These Units Are Offered In Single Disc (500Ft Tq) Double Disc (900 Ft Tq) And Triple Disc (1500 Ft Tq) Configurations To Meet The Harshest Needs In The Industry. These Units Rely On strapped drive system where the floater plate is bolted to the flywheel using a spring steel strap. This keeps the twin disc system quiet during clutch release and gets away from the stigma of "noisey twin discs" associated with pin drive units. Our Mag Force Units Also Offer Bolt On External Balance Weights For Most Applications.
Specifications:
| Description_ASM |
Chevrolet: Bel Air 57 - 67 4.6 L Engine, Chevrolet: Bel Air 68 - 68 5 L Engine, Chevrolet: Bel Air 62 - 69 5.3 L Engine, Chevrolet: Bel Air 69 - 73 5.7 L Engine, Chevrolet: Bel Air 65 - 69 6.5 L Engine, Chevrolet: Bel Air 70 - 73 6.6 L Engine, Chevrolet: Bel Air 61 - 65 6.7 L Engine, Chevrolet: Bel Air 63 - 69 7 L Engine, Chevrolet: Bel Air 70 - 73 7.4 L Engine, Chevrolet: Biscayne 58 - 67 4.6 L Engine, Chevrolet: Biscayne 68 - 68 5 L Engine, Chevrolet: Biscayne 62 - 69 5.3 L Engine, Chevrolet: Biscayne 69 - 72 5.7 L Engine, Chevrolet: Biscayne 65 - 69 6.5 L Engine, Chevrolet: Biscayne 70 - 72 6.6 L Engine, Chevrolet: Biscayne 61 - 65 6.7 L Engine, Chevrolet: Biscayne 63 - 69 7 L Engine, Chevrolet: Biscayne 70 - 72 7.4 L Engine, Chevrolet: Brookwood 69 - 72 5 L Engine, Chevrolet: Brookwood 69 - 69 5.3 L Engine, Chevrolet: Brookwood 69 - 72 5.7 L Engine, Chevrolet: Brookwood 69 - 69 6.5 L Engine, Chevrolet: Brookwood 70 - 72 6.6 L Engine, Chevrolet: Brookwood 69 - 69 7 L Engine, Chevrolet: Brookwood 70 - 72 7.4 L Engine, Chevrolet: Camaro 67 - 69 4.9 L Engine, Chevrolet: Camaro 69 - 85 5 L Engine, Chevrolet: Camaro 67 - 69 5.3 L Engine, Chevrolet: Camaro 67 - 81 5.7 L Engine, Chevrolet: Camaro 67 - 69 6.5 L Engine, Chevrolet: Camaro 70 - 72 6.6 L Engine, Chevrolet: Camaro 69 - 69 7 L Engine, Chevrolet: Caprice 66 - 67 4.6 L Engine, Chevrolet: Caprice 68 - 72 5 L Engine, Chevrolet: Caprice 66 - 69 5.3 L Engine, Chevrolet: Caprice 69 - 72 5.7 L Engine, Chevrolet: Caprice 66 - 69 6.5 L Engine, Chevrolet: Caprice 70 - 72 6.6 L Engine, Chevrolet: Caprice 66 - 69 7 L Engine, Chevrolet: Caprice 70 - 72 7.4 L Engine, Chevrolet: Chevelle 64 - 67 4.6 L Engine, Chevrolet: Chevelle 68 - 72 5 L Engine, Chevrolet: Chevelle 64 - 67 5.3 L Engine, Chevrolet: Chevelle 70 - 72 5.7 L Engine, Chevrolet: Chevelle 65 - 67 6.5 L Engine, Chevrolet: Chevelle 70 - 72 6.6 L Engine, Chevrolet: Chevelle 70 - 72 7.4 L Engine, Chevrolet: Chevy II 63 - 67 4.6 L Engine, Chevrolet: Chevy II... |
| Description_DEF |
Transmission Clutch Kit |
| Description_DES |
Mag Force: Single Disc: Strap Drive: Chevrolet: 1955-85 SBC: 1-1/8x10: 153T |
| Description_FAB |
The Mag Force is perfect for Road Racing, Drag Racing and Salt Flats Time trials. |
| Description_EXT |
Mag Force: Single Disc: Strap Drive: Chevrolet: 1955-85 SBC: 1-1/8x10: 153T |
| Description_INV |
Clutch Kit |
| Description_SHO |
Clutch Kit |
| Description_MKT |
Mag Force - These Clutches Are The Perfect Choice For Racers Looking For A Lightweight, High Torque Capacity Unit. They Are Designed To Be Used For Oval Track, Road Racing And Dry Lakes Applications. These Units Are Offered In Single Disc (500Ft Tq) Double Disc (900 Ft Tq) And Triple Disc (1500 Ft Tq) Configurations To Meet The Harshest Needs In The Industry. These Units Rely On strapped drive system where the floater plate is bolted to the flywheel using a spring steel strap. This keeps the twin disc system quiet during clutch release and gets away from the stigma of "noisey twin discs" associated with pin drive units. Our Mag Force Units Also Offer Bolt On External Balance Weights For Most Applications. |
| Engine Balance |
Neutral |
| Flywheel Material |
Aluminum |
| Ring Gear |
153T |
| Engine |
1955-85 SBC,1970-90 BBC; 1991-1999 BBC 1pc Seal |
| Hardware Included |
Yes |
| Pilot Bushing Material |
N/A |
| Flywheel Included |
Yes |
| Disc Diameter |
8In. |
| Pilot Bushing Included |
No |
| Clutch Patterns |
Proprietery McLeod Mag Force |
| Number of Discs |
Single |
| Alignment Tool Included |
Yes |
| Torque Rating |
500 Ft. Lbs. |
| Spline |
1-1/8 x 26 |
| Throwout Bearing Style |
Standard |
| Clutch Usage |
Drifting,Land Speed, Road Race |
| Throwout Bearing Included |
No |
| Disc Style |
Segmented |
| Make |
Chevrolet |
| Pressure Plate Style |
Diaphragm |
| Disc Material |
Sintered Iron |
| Additional Counter Weight Kit Required |
560222 |
| Hub Style |
Solid |
| Length |
6.0000 |
| Width |
17.0000 |
| Height |
16.0000 |
| Weight |
21.0000 |
