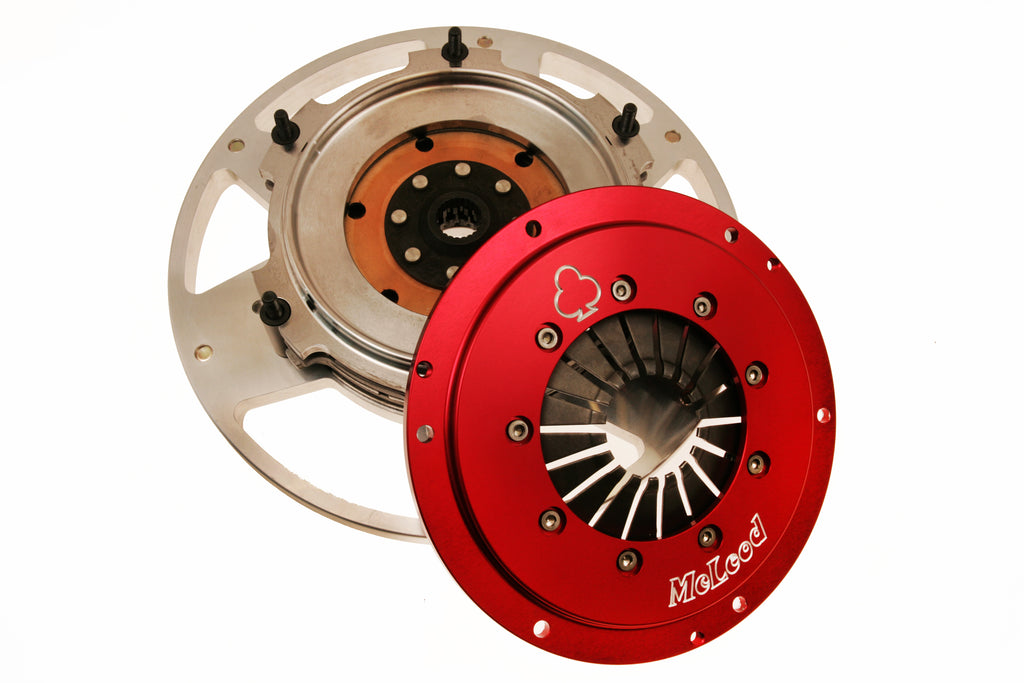

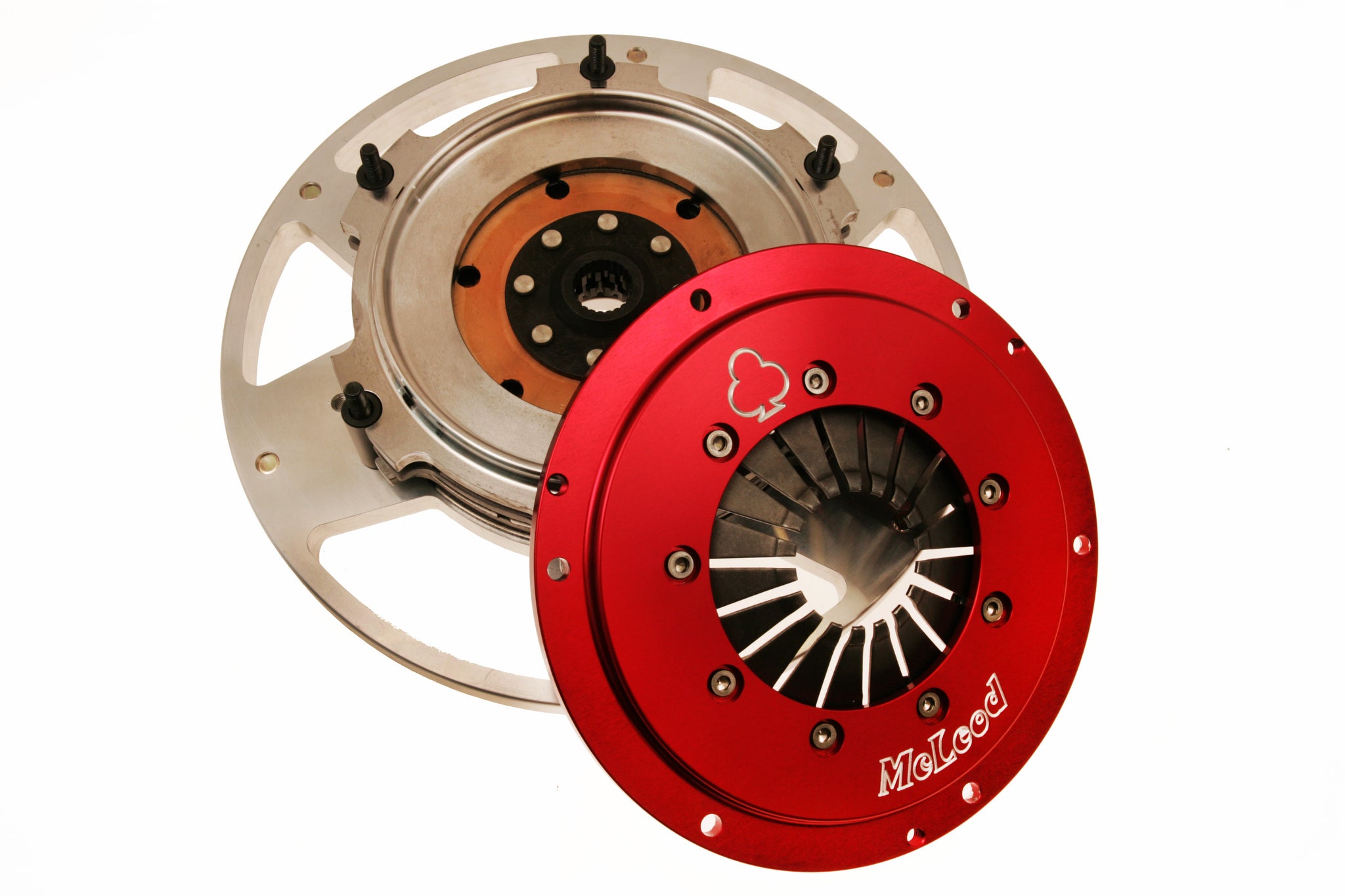

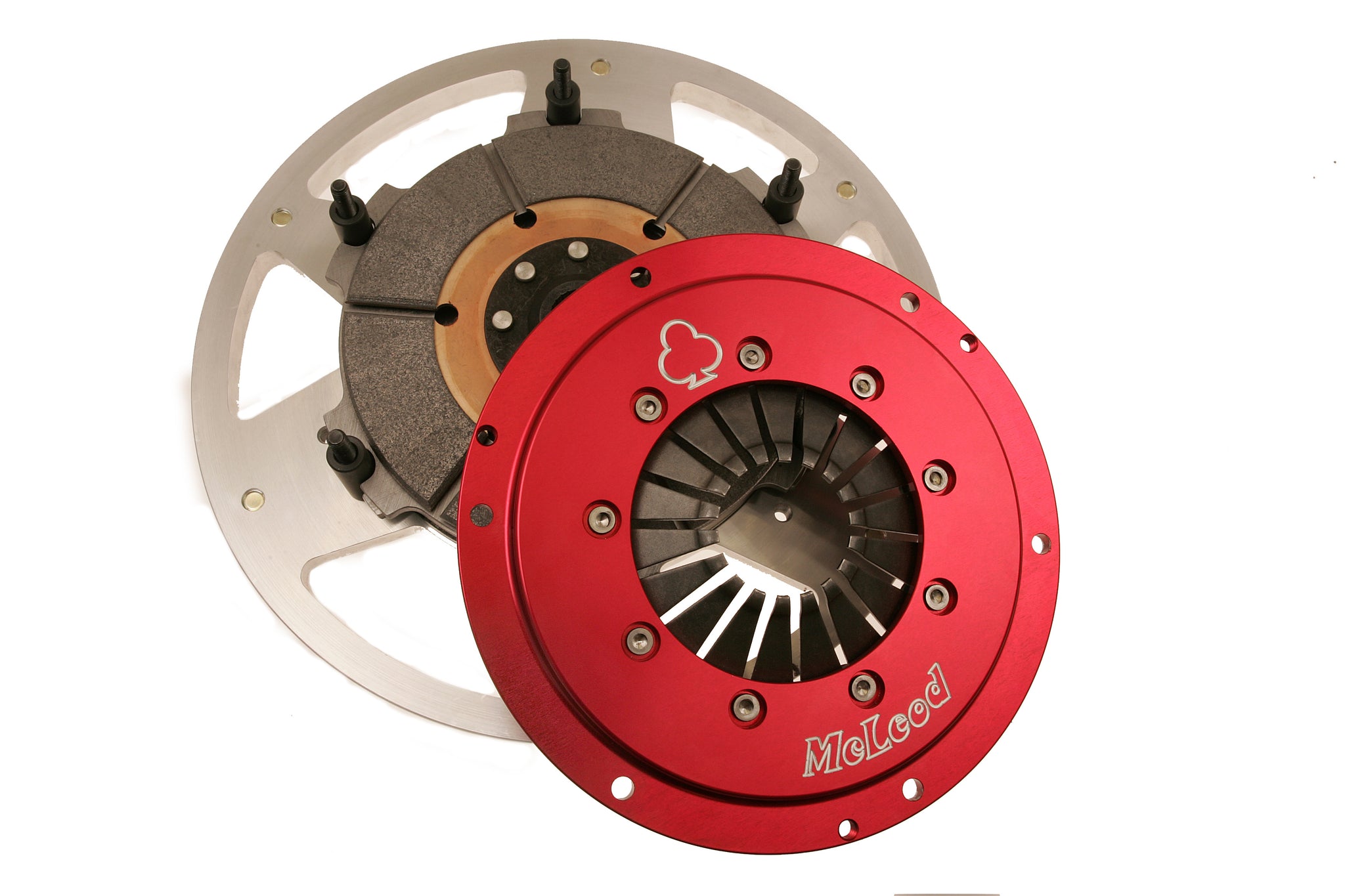

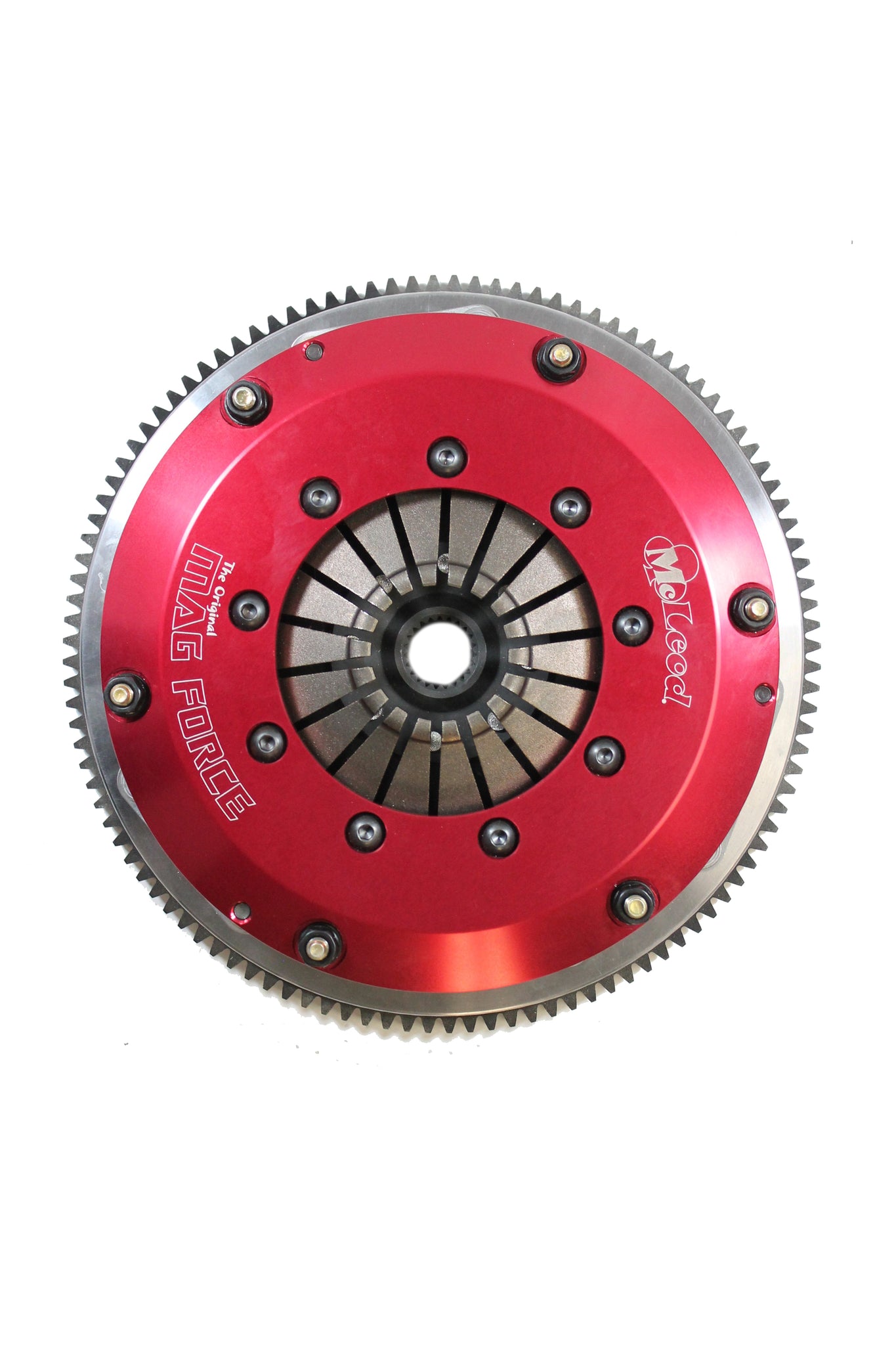

McLeod Racing's 50 years of world class clutch innovation has brought a new line that is inspired from a racing heritage. McLeod Racing introduces a twin disc clutch set up for the street, the Mag Force SE. Rated up to 700 HP, this twin disc clutch is perfect for the high horsepower street cars in both Import and Domestic applications. With a billet aluminum cover, two ceramic discs, this is your ideal clutch for the street or the track.
Specifications:
| Description_ASM |
Ford: Mustang 96 - 04 4.6 L Engine, Ford: Mustang 11 - 17 5 L Engine, Ford: Mustang 00 - 09 5.4 L Engine |
| Description_DEF |
Transmission Clutch Kit |
| Description_EXT |
Mag ForceSE: Double Disc: Pin Drive: Ford: 1996-17 Mod: 8 Bolt Crank: 1-1/8x26: 164T: Ceramic Discs |
| Description_DES |
Mag ForceSE: Double Disc: Pin Drive: Ford: 1996-17 Mod: 8 Bolt: 1-1/8x26: 164T |
| Description_SHO |
Clutch Kit |
| Description_INV |
Clutch Kit |
| Description_MKT |
McLeod Racing's 50 years of world class clutch innovation has brought a new line that is inspired from a racing heritage. McLeod Racing introduces a twin disc clutch set up for the street, the Mag Force SE. Rated up to 700 HP, this twin disc clutch is perfect for the high horsepower street cars in both Import and Domestic applications. With a billet aluminum cover, two ceramic discs, this is your ideal clutch for the street or the track. |
| Description_FAB |
The Mag Force is perfect for Road Racing, Drag Racing and Salt Flats Time trials. |
| Throwout Bearing Included |
No |
| Ring Gear |
164 Tooth |
| Engine Balance |
Internal Balance |
| Additional Counter Weight Kit Required |
N/A |
| Hub Style |
Solid |
| Flywheel Material |
Aluminum |
| Engine |
1996-2017 4.6L/5.0L/5.4L Modular with 8 Bolt Crank |
| Make |
Ford |
| Pilot Bushing Material |
N/A |
| Disc Diameter |
8In. |
| Number of Discs |
Double |
| Pilot Bushing Included |
No |
| Hardware Included |
Yes |
| Torque Rating |
900 Ft. lbs. |
| Alignment Tool Included |
Yes |
| Clutch Usage |
Drifting,Land Speed, Road Race |
| Pressure Plate Style |
Diaphragm |
| Disc Style |
Segmented |
| Disc Material |
Ceramic |
| Spline |
1-1/8 x 26 |
| Flywheel Included |
Yes |
| Length |
6.0000 |
| Width |
17.0000 |
| Height |
16.0000 |
| Weight |
21.0000 |
