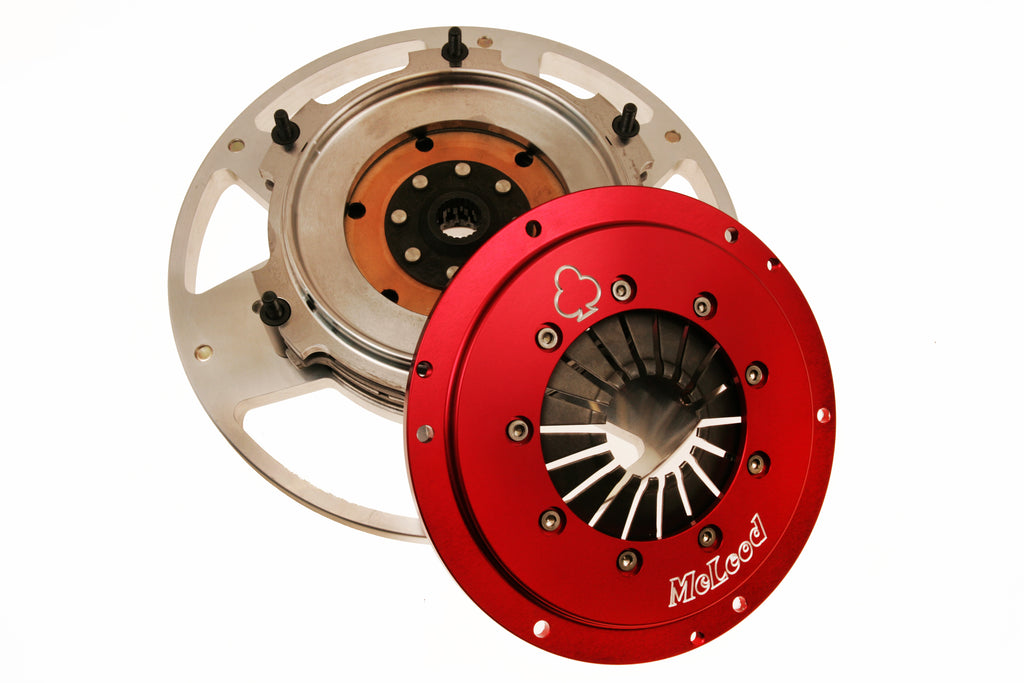

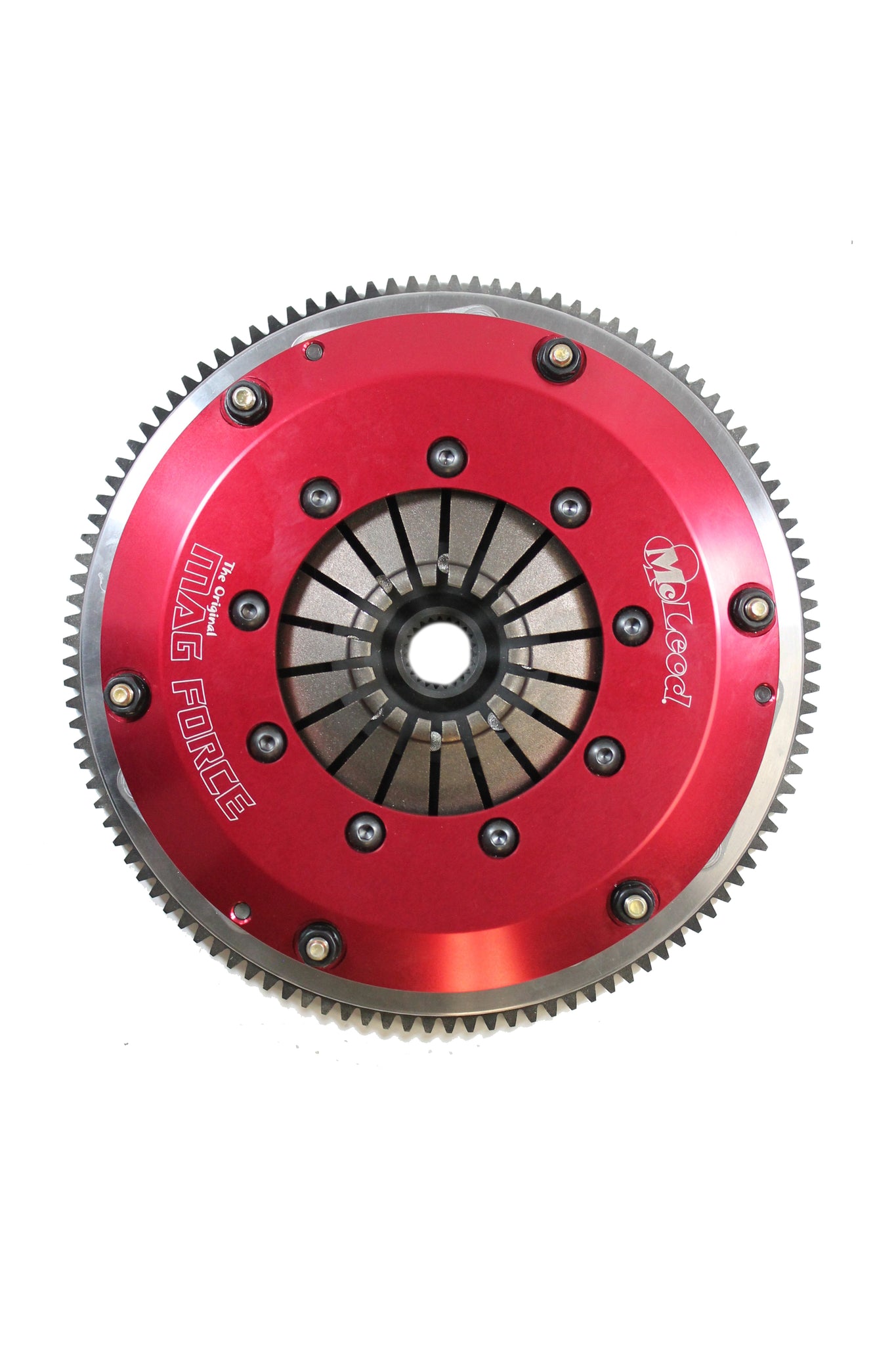

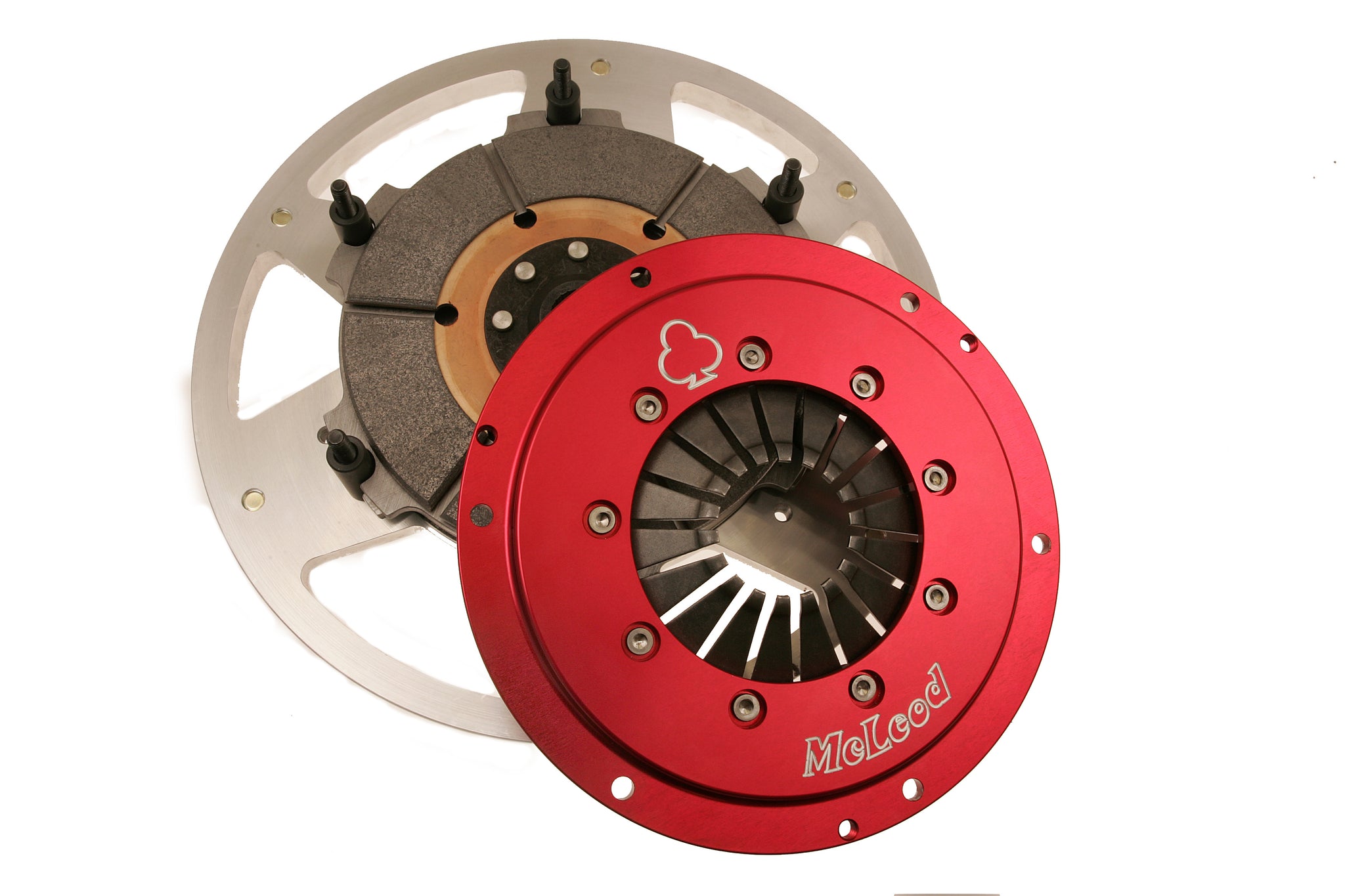

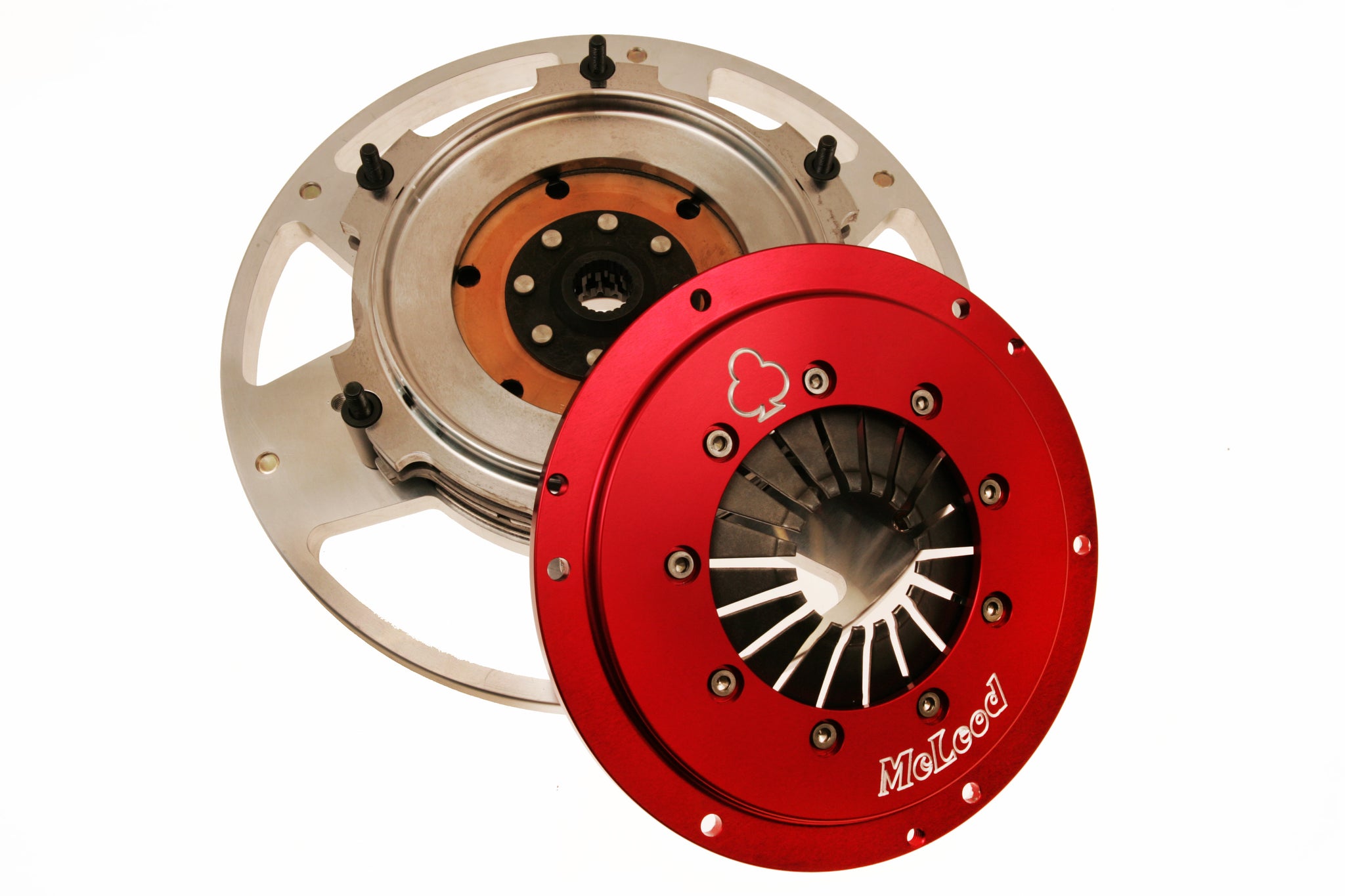

Mag Force - These Clutches Are The Perfect Choice For Racers Looking For A Lightweight, High Torque Capacity Unit. They Are Designed To Be Used For Oval Track, Road Racing And Dry Lakes Applications. These Units Are Offered In Single Disc (500Ft Tq) Double Disc (900 Ft Tq) And Triple Disc (1500 Ft Tq) Configurations To Meet The Harshest Needs In The Industry. These Units Rely On A Pin Drive Actuation System Where The Floater Plate Slides On 6 Evenly Spaced Pins For Quick Release In A Racing Application. Our Mag Force Units Also Offer Bolt On External Balance Weights For Most Applications.
Specifications:
| Description_DEF |
Transmission Clutch Kit |
| Description_DES |
Mag Force: Single Disc: Pin Drive: Ford: 2011-17 5.0L: 8 Bolt Crank: 1x23: 164T |
| Description_EXT |
Mag Force: Single Disc: Pin Drive: Ford: 2011-17 5.0L: 8 Bolt Crank: 1x23: 164T |
| Description_INV |
Clutch Kit |
| Description_MKT |
Mag Force - These Clutches Are The Perfect Choice For Racers Looking For A Lightweight, High Torque Capacity Unit. They Are Designed To Be Used For Oval Track, Road Racing And Dry Lakes Applications. These Units Are Offered In Single Disc (500Ft Tq) Double Disc (900 Ft Tq) And Triple Disc (1500 Ft Tq) Configurations To Meet The Harshest Needs In The Industry. These Units Rely On A Pin Drive Actuation System Where The Floater Plate Slides On 6 Evenly Spaced Pins For Quick Release In A Racing Application. Our Mag Force Units Also Offer Bolt On External Balance Weights For Most Applications. |
| Description_FAB |
The Mag Force is perfect for Road Racing, Drag Racing and Salt Flats Time trials. |
| Description_SHO |
Clutch Kit |
| Number of Discs |
Single |
| Throwout Bearing Style |
Standard |
| Flywheel Included |
Yes |
| Spline |
1 x 23 Metric |
| Racing Application 3 |
Dry Lakes (Bonneville) |
| Disc Style |
Segmented |
| Balance |
Internal Balance |
| Disc Material |
Sintered Iron |
| Pilot Bushing Material |
N/A |
| Ring Gear |
164 tooth |
| Engine |
1996-2017 Modular 4.6L/5.0L/5.4L 8 Bolt Crank |
| Disc Diameter |
8In. |
| Hardware Included |
Yes |
| Alignment Tool Included |
Yes |
| Flywheel Material |
Aluminum |
| Make |
Ford |
| Racing Application |
Road Race & Slalom Racing |
| Throwout Bearing Included |
No |
| Pilot Bushing Included |
No |
| Racing Application 2 |
Drifting |
| Length |
6.0000 |
| Width |
17.0000 |
| Height |
16.0000 |
| Weight |
19.0000 |
