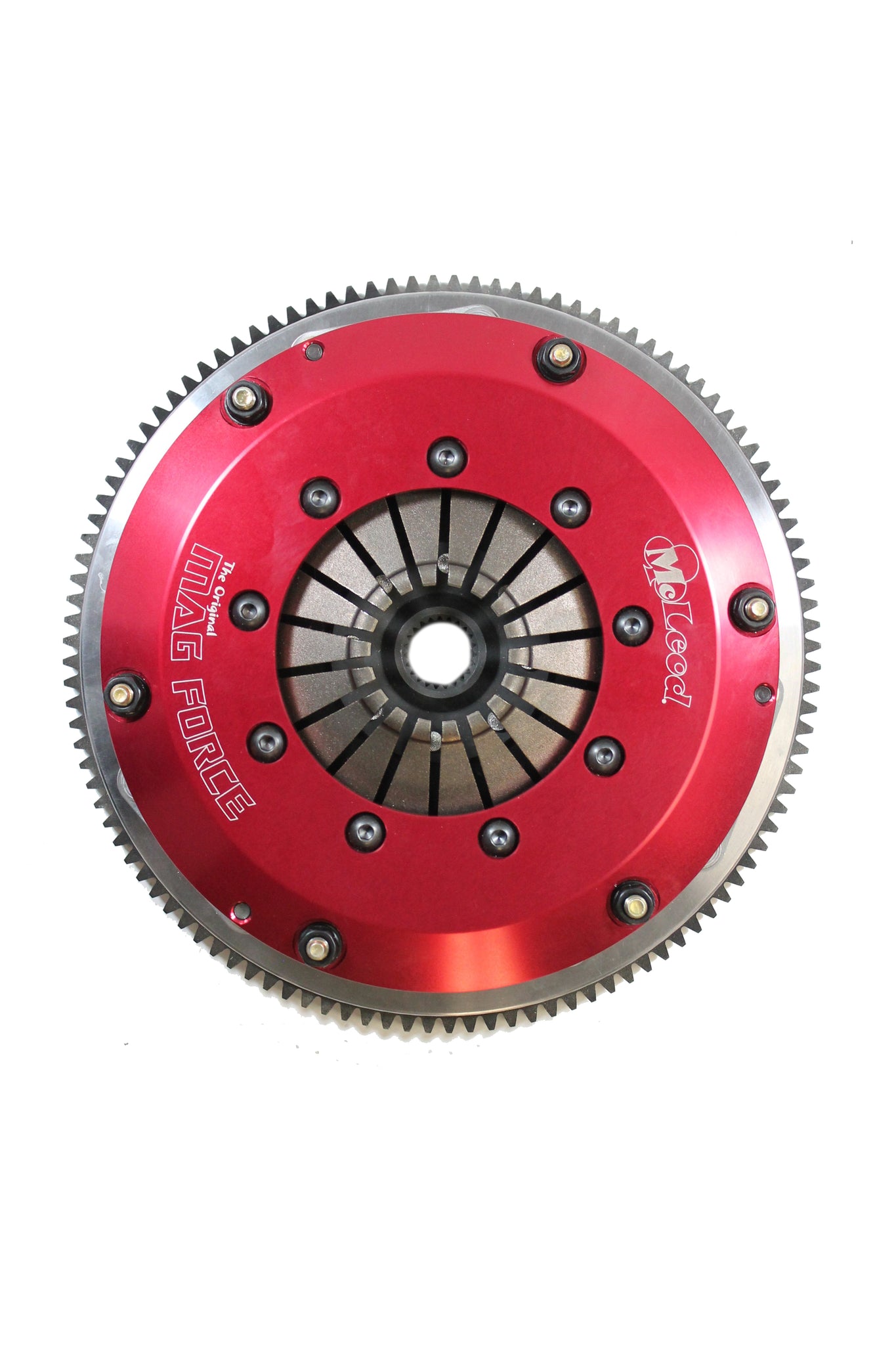

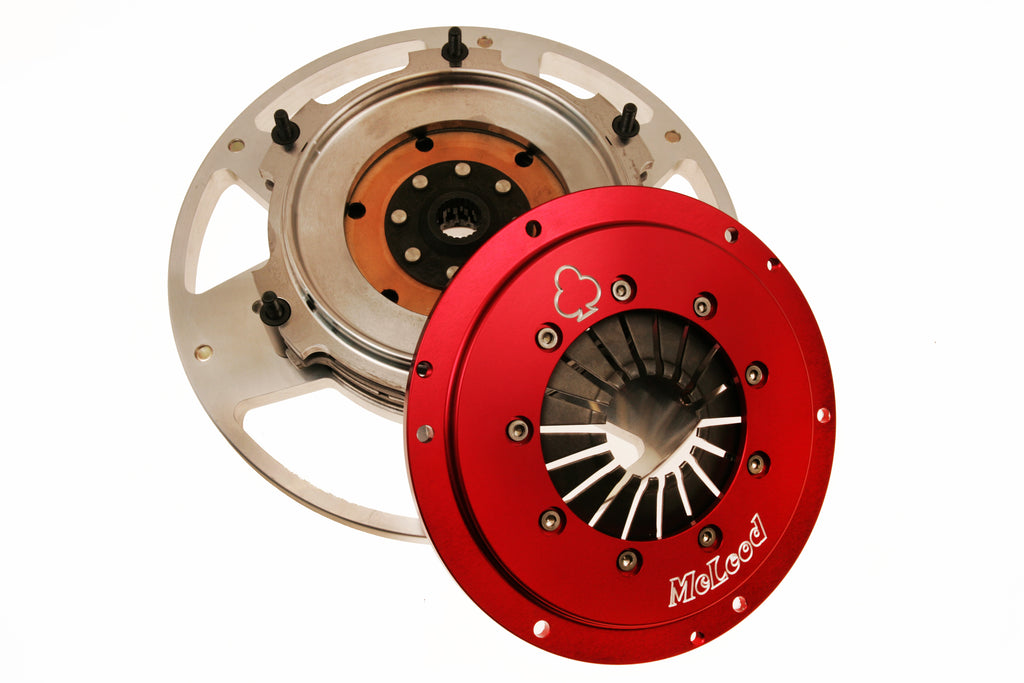

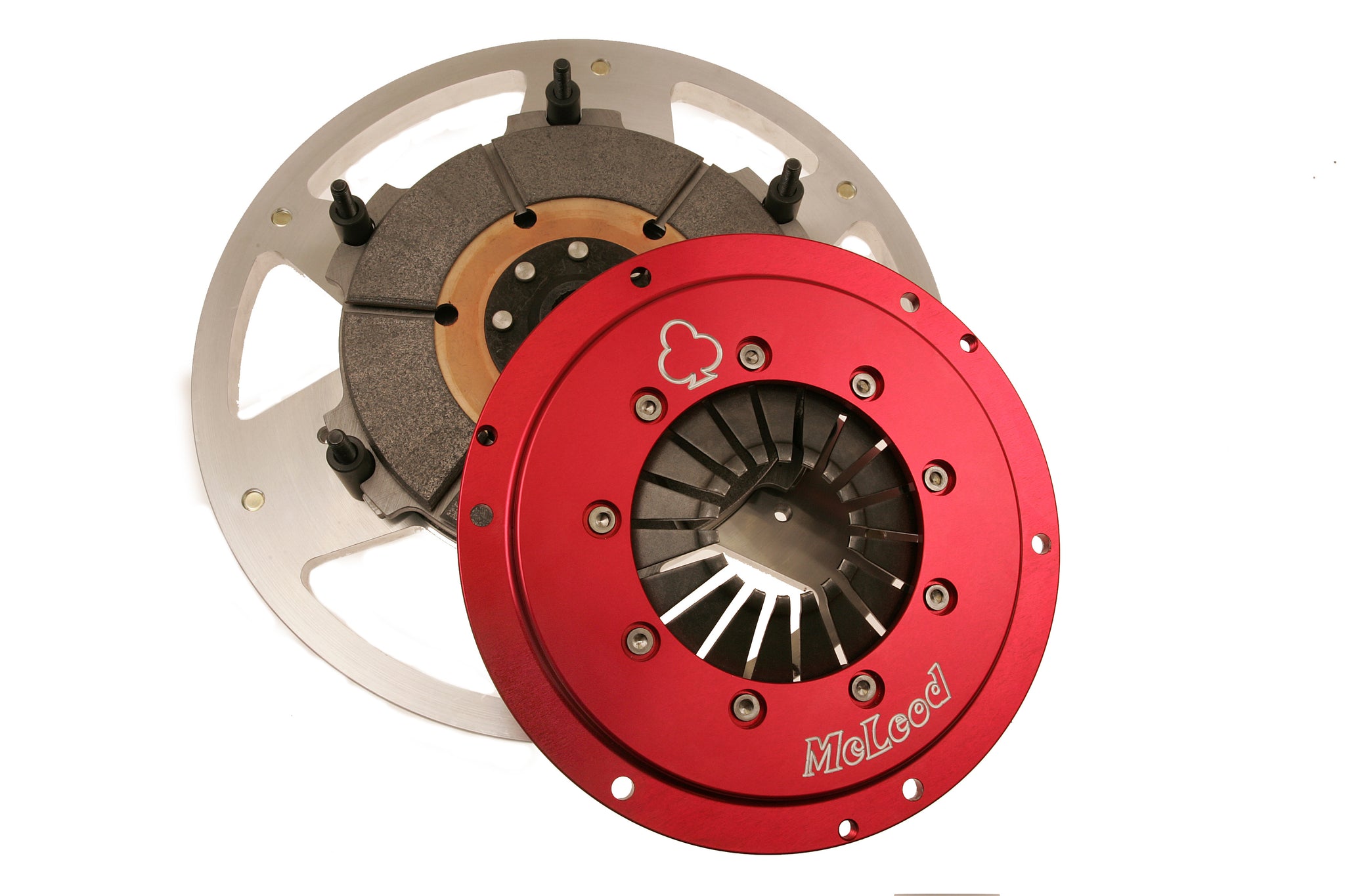

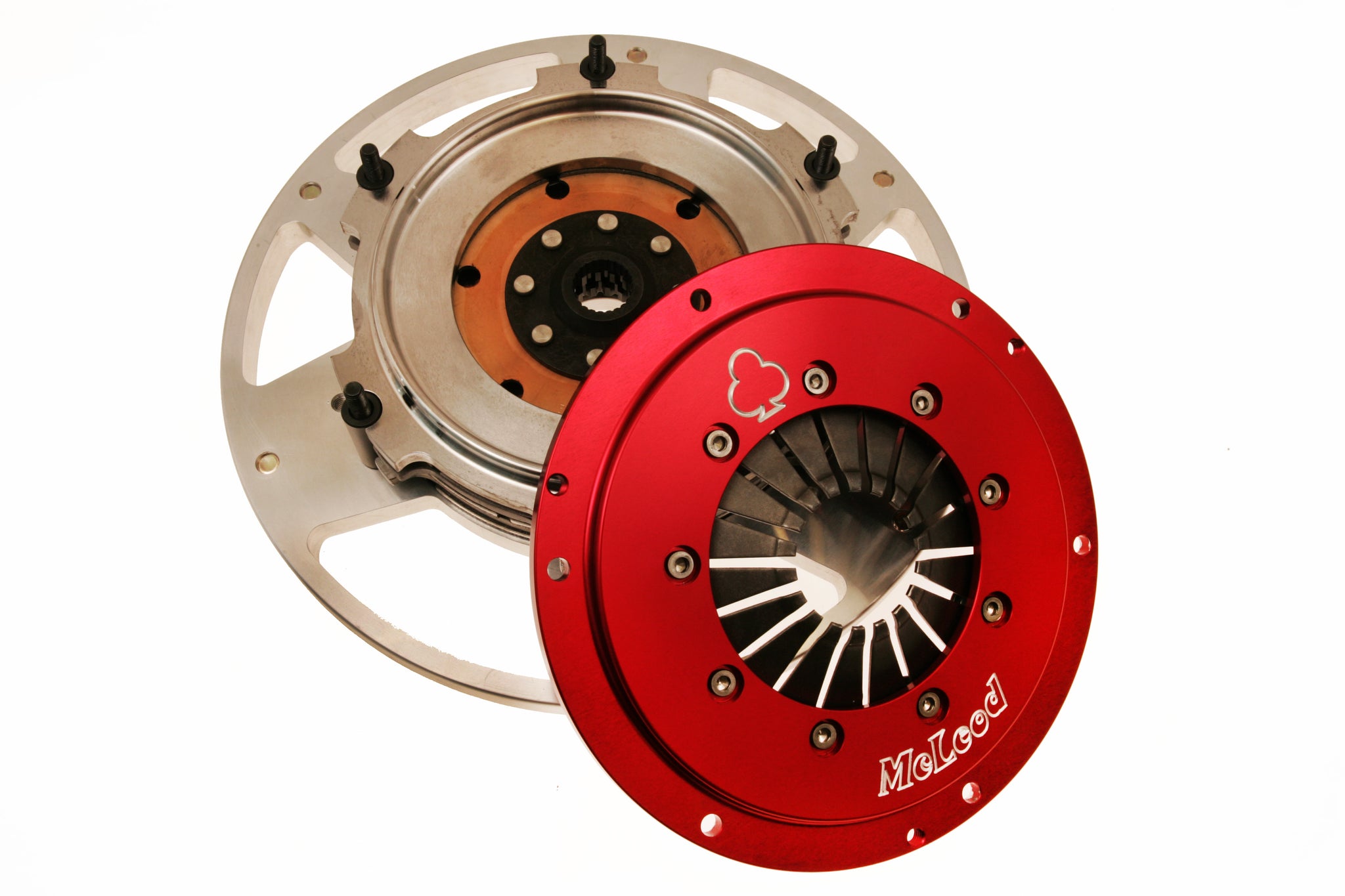

Mag Force - These Clutches Are The Perfect Choice For Racers Looking For A Lightweight, High Torque Capacity Unit. They Are Designed To Be Used For Oval Track, Road Racing And Dry Lakes Applications. These Units Are Offered In Single Disc (500Ft Tq) Double Disc (900 Ft Tq) And Triple Disc (1500 Ft Tq) Configurations To Meet The Harshest Needs In The Industry. These Units Rely On A Pin Drive Actuation System Where The Floater Plate Slides On 6 Evenly Spaced Pins For Quick Release In A Racing Application. Our Mag Force Units Also Offer Bolt On External Balance Weights For Most Applications.
Specifications:
| Description_ASM |
Ford: Mustang 96 - 04 4.6 L Engine, Ford: Mustang 00 - 09 5.4 L Engine |
| Description_DEF |
Transmission Clutch Kit |
| Description_EXT |
Mag Force: Single Disc: Pin Drive: Ford: 1996-04 4.6L: 8 Bolt Crank: 1-1/16x10: 164T |
| Description_DES |
Mag Force: Single Disc: Pin Drive: Ford: 1996-04 4.6L: 8 Bolt: 1-1/16x10: 164T |
| Description_MKT |
Mag Force - These Clutches Are The Perfect Choice For Racers Looking For A Lightweight, High Torque Capacity Unit. They Are Designed To Be Used For Oval Track, Road Racing And Dry Lakes Applications. These Units Are Offered In Single Disc (500Ft Tq) Double Disc (900 Ft Tq) And Triple Disc (1500 Ft Tq) Configurations To Meet The Harshest Needs In The Industry. These Units Rely On A Pin Drive Actuation System Where The Floater Plate Slides On 6 Evenly Spaced Pins For Quick Release In A Racing Application. Our Mag Force Units Also Offer Bolt On External Balance Weights For Most Applications. |
| Description_FAB |
The Mag Force is perfect for Road Racing, Drag Racing and Salt Flats Time trials. |
| Description_INV |
Clutch Kit |
| Description_SHO |
Clutch Kit |
| Spline |
1 1/16In. x 10 |
| Flywheel Included |
Yes |
| Clutch Usage |
Drifting |
| Disc Style |
Puck Style |
| Balance |
For Ext Balanced Also Order Weight Kit 560222 |
| Disc Material |
Sintered Iron |
| Flywheel Material |
Aluminum |
| Engine |
1996-2016 4.6L/5.0L/5.4L 8 Bolt Crank |
| Number of Discs |
Single |
| Racing Application |
Road Race & Slalom Racing |
| Pilot Bushing Material |
N/A |
| Throwout Bearing Style |
Standard |
| Throwout Bearing Included |
No |
| Pilot Bushing Included |
No |
| Disc Diameter |
8In. |
| Alignment Tool Included |
Yes |
| Hardware Included |
Yes |
| Engine Balance |
Internal Balance |
| Make |
Ford |
| Length |
6.0000 |
| Width |
17.0000 |
| Height |
16.0000 |
| Weight |
22.0000 |
