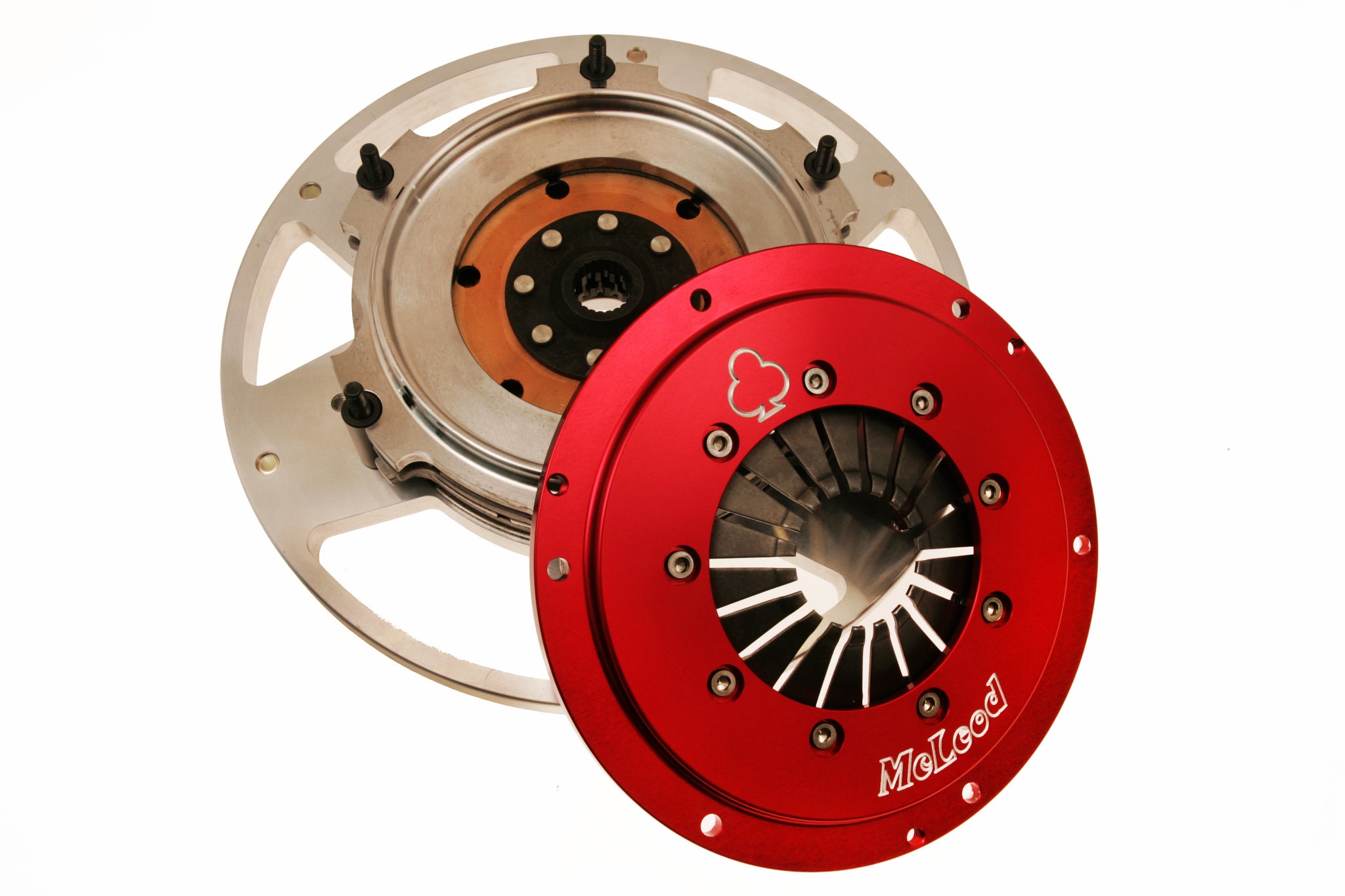

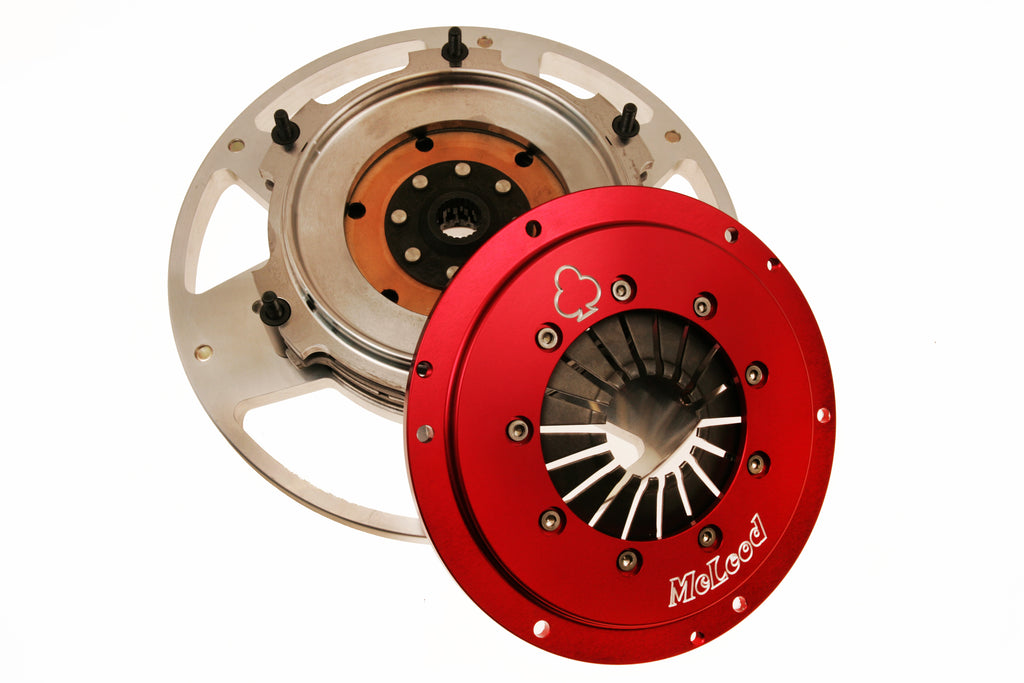

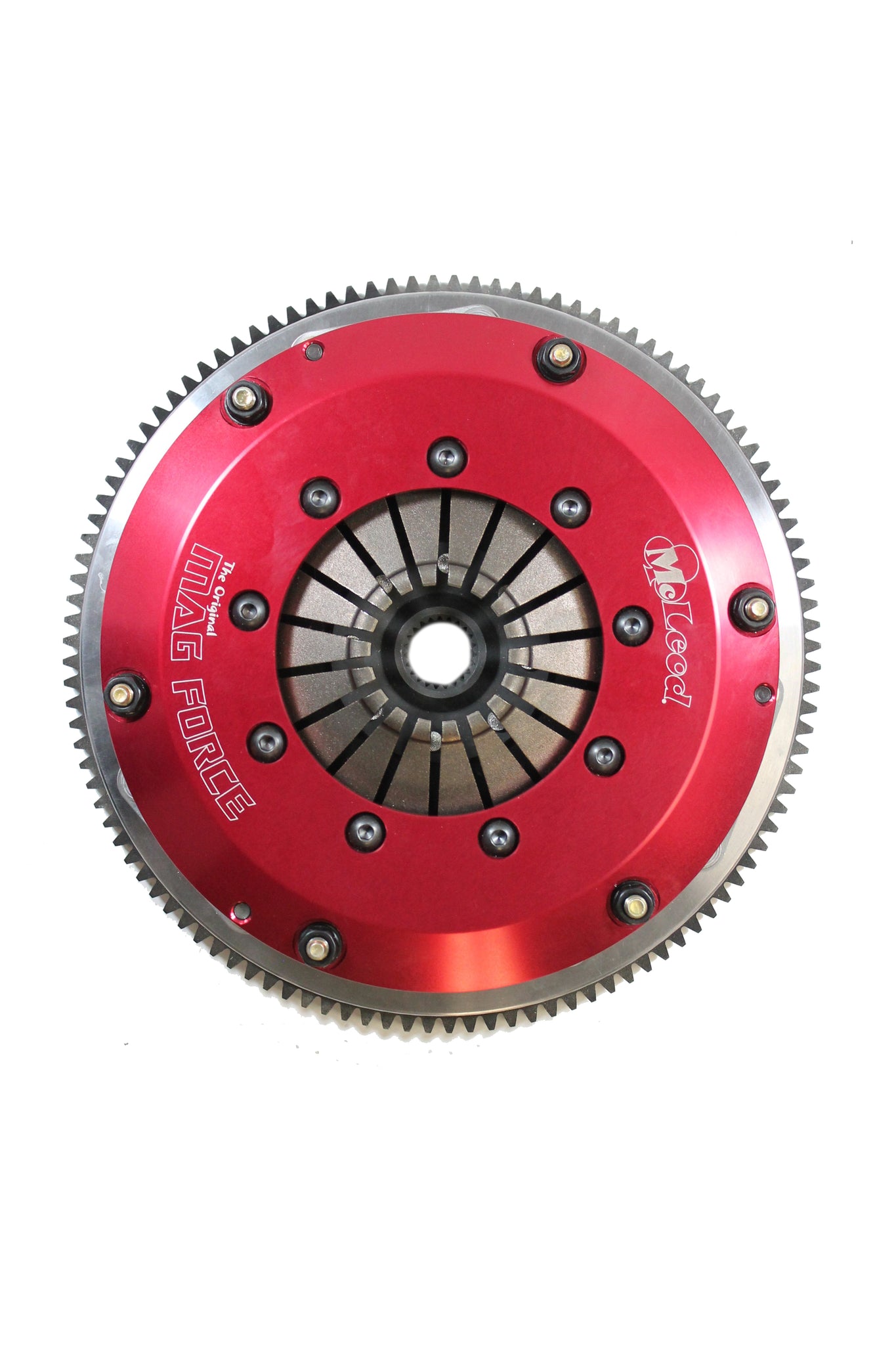

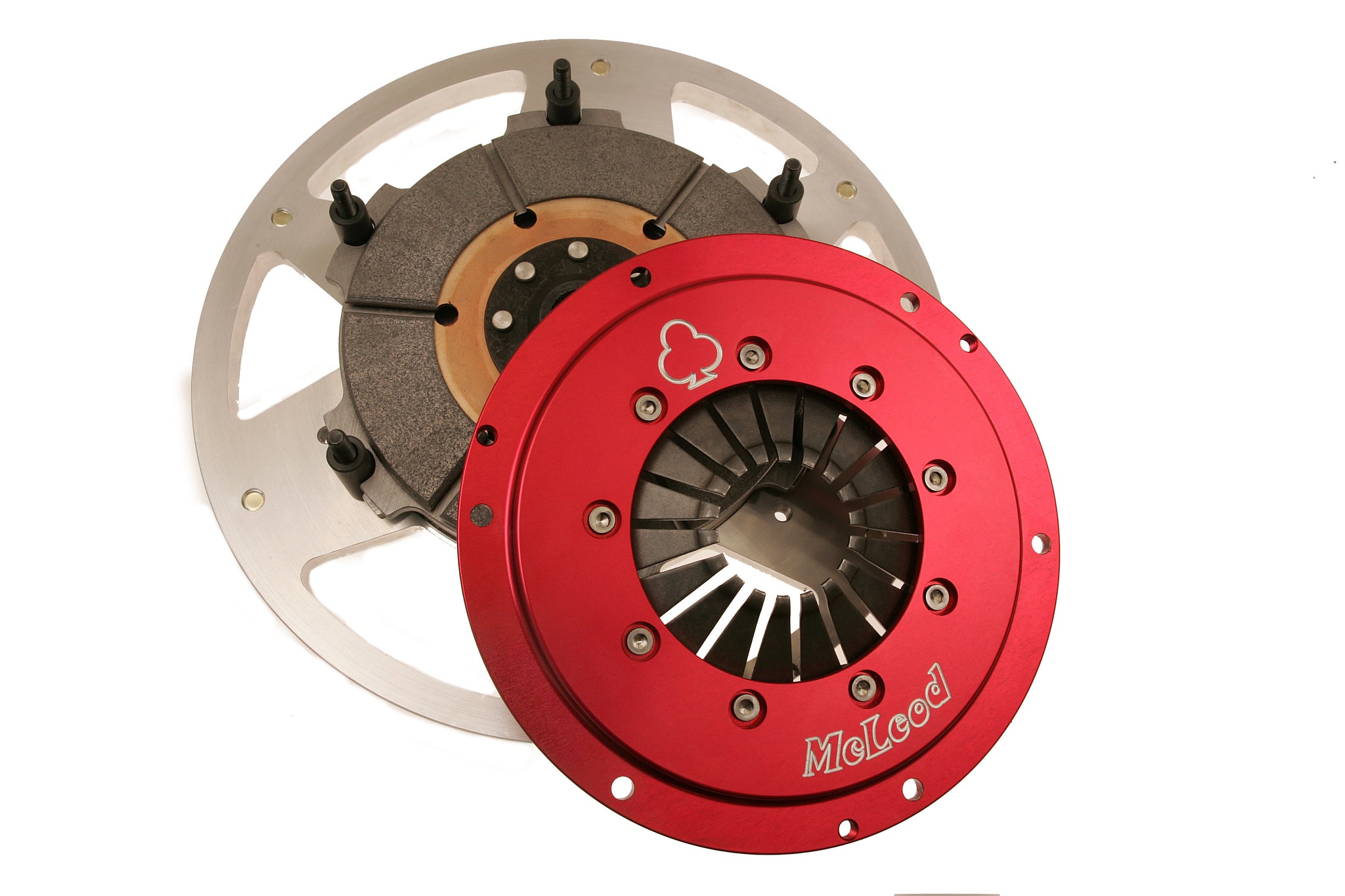

Mag Force - These Clutches Are The Perfect Choice For Racers Looking For A Lightweight, High Torque Capacity Unit. They Are Designed To Be Used For Oval Track, Road Racing And Dry Lakes Applications. These Units Are Offered In Single Disc (500Ft Tq) Double Disc (900 Ft Tq) And Triple Disc (1500 Ft Tq) Configurations To Meet The Harshest Needs In The Industry. These Units Rely On A Pin Drive Actuation System Where The Floater Plate Slides On 6 Evenly Spaced Pins For Quick Release In A Racing Application. Our Mag Force Units Also Offer Bolt On External Balance Weights For Most Applications.
Specifications:
| Description_DEF |
Transmission Clutch Kit |
| Description_DES |
Mag Force: Double Disc: Pin Drive: Ford: 1958-76 BBF Fe: 1-3/8x10: 184T |
| Description_FAB |
The Mag Force is perfect for Road Racing, Drag Racing and Salt Flats Time trials. |
| Description_INV |
Clutch Kit |
| Description_EXT |
Mag Force: Double Disc: Pin Drive: Ford: 1958-76 BBF Fe: 1-3/8x10: 184T: Must use with internal hydraulic bearing |
| Description_MKT |
Mag Force - These Clutches Are The Perfect Choice For Racers Looking For A Lightweight, High Torque Capacity Unit. They Are Designed To Be Used For Oval Track, Road Racing And Dry Lakes Applications. These Units Are Offered In Single Disc (500Ft Tq) Double Disc (900 Ft Tq) And Triple Disc (1500 Ft Tq) Configurations To Meet The Harshest Needs In The Industry. These Units Rely On A Pin Drive Actuation System Where The Floater Plate Slides On 6 Evenly Spaced Pins For Quick Release In A Racing Application. Our Mag Force Units Also Offer Bolt On External Balance Weights For Most Applications. |
| Description_SHO |
Clutch Kit |
| Ring Gear |
184 tooth |
| Racing Application 2 |
Drifting |
| Hardware Included |
Yes |
| Engine |
1958-76 BBF Fe |
| Disc Diameter |
8In. |
| Flywheel Material |
Aluminum |
| Pilot Bushing Material |
N/A |
| Racing Application |
Road Race & Slalom Racing |
| Throwout Bearing Included |
No |
| Make |
Ford |
| Flywheel Included |
Yes |
| Spline |
1-3/8 x 10 |
| Pilot Bushing Included |
No |
| NOTE: |
This application require a 1300 Series Bolt on style bearing to work properly. Please Call McLeod Tech for more info at 714 630 2764 |
| Alignment Tool Included |
Yes |
| Racing Application 3 |
Dry Lakes (Bonneville) |
| Throwout Bearing Style |
Standard |
| Number of Discs |
Double |
| Balance |
Internal Balance |
| Disc Style |
Segmented |
| Engine Balance |
For External Balance use 563333 Kit |
| Disc Material |
Sintered Iron |
| Length |
6.0000 |
| Width |
17.0000 |
| Height |
16.0000 |
| Weight |
25.0000 |
