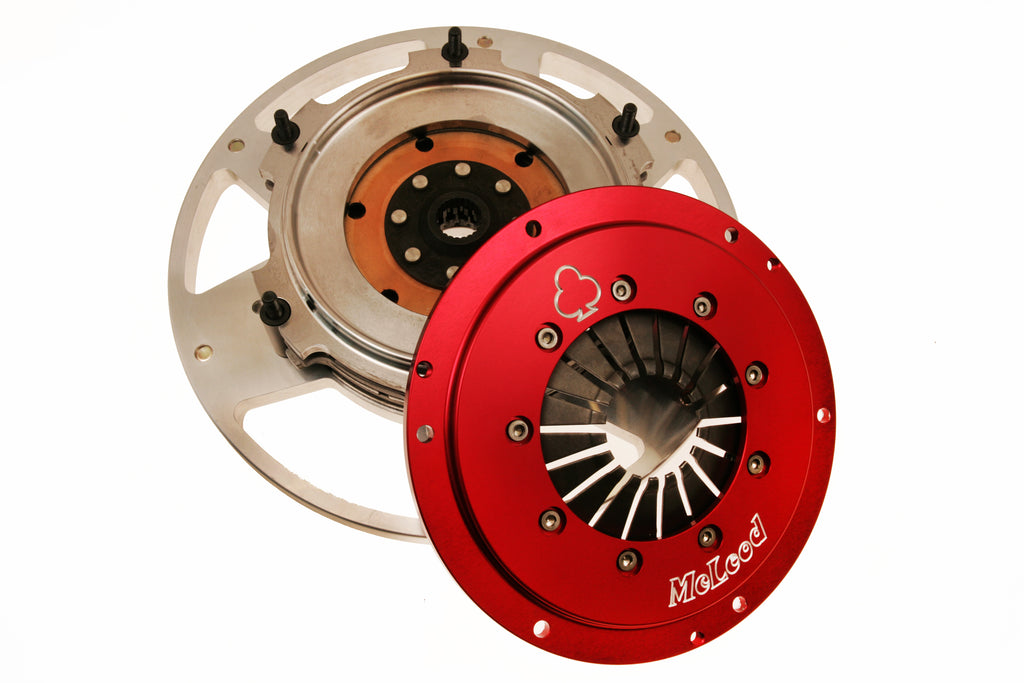

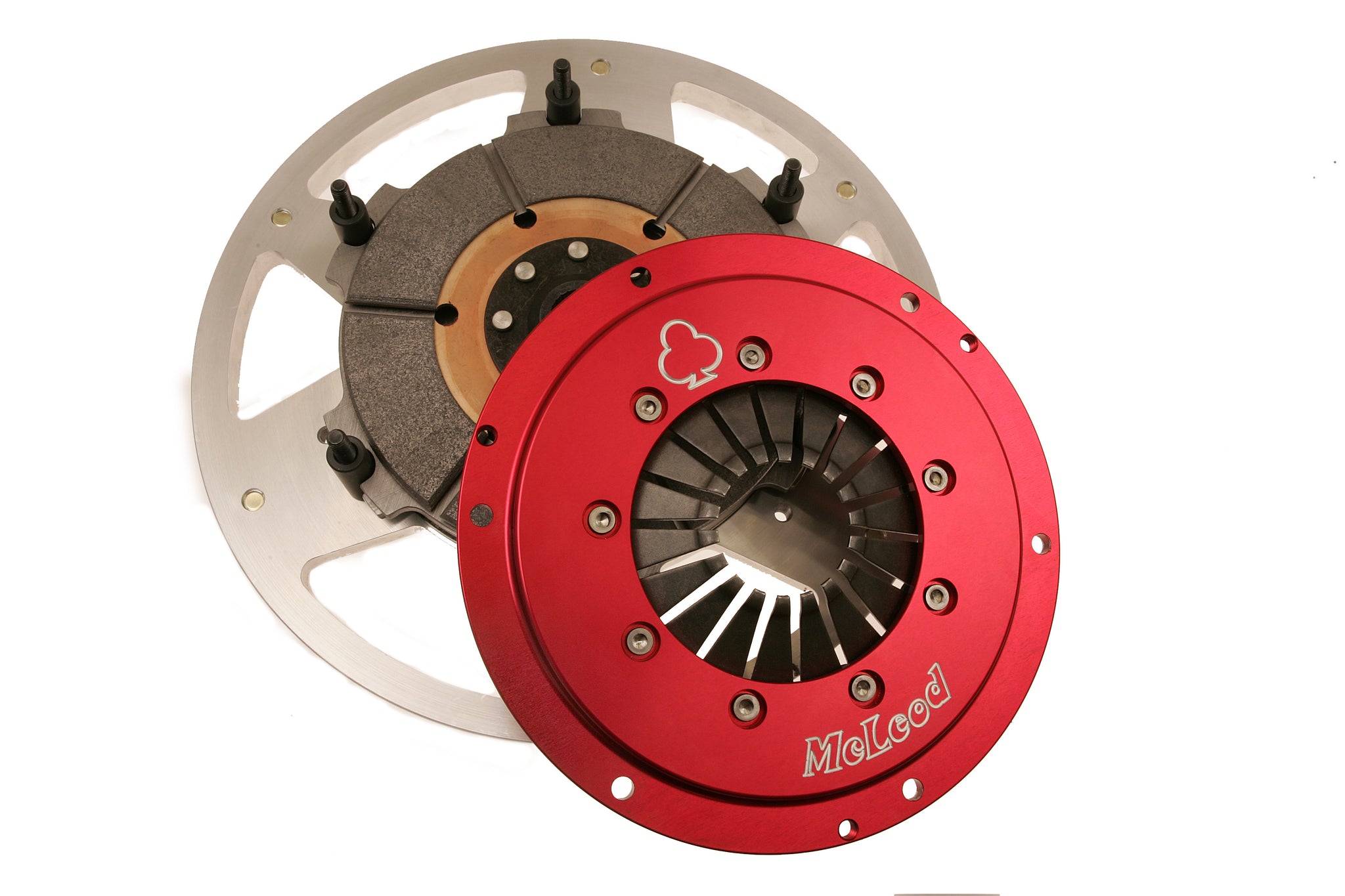

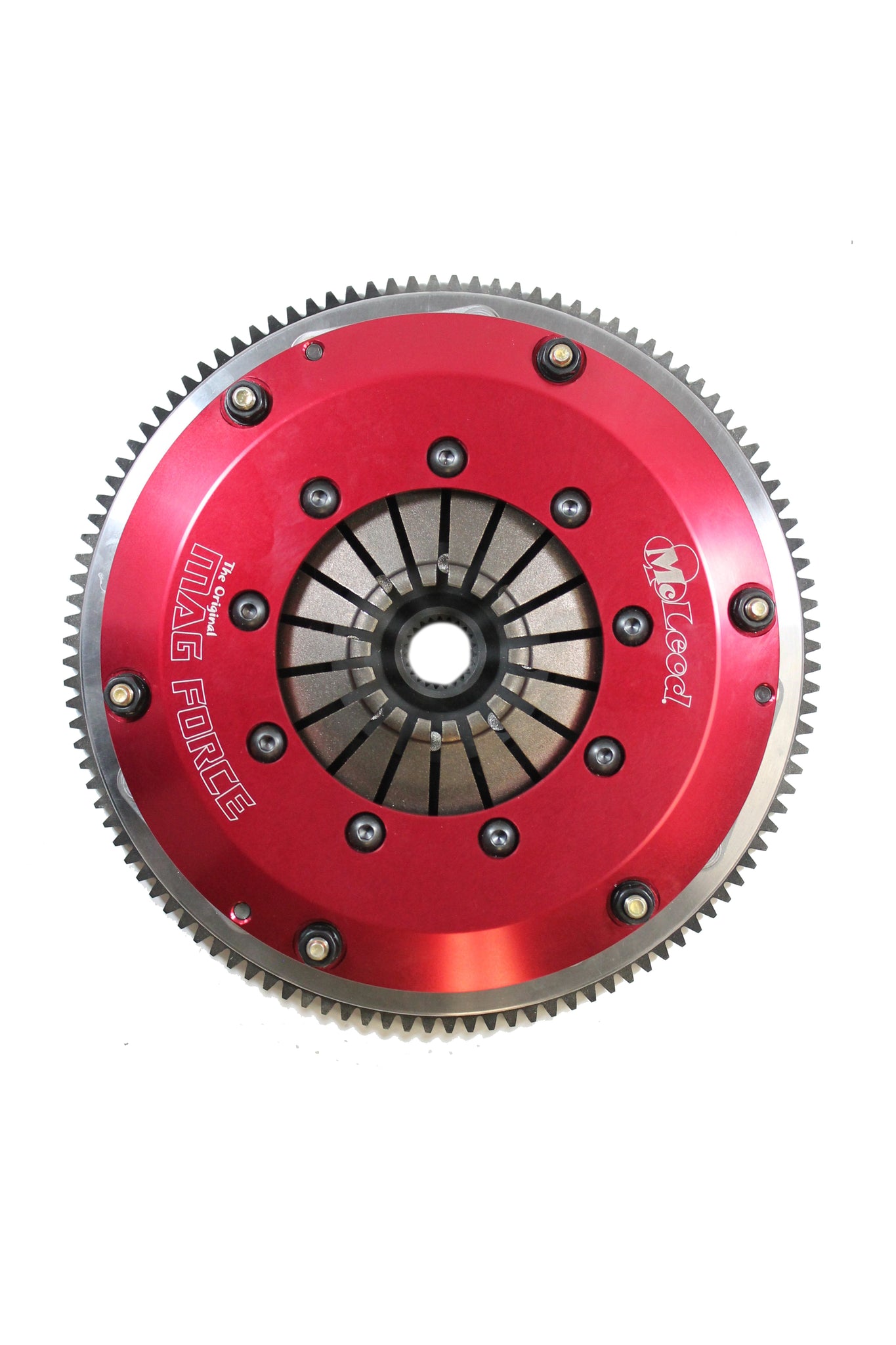

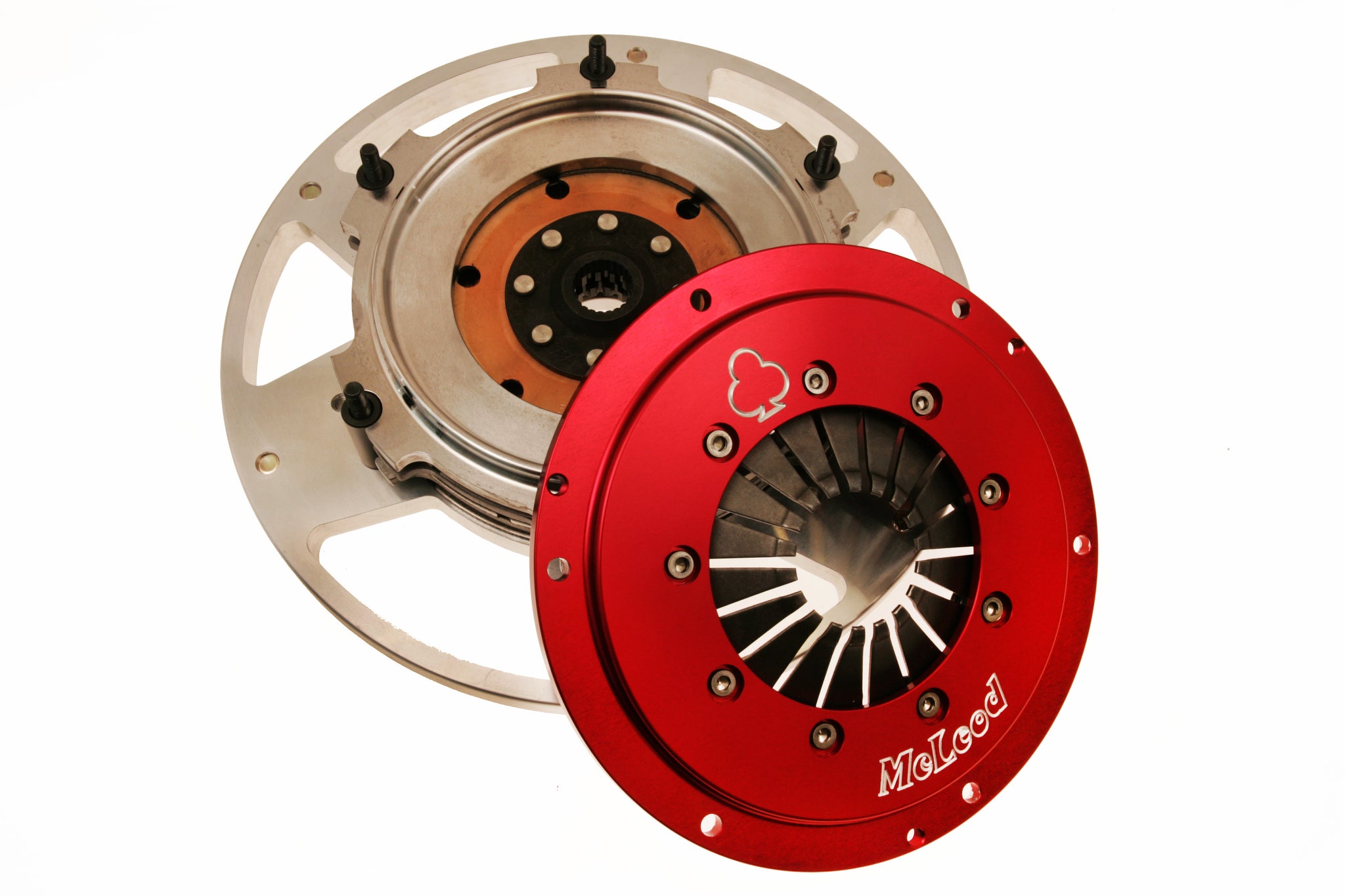

McLeod Racing 651321-00-05 Mag Force: Single Disc: Pin Drive: Ford: 1963-95 SBF: 1-3/16x18: 157T

2 sold in last 8 days
McLeod Racing
ds_BHGR_651321-00-05
Out of stock
Transmission Clutch Kit
$1,772.24

customers are viewing this product
McLeod Racing 651321-00-05 Mag Force: Single Disc: Pin Drive: Ford: 1963-95 SBF: 1-3/16x18: 157T

Mag Force - These Clutches Are The Perfect Choice For Racers Looking For A Lightweight, High Torque Capacity Unit. They Are Designed To Be Used For Oval Track, Road Racing And Dry Lakes Applications. These Units Are Offered In Single Disc (500Ft Tq) Double Disc (900 Ft Tq) And Triple Disc (1500 Ft Tq) Configurations To Meet The Harshest Needs In The Industry. These Units Rely On A Pin Drive Actuation System Where The Floater Plate Slides On 6 Evenly Spaced Pins For Quick Release In A Racing Application. Our Mag Force Units Also Offer Bolt On External Balance Weights For Most Applications.

Specifications:

Description_DES Mag Force: Single Disc: Pin Drive: Ford: 1963-95 SBF: 1-3/16x18: 157T
Description_DEF Transmission Clutch Kit
Description_FAB The Mag Force is perfect for Road Racing, Drag Racing and Salt Flats Time trials.
Description_EXT Mag Force: Single Disc: Pin Drive: Ford: 1963-95 SBF: 1-3/16x18: 157T
Description_INV Clutch Kit
Description_MKT Mag Force - These Clutches Are The Perfect Choice For Racers Looking For A Lightweight, High Torque Capacity Unit. They Are Designed To Be Used For Oval Track, Road Racing And Dry Lakes Applications. These Units Are Offered In Single Disc (500Ft Tq) Double Disc (900 Ft Tq) And Triple Disc (1500 Ft Tq) Configurations To Meet The Harshest Needs In The Industry. These Units Rely On A Pin Drive Actuation System Where The Floater Plate Slides On 6 Evenly Spaced Pins For Quick Release In A Racing Application. Our Mag Force Units Also Offer Bolt On External Balance Weights For Most Applications.
Description_SHO Clutch Kit
Throwout Bearing Included No
Pilot Bushing Included No
Racing Application 2 Drifting
Engine 1964-1995 SBF
Disc Material Sintered Iron
Balance Internal Balance
Ring Gear 157 tooth
Engine Balance For External Balance use 563333 Kit
Make Ford
Alignment Tool Included Yes
Throwout Bearing Style Standard
Flywheel Material Aluminum
Disc Style Segmented
Number of Discs Single
Pilot Bushing Material N/A
Racing Application Road Race & Slalom Racing
Hardware Included Yes
Disc Diameter 8In.
Spline 1-3/16 x 18
Racing Application 3 Dry Lakes (Bonneville)
Flywheel Included Yes
Length 6.0000
Width 17.0000
Height 16.0000
Weight 19.0000
