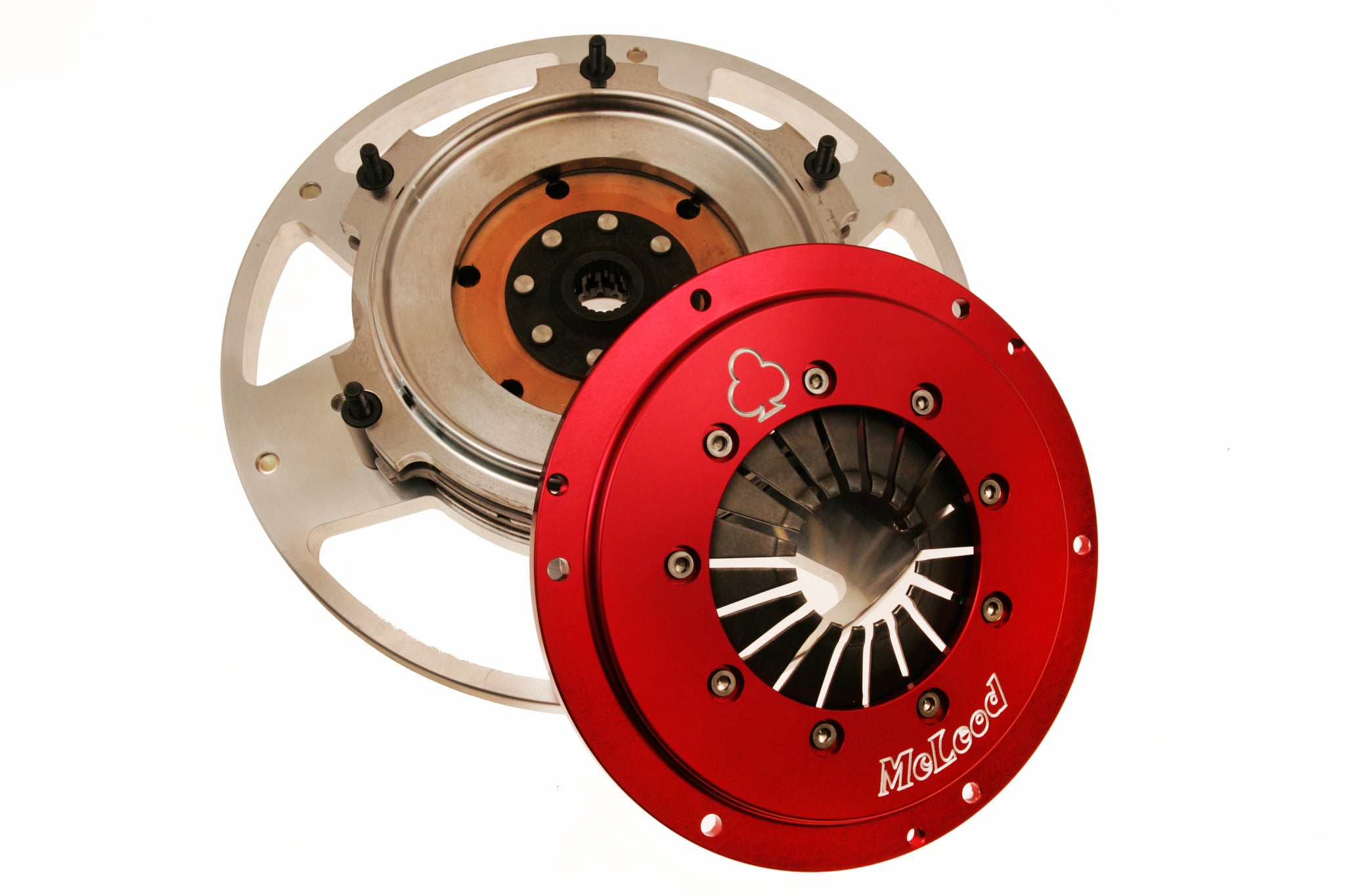

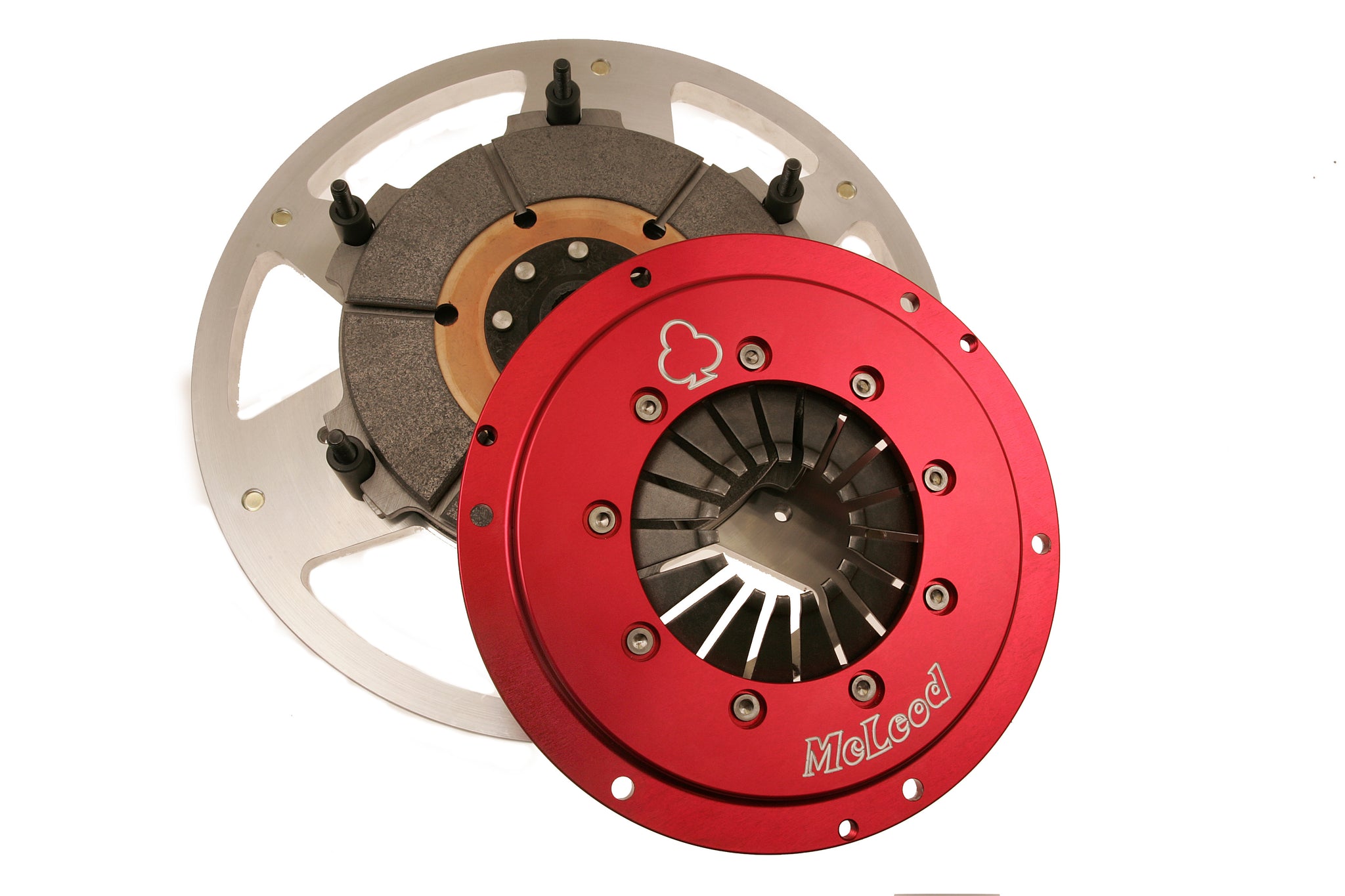

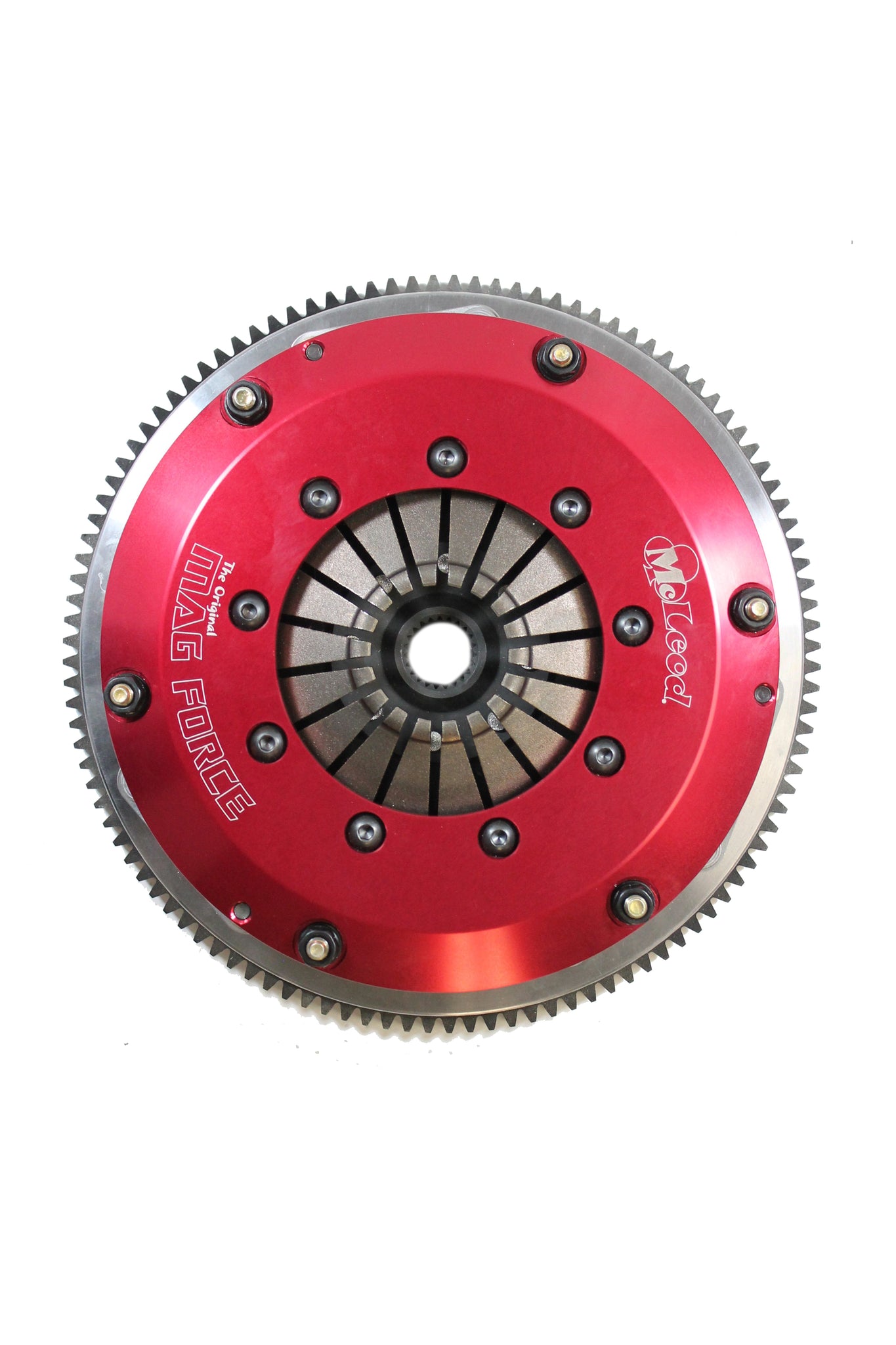

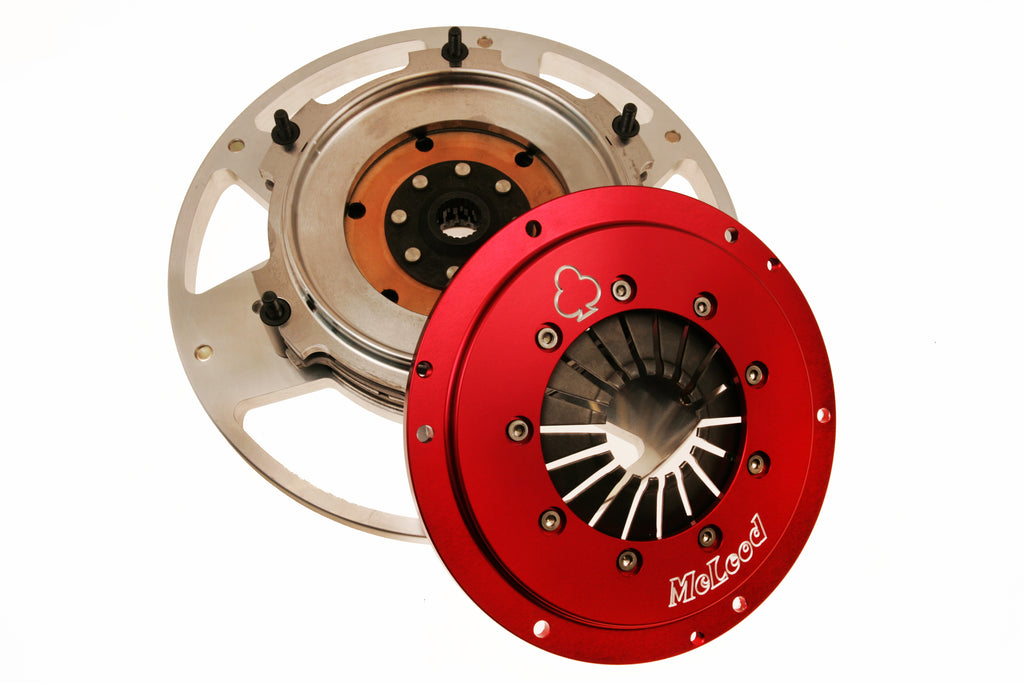

Mag Force - These Clutches Are The Perfect Choice For Racers Looking For A Lightweight, High Torque Capacity Unit. They Are Designed To Be Used For Oval Track, Road Racing And Dry Lakes Applications. These Units Are Offered In Single Disc (500Ft Tq) Double Disc (900 Ft Tq) And Triple Disc (1500 Ft Tq) Configurations To Meet The Harshest Needs In The Industry. These Units Rely On A Pin Drive Actuation System Where The Floater Plate Slides On 6 Evenly Spaced Pins For Quick Release In A Racing Application. Our Mag Force Units Also Offer Bolt On External Balance Weights For Most Applications.
Specifications:
| Description_DEF |
Transmission Clutch Kit |
| Description_DES |
Mag Force: Double Disc: Pin Drive: Chevrolet: 1997-13 LS-X 6 Bolt: 168T:1-1/4x14 |
| Description_EXT |
Mag Force: Double Disc: Pin Drive: Chevrolet: 1997-13 LS-X 6 Bolt Crank: 168T: 1-1/4x14 |
| Description_FAB |
The Mag Force is perfect for Road Racing, Drag Racing and Salt Flats Time trials. |
| Description_INV |
Clutch Kit |
| Description_MKT |
Mag Force - These Clutches Are The Perfect Choice For Racers Looking For A Lightweight, High Torque Capacity Unit. They Are Designed To Be Used For Oval Track, Road Racing And Dry Lakes Applications. These Units Are Offered In Single Disc (500Ft Tq) Double Disc (900 Ft Tq) And Triple Disc (1500 Ft Tq) Configurations To Meet The Harshest Needs In The Industry. These Units Rely On A Pin Drive Actuation System Where The Floater Plate Slides On 6 Evenly Spaced Pins For Quick Release In A Racing Application. Our Mag Force Units Also Offer Bolt On External Balance Weights For Most Applications. |
| Description_SHO |
Clutch Kit |
| Engine |
1997-2013 LS 1/2/3/6/7 |
| Flywheel Material |
Aluminum |
| Pilot Bushing Material |
N/A |
| Alignment Tool Included |
Yes |
| Hardware Included |
Yes |
| Racing Application |
Road Race & Slalom Racing |
| Number of Discs |
Double |
| Engine Balance |
Internal Balance |
| Racing Application 2 |
Drifting |
| Ring Gear |
168 tooth |
| Pilot Bushing Included |
No |
| Throwout Bearing Included |
No |
| Flywheel Included |
Yes |
| Spline |
1 1/8In. x 26 |
| Disc Style |
Segmented |
| Make |
Chevrolet |
| Disc Diameter |
8In. |
| Throwout Bearing Style |
Standard |
| Disc Material |
Sintered Iron |
| Racing Application 3 |
Dry Lakes (Bonneville) |
| Length |
6.0000 |
| Width |
17.0000 |
| Height |
16.0000 |
| Weight |
28.0000 |
