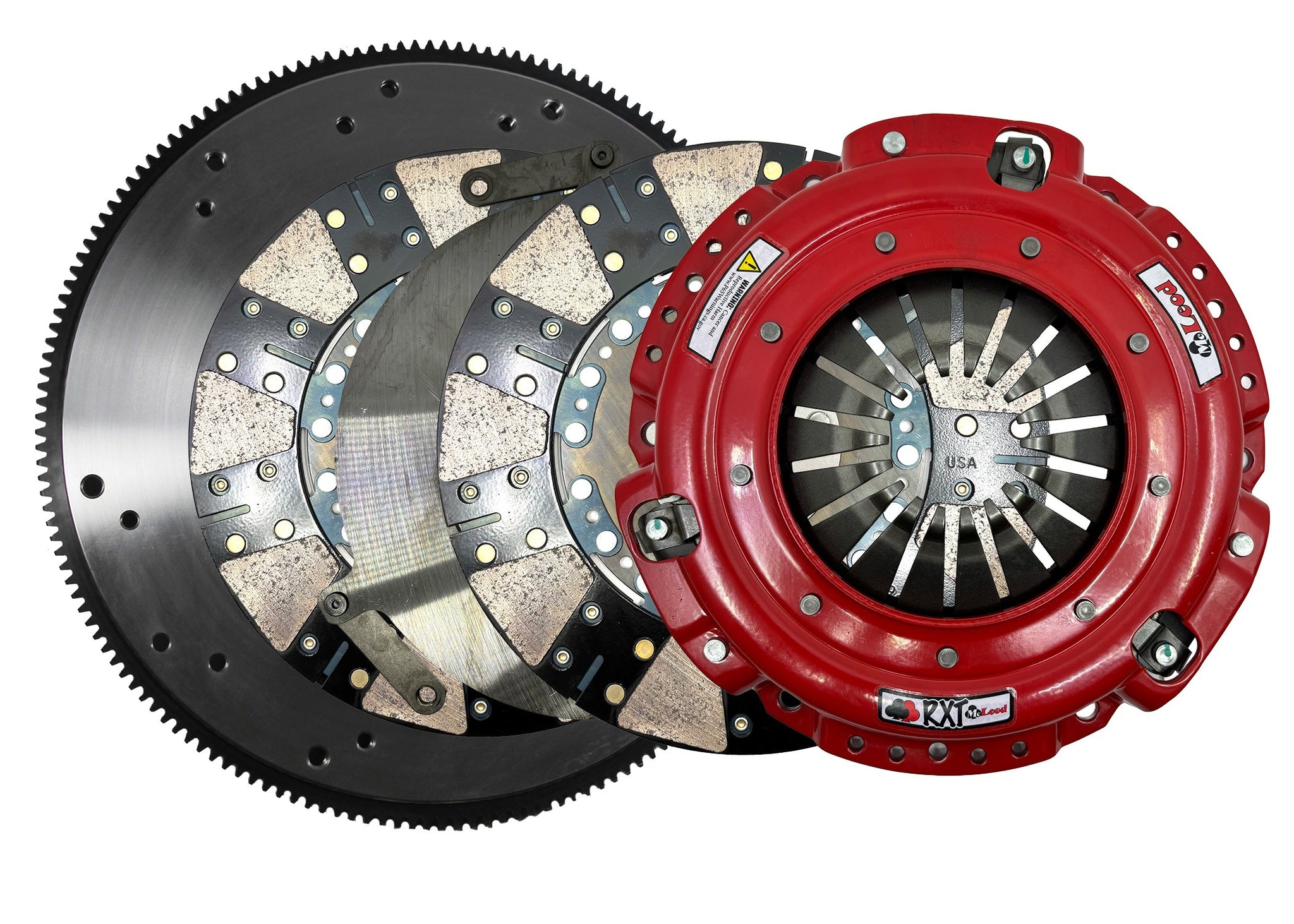

Intended for the high horsepower street/strip fan, the McLeod RXT Street twin clutch kit is able to handle 1000hp, this clutch can handle almost any horse-power you can throw at it and still remain street-able. Ceramic lined clutch discs will provide smooth engagement with a soft pedal effort to make this clutch kit ideal for the street performance enthusiast. This clutch is perfect for the person that wants the best of both worlds. You want to drive to the track then rip off a bunch of ┬╝ mile passes then drive back home, the RXT is what you'll need! This series of clutch comes in 3 different configurations to best suit your needs. Adapter ring version. Another McLeod Racing exclusive. We build a twin disc clutch using a Patented Approved adapter ring to bolt to your supplied flywheel. Complete Unit with Dedicated Flywheel. No need to search for the clutch as one number and the flywheel as another number. McLeod Racing has you covered with one part number and a complete dedicated unit ready to plug and play. You have the choice of running a Billet Steel flywheel for your street applications or a Billet Aluminum flywheel for your track cars.
Specifications:
| Description_ASM |
Mazda: RX-4 74 - 78 1.3 L Engine, Mazda: RX-8 04 - 11 1.3 L Engine, Mazda: RX-7 79 - 85 1.1 L Engine, Mazda: RX-7 84 - 95 1.3 L Engine, Mazda: Rotary Pickup 74 - 77 1.3 L Engine, Mazda: RX-2 71 - 74 1.1 L Engine, Mazda: Cosmo 76 - 78 1.3 L Engine, Mazda: RX-3 72 - 78 1.1 L Engine, Mazda: R100 71 - 72 1.1 L Engine |
| Description_DEF |
Transmission Clutch Kit |
| Description_EXT |
RXT: Steel Flywheel: Mazda: 13B/20B Rotary: T56 1-1/8 X 26: 125T |
| Description_DES |
RXT: Steel Flywheel: Mazda: 13B/20B Rotary: T56 1-1/8 X 26: 125T |
| Description_MKT |
Intended for the high horsepower street/strip fan, the McLeod RXT Street twin clutch kit is able to handle 1000hp, this clutch can handle almost any horse-power you can throw at it and still remain street-able. Ceramic lined clutch discs will provide smooth engagement with a soft pedal effort to make this clutch kit ideal for the street performance enthusiast. This clutch is perfect for the person that wants the best of both worlds. You want to drive to the track then rip off a bunch of ┬╝ mile passes then drive back home, the RXT is what you'll need! This series of clutch comes in 3 different configurations to best suit your needs. Adapter ring version. Another McLeod Racing exclusive. We build a twin disc clutch using a Patented Approved adapter ring to bolt to your supplied flywheel. Complete Unit with Dedicated Flywheel. No need to search for the clutch as one number and the flywheel as another number. McLeod Racing has you covered with one part number and a complete dedicated unit ready to plug and play. You have the choice of running a Billet Steel flywheel for your street applications or a Billet Aluminum flywheel for your track cars. |
| Description_SHO |
Clutch Kit |
| Description_INV |
Clutch Kit |
| Description_FAB |
McLeod Racing is the leader in twin disc clutch applications. We offer them in several different configurations to meet your needs. Give us a call 714-630-2764 to see what we can do for you! |
| Make |
Mazda |
| Flywheel Included |
Yes |
| Clutch Patterns |
RST/RXT Pattern |
| Pressure Plate Style |
Diaphragm |
| Spline |
1-1/8 x 26 |
| Hub Style |
Solid |

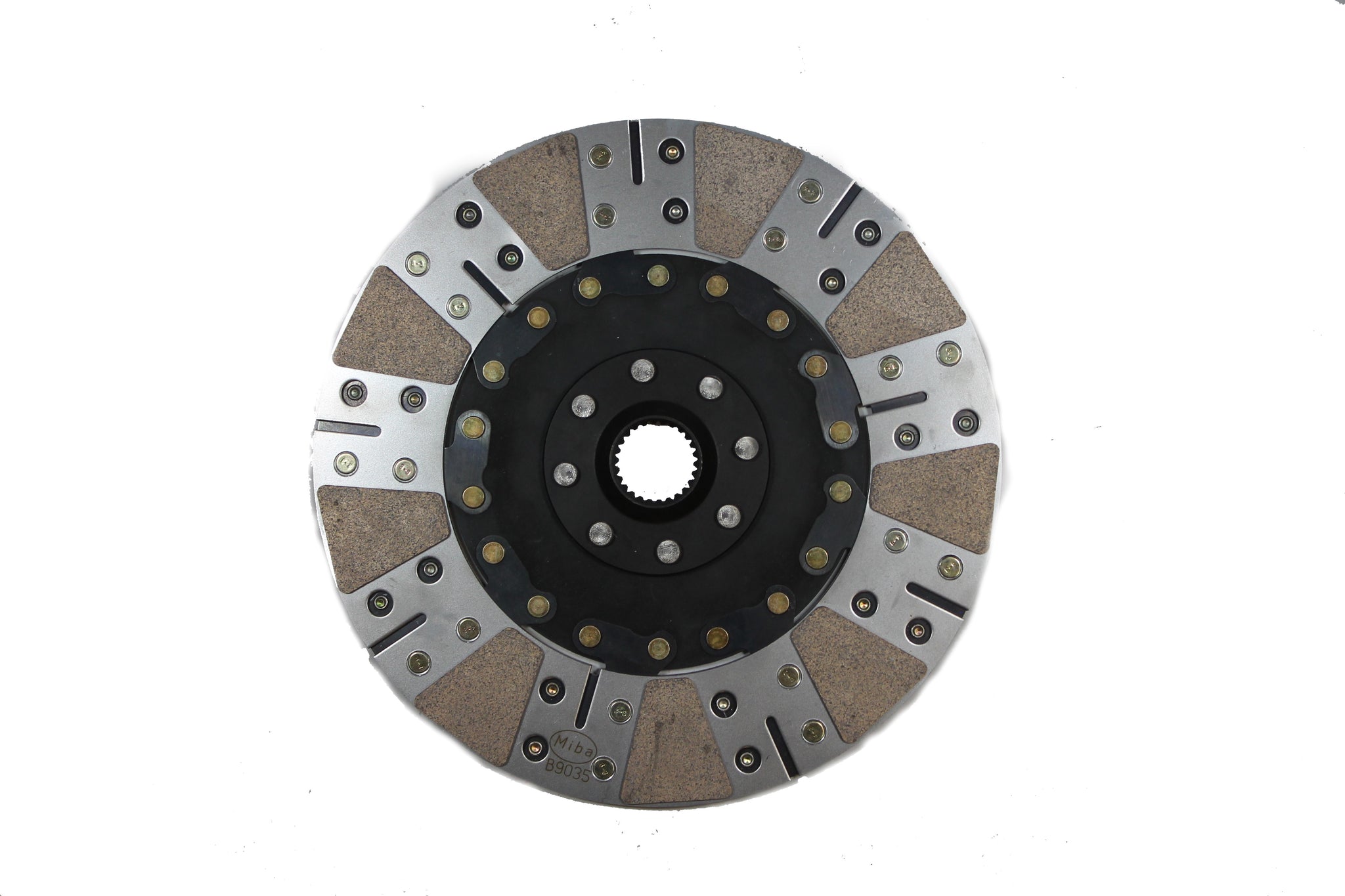

| Disc Style |
Segmented |
| Hardware Included |
Yes |
| Pilot Bushing Material |
N/A |
| Clutch Usage |
Street |
| Pilot Bushing Included |
NO |
| Additional Counter Weight Kit Required |
No |
| Throwout Bearing Included |
No |
| Disc Diameter |
9.687In. |
| Engine |
Mazda Rotary 20B |
| Ring Gear |
125 |
| Flywheel Material |
Steel |
| Engine Balance |
Neutral |
| Alignment Tool Included |
Yes |
| Throwout Bearing Style |
Standard OEM |
| Horsepower Rating |
1000 |
| Disc Material |
Ceramic |
| Number of Discs |
Double |
| Length |
6.0000 |
| Width |
17.0000 |
| Height |
16.0000 |
| Weight |
48.0000 |
