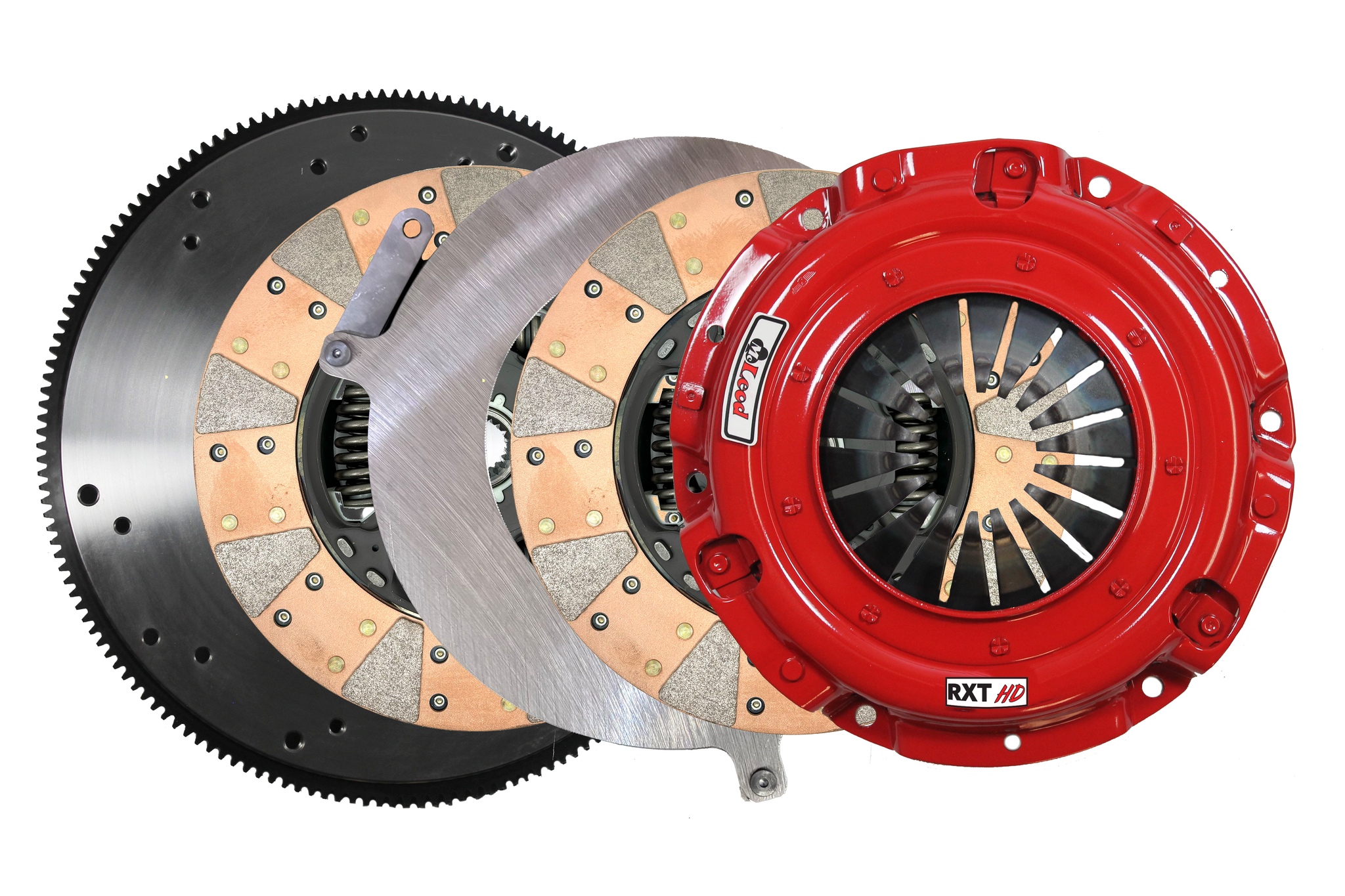

Intended for the high horsepower street/strip fan, the McLeod RXT 1200 street twin clutch kit is able to handle 1200hp. This clutch can handle almost any horsepower you can throw at it and still remain street-able. Ceramic lined clutch discs will provide smooth engagement with a moderate pedal effort to make this clutch kit ideal for the street/strip enthusiast. . This clutch is perfect for the person that wants the best of both worlds. You want to drive to the track then rip off a bunch of ┬╝ mile passes then drive back home, the RXT 1200 is what you'll need! This series of clutch comes in 3 different configurations to best suit your needs. Adapter ring version. Another McLeod Racing exclusive. We build a twin disc clutch using a patented approved adapter ring to bolt to your supplied flywheel. Complete unit with dedicated flywheel. No need to search for the clutch as one number and the flywheel as another number. McLeod Racing has you covered with one part number and a complete dedicated unit ready to plug and play. You have the choice of running a Billet Steel flywheel for your street applications or a Billet Aluminum flywheel for your track cars.
Specifications:
| Description_ASM |
Mazda: RX-4 74 - 78 1.3 L Engine, Mazda: Rotary Pickup 74 - 77 1.3 L Engine, Mazda: RX-8 04 - 11 1.3 L Engine, Mazda: RX-3 72 - 78 1.1 L Engine, Mazda: RX-7 79 - 85 1.1 L Engine, Mazda: RX-7 84 - 95 1.3 L Engine, Mazda: Cosmo 76 - 78 1.3 L Engine, Mazda: R100 71 - 72 1.1 L Engine, Mazda: RX-2 71 - 74 1.1 L Engine |
| Description_DEF |
Transmission Clutch Kit |
| Description_DES |
RXT1200: Steel Flywheel: Mazda: 13B/20B Rotary: T56 1-1/8 X 26: 125T |
| Description_FAB |
McLeod Racing is the leader in twin disc clutch applications. We offer them in several different configurations to meet your needs. Give us a call 714-630-2764 to see what we can do for you! |
| Description_EXT |
RXT1200: Steel Flywheel: Mazda: 13B/20B Rotary: T56 1-1/8 X 26: 125T |
| Description_INV |
Clutch Kit |
| Description_SHO |
Clutch Kit |
| Description_MKT |
Intended for the high horsepower street/strip fan, the McLeod RXT 1200 street twin clutch kit is able to handle 1200hp. This clutch can handle almost any horsepower you can throw at it and still remain street-able. Ceramic lined clutch discs will provide smooth engagement with a moderate pedal effort to make this clutch kit ideal for the street/strip enthusiast. . This clutch is perfect for the person that wants the best of both worlds. You want to drive to the track then rip off a bunch of ┬╝ mile passes then drive back home, the RXT 1200 is what you'll need! This series of clutch comes in 3 different configurations to best suit your needs. Adapter ring version. Another McLeod Racing exclusive. We build a twin disc clutch using a patented approved adapter ring to bolt to your supplied flywheel. Complete unit with dedicated flywheel. No need to search for the clutch as one number and the flywheel as another number. McLeod Racing has you covered with one part number and a complete dedicated unit ready to plug and play. You have the choice of running a Billet Steel flywheel for your street applications or a Billet Aluminum flywheel for your track cars. |
| Disc Material |
Ceramic |
| Clutch Patterns |
RST/RXT Pattern |
| Clutch Usage |
Street |
| Disc Style |
Segmented |
| Number of Discs |
Double |
| Pressure Plate Style |
Diaphragm |
| Ring Gear |
125 |
| Engine Balance |
Neutral |
| Horsepower Rating |
1200 |
| Throwout Bearing Style |
Standard OEM |
| Spline |
1-1/8 x 26 |
| Throwout Bearing Included |
No |
| Flywheel Included |
Yes |
| Hardware Included |
Yes |
| Alignment Tool Included |
Yes |
| Engine |
Mazda Rotary 20B |
| Pilot Bushing Included |
NO |
| Hub Style |
Solid |
| Pilot Bushing Material |
N/A |
| Additional Counter Weight Kit Required |
No |
| Make |
Mazda |
| Flywheel Material |
Steel |
| Disc Diameter |
9.687In. |
| Length |
6.0000 |
| Width |
17.0000 |
| Height |
16.0000 |
| Weight |
48.0000 |
