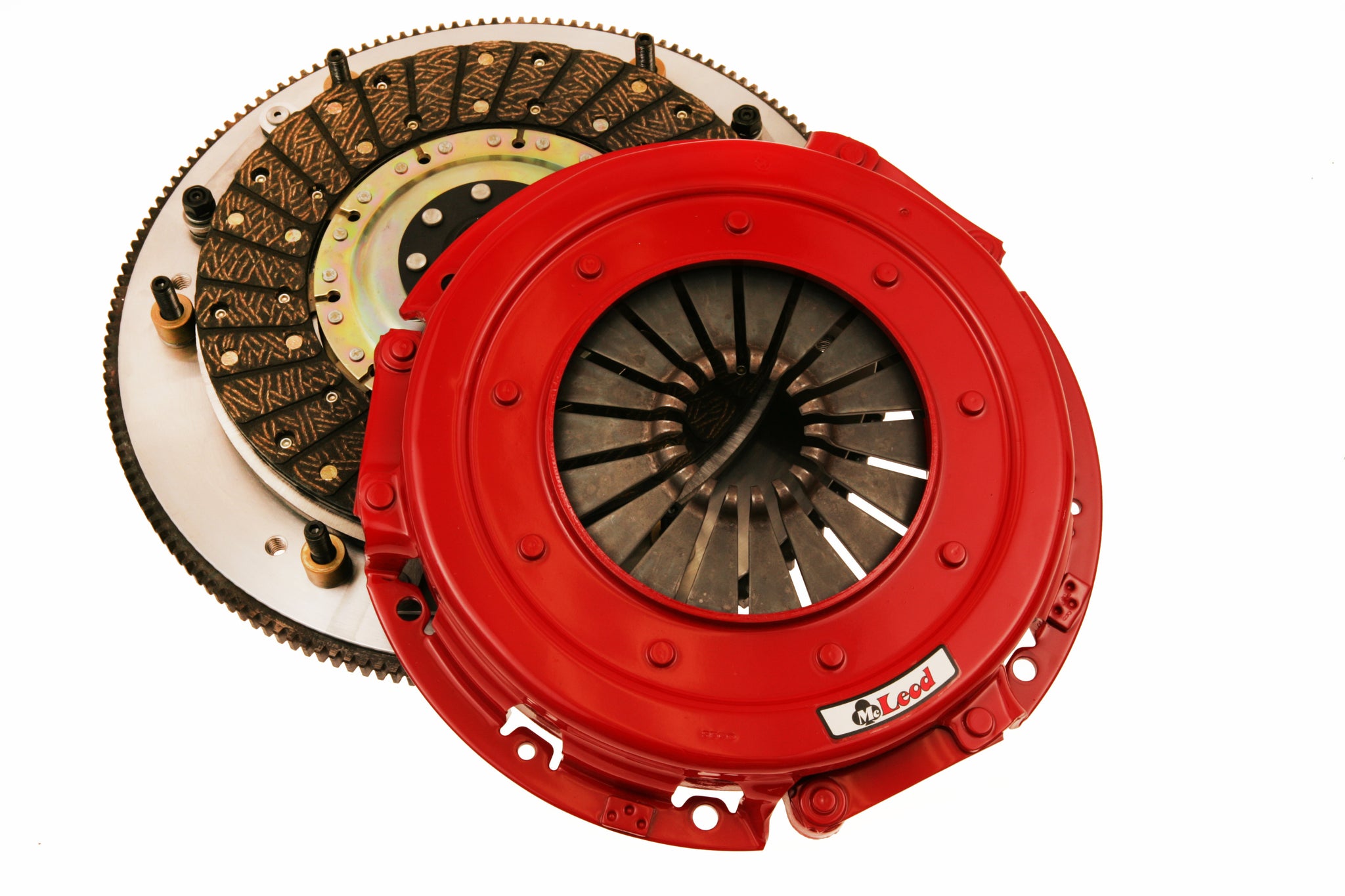

In 1974 With The Rising Popularity Of Power Adders Such As Nitrous,Superchargers And Turbochargers, Mcleod Recognized The Need For A Clutch Assembly That Was Street Friendly, Yet Still Capable Of Handling Up To 1,200 Horsepower, Thus The Street Twin Was Born! This Series Of Mcleod Clutch Kit Is Intended For High Horsepower Street Enthusiast. Whether It'S Nos,Supercharger,Turbocharger Or A Big Inch Mountain Motor The "Original Street Twin" Can Handle It. Go With The Innovator Not The Imitator Mcleod Racing!
Specifications:
| Description_ASM |
Ford: Mustang 96 - 10 4.6 L Engine |
| Description_DEF |
Transmission Clutch Kit |
| Description_EXT |
Original Street Twin: Steel: Ford: 1996-10 4.6L: 6 Bolt Crank: 1-1/8x26: 164T: Cable Linkage |
| Description_DES |
Original Street Twin: Steel: Ford: 1996-10 4.6L: 6 Bolt: 1-1/8x26: 164T |
| Description_MKT |
In 1974 With The Rising Popularity Of Power Adders Such As Nitrous,Superchargers And Turbochargers, Mcleod Recognized The Need For A Clutch Assembly That Was Street Friendly, Yet Still Capable Of Handling Up To 1,200 Horsepower, Thus The Street Twin Was Born! This Series Of Mcleod Clutch Kit Is Intended For High Horsepower Street Enthusiast. Whether It'S Nos,Supercharger,Turbocharger Or A Big Inch Mountain Motor The "Original Street Twin" Can Handle It. Go With The Innovator Not The Imitator Mcleod Racing! |
| Description_FAB |
McLeod Racing is the leader in twin disc clutch applications. We offer them in several different configurations to meet your needs. Give us a call 714-630-2764 to see what we can do for you! |
| Description_INV |
Clutch Kit |
| Description_SHO |
Clutch Kit |
| Flywheel Material |
Steel |
| Disc Diameter |
10.5In. |
| Hub Style |
Solid |
| Make |
Ford |
| Number of Discs |
Double |
| Spline |
1 1/8In. x 26 |
| Flywheel Included |
Yes |

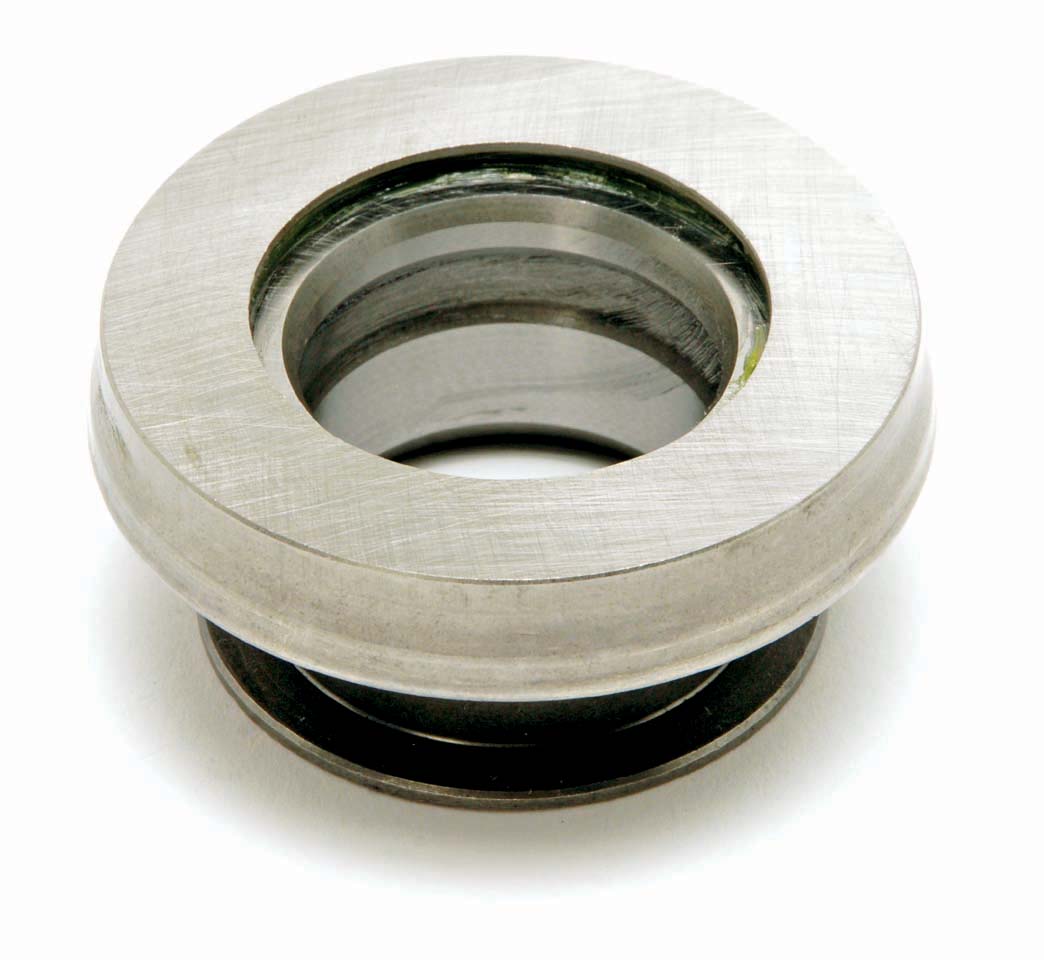

| Throw Out Bearing |
Yes |
| NOTE: |
This application is intended for a aftermarket transmission that is a 1-1/8 x 26 spline. Call McLeod Tech for more details 714-630-2764 |
| Engine Balance |
Internal Balance |
| Engine |
1996-2010 4.6L 6 Bolt Crank |
| Application |
1996-2010 Mustang 4.6L |
| Pressure Plate Style |
Diaphragm |
| Adjustable Pivot Ball |
Yes |
| Clutch Patterns |
10.5In. Borg & Beck. Street Twin Only |
| Horsepower Rating |
1200 |
| Length |
6.0000 |
| Width |
17.0000 |
| Height |
16.0000 |
| Weight |
50.0000 |
