In 1974 With The Rising Popularity Of Power Adders Such As Nitrous,Superchargers And Turbochargers, Mcleod Recognized The Need For A Clutch Assembly That Was Street Friendly, Yet Still Capable Of Handling Up To 1,200 Horsepower, Thus The Street Twin Was Born! This Series Of Mcleod Clutch Kit Is Intended For High Horsepower Street Enthusiast. Whether It'S Nos,Supercharger,Turbocharger Or A Big Inch Mountain Motor The "Original Street Twin" Can Handle It. Go With The Innovator Not The Imitator Mcleod Racing!
Specifications:
| Description_ASM |
Ford: Mustang 86 - 95 5 L Engine |
| Description_DEF |
Transmission Clutch Kit |
| Description_DES |

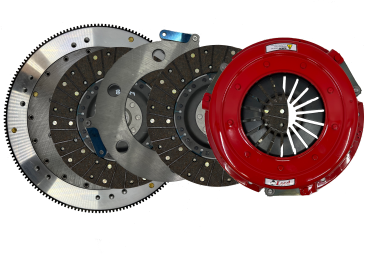

Original Street Twin: Aluminum: Ford: 1963-95 SBF: 1-1/8x26: 164T: Cable Linkage |
| Description_MKT |
In 1974 With The Rising Popularity Of Power Adders Such As Nitrous,Superchargers And Turbochargers, Mcleod Recognized The Need For A Clutch Assembly That Was Street Friendly, Yet Still Capable Of Handling Up To 1,200 Horsepower, Thus The Street Twin Was Born! This Series Of Mcleod Clutch Kit Is Intended For High Horsepower Street Enthusiast. Whether It'S Nos,Supercharger,Turbocharger Or A Big Inch Mountain Motor The "Original Street Twin" Can Handle It. Go With The Innovator Not The Imitator Mcleod Racing! |
| Description_FAB |
McLeod Racing is the leader in twin disc clutch applications. We offer them in several different configurations to meet your needs. Give us a call 714-630-2764 to see what we can do for you! |
| Description_EXT |
Original Street Twin: Aluminum: Ford: 1963-95 SBF: 1-1/8x26: 164T: Cable Linkage |
| Description_INV |
Clutch Kit |
| Description_SHO |
Clutch Kit |
| NOTE: |

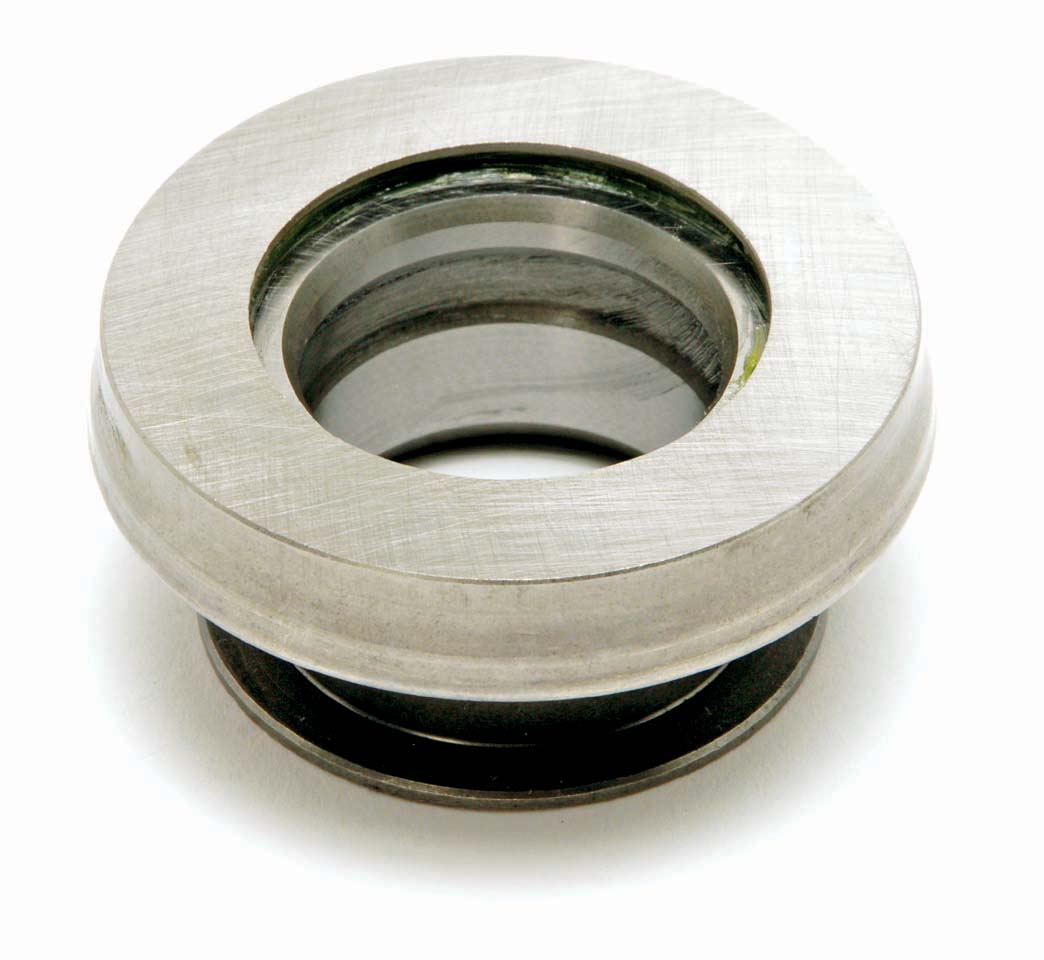

This is intended for vehicles that have cable linkage actuation. This kit comes with a bearing and pivot stud for cable linkage. |
| Clutch Patterns |
10.5In. Borg & Beck. Street Twin Only |
| Pressure Plate Style |
Diaphragm |
| Spline |
1 1/8In. x 26 |
| Number of Discs |
Double |
| Horsepower Rating |
1200 |
| Hub Style |
Solid |
| Additional Counter Weight Kit Required |
563333 |
| Engine Balance |
Internal Balance |
| Flywheel Included |
Yes |
| Disc Diameter |
10.5In. |
| Flywheel Material |
Aluminum |
| Make |
Ford |
| Balance |
For Ext Balanced Also Order Weight Kit 563333 |
| Engine |
1964-1995 SBF |
| Ring Gear |
164 tooth |
| Length |
6.0000 |
| Width |
17.0000 |
| Height |
16.0000 |
| Weight |
42.0000 |
