In 1974 With The Rising Popularity Of Power Adders Such As Nitrous,Superchargers And Turbochargers, Mcleod Recognized The Need For A Clutch Assembly That Was Street Friendly, Yet Still Capable Of Handling Up To 1,200 Horsepower, Thus The Street Twin Was Born! This Series Of Mcleod Clutch Kit Is Intended For High Horsepower Street Enthusiast. Whether It'S Nos,Supercharger,Turbocharger Or A Big Inch Mountain Motor The "Original Street Twin" Can Handle It. Go With The Innovator Not The Imitator Mcleod Racing!
Specifications:
| Description_ASM |
Ford: Mustang 86 - 95 5 L Engine |
| Description_DEF |
Transmission Clutch Kit |
| Description_EXT |

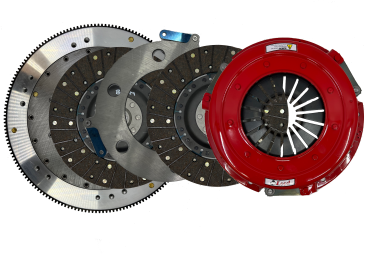

Original Street Twin: Aluminum: Ford: 1963-95 SBF: 1-1/16x10: 164T: Cable Linkage |
| Description_DES |
Original Street Twin: Aluminum: Ford: 1963-95 SBF: 1-1/16x10:164T: Cable Linkage |
| Description_FAB |
McLeod Racing is the leader in twin disc clutch applications. We offer them in several different configurations to meet your needs. Give us a call 714-630-2764 to see what we can do for you! |
| Description_INV |
Clutch Kit |
| Description_MKT |
In 1974 With The Rising Popularity Of Power Adders Such As Nitrous,Superchargers And Turbochargers, Mcleod Recognized The Need For A Clutch Assembly That Was Street Friendly, Yet Still Capable Of Handling Up To 1,200 Horsepower, Thus The Street Twin Was Born! This Series Of Mcleod Clutch Kit Is Intended For High Horsepower Street Enthusiast. Whether It'S Nos,Supercharger,Turbocharger Or A Big Inch Mountain Motor The "Original Street Twin" Can Handle It. Go With The Innovator Not The Imitator Mcleod Racing! |
| Description_SHO |
Clutch Kit |
| Hub Style |
Solid |
| Number of Discs |
Double |
| Flywheel Material |
Aluminum |
| Additional Counter Weight Kit Required |
563333 |
| Engine |
1964-1995 SBF |
| Ring Gear |
164 tooth |
| Disc Diameter |
10.5In. |
| Engine Balance |
Internal Balance |
| Make |
Ford |
| Flywheel Included |
Yes |
| Horsepower Rating |
1200 |
| Spline |
1 1/16In. x 10 |
| Pressure Plate Style |
Diaphragm |
| Balance |
For Ext Balanced Also Order Weight Kit 560222 |
| Clutch Patterns |
10.5In. Borg & Beck. Street Twin Only |
| Length |
6.0000 |
| Width |
17.0000 |
| Height |
16.0000 |
| Weight |
42.0000 |
