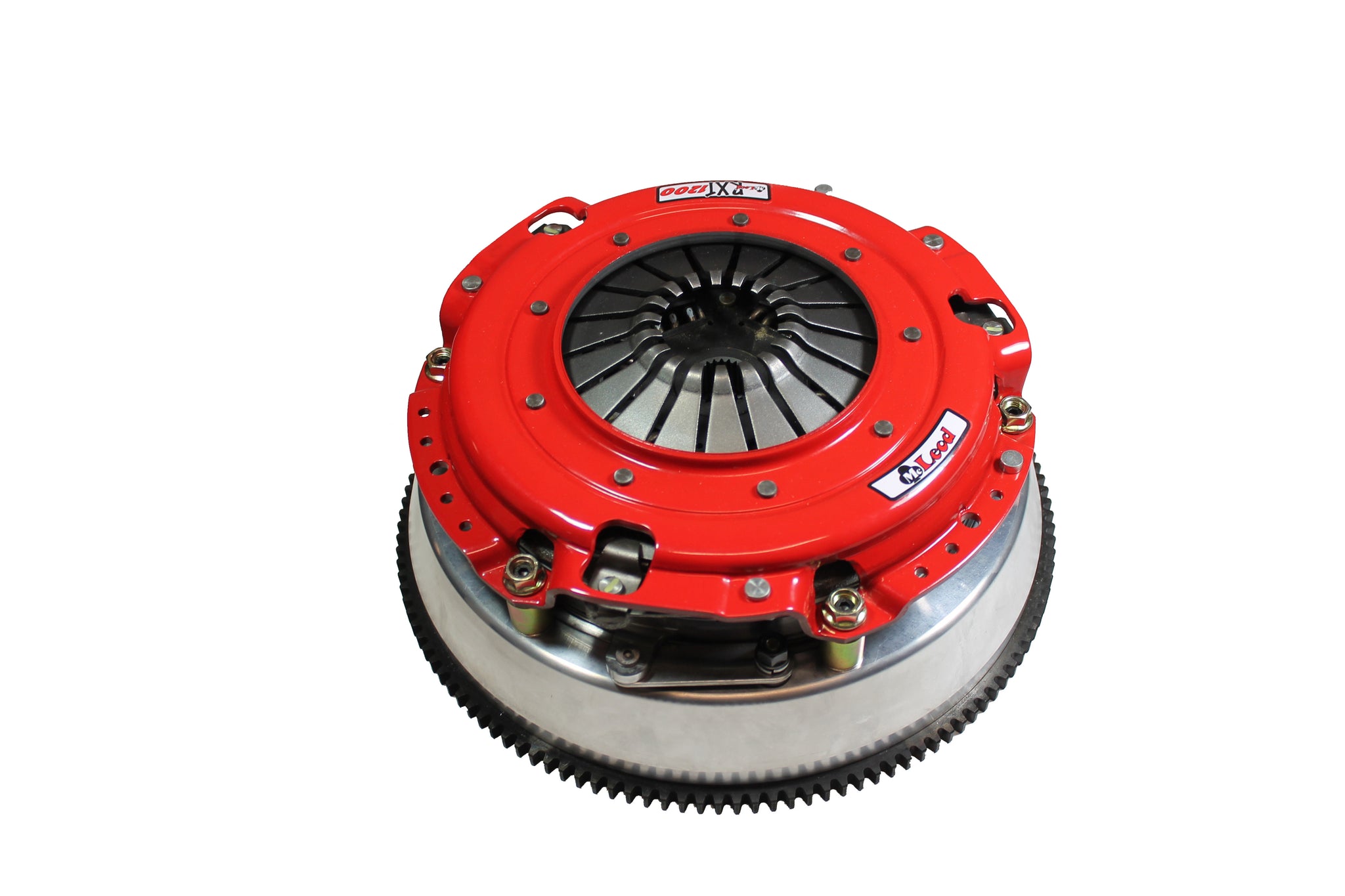

Intended for the high horsepower street/strip fan, the McLeod RXT Street twin clutch kit is able to handle 1000hp, this clutch can handle almost any horse-power you can throw at it and still remain street-able. Ceramic lined clutch discs will provide smooth engagement with a soft pedal effort to make this clutch kit ideal for the street performance enthusiast. This clutch is perfect for the person that wants the best of both worlds. You want to drive to the track then rip off a bunch of ┬╝ mile passes then drive back home, the RXT is what you'll need! This series of clutch comes in 3 different configurations to best suit your needs. Adapter ring version. Another McLeod Racing exclusive. We build a twin disc clutch using a Patented Approved adapter ring to bolt to your supplied flywheel. Complete Unit with Dedicated Flywheel. No need to search for the clutch as one number and the flywheel as another number. McLeod Racing has you covered with one part number and a complete dedicated unit ready to plug and play. You have the choice of running a Billet Steel flywheel for your street applications or a Billet Aluminum flywheel for your track cars.
Specifications:
| Description_ASM |
Cadillac: CTS 04 - 05 5.7 L Engine, Cadillac: CTS 06 - 07 6 L Engine, Chevrolet: Camaro 98 - 02 5.7 L Engine, Chevrolet: Camaro 10 - 15 6.2 L Engine, Chevrolet: Camaro 14 - 15 7 L Engine, Chevrolet: Corvette 97 - 04 5.7 L Engine, Chevrolet: Corvette 05 - 07 6 L Engine, Chevrolet: Corvette 08 - 13 6.2 L Engine, Chevrolet: Corvette 06 - 13 7 L Engine, Chevrolet: SSR 05 - 06 6 L Engine, Pontiac: Firebird 98 - 02 5.7 L Engine, Pontiac: G8 09 - 09 6.2 L Engine, Pontiac: GTO 04 - 04 5.7 L Engine, Pontiac: GTO 05 - 06 6 L Engine |
| Description_DEF |
Transmission Clutch Kit |
| Description_DES |
RXT: Aluminum Flywheel: GM: 1997-2013 LS-X 6 Bolt Crank: 168T: 1-1/8x26 |
| Description_EXT |
RXT: Aluminum Flywheel: GM: 1997-2013 LS-X 6 Bolt Crank: 168T: 1-1/8x26 |
| Description_INV |
Clutch Kit |
| Description_FAB |
McLeod Racing is the leader in twin disc clutch applications. We offer them in several different configurations to meet your needs. Give us a call 714-630-2764 to see what we can do for you! |
| Description_MKT |
Intended for the high horsepower street/strip fan, the McLeod RXT Street twin clutch kit is able to handle 1000hp, this clutch can handle almost any horse-power you can throw at it and still remain street-able. Ceramic lined clutch discs will provide smooth engagement with a soft pedal effort to make this clutch kit ideal for the street performance enthusiast. This clutch is perfect for the person that wants the best of both worlds. You want to drive to the track then rip off a bunch of ┬╝ mile passes then drive back home, the RXT is what you'll need! This series of clutch comes in 3 different configurations to best suit your needs. Adapter ring version. Another McLeod Racing exclusive. We build a twin disc clutch using a Patented Approved adapter ring to bolt to your supplied flywheel. Complete Unit with Dedicated Flywheel. No need to search for the clutch as one number and the flywheel as another number. McLeod Racing has you covered with one part number and a complete dedicated unit ready to plug and play. You have the choice of running a Billet Steel flywheel for your street applications or a Billet Aluminum flywheel for your track cars. |
| Description_SHO |
Clutch Kit |
| Clutch Usage |
Street |
| Clutch Patterns |
RST/RXT Steel Adapter Plate Pattern |
| Flywheel Included |
Yes |
| Horsepower Rating |
1000 |
| Disc Style |
Full Face/Multi Pad |
| Pilot Bushing Material |
N/A |
| Engine |
1997-2013 LS1/LS2/LS3/LS6/LS7 6 BOLT Crank |
| Flywheel Material |
Aluminum |
| Engine Balance |
Internal Balance |
| Spline |
1 1/8In. x 26 |
| Throwout Bearing Included |
No |
| Number of Discs |
Double |
| Alignment Tool Included |
Yes |
| Hardware Included |
Yes |
| Ring Gear |
168 tooth |
| Pressure Plate Style |
Diaphragm |
| Throwout Bearing Style |
Standard |
| Pilot Bushing Included |
No |
| NOTE: |
2004-07 Cadillac CTS-V must purchase slave cylinder spacer 1377-950 (sold separately) |
| Hub Style |
Solid |
| Disc Material |
Ceramic |
| Disc Diameter |
9-11/16In. |
| Make |
Chevrolet |
| Length |
6.0000 |
| Width |
17.0000 |
| Height |
16.0000 |
| Weight |
42.0000 |
