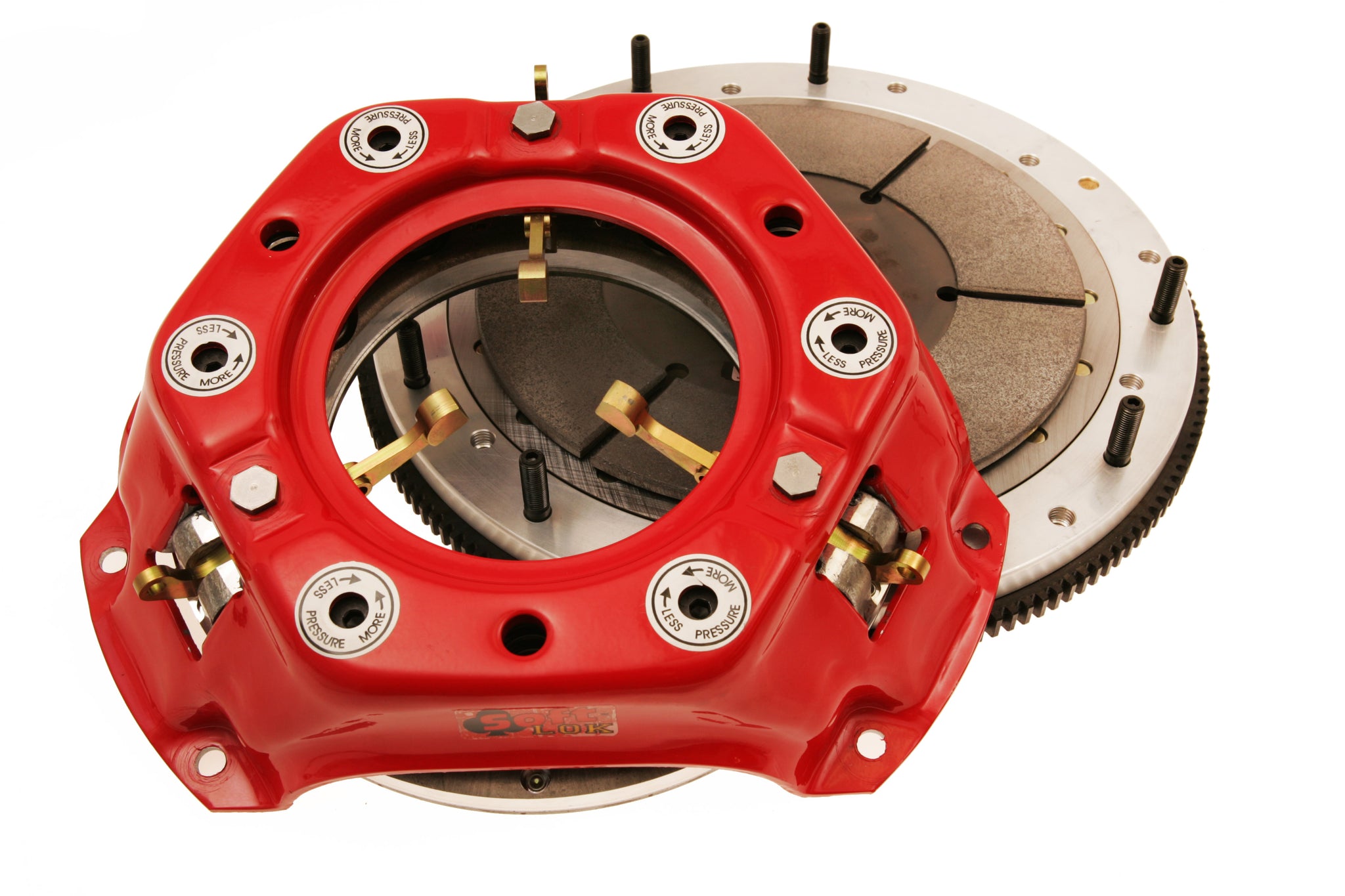

The McLeod Soft Lok assembly is the most widely used McLeod clutch for drag racers. This unit is NOT recommended for street use. As a NHRA and IHRA record holder, this assembly has low static pressure for a light pedal effort and soft clutch engagement. This unit leaves the starting line harder with less tire spin. The Soft Lok is equipped with adjustable spring pressure and is available with counterweights. Included is a pressure plate, sintered iron disc, and aluminum flywheel.
Specifications:
Description_DEF |
Transmission Clutch Kit |
Description_DES |
Soft Lok: Aluminum: Ford 429/460: 11 X 1-3/16 X 18 Spl HCF 176T |
Description_FAB |
McLeod Racing Soft Lok comes with a billet aluminum flywheel, 5135 sintered iron disc and a adjustable Ford Long pressure plate. |
Description_INV |
Clutch Kit |
Description_EXT |
Soft Lok: Aluminum: Ford 429/460: 11 X 1-3/16 X 18 Spl HCF 176T |
Description_SHO |
Clutch Kit |
Description_MKT |
The McLeod Soft Lok assembly is the most widely used McLeod clutch for drag racers. This unit is NOT recommended for street use. As a NHRA and IHRA record holder, this assembly has low static pressure for a light pedal effort and soft clutch engagement. This unit leaves the starting line harder with less tire spin. The Soft Lok is equipped with adjustable spring pressure and is available with counterweights. Included is a pressure plate, sintered iron disc, and aluminum flywheel. |
Spline |
1 3/16In. x 18 |
Engine |
1969-1978 BBF |
Hub Style |
Solid |
Number of Discs |
Single |
Engine Balance |
Internal Balance |
Ring Gear |
176 tooth |
Flywheel Material |
Aluminum |
Disc Diameter |
11In. |
Racing Application |
Drag Racing |
Make |
Ford |
Flywheel Included |
Yes |
Length |
6.0000 |
Width |
17.0000 |
Height |
16.0000 |
Weight |
75.0000 |
