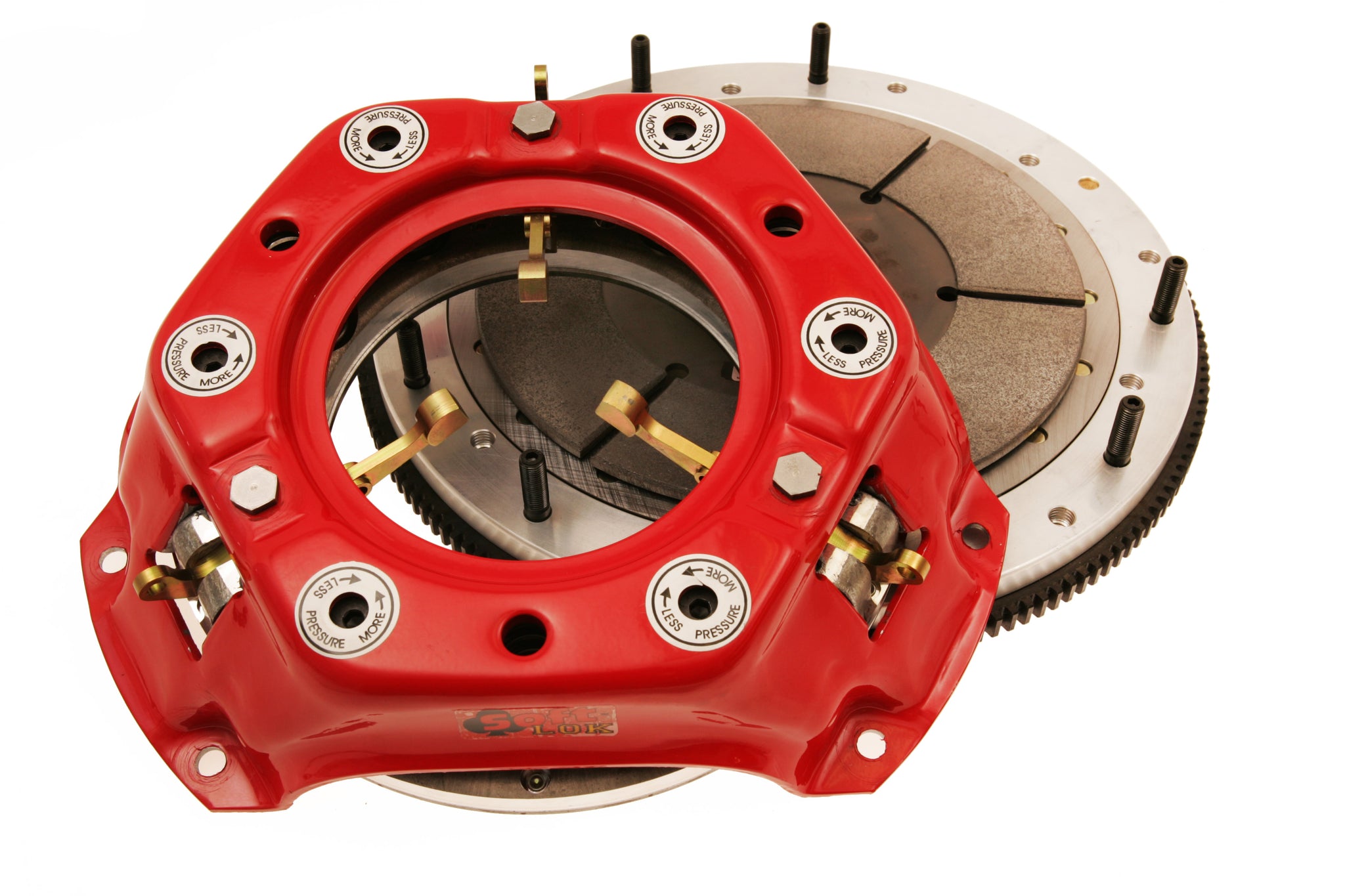

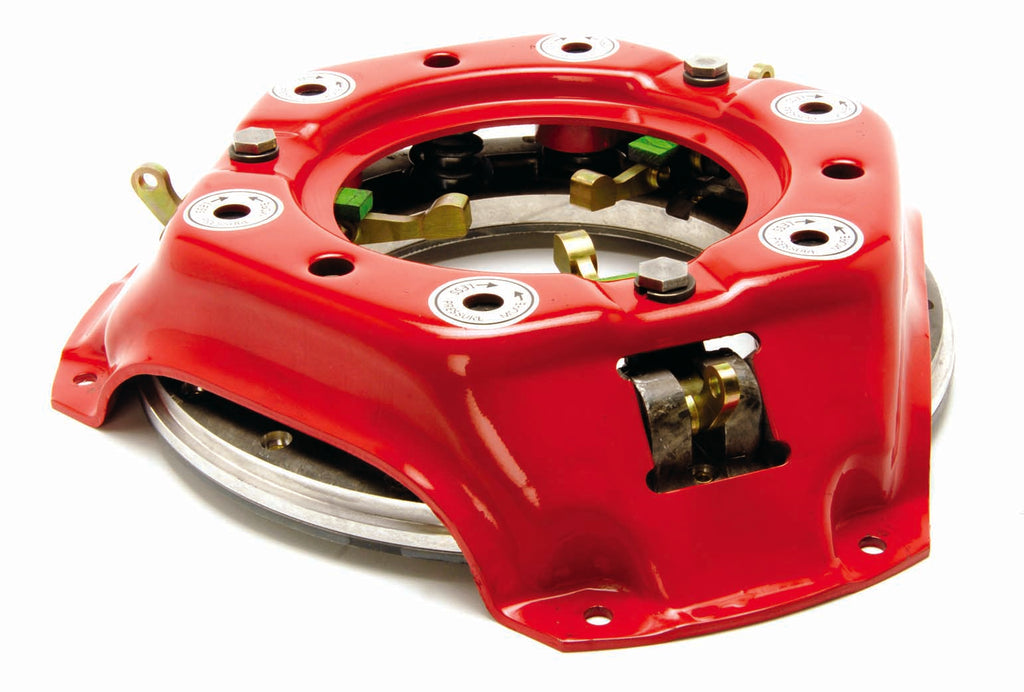

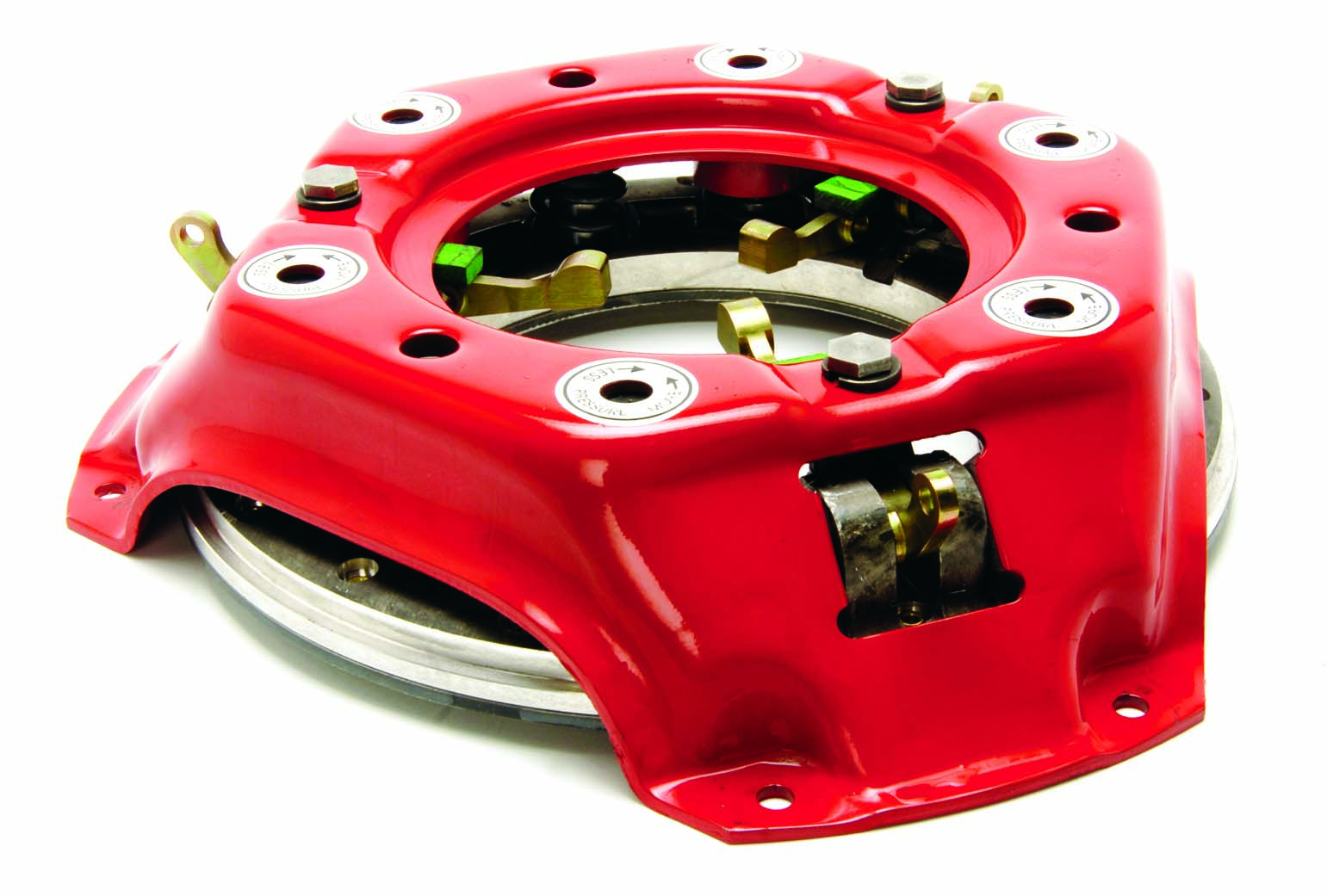

The McLeod Soft Lok assembly is the most widely used McLeod clutch for drag racers. This unit is NOT recommended for street use. As a NHRA and IHRA record holder, this assembly has low static pressure for a light pedal effort and soft clutch engagement. This unit leaves the starting line harder with less tire spin. The Soft Lok is equipped with adjustable spring pressure and is available with counterweights. Included is a pressure plate, sintered iron disc, and aluminum flywheel.
Specifications:
| Description_DEF |
Transmission Clutch Kit |
| Description_DES |
Soft Lok: Aluminum: Ford Fe: 11X 1-1/8 X 26 Spl HCF 184T |
| Description_INV |
Clutch Kit |
| Description_EXT |
Soft Lok: Aluminum: Ford Fe: 11X 1-1/8 X 26 Spl HCF 184T |
| Description_FAB |

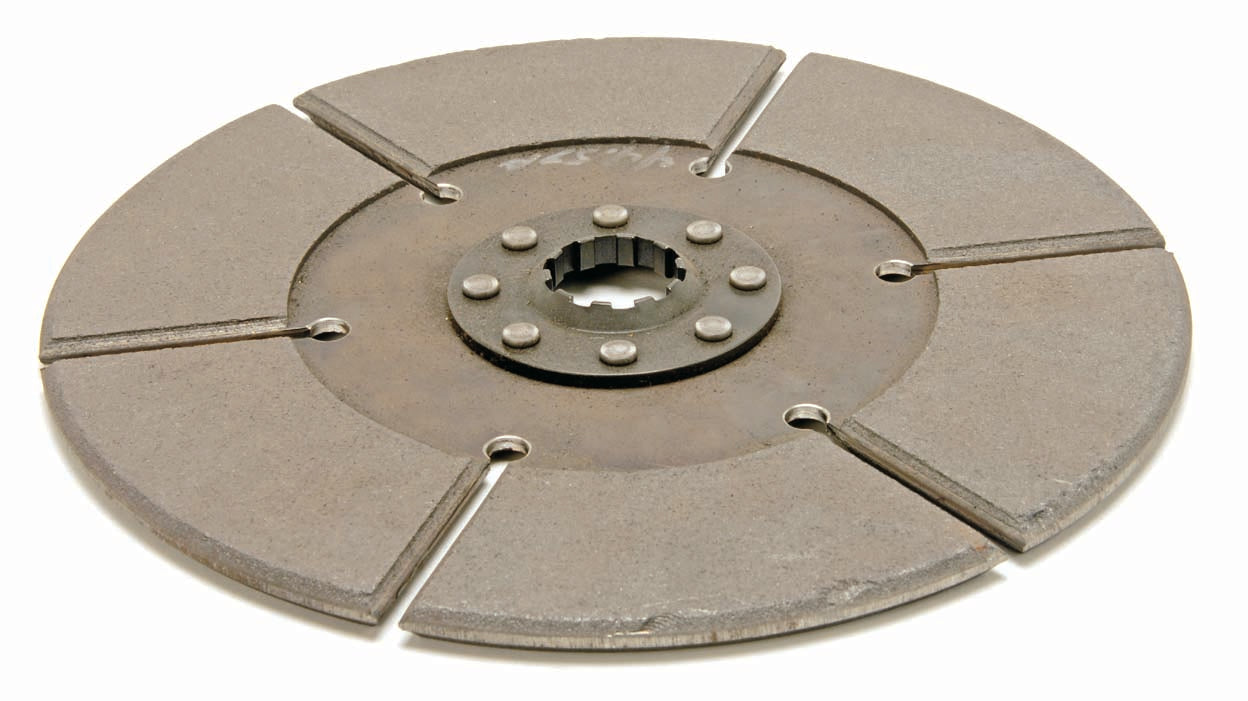

McLeod Racing Soft Lok comes with a billet aluminum flywheel, 5135 sintered iron disc and a adjustable Ford Long pressure plate. |
| Description_MKT |
The McLeod Soft Lok assembly is the most widely used McLeod clutch for drag racers. This unit is NOT recommended for street use. As a NHRA and IHRA record holder, this assembly has low static pressure for a light pedal effort and soft clutch engagement. This unit leaves the starting line harder with less tire spin. The Soft Lok is equipped with adjustable spring pressure and is available with counterweights. Included is a pressure plate, sintered iron disc, and aluminum flywheel. |
| Description_SHO |
Clutch Kit |
| Pilot Bushing Material |
N/A |
| Throwout Bearing Included |
No |
| Hardware Included |
Yes |
| Racing Application |
Drag Racing |
| Disc Diameter |
11In. |
| Flywheel Material |
Aluminum |
| Make |
Ford |
| Flywheel Included |
Yes |
| Spline |
1 1/8In. x 26 |
| Pilot Bushing Included |
No |
| Hub Style |
Solid |
| Disc Style |
Solid Hub |
| Engine |
1969-1978 BBF |
| Alignment Tool Included |
Yes |
| Ring Gear |
184 tooth |
| Disc Material |
Sintered Iron |
| Throwout Bearing Style |
Standard |
| Clutch Usage |
Drag Racing |
| Number of Discs |
Single |
| Engine Balance |
Internal Balance |
| Length |
6.0000 |
| Width |
17.0000 |
| Height |
16.0000 |
| Weight |
75.0000 |
