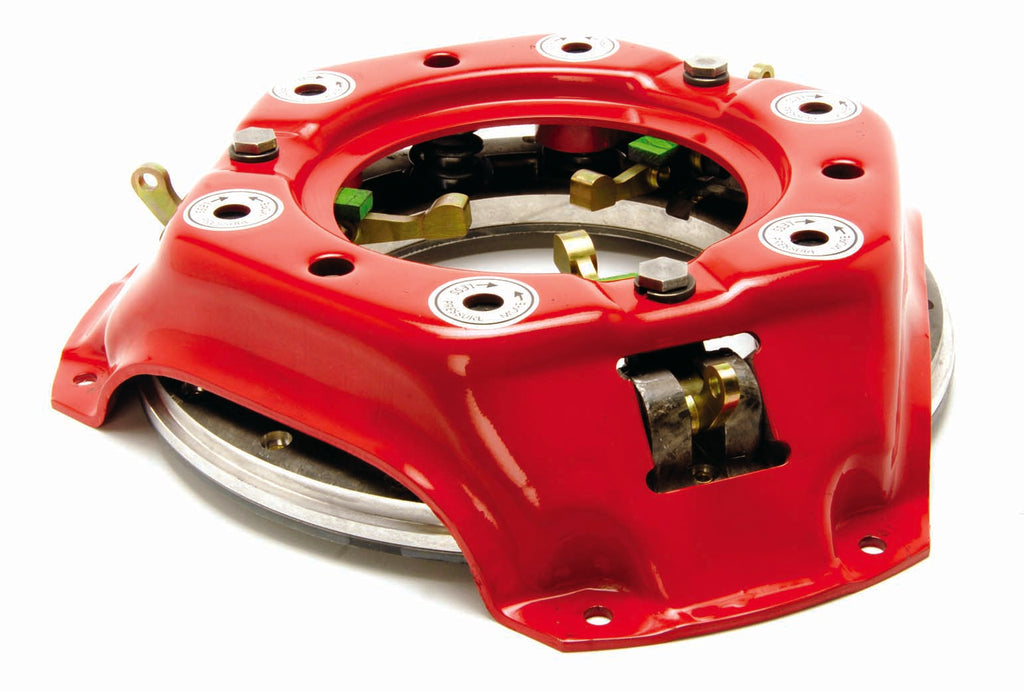

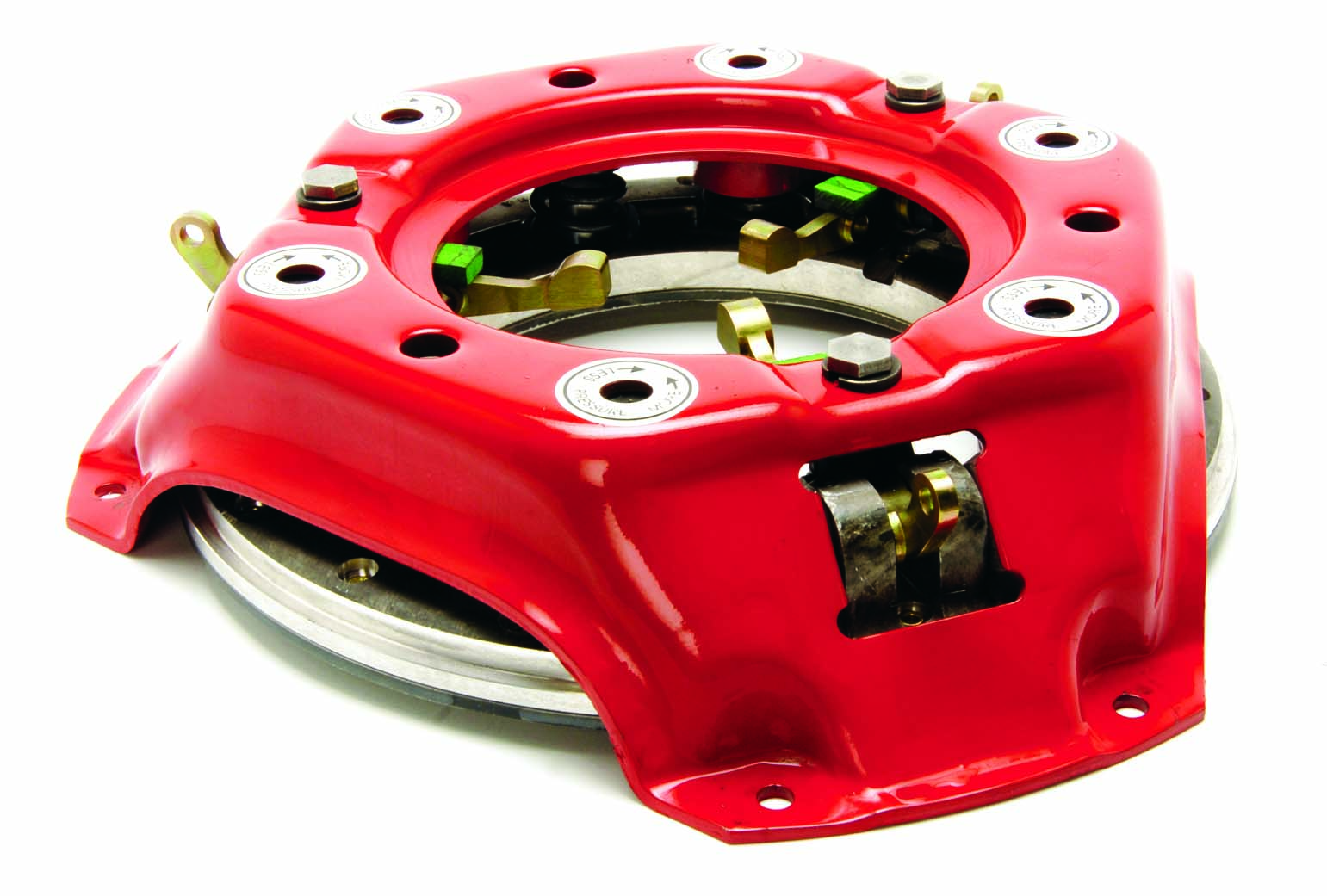

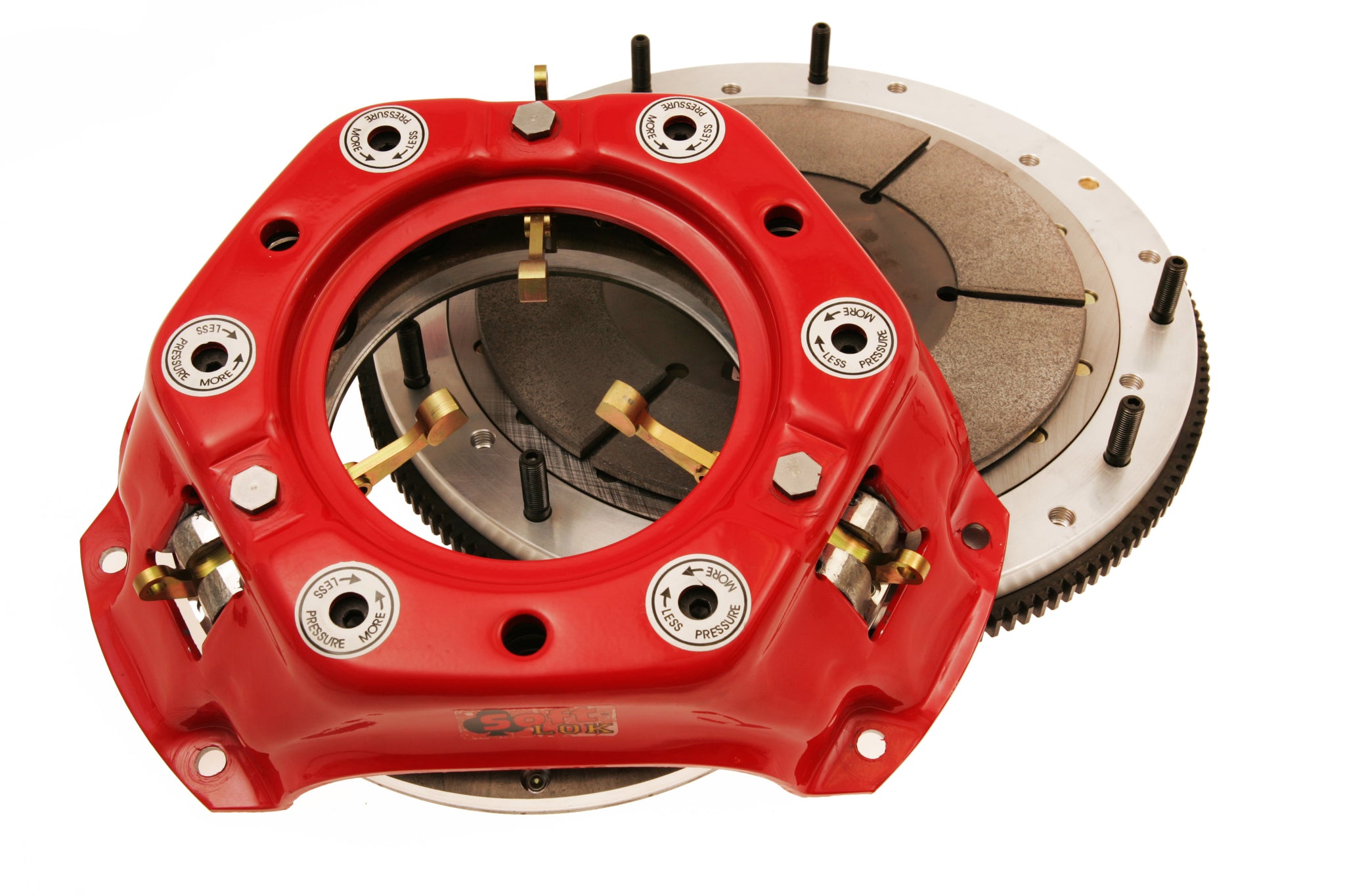

The McLeod Soft Lok assembly is the most widely used McLeod clutch for drag racers. This unit is NOT recommended for street use. As a NHRA and IHRA record holder, this assembly has low static pressure for a light pedal effort and soft clutch engagement. This unit leaves the starting line harder with less tire spin. The Soft Lok is equipped with adjustable spring pressure and is available with counterweights. Included is a pressure plate, sintered iron disc, and aluminum flywheel.
Specifications:
| Description_DEF |
Transmission Clutch Kit |
| Description_DES |
Soft Lok: Aluminum Flywheel: Ford Fe: 11 X 3/8 X 10: 184T: HCF |
| Description_EXT |
Soft Lok: Aluminum Flywheel: Ford Fe: 11 X 3/8 X 10: 184T: HCF |
| Description_INV |
Clutch Kit |
| Description_FAB |

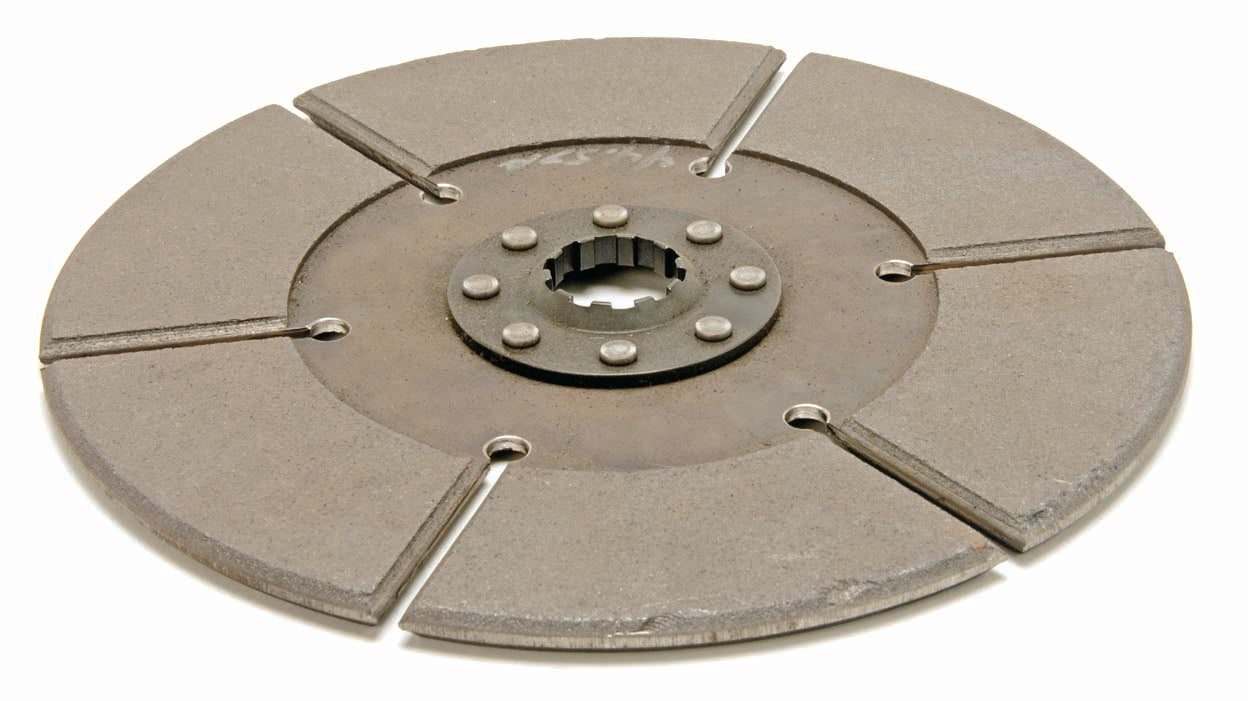

McLeod Racing Soft Lok comes with a billet aluminum flywheel, 5135 sintered iron disc and a adjustable Ford Long pressure plate. |
| Description_MKT |
The McLeod Soft Lok assembly is the most widely used McLeod clutch for drag racers. This unit is NOT recommended for street use. As a NHRA and IHRA record holder, this assembly has low static pressure for a light pedal effort and soft clutch engagement. This unit leaves the starting line harder with less tire spin. The Soft Lok is equipped with adjustable spring pressure and is available with counterweights. Included is a pressure plate, sintered iron disc, and aluminum flywheel. |
| Description_SHO |
Clutch Kit |
| Disc Diameter |
11In. |
| Racing Application |
Drag Racing |
| Make |
Ford |
| Spline |
1 3/8In. x 10 |
| Flywheel Included |
Yes |
| Pilot Bushing Material |
N/A |
| Engine |
1969-1978 BBF |
| Clutch Usage |
Drag Racing |
| Hardware Included |
Yes |
| Pilot Bushing Included |
No |
| Number of Discs |
Single |
| Engine Balance |
Internal Balance |
| Disc Material |
Sintered Iron |
| Flywheel Material |
Aluminum |
| Ring Gear |
184 tooth |
| Throwout Bearing Included |
No |
| Alignment Tool Included |
Yes |
| Hub Style |
Solid |
| Throwout Bearing Style |
Standard |
| Disc Style |
Solid Hub |
| Length |
6.0000 |
| Width |
17.0000 |
| Height |
16.0000 |
| Weight |
75.0000 |
