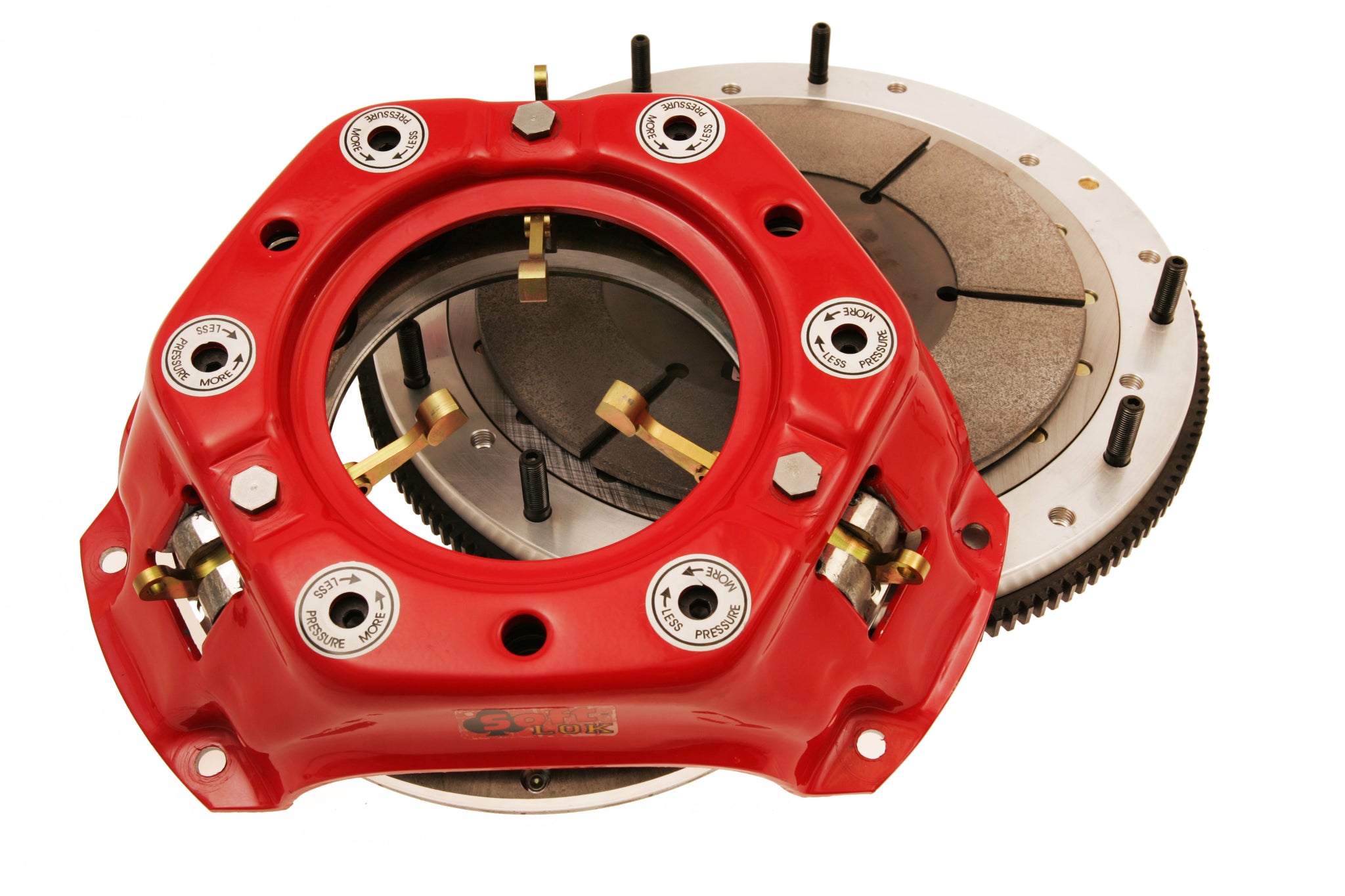

The McLeod Soft Lok assembly is the most widely used McLeod clutch for drag racers. This unit is NOT recommended for street use. As a NHRA and IHRA record holder, this assembly has low static pressure for a light pedal effort and soft clutch engagement. This unit leaves the starting line harder with less tire spin. The Soft Lok is equipped with adjustable spring pressure and is available with counterweights. Included is a pressure plate, sintered iron disc, and aluminum flywheel.
Specifications:
Description_DEF |
Transmission Clutch Kit |
Description_DES |
Soft Lok: Aluminum Flywheel: Ford: 4.6L 6 Bolt Crank: 11 x 1-3/16 x 18: 164T |
Description_FAB |

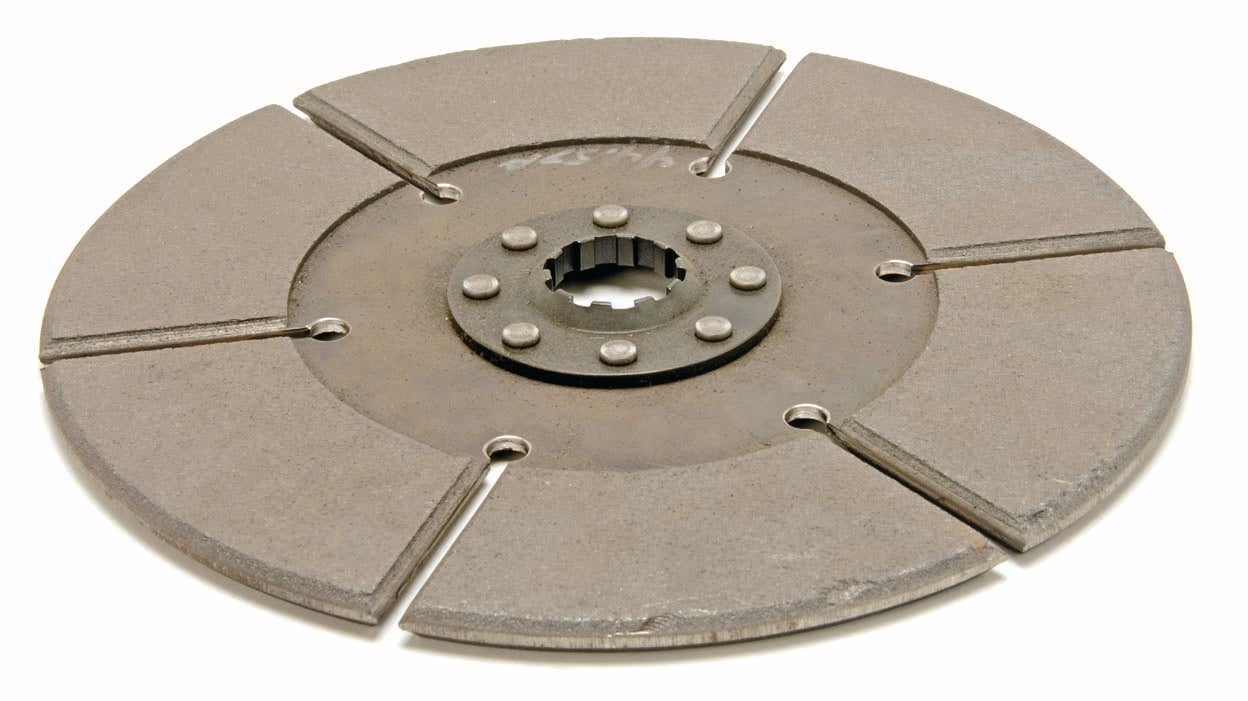

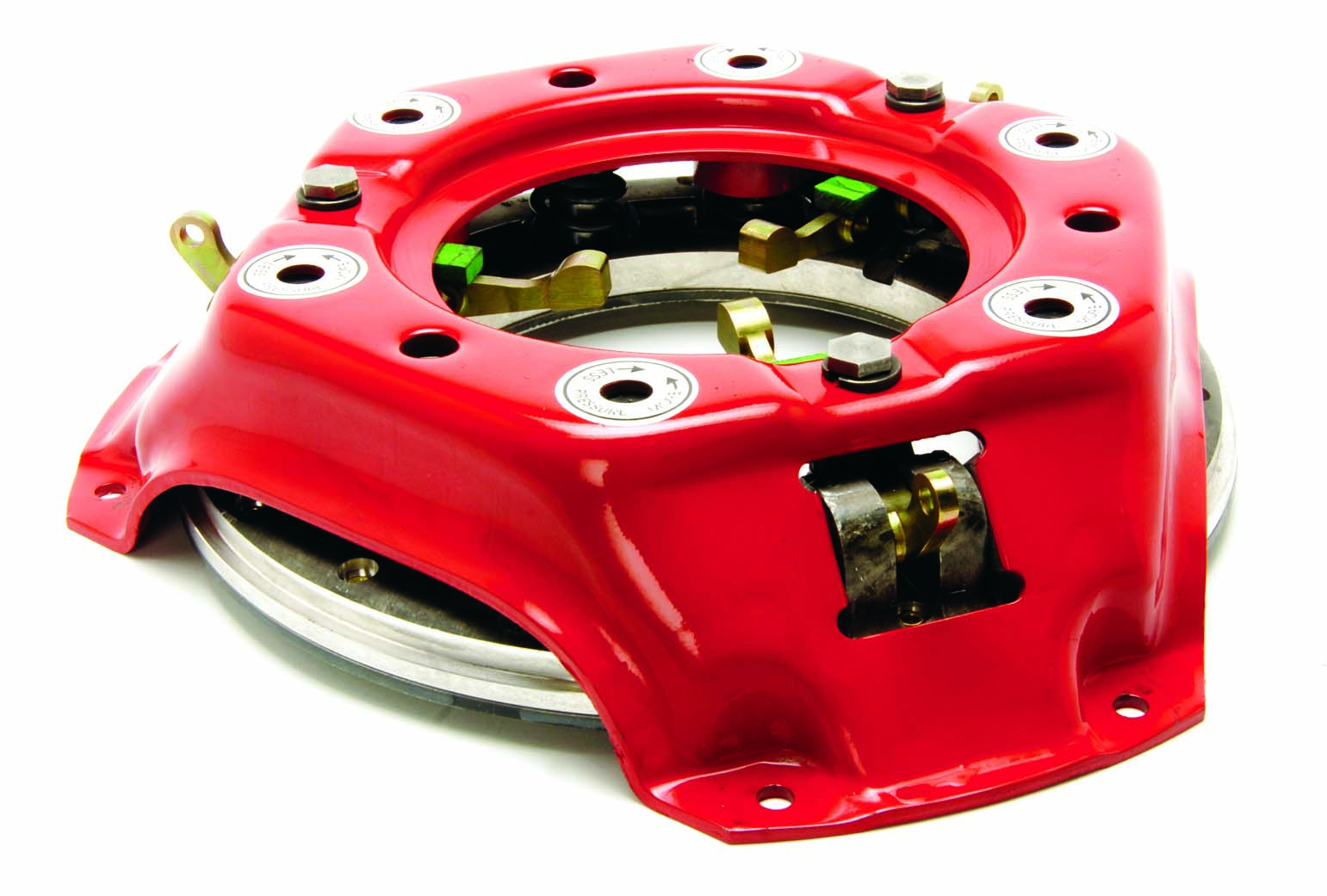

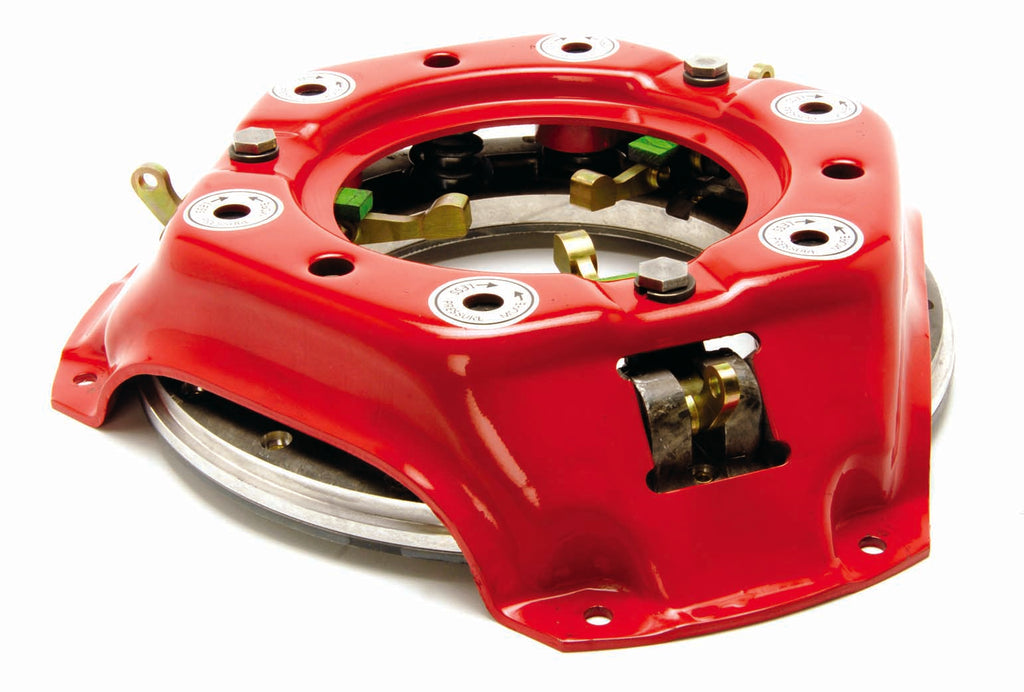

McLeod Racing Soft Lok comes with a billet aluminum flywheel, 5135 sintered iron disc and a adjustable Ford Long pressure plate. |
Description_INV |
Clutch Kit |
Description_EXT |
Soft Lok: Aluminum Flywheel: Ford: 4.6L 6 Bolt Crank: 11 x 1-3/16 x 18: 164T |
Description_MKT |
The McLeod Soft Lok assembly is the most widely used McLeod clutch for drag racers. This unit is NOT recommended for street use. As a NHRA and IHRA record holder, this assembly has low static pressure for a light pedal effort and soft clutch engagement. This unit leaves the starting line harder with less tire spin. The Soft Lok is equipped with adjustable spring pressure and is available with counterweights. Included is a pressure plate, sintered iron disc, and aluminum flywheel. |
Description_SHO |
Clutch Kit |
Flywheel Included |
Yes |
Racing Application |
Drag Racing |
Make |
Ford |
Hub Style |
Solid |
Spline |
1 3/16In. x 18 |
Disc Diameter |
11In. |
Engine |
1991-2010 4.6L 6 Bolt Crank |
Flywheel Material |
Aluminum |
Ring Gear |
164 tooth |
Engine Balance |
Internal Balance |
Number of Discs |
Single |
Length |
6.0000 |
Width |
17.0000 |
Height |
16.0000 |
Weight |
75.0000 |
