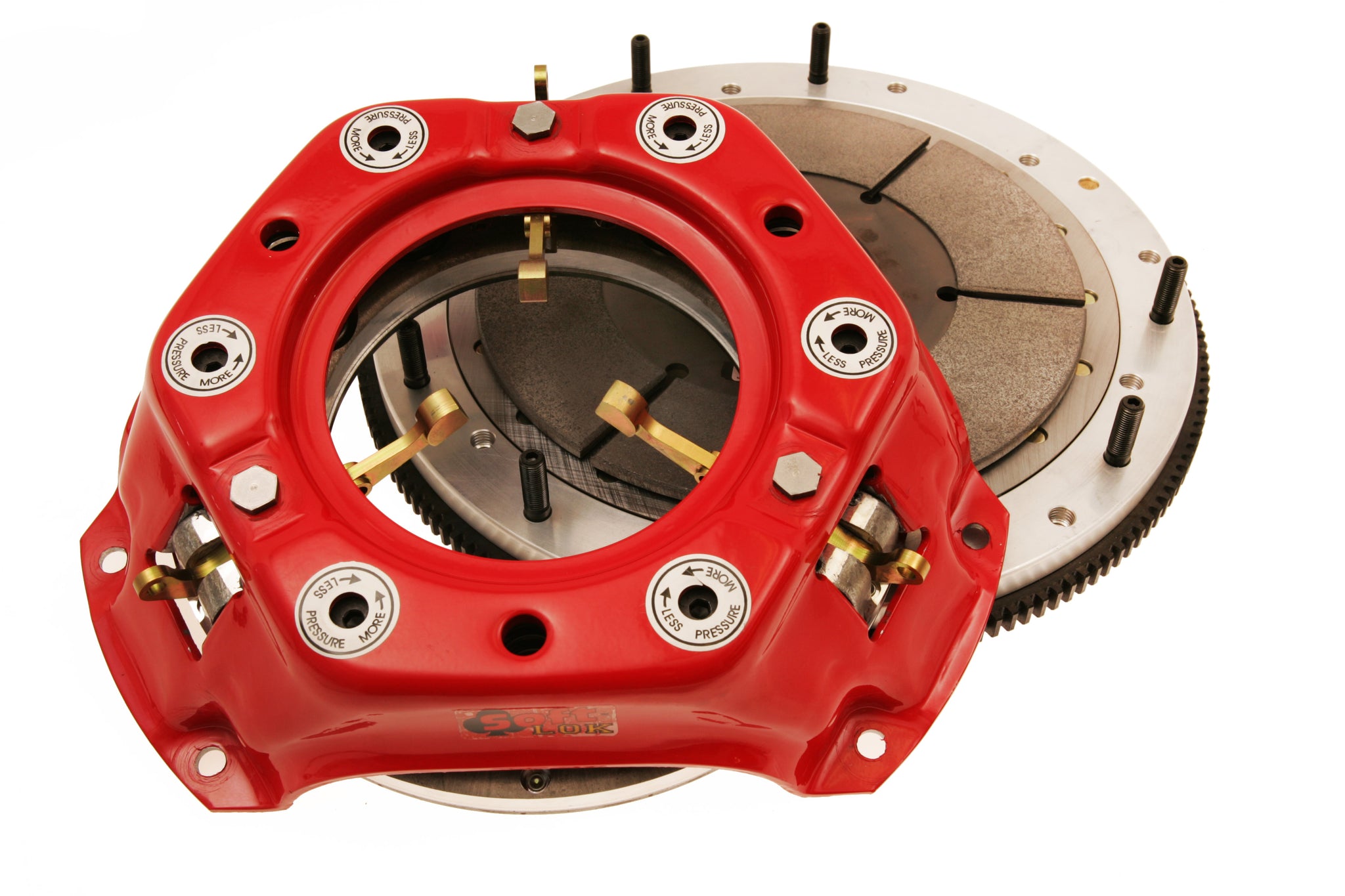

The McLeod Soft Lok assembly is the most widely used McLeod clutch for drag racers. This unit is NOT recommended for street use. As a NHRA and IHRA record holder, this assembly has low static pressure for a light pedal effort and soft clutch engagement. This unit leaves the starting line harder with less tire spin. The Soft Lok is equipped with adjustable spring pressure and is available with counterweights. Included is a pressure plate, sintered iron disc, and aluminum flywheel.
Specifications:
Description_DEF |
Transmission Clutch Kit |
Description_EXT |
Soft Lok Alm Ford 4.6/5.0/5.4L 8 Blt: 10.5" X 1-3/8 X 10 Spl HCF 6 Blt Crk 164T |
Description_DES |
Soft Lok Alm Ford 4.6/5.0/5.4L 8 Blt: 10.5" X 1-3/8 X 10 Spl HCF 6 Blt Crk 164T |
Description_MKT |
The McLeod Soft Lok assembly is the most widely used McLeod clutch for drag racers. This unit is NOT recommended for street use. As a NHRA and IHRA record holder, this assembly has low static pressure for a light pedal effort and soft clutch engagement. This unit leaves the starting line harder with less tire spin. The Soft Lok is equipped with adjustable spring pressure and is available with counterweights. Included is a pressure plate, sintered iron disc, and aluminum flywheel. |
Description_FAB |

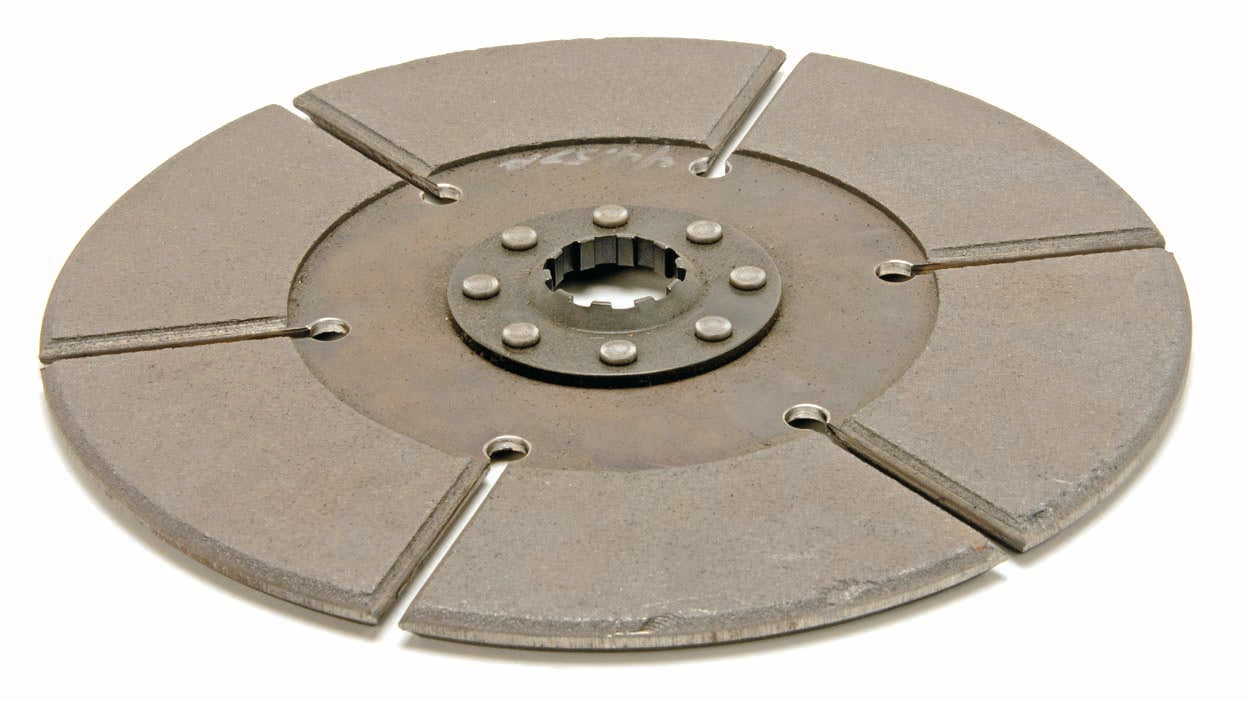

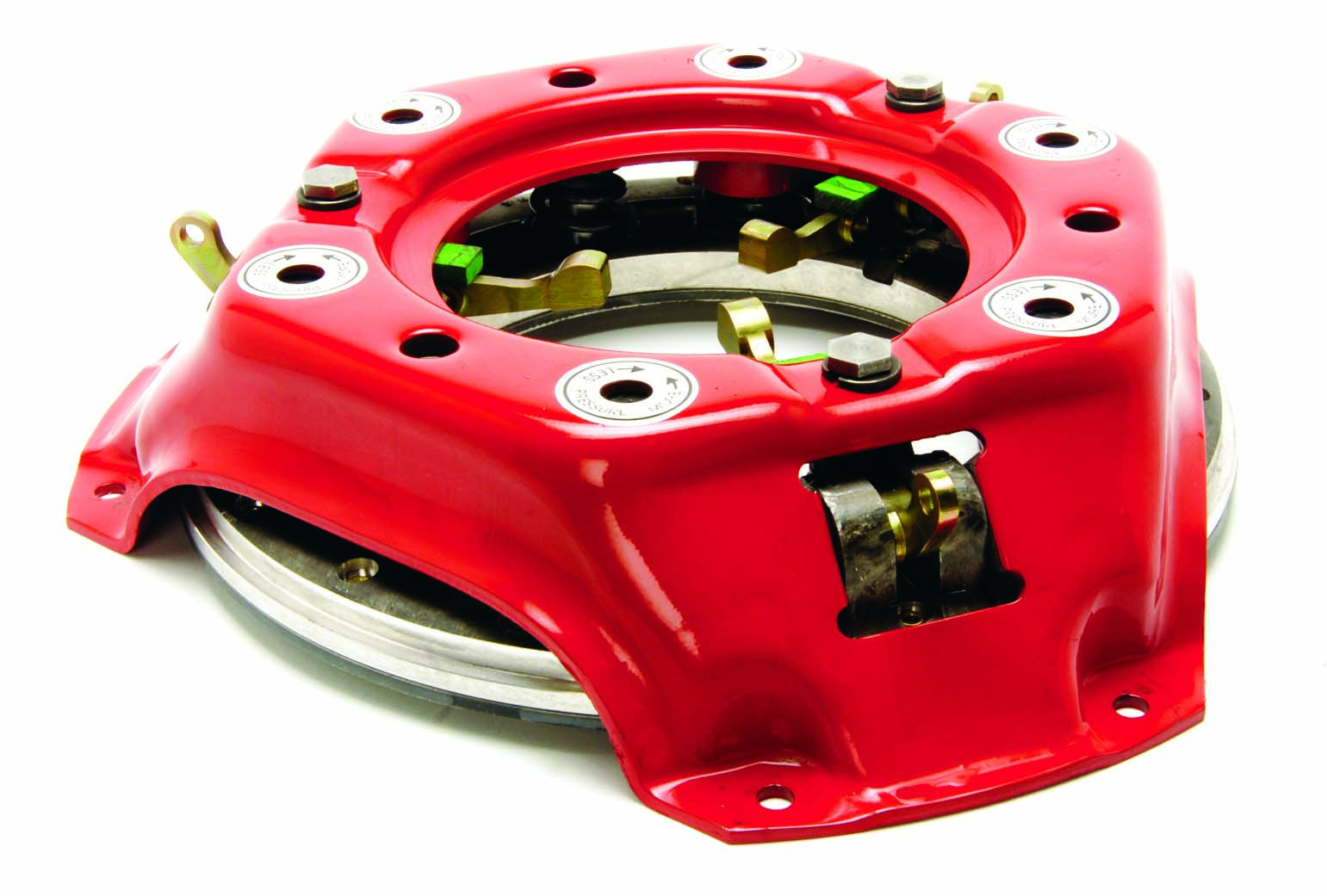

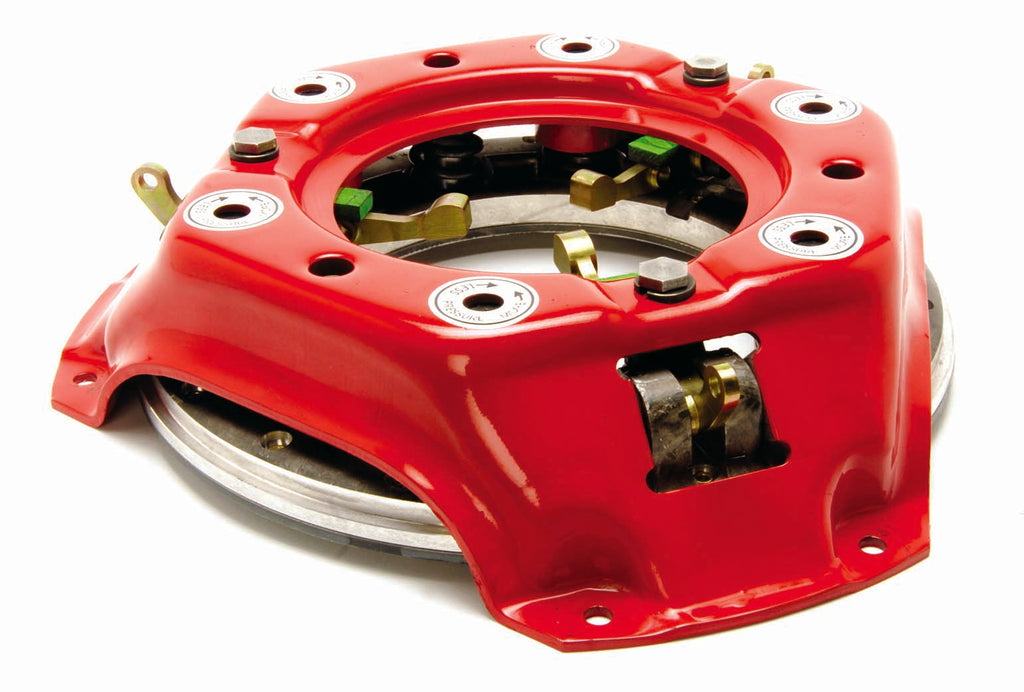

McLeod Racing Soft Lok comes with a billet aluminum flywheel, 5135 sintered iron disc and a adjustable Ford Long pressure plate. |
Description_INV |
Clutch Kit |
Description_SHO |
Clutch Kit |
Flywheel Included |
Yes |
Ring Gear |
164 tooth |
Engine |
1991-2010 4.6L 6 Bolt Crank |
Disc Diameter |
10.5In. |
Make |
Ford |
Engine Balance |
Internal Balance |
Flywheel Material |
Aluminum |
Racing Application |
Drag Racing |
Number of Discs |
Single |
Spline |
1 3/8In. x 10 |
Hub Style |
Solid |
Length |
6.0000 |
Width |
17.0000 |
Height |
16.0000 |
Weight |
75.0000 |
