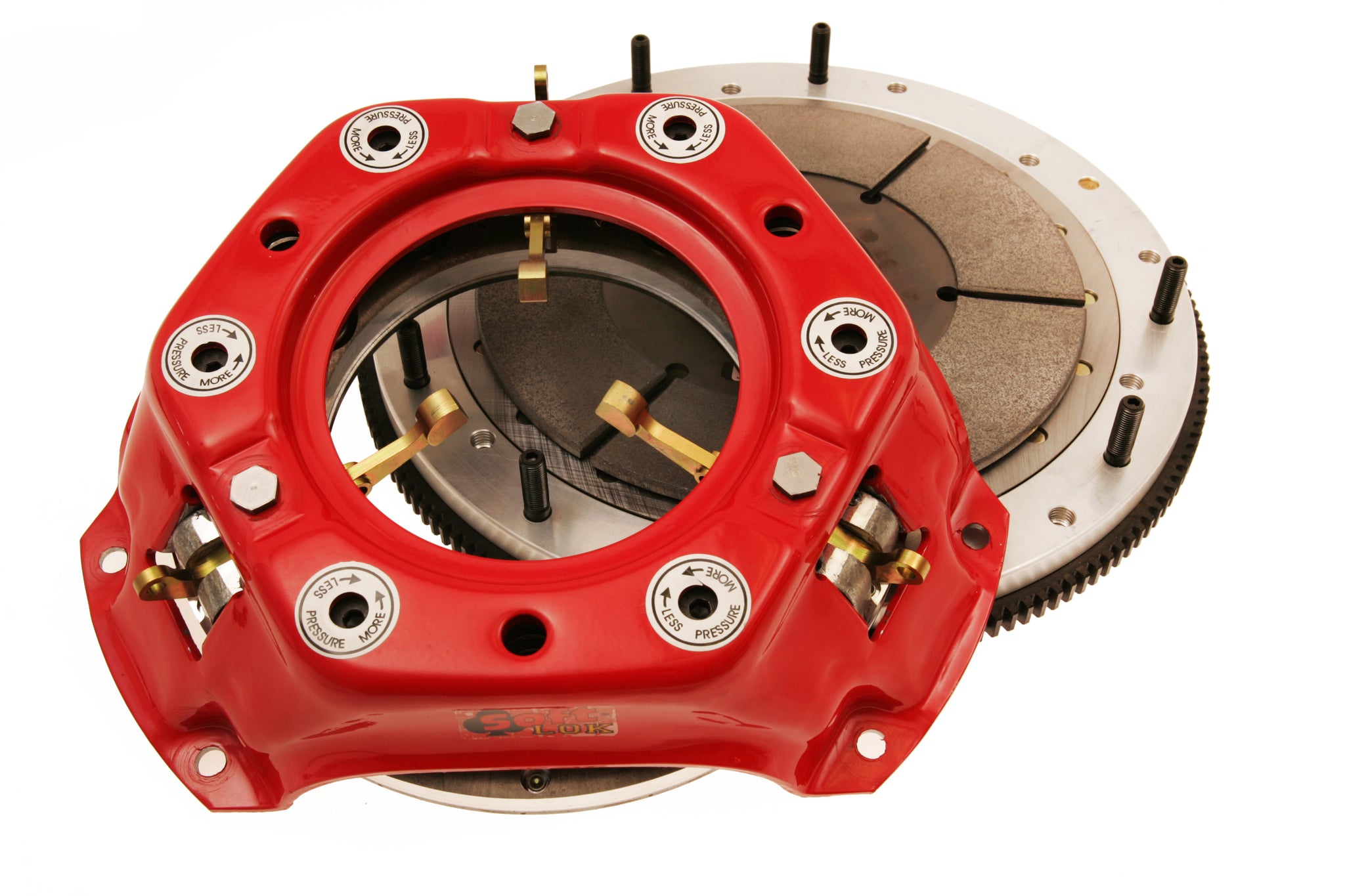

The McLeod Soft Lok assembly is the most widely used McLeod clutch for drag racers. This unit is NOT recommended for street use. As a NHRA and IHRA record holder, this assembly has low static pressure for a light pedal effort and soft clutch engagement. This unit leaves the starting line harder with less tire spin. The Soft Lok is equipped with adjustable spring pressure and is available with counterweights. Included is a pressure plate, sintered iron disc, and aluminum flywheel.
Specifications:
| Description_ASM |
Dodge: Challenger 70 - 71 7 L Engine, Dodge: Charger 66 - 71 7 L Engine, Dodge: Coronet 66 - 71 7 L Engine, Plymouth: Barracuda 68 - 71 7 L Engine, Plymouth: Belvedere 66 - 69 7 L Engine, Plymouth: Cuda 70 - 71 7 L Engine, Plymouth: Fury 66 - 66 7 L Engine, Plymouth: GTX 68 - 71 7 L Engine, Plymouth: Road Runner 68 - 71 7 L Engine, Plymouth: Satellite 66 - 67 7 L Engine |
| Description_DEF |
Transmission Clutch Kit |
| Description_DES |
Soft Lok: Aluminum: Mopar: 8 Bolt Crank: 10.5 X 1-3/16 X 18 Spl HCF 143T |
| Description_EXT |
Soft Lok: Aluminum: Mopar: 8 Bolt Crank: 10.5 X 1-3/16 X 18 Spl HCF 143T |
| Description_INV |
Clutch Kit |
| Description_FAB |

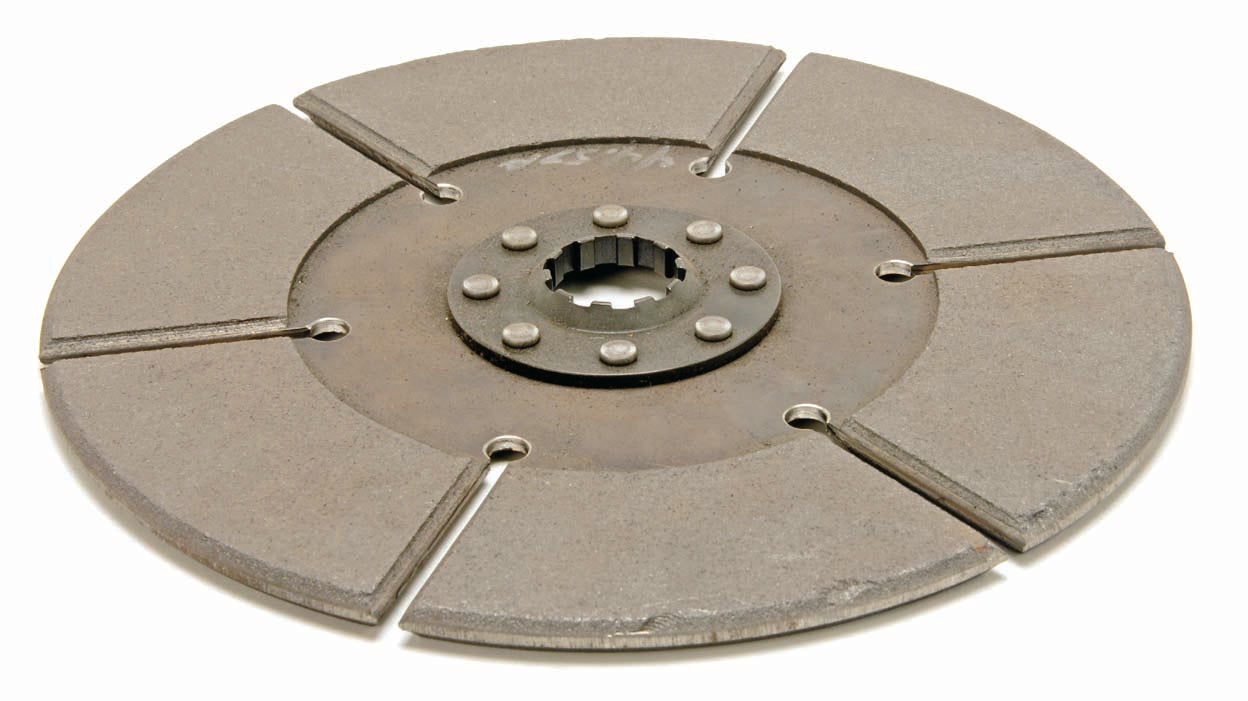

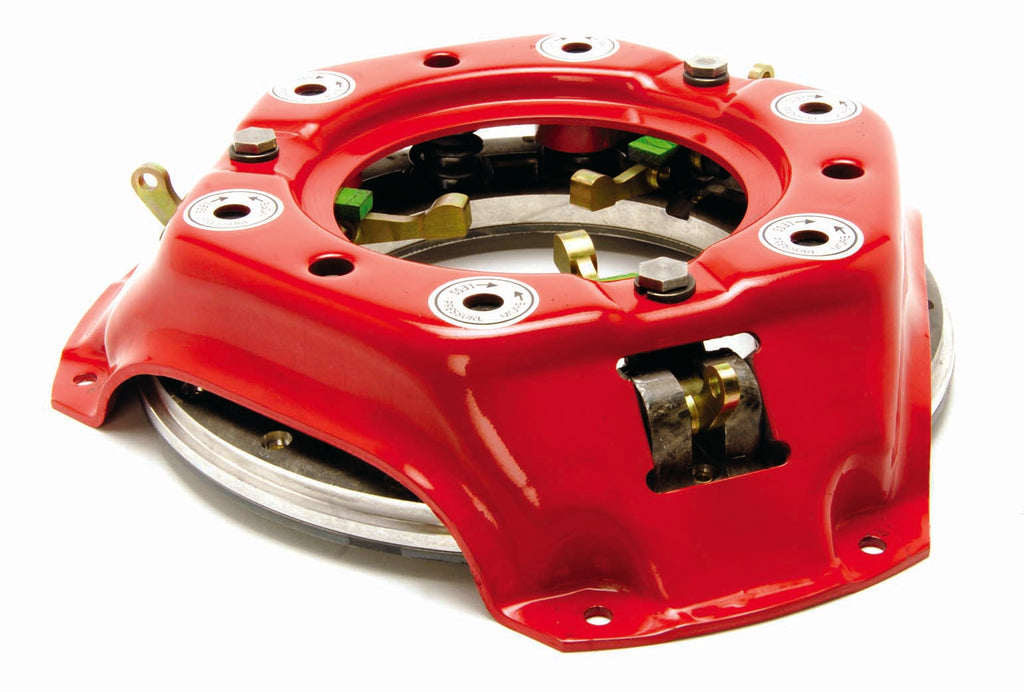

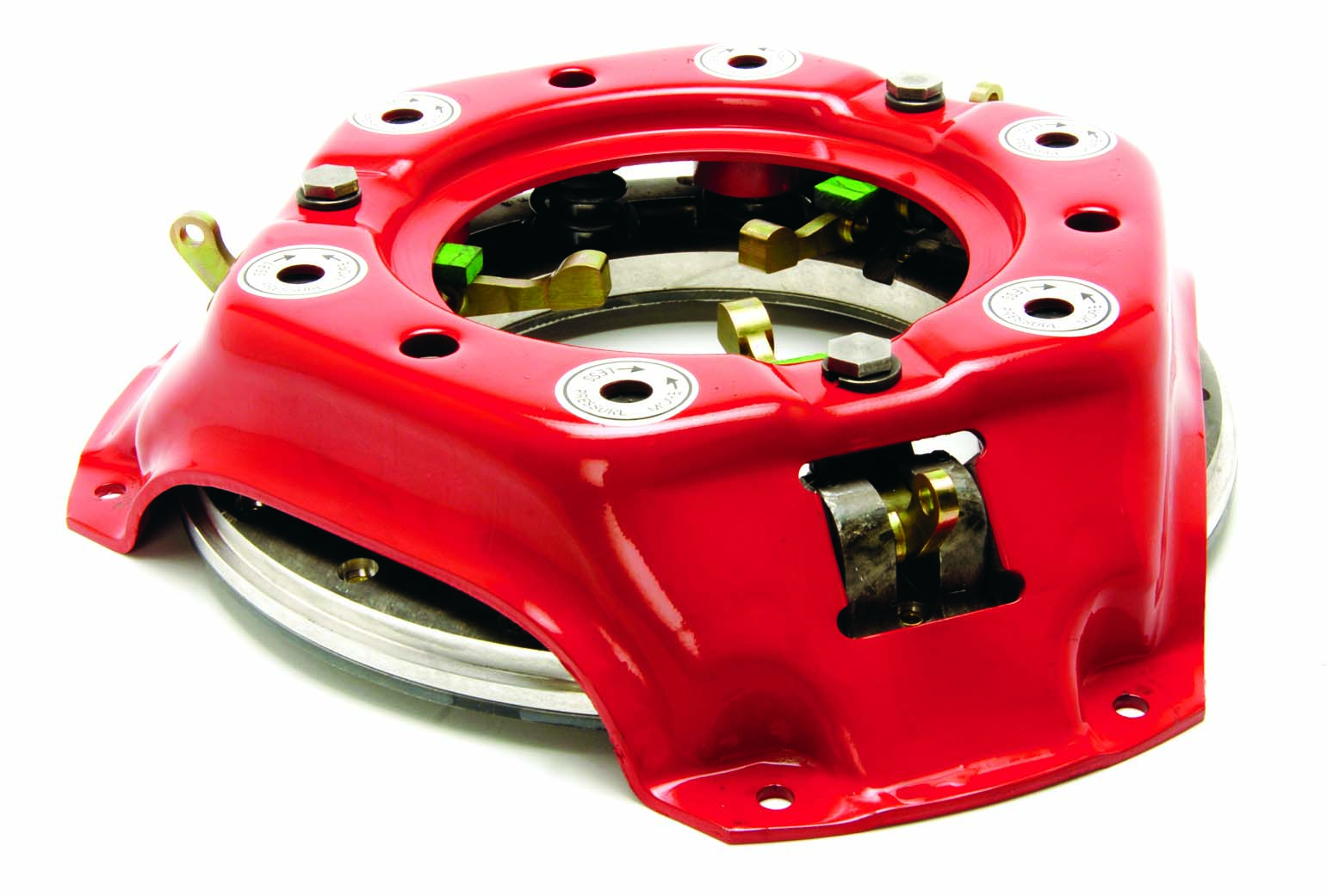

McLeod Racing Soft Lok comes with a billet aluminum flywheel, 5135 sintered iron disc and a adjustable Ford Long pressure plate. |
| Description_SHO |
Clutch Kit |
| Description_MKT |
The McLeod Soft Lok assembly is the most widely used McLeod clutch for drag racers. This unit is NOT recommended for street use. As a NHRA and IHRA record holder, this assembly has low static pressure for a light pedal effort and soft clutch engagement. This unit leaves the starting line harder with less tire spin. The Soft Lok is equipped with adjustable spring pressure and is available with counterweights. Included is a pressure plate, sintered iron disc, and aluminum flywheel. |
| Racing Application |
Drag Racing |
| Flywheel Included |
Yes |
| Make |
Chrysler |
| Disc Diameter |
10.5In. |
| Spline |
1 3/16In. x 18 |
| Number of Discs |
Single |
| Engine Balance |
Internal Balance |
| Ring Gear |
143 tooth |
| Flywheel Material |
Aluminum |
| Hub Style |
Solid |
| Engine |
1963-1972 Wedge & Hemi |
| Length |
6.0000 |
| Width |
17.0000 |
| Height |
16.0000 |
| Weight |
75.0000 |
