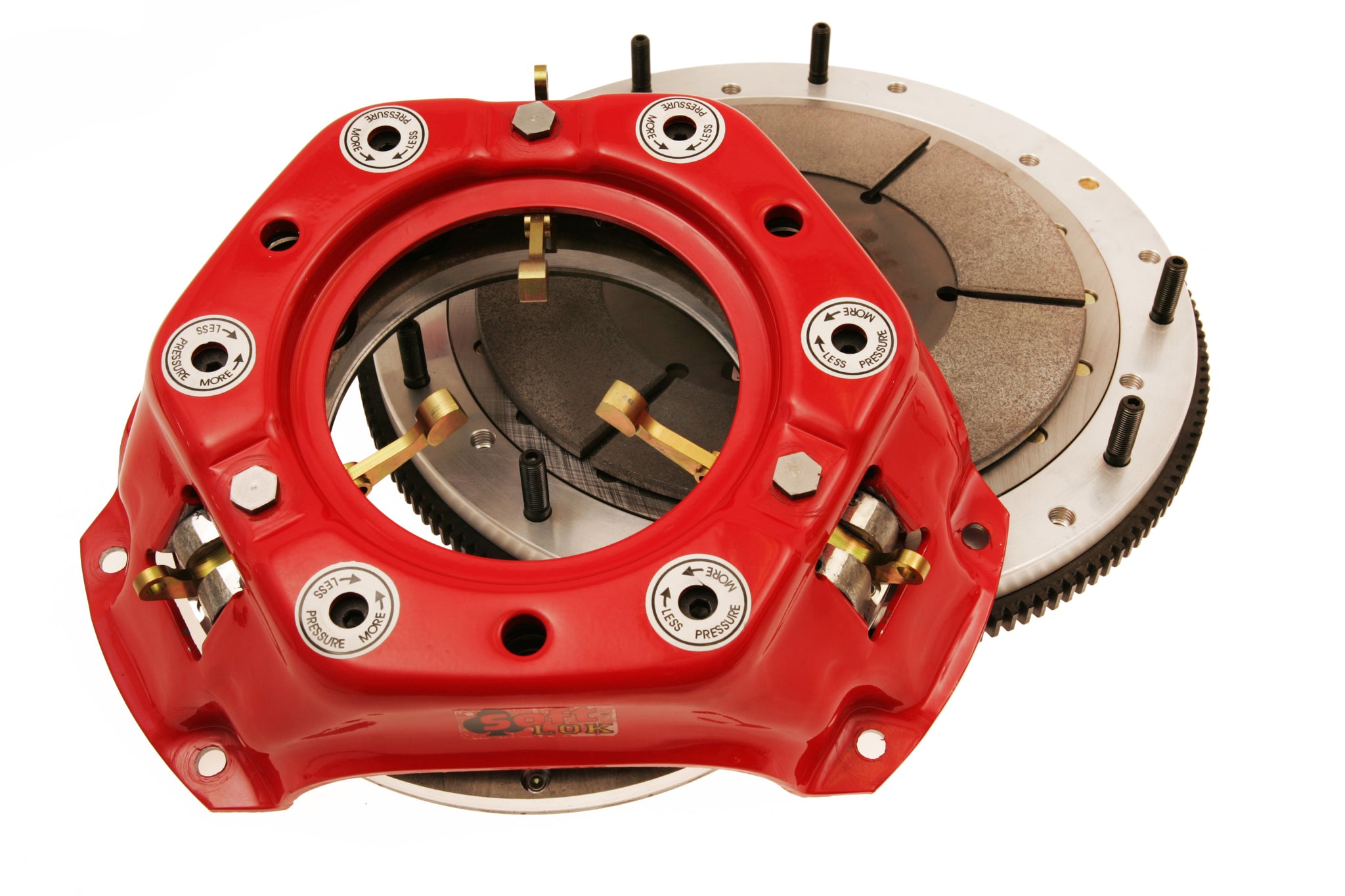

The McLeod Soft Lok assembly is the most widely used McLeod clutch for drag racers. This unit is NOT recommended for street use. As a NHRA and IHRA record holder, this assembly has low static pressure for a light pedal effort and soft clutch engagement. This unit leaves the starting line harder with less tire spin. The Soft Lok is equipped with adjustable spring pressure and is available with counterweights. Included is a pressure plate, sintered iron disc, and aluminum flywheel.
Specifications:
Description_DEF |
Transmission Clutch Kit |
Description_DES |
Soft Lok: Aluminum: GM: LS 6 Bolt Crank: 11X 1-3/16 X 18 Spl HCF 168T |
Description_EXT |
Soft Lok: Aluminum: GM: LS 6 Bolt Crank: 11X 1-3/16 X 18 Spl HCF 168T |
Description_INV |
Clutch Kit |
Description_FAB |

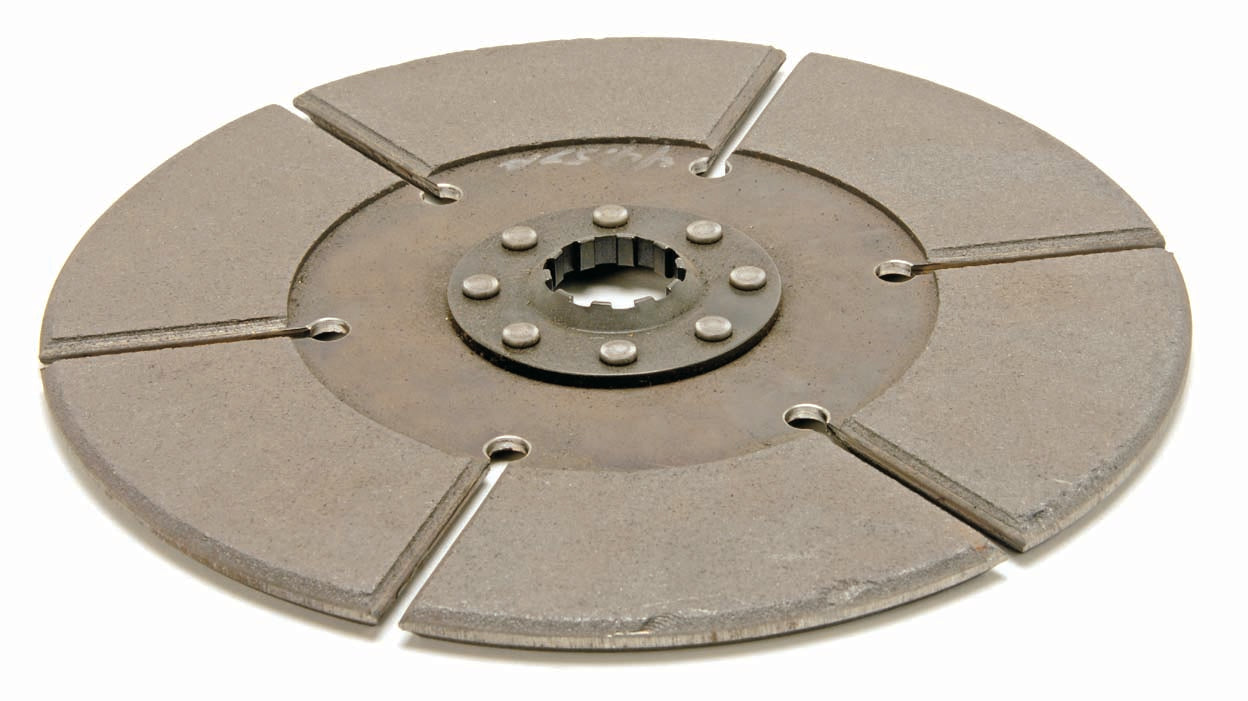

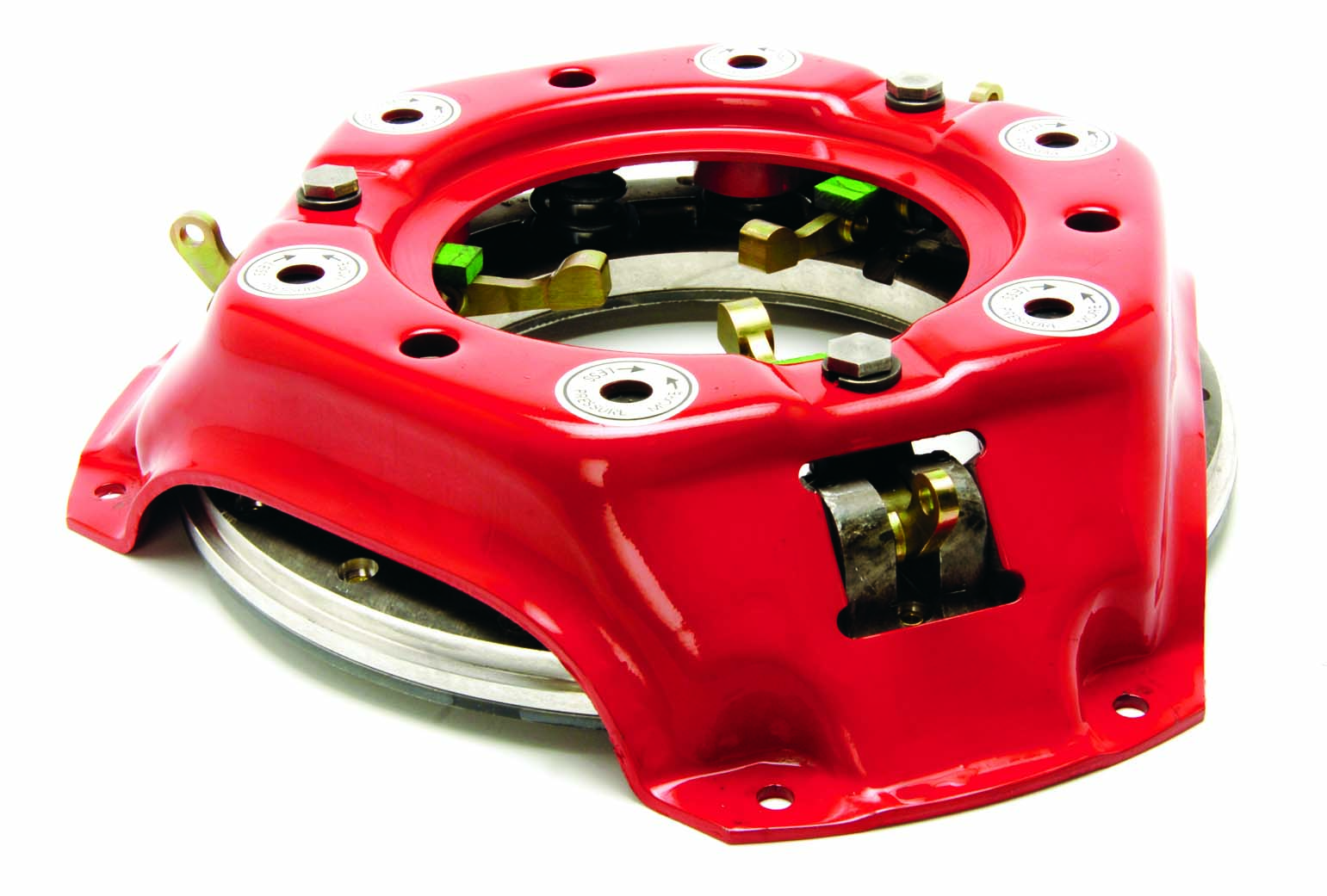

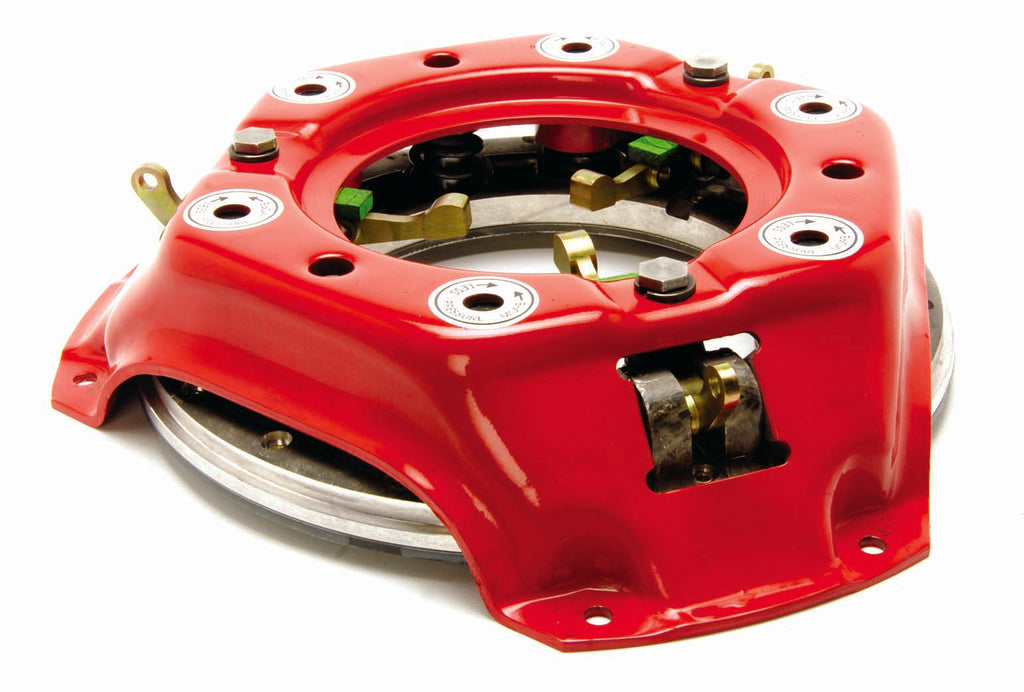

McLeod Racing Soft Lok comes with a billet aluminum flywheel, 5135 sintered iron disc and a adjustable Ford Long pressure plate. |
Description_MKT |
The McLeod Soft Lok assembly is the most widely used McLeod clutch for drag racers. This unit is NOT recommended for street use. As a NHRA and IHRA record holder, this assembly has low static pressure for a light pedal effort and soft clutch engagement. This unit leaves the starting line harder with less tire spin. The Soft Lok is equipped with adjustable spring pressure and is available with counterweights. Included is a pressure plate, sintered iron disc, and aluminum flywheel. |
Description_SHO |
Clutch Kit |
Engine Balance |
Internal Balance |
Number of Discs |
Single |
Ring Gear |
168 tooth |
Engine |
1997-2013 LS1/LS2/LS3/LS6/LS7 6 BOLT Crank |
Make |
Chevrolet |
Flywheel Material |
Aluminum |
Hub Style |
Solid |
Spline |
1 3/16In. x 18 |
Disc Diameter |
11In. |
Racing Application |
Drag Racing |
Flywheel Included |
Yes |
Length |
6.0000 |
Width |
17.0000 |
Height |
16.0000 |
Weight |
75.0000 |
