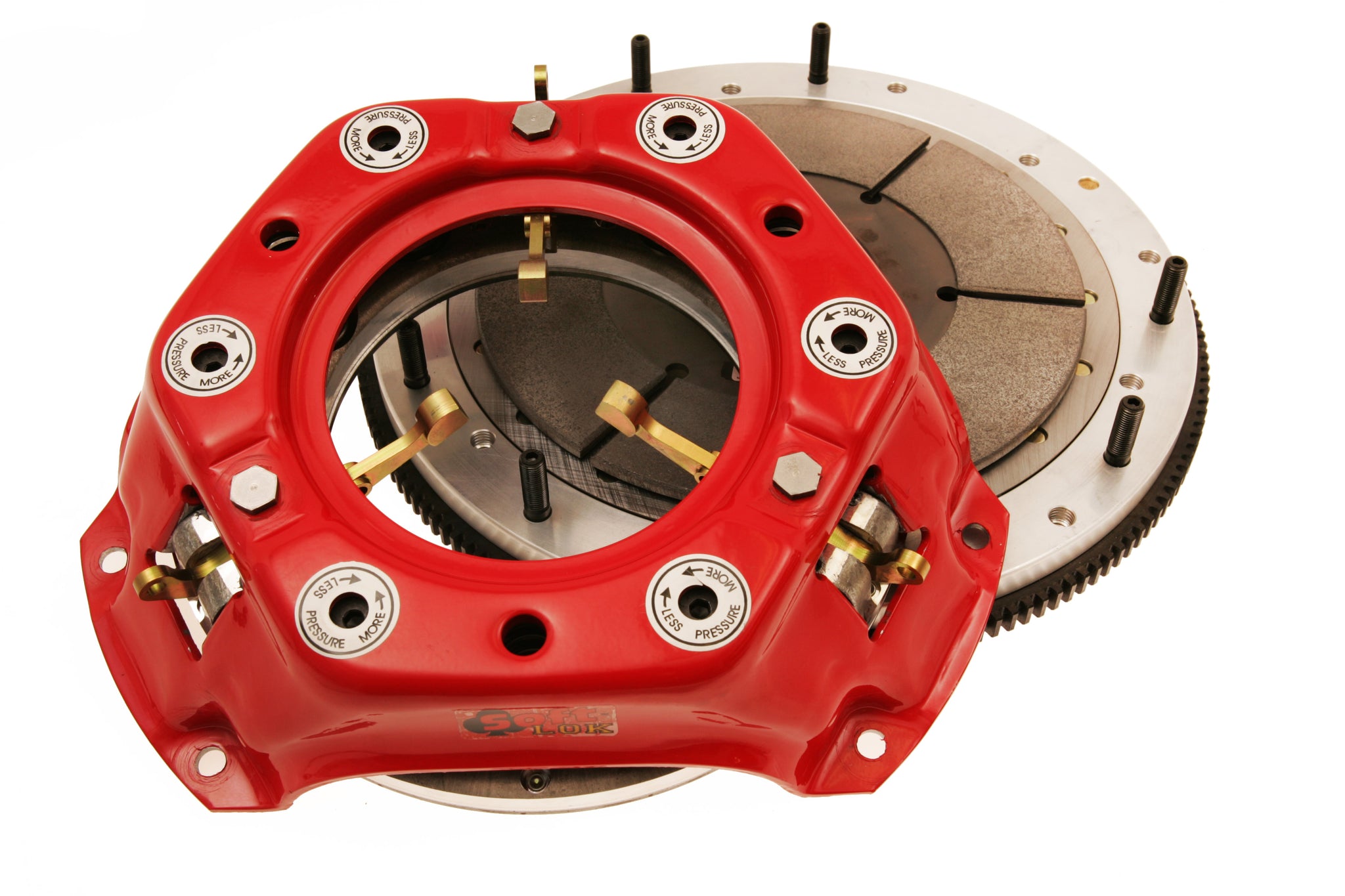

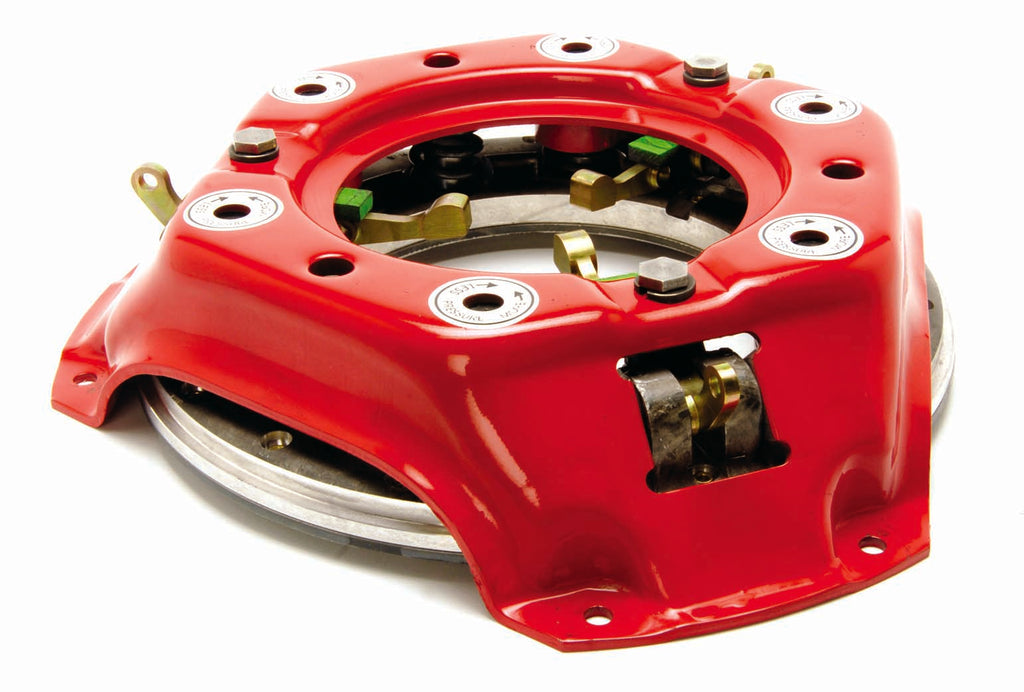

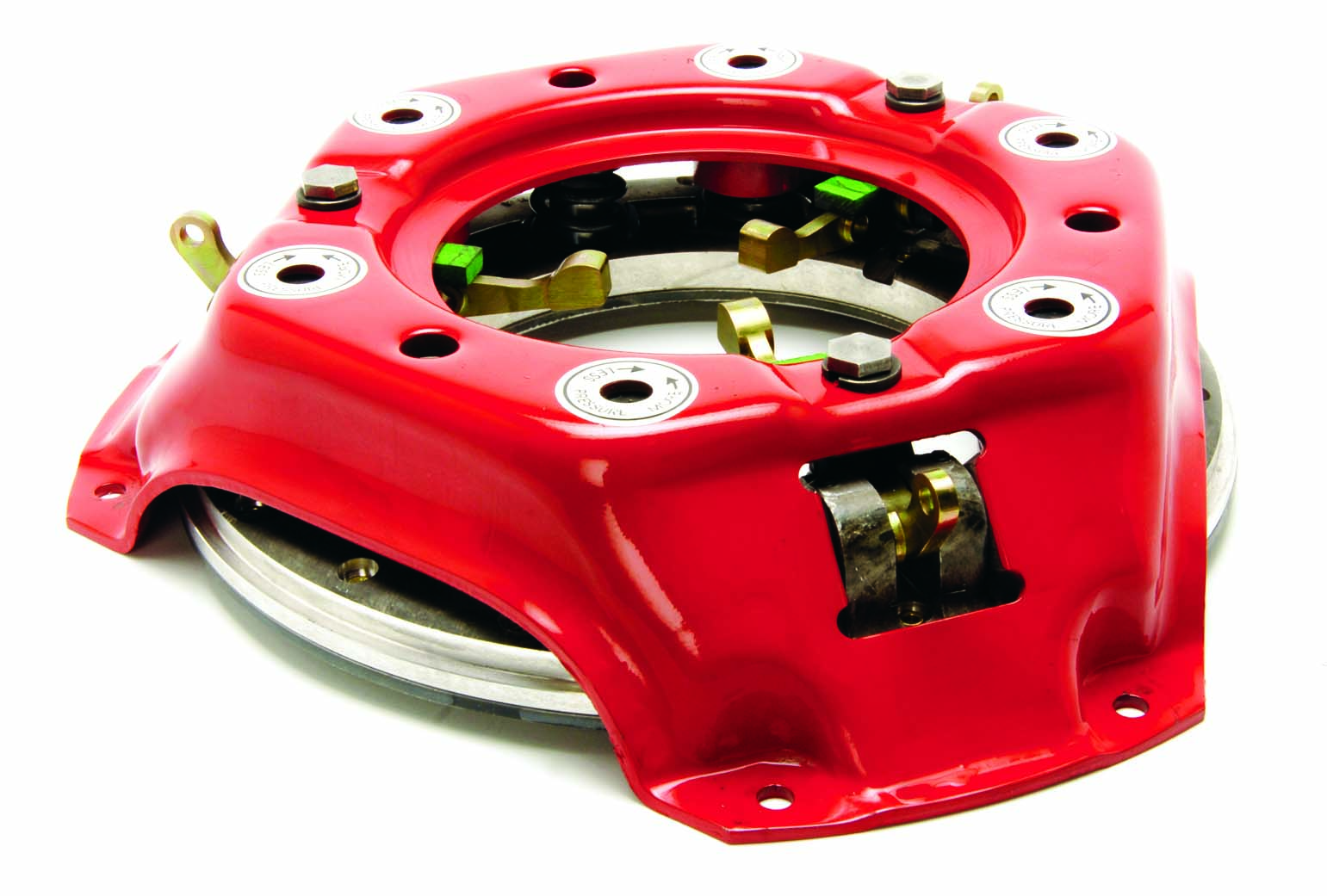

The McLeod Soft Lok assembly is the most widely used McLeod clutch for drag racers. This unit is NOT recommended for street use. As a NHRA and IHRA record holder, this assembly has low static pressure for a light pedal effort and soft clutch engagement. This unit leaves the starting line harder with less tire spin. The Soft Lok is equipped with adjustable spring pressure and is available with counterweights. Included is a pressure plate, sintered iron disc, and aluminum flywheel.
Specifications:
| Description_DEF |
Transmission Clutch Kit |
| Description_DES |
Soft Lok: Aluminum Flywheel: GM: LS 6 Bolt Crank: 10.5 X 1-1/8 X 26: 168T: HCF |
| Description_FAB |

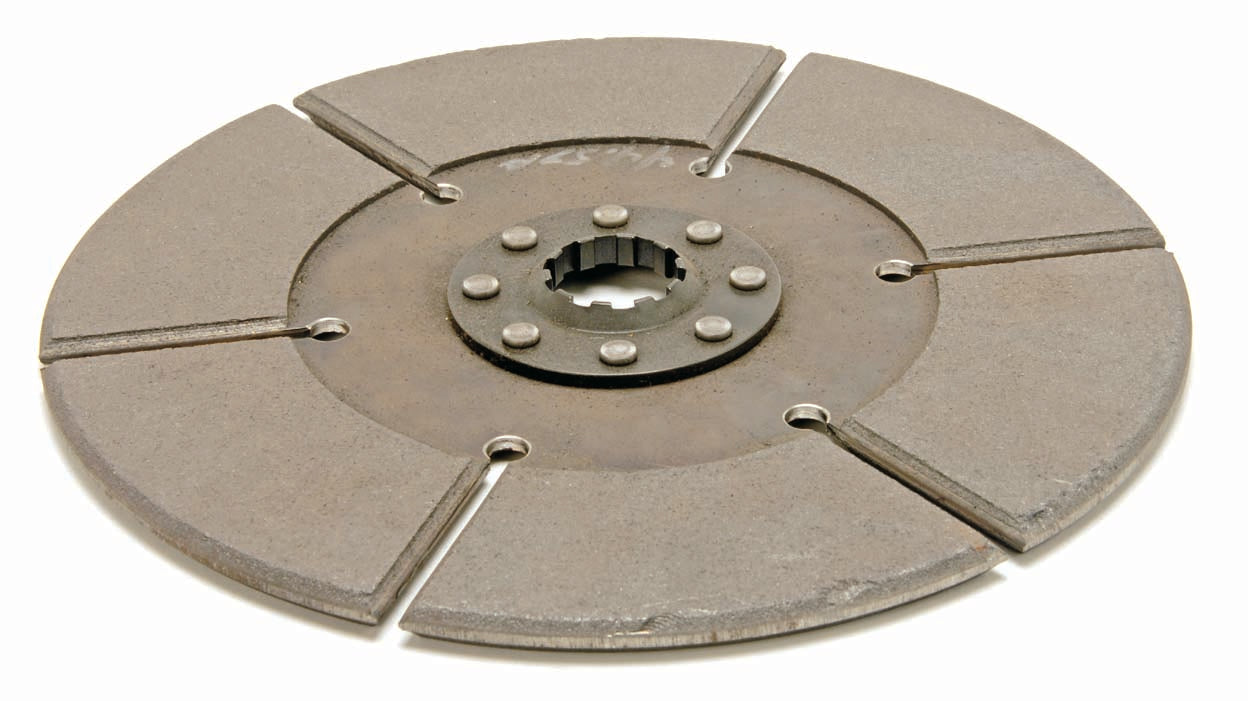

McLeod Racing Soft Lok comes with a billet aluminum flywheel, 5135 sintered iron disc and a adjustable Ford Long pressure plate. |
| Description_EXT |
Soft Lok: Aluminum Flywheel: GM: LS 6 Bolt Crank: 10.5 X 1-1/8 X 26: 168T: HCF |
| Description_INV |
Clutch Kit |
| Description_SHO |
Clutch Kit |
| Description_MKT |
The McLeod Soft Lok assembly is the most widely used McLeod clutch for drag racers. This unit is NOT recommended for street use. As a NHRA and IHRA record holder, this assembly has low static pressure for a light pedal effort and soft clutch engagement. This unit leaves the starting line harder with less tire spin. The Soft Lok is equipped with adjustable spring pressure and is available with counterweights. Included is a pressure plate, sintered iron disc, and aluminum flywheel. |
| Alignment Tool Included |
Yes |
| Spline |
1 1/8In. x 26 |
| Hub Style |
Solid |
| Clutch Usage |
Drag Racing |
| Throwout Bearing Style |
Standard |
| Engine |
1997-2013 LS1/LS2/LS3/LS6/LS7 6 BOLT Crank |
| Pilot Bushing Included |
No |
| Disc Style |
Solid Hub |
| Ring Gear |
168 tooth |
| Number of Discs |
Single |
| Hardware Included |
Yes |
| Racing Application |
Drag Racing |
| Disc Diameter |
10.5In. |
| Pilot Bushing Material |
N/A |
| Disc Material |
Sintered Iron |
| Engine Balance |
Internal Balance |
| Throwout Bearing Included |
No |
| Flywheel Material |
Aluminum |
| Make |
Chevrolet |
| Flywheel Included |
Yes |
| Length |
6.0000 |
| Width |
17.0000 |
| Height |
16.0000 |
| Weight |
75.0000 |
