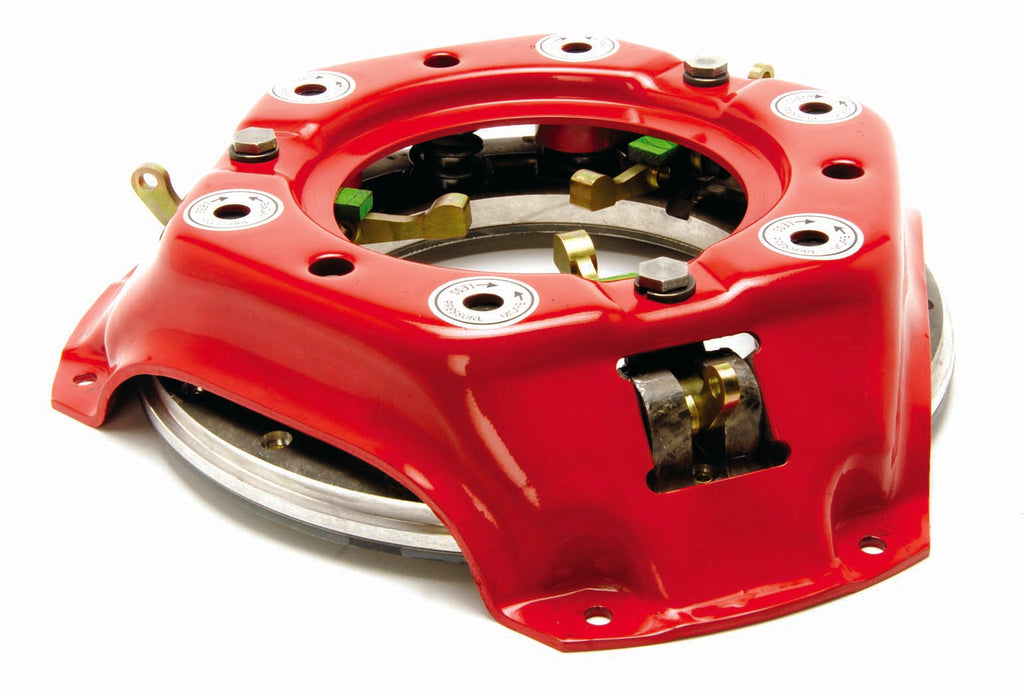

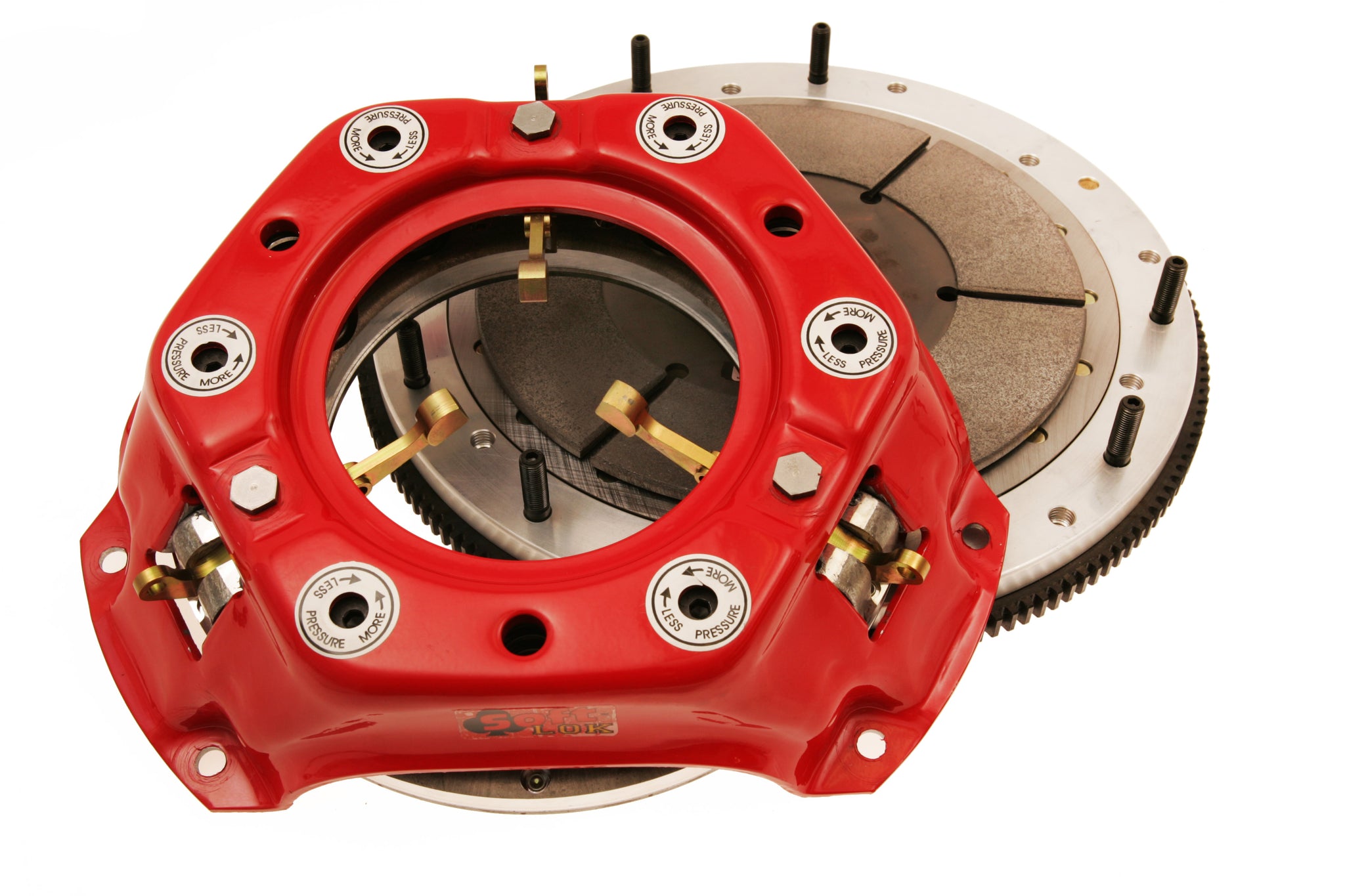

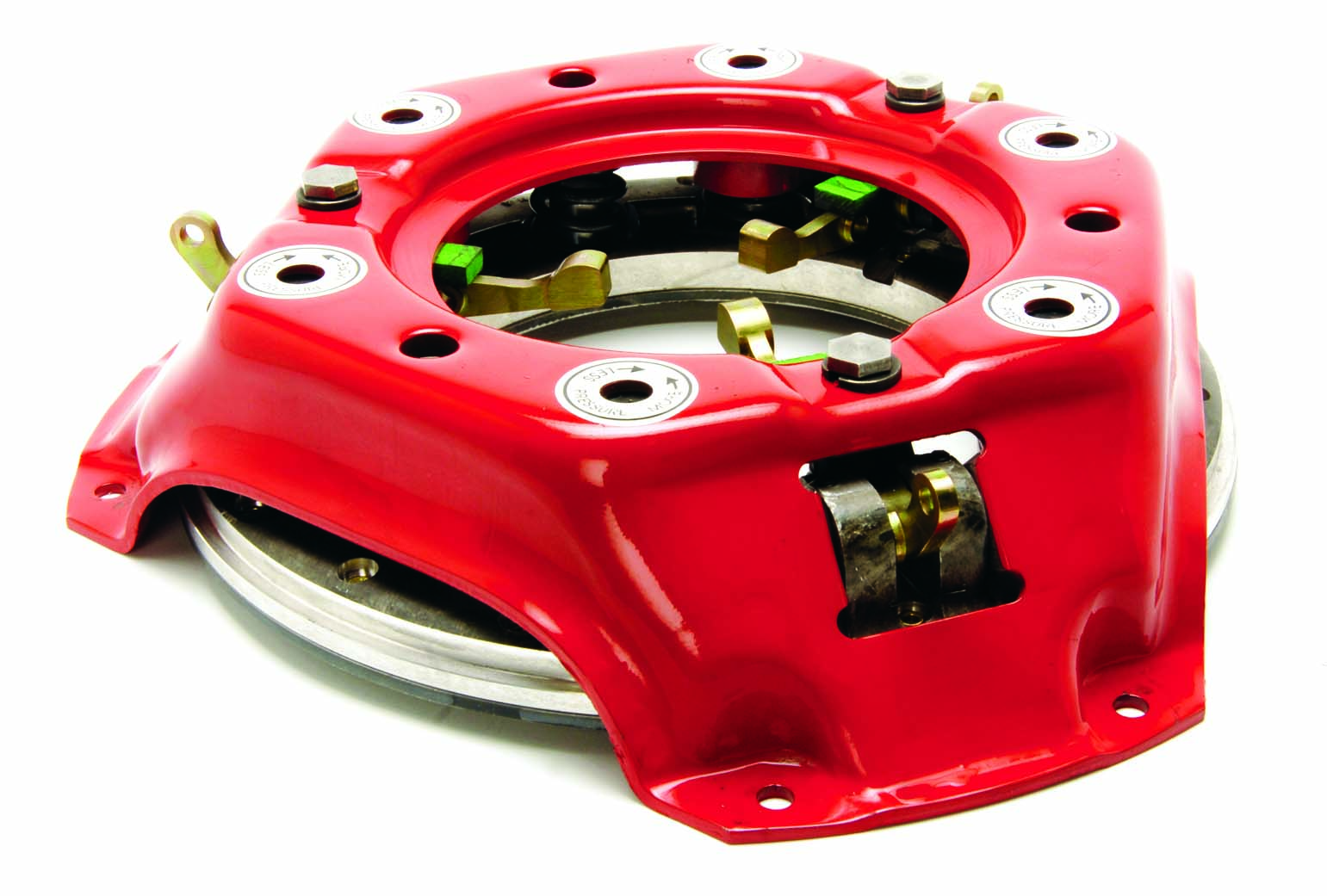

The McLeod Soft Lok assembly is the most widely used McLeod clutch for drag racers. This unit is NOT recommended for street use. As a NHRA and IHRA record holder, this assembly has low static pressure for a light pedal effort and soft clutch engagement. This unit leaves the starting line harder with less tire spin. The Soft Lok is equipped with adjustable spring pressure and is available with counterweights. Included is a pressure plate, sintered iron disc, and aluminum flywheel.
Specifications:
| Description_DEF |
Transmission Clutch Kit |
| Description_DES |
Soft Lok: Aluminum: Chevrolet: 11 X 1-3/16 X 18 Spl HCF 168T |
| Description_EXT |
Soft Lok: Aluminum: Chevrolet: 11 X 1-3/16 X 18 Spl HCF 168T |
| Description_INV |
Clutch Kit |
| Description_MKT |
The McLeod Soft Lok assembly is the most widely used McLeod clutch for drag racers. This unit is NOT recommended for street use. As a NHRA and IHRA record holder, this assembly has low static pressure for a light pedal effort and soft clutch engagement. This unit leaves the starting line harder with less tire spin. The Soft Lok is equipped with adjustable spring pressure and is available with counterweights. Included is a pressure plate, sintered iron disc, and aluminum flywheel. |
| Description_FAB |

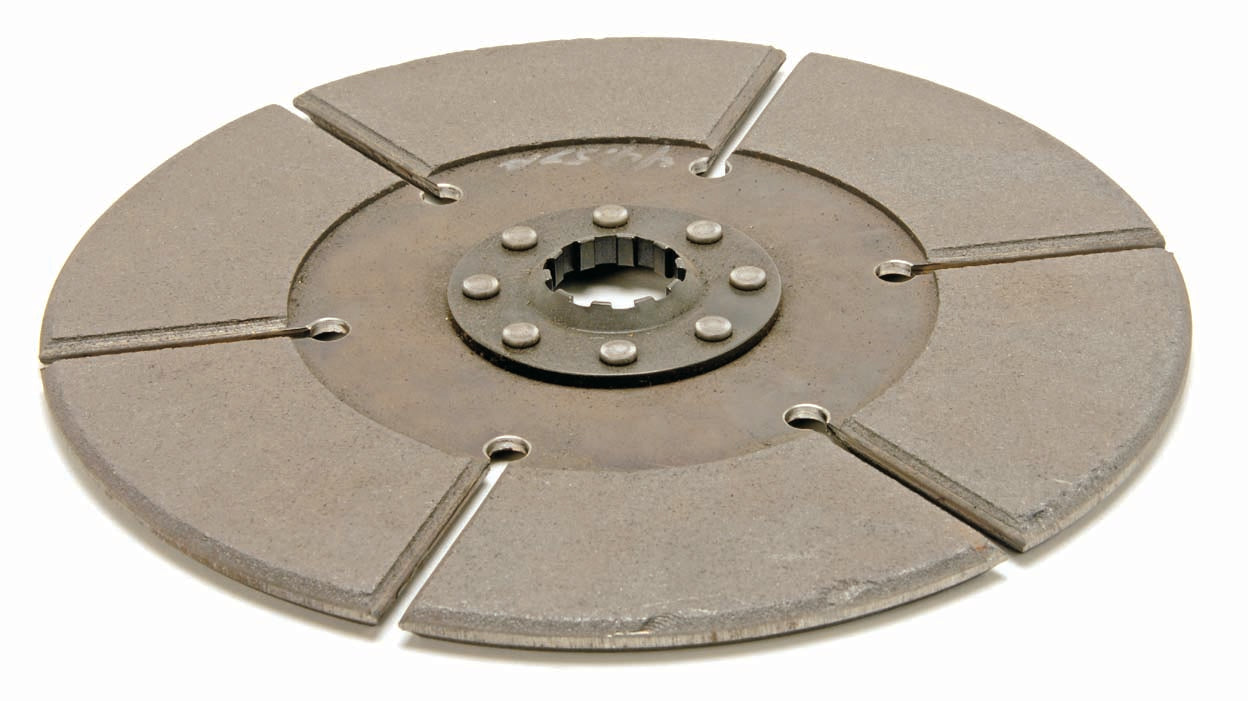

McLeod Racing Soft Lok comes with a billet aluminum flywheel, 5135 sintered iron disc and a adjustable Ford Long pressure plate. |
| Description_SHO |
Clutch Kit |
| Throwout Bearing Included |
No |
| Disc Diameter |
11In. |
| Hardware Included |
Yes |
| Make |
Chevrolet |
| Racing Application |
Drag Racing |
| Flywheel Included |
Yes |
| Pilot Bushing Material |
N/A |
| Hub Style |
Solid |
| Flywheel Material |
Aluminum |
| Engine |
1955-85 SBC 2pc Seal |
| Disc Style |
Solid Hub |
| Pilot Bushing Included |
No |
| Engine Balance |
Internal Balance |
| Alignment Tool Included |
Yes |
| Ring Gear |
168 tooth |
| Number of Discs |
Single |
| Disc Material |
Sintered Iron |
| Clutch Usage |
Drag Racing |
| Spline |
1 3/16In. x 18 |
| Throwout Bearing Style |
Standard |
| Length |
6.0000 |
| Width |
17.0000 |
| Height |
16.0000 |
| Weight |
75.0000 |
