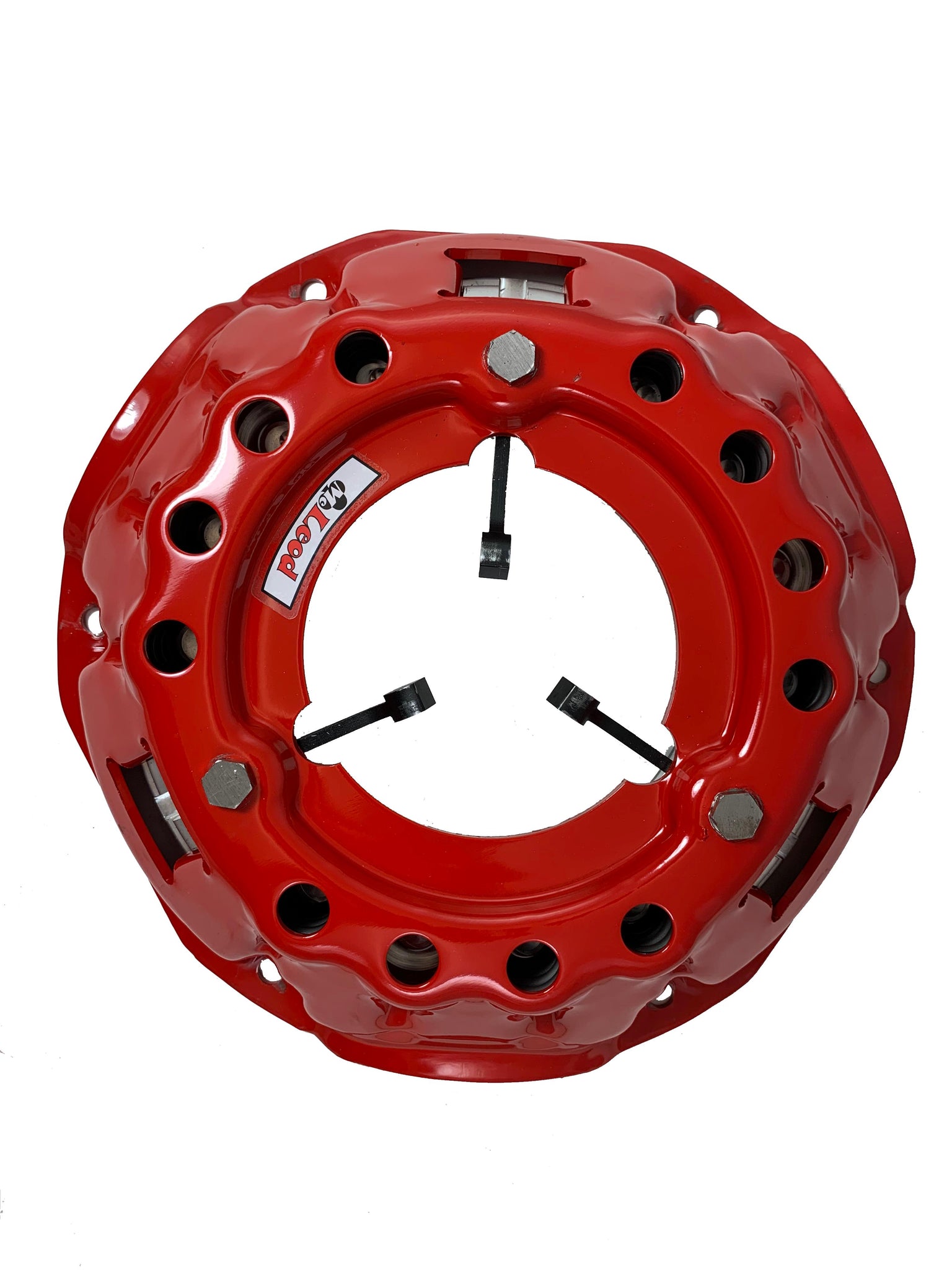

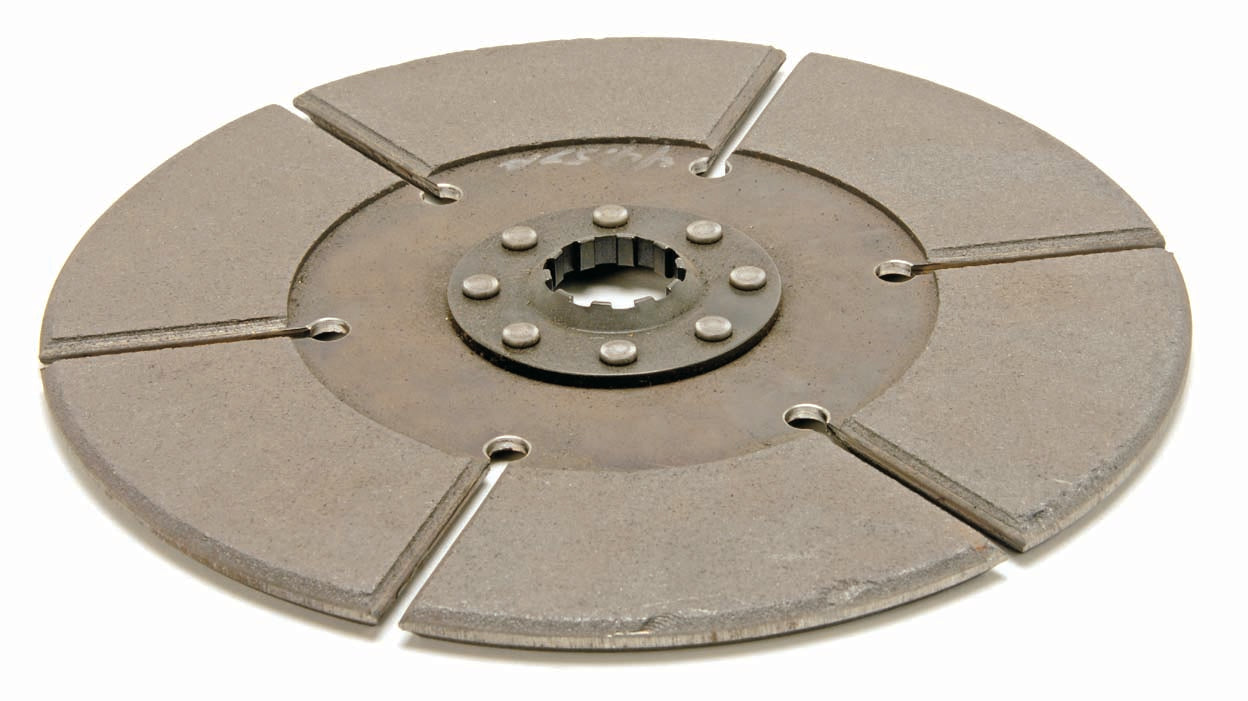

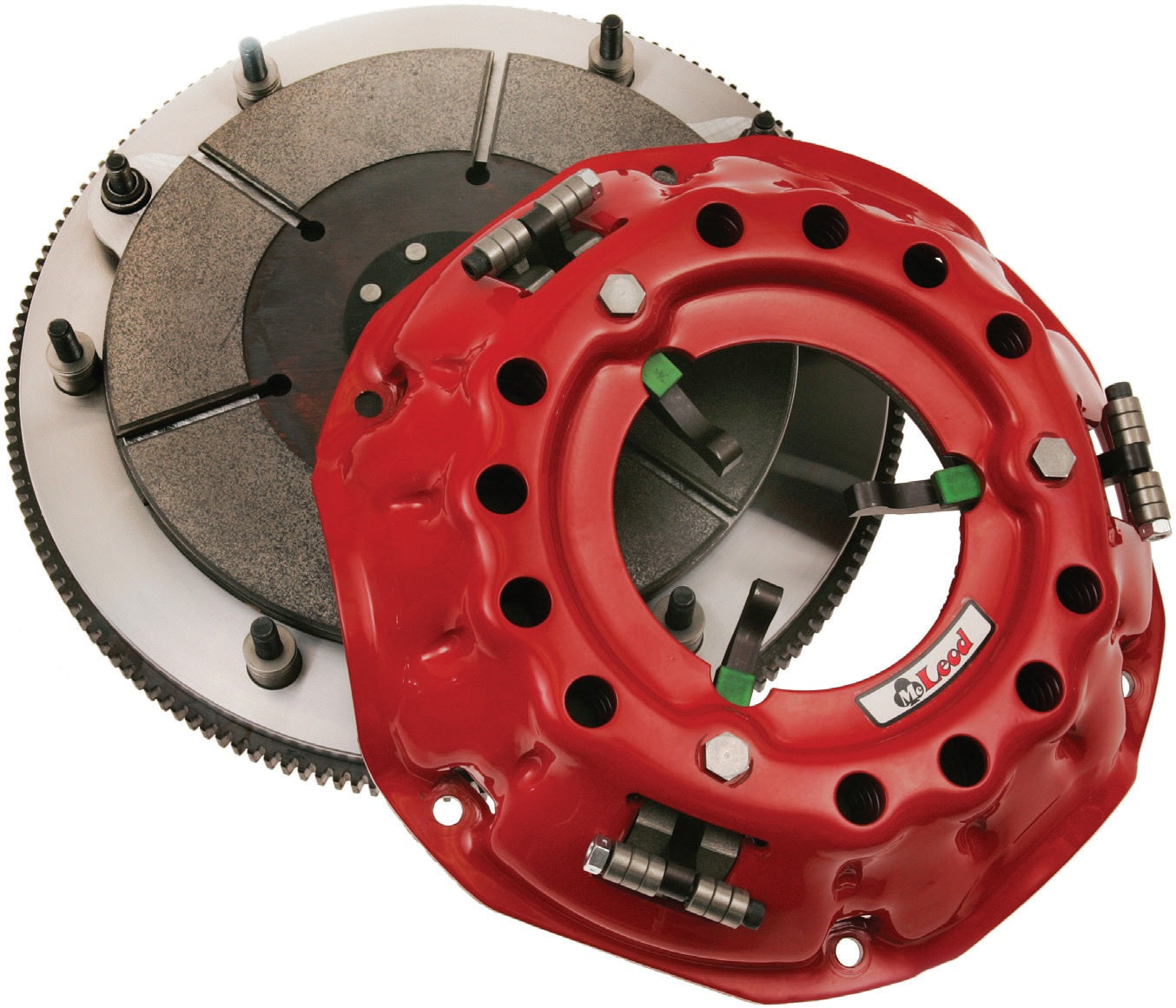

The 4400 Series clutch system from McLeod is ideal for truck puller and high horsepower sand drag applications. Recommended for non shifting motorsport applications. This series features a Borg & Beck/Long pressure plate assembly,unique to McLeod that also includes counterweights providing additional high RPM lockup capacity. Steel flywheels are included with these systems along with low coefficient friction sintered iron discs. Due to the pin style drive on the floater plate, these multi disc clutches are not suitable for street applications as they will be very noisy at idle and low RPM.
Specifications:
| Description_DEF |
Transmission Clutch Kit |
| Description_DES |
4400 Series Truck Pull: Ford: 1963-1974 332 to 427 BBF Fe: 1-1/16 x 10: 184T |
| Description_FAB |

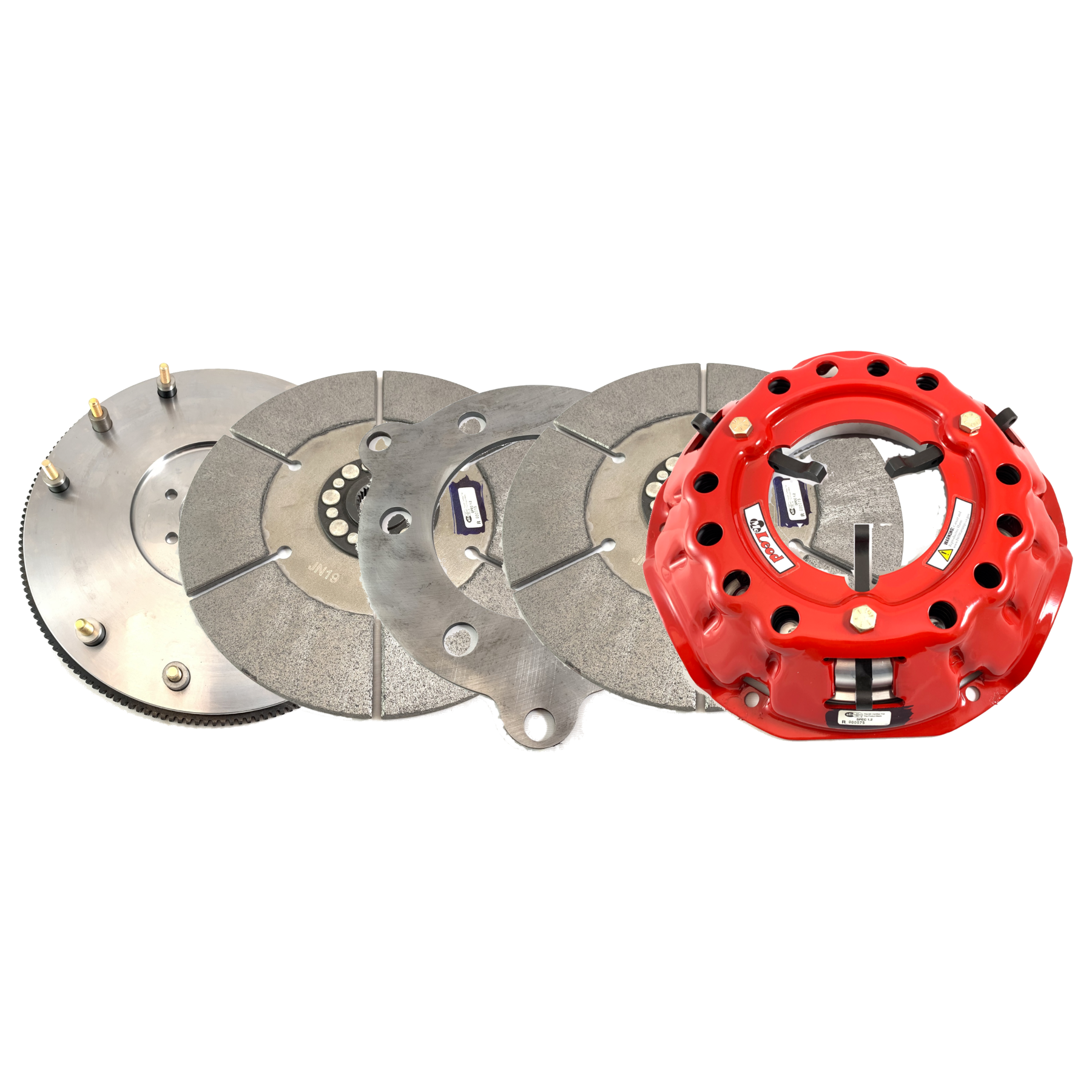

McLeod Racing Truck Pull Twin clutches complete with billet steel flywheel (2) 5191 compound sintered iron discs and a Borg & Beck pressure plate. |
| Description_INV |
Clutch Kit |
| Description_EXT |
4400 Series Truck Pull: Ford: 1963-1974 332 to 427 BBF Fe: 1-1/16 x 10: 184T |
| Description_MKT |
The 4400 Series clutch system from McLeod is ideal for truck puller and high horsepower sand drag applications. Recommended for non shifting motorsport applications. This series features a Borg & Beck/Long pressure plate assembly,unique to McLeod that also includes counterweights providing additional high RPM lockup capacity. Steel flywheels are included with these systems along with low coefficient friction sintered iron discs. Due to the pin style drive on the floater plate, these multi disc clutches are not suitable for street applications as they will be very noisy at idle and low RPM. |
| Description_SHO |
Clutch Kit |
| Ring Gear |
184T |
| Lever Material |
Billet Steel |
| Disc Material |
5191 Sintered Iron |
| Casting Material (Donut) |
Billet Aluminum with Steel Heat Shield |
| Engine Balance |
0 Balance |
| Disc Diameter |
10.5In. |
| Flywheel Material |
Billet Steel |
| Input-shaft Spline |
1-1/16 x 10 |
| Counter Weight Kit |
563333 (Sold Separately) |
| Make |
Ford |
| Counter-weighted Lever |
Adjustable |
| Application |
Truck Pull |
| Engine 1 |
1963-1974 BBF Fe 332-428 |
| Length |
6.0000 |
| Width |
16.0000 |
| Height |
17.0000 |
| Weight |
65.0000 |
