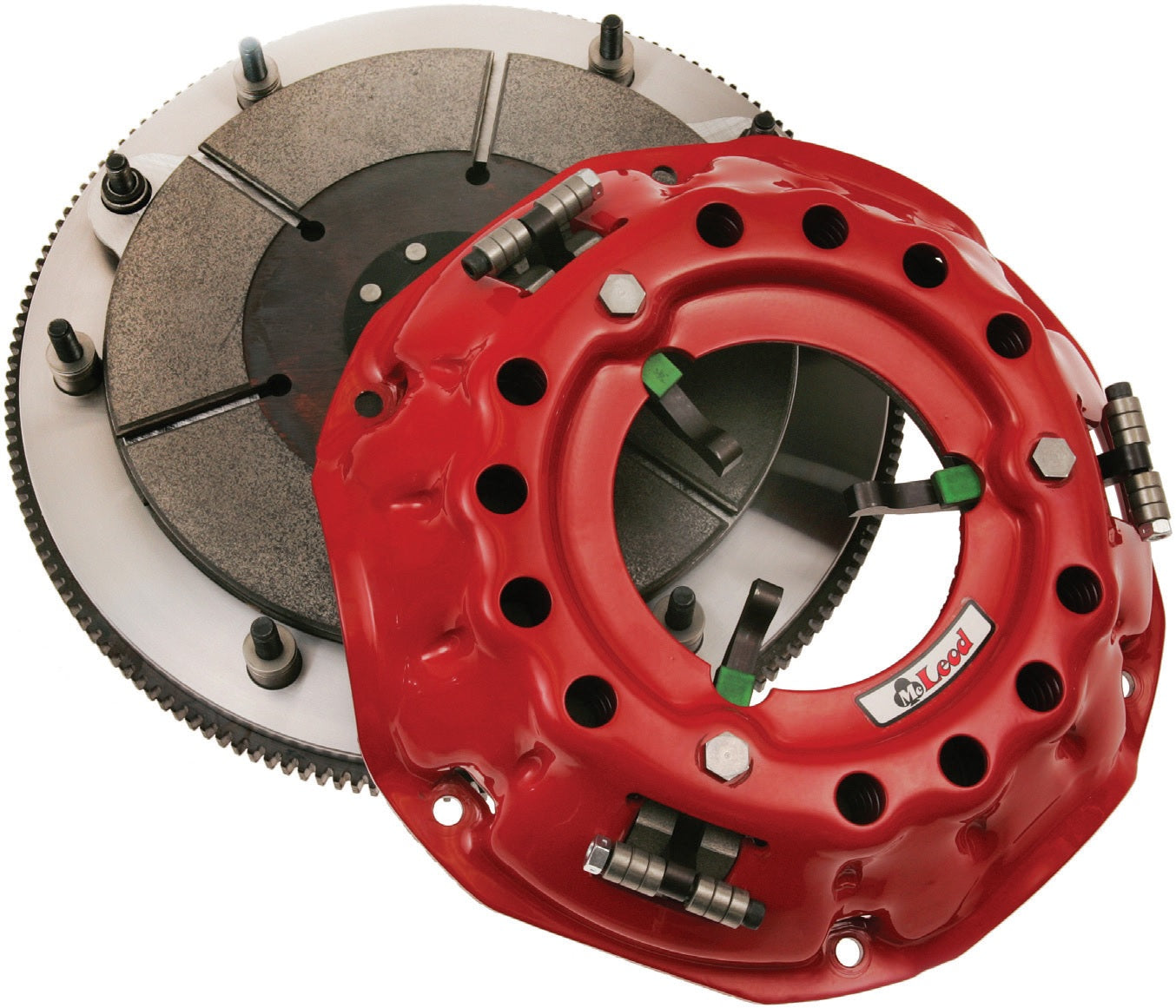

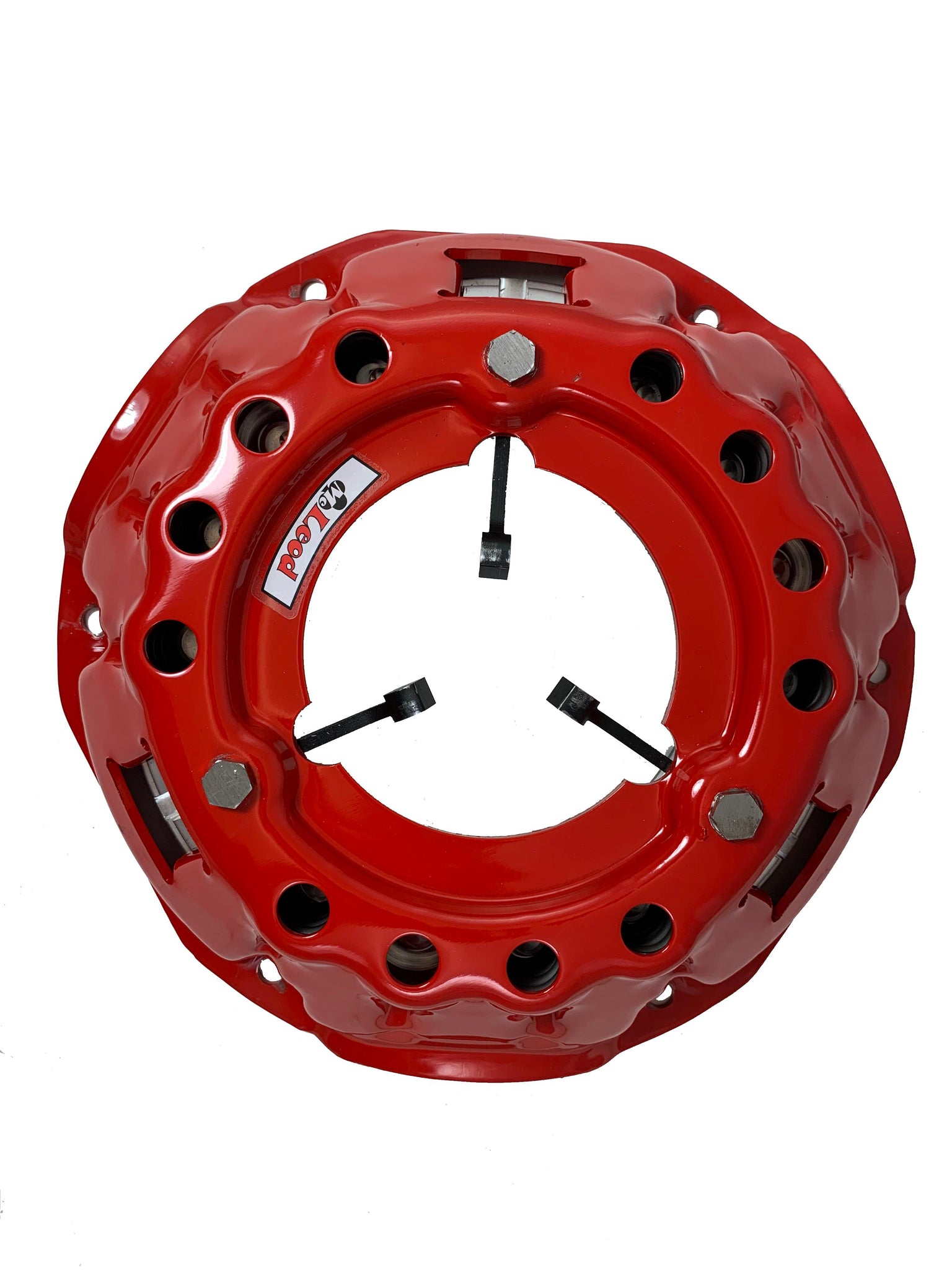

The 4400 Series clutch system from McLeod is ideal for truck puller and high horsepower sand drag applications. Recommended for non shifting motorsport applications. This series features a Borg & Beck/Long pressure plate assembly,unique to McLeod that also includes counterweights providing additional high RPM lockup capacity. Steel flywheels are included with these systems along with low coefficient friction sintered iron discs. Due to the pin style drive on the floater plate, these multi disc clutches are not suitable for street applications as they will be very noisy at idle and low RPM.
Specifications:
| Description_DEF |
Transmission Clutch Kit |
| Description_DES |
4400 Series Truck Pull: SBC/BBC 265-454: 1-1/8 x 10: 168T |
| Description_FAB |

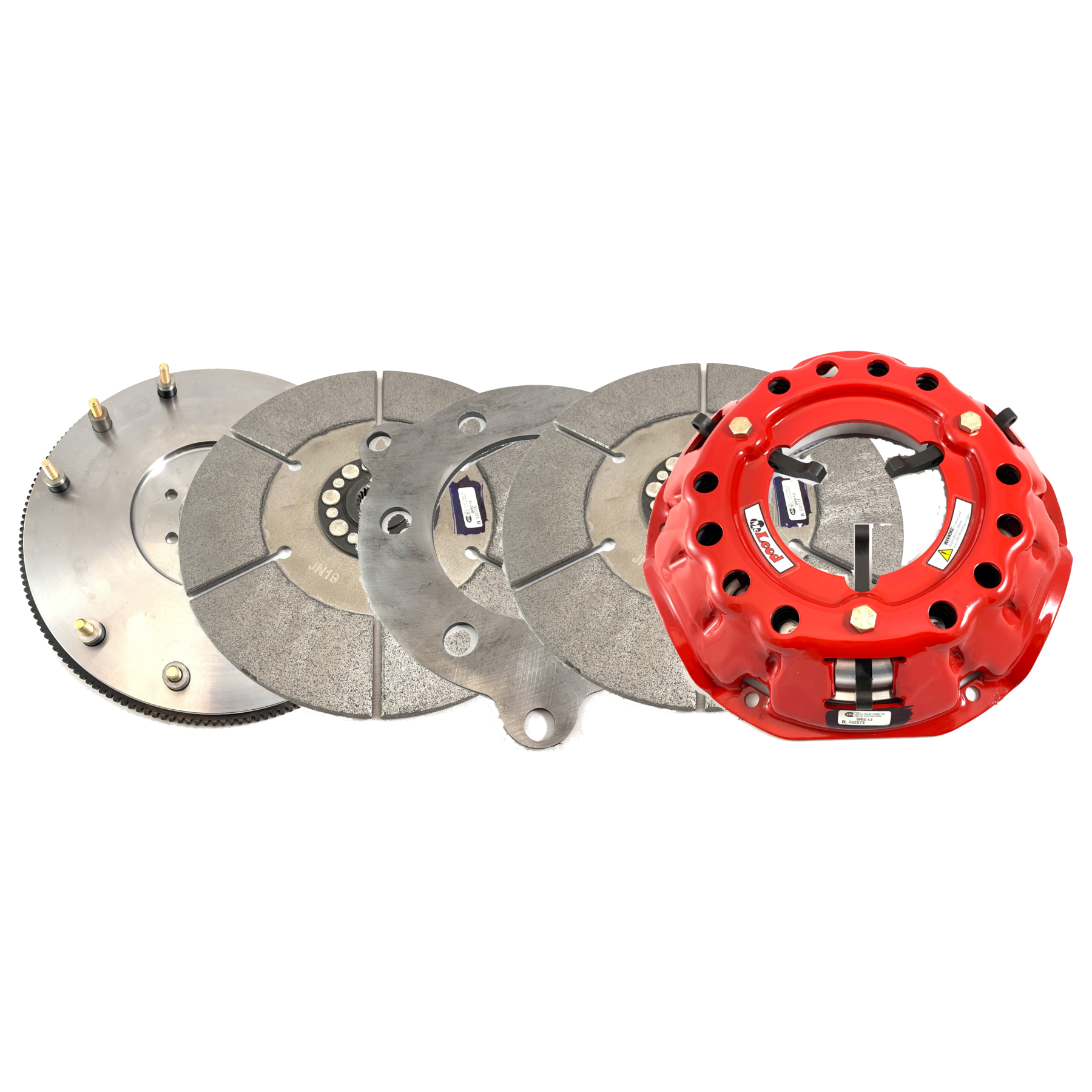

McLeod Racing Truck Pull Twin clutches complete with billet steel flywheel (2) 5191 compound sintered iron discs and a Borg & Beck pressure plate. |
| Description_EXT |
4400 Series Truck Pull: 1955-85 SBC: 1970-1990 BBC: 1991-1999 BBC 1 Piece Seal: 1-1/8 x 10 Spline: 168T |
| Description_INV |
Clutch Kit |
| Description_MKT |
The 4400 Series clutch system from McLeod is ideal for truck puller and high horsepower sand drag applications. Recommended for non shifting motorsport applications. This series features a Borg & Beck/Long pressure plate assembly,unique to McLeod that also includes counterweights providing additional high RPM lockup capacity. Steel flywheels are included with these systems along with low coefficient friction sintered iron discs. Due to the pin style drive on the floater plate, these multi disc clutches are not suitable for street applications as they will be very noisy at idle and low RPM. |
| Description_SHO |
Clutch Kit |
| Disc Material |

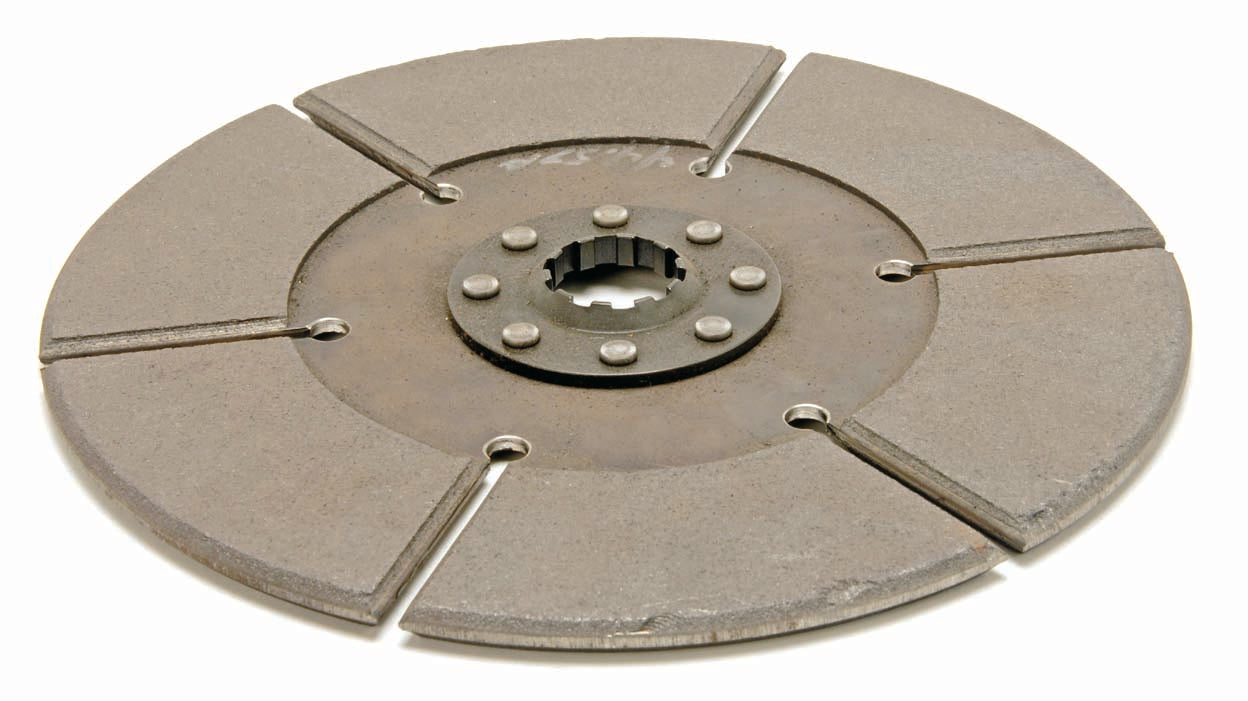

5191 Sintered Iron |
| Lever Material |
Billet Steel |
| Engine 1 |
1955-1985 SBC |
| Engine 3 |
1991-1999 BBC with 1 Piece Seal |
| Disc Diameter |
10.5In. |
| Ring Gear |
168T |
| Casting Material (Donut) |
Billet Aluminum with Steel Heat Shield |
| Counter Weight Kit |
560222 (Sold Separately) |
| Application |
Truck Pull |
| Flywheel Material |
Billet Steel |
| Input-shaft Spline |
1-1/8 x 10 |
| Make |
Chevrolet |
| Counter-weighted Lever |
Adjustable |
| Engine Balance |
0 Balance |
| Engine 2 |
1970-1990 BBC |
| Length |
6.0000 |
| Width |
16.0000 |
| Height |
17.0000 |
| Weight |
65.0000 |
