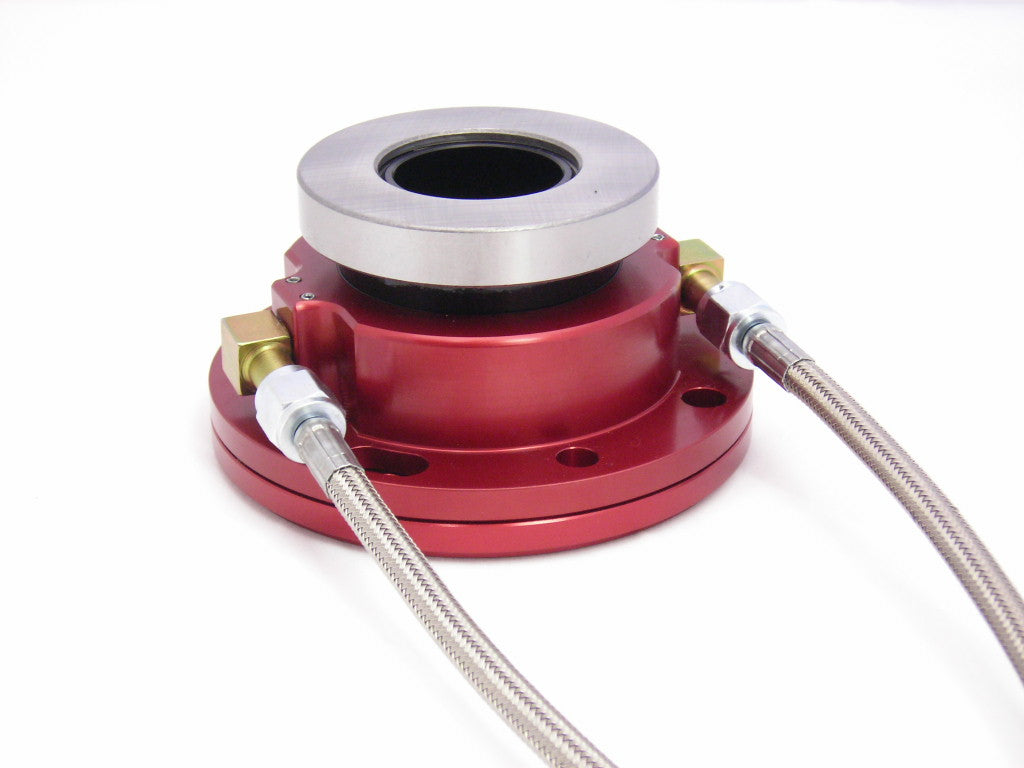

Mcleod 1300 Series Hydraulic Throw-Out Bearings Replace Your Oem Bearing Retainer With The Finest Hard Anodized Billet Aluminum. These High-Quality, Bolt-On Hydraulic Throw-Out Bearings Are Extremely Durable And Are Packaged With High-Pressure Stainless Steel Braided Lines And Premium Elbow Swivel Fittings, Making Their Install Much Easier. These Assemblies Are Available For Several Applications And May Be Used To Eliminate The Need To Fabricate Complex Clutch Linkage When Swapping Transmissions. Mcleod 1300 Series Hydraulic Throw-Out Bearings Offer Extreme Durability And Performance For Your Street Or Strip Machine.
Specifications:
| Description_ASC |

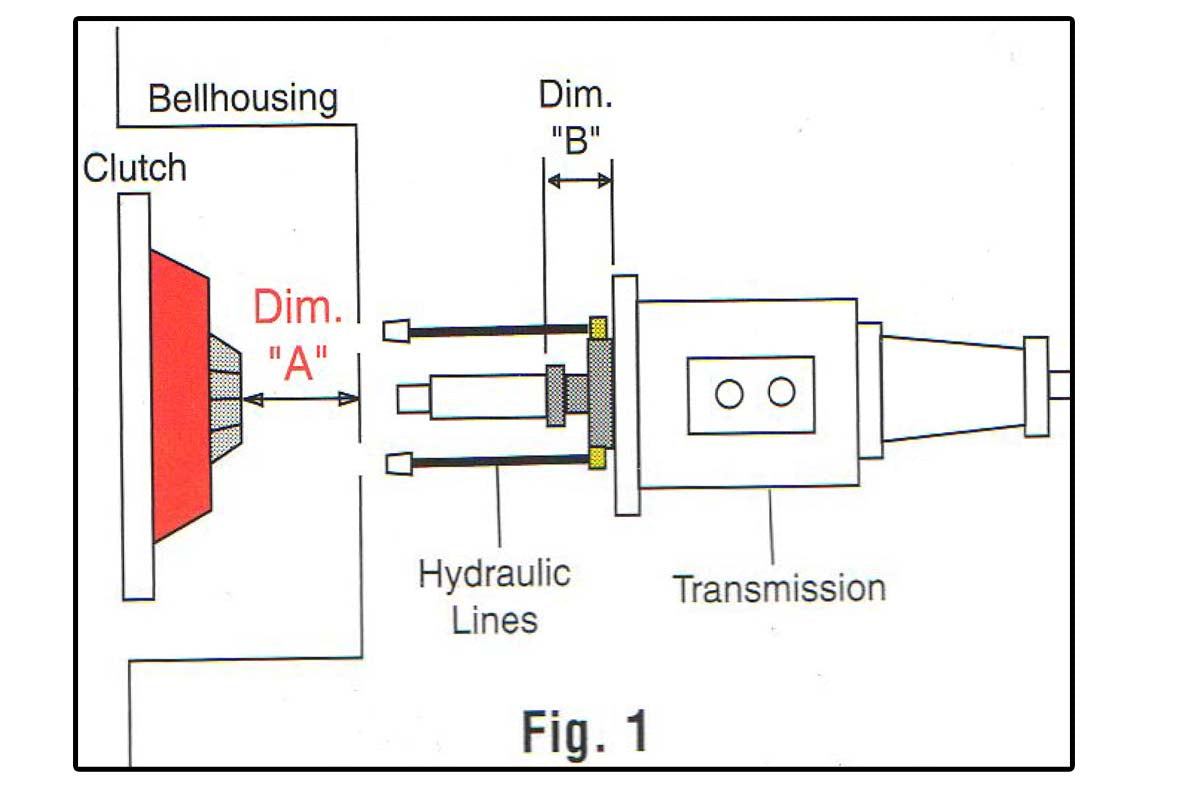

This unit is specific to a 2.31" to 2.50" "A" Dimension. If the customers "A" dimension does not fall into this range please use a 1300 series bearing with a adjustable height piston. For more info please call McLeod Tech at 714-630-2764 |
| Description_ASM |
Ford: Maverick 71 - 74 5 L Engine, Ford: Mustang 67 - 69 6.4 L Engine, Ford: Maverick 70 - 74 4.1 L Engine, Ford: Mustang 68 - 73 5 L Engine, Ford: Maverick 70 - 72 2.8 L Engine, Ford: Mustang 64 - 65 2.8 L Engine, Ford: Mustang 64 - 70 3.3 L Engine, Ford: Mustang 64 - 65 4.3 L Engine, Ford: Mustang 69 - 73 4.1 L Engine, Ford: Mustang 69 - 73 5.8 L Engine, Ford: Maverick 70 - 74 3.3 L Engine, Ford: Mustang 64 - 68 4.7 L Engine |
| Description_DEF |
Clutch Release Bearing |
| Description_EXT |
1300 Series Hydraulic Bearing: Ford: Top Loader: 1-1/16"-10: "A" Dimension: 2.31"-2.50": 4.580" Register |
| Description_DES |
1300 Series Hydraulic Bearing: Ford: Top Loader: 1-1/16"-10: "A" 2.31"-2.50" |
| Description_SHO |
Hyd Bearing |
| Description_MKT |
Mcleod 1300 Series Hydraulic Throw-Out Bearings Replace Your Oem Bearing Retainer With The Finest Hard Anodized Billet Aluminum. These High-Quality, Bolt-On Hydraulic Throw-Out Bearings Are Extremely Durable And Are Packaged With High-Pressure Stainless Steel Braided Lines And Premium Elbow Swivel Fittings, Making Their Install Much Easier. These Assemblies Are Available For Several Applications And May Be Used To Eliminate The Need To Fabricate Complex Clutch Linkage When Swapping Transmissions. Mcleod 1300 Series Hydraulic Throw-Out Bearings Offer Extreme Durability And Performance For Your Street Or Strip Machine. |
| Description_INV |
Hyd Bearing |
| Hydraulic Line Size |
AN-4 |
| A Dimension |
2.31In. to 2.50In. |
| Material |
Aluminum |
| Application |
Toploader-Small Shaft 1.0625In. x 10 |
| Finish |
Red Anodize |
| NOTE 2: |
This application will only work with an In.AIn. of 2.31In. to 2.50In.. If your application is outside of this range please call McLeod Tech at 714-630-2764 |
| Make |
Ford |
| NOTE: |
Will not work with counter weighted diaphragm pressure plates. For more info please call McLeod Tech at 714-630-2764 |
| Length |
6.0000 |
| Width |
14.0000 |
| Height |
14.0000 |
| Weight |
3.0000 |
