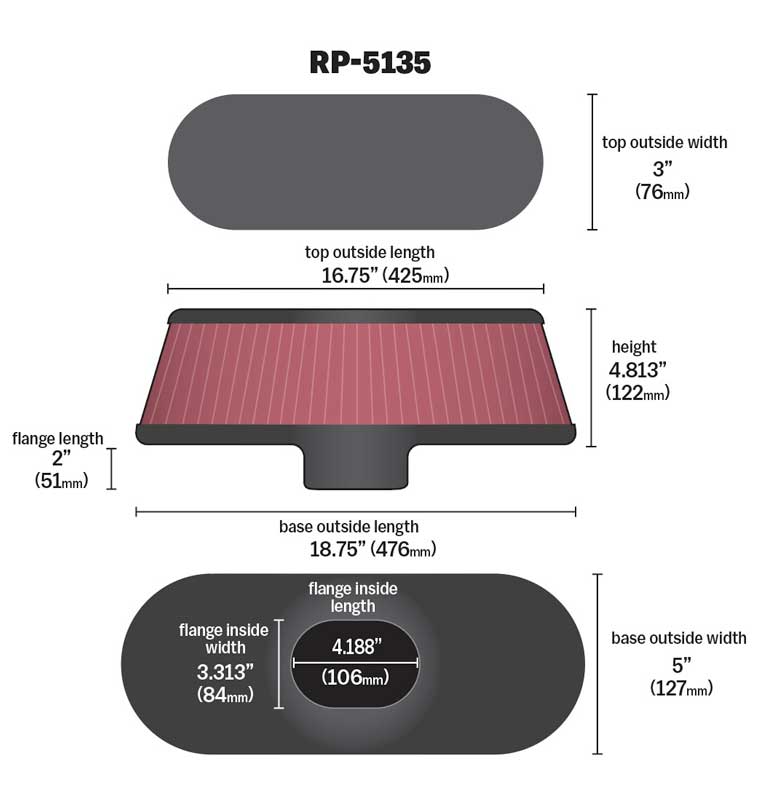

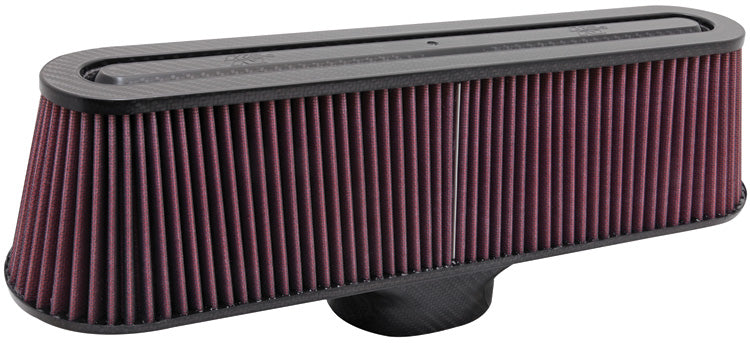

The RP-5135 Universal Air Filter is constructed from an oiled cotton filter media. It comes with a K&N embossed carbon fiber top and carbon fiber base for strength and durability. The carbon fiber element adds to the light-weight design and gives this filter a smooth glass like finish. The RP-5135 is a clamp-on filter that has an inside flange diameter of 3-5/16 inches and a flange length of 2 inches. The base is 18-3/4 inches by 5 inches and the filter height is 4-13/16 inches. The filter top has a threaded hole to accommodate a 6 millimeter bolt for easy mounting.
Specifications:
| Description_DEF |
Air Filter |
| Description_DES |
Universal Air Filter - Carbon Fiber Top and Base |
| Description_MKT |
The RP-5135 Universal Air Filter is constructed from an oiled cotton filter media. It comes with a K&N embossed carbon fiber top and carbon fiber base for strength and durability. The carbon fiber element adds to the light-weight design and gives this filter a smooth glass like finish. The RP-5135 is a clamp-on filter that has an inside flange diameter of 3-5/16 inches and a flange length of 2 inches. The base is 18-3/4 inches by 5 inches and the filter height is 4-13/16 inches. The filter top has a threaded hole to accommodate a 6 millimeter bolt for easy mounting. |
| Description_EXT |
This unique universal air filter is lightweight. Its carbon fiber top and flange provides outstanding strength with minimal weight. The smooth, glass like appearance provides the ultimate in finish, fit, and function. |
| Description_INV |
Universal Air Filter |
| Description_SHO |
Universal Filter |
| Package Contents |
1 Air Filter |
| Oil Included |
Yes |
| Flange Length |
2 in (51 mm) |
| Washable |
Yes |
| Title |
K&N RP-5135 Universal Air Filter - Carbon Fiber Top and Base |
| Top Outside Width |
3 in (76 mm) |
| Top Style |
Carbon Fiber |
| Package Type |
Box |
| Prop 65 (C, R or CR) |
CR |
| Filter Re-Oiling Amount |
2.04 oz (60 ml) |
| Flange Inside Width |
3.313 in (84 mm) |
| Base Outside Width |
5 in (127 mm) |
| Flange Angle |
0 degrees |
| Air Filter Shape |
Oval Straight |
| Height |
4.813 in (122 mm) |
| Flange Inside Length |
4.188 in (106 mm) |
| Product Style |
Unique Air Filters |
| Prop 65 Warning Label |
https://www.knfilters.com/images/l/prop65.jpg |
| Package Quantity |
1 |
| Base Outside Length |
18.75 in (476 mm) |
| Item Type |
High Performance |
| Prop 65 - Short Label |
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov |
| Pre-Screened |
No |
| Flanges |
1 |
| Package Material |
Paperboard |
| Prop 65 Yes/No |
Yes |
| Top Outside Length |
16.75 in (425 mm) |
| Weight |
0.9 lb (0.4 kg) |
| Frame Design |
Flexible |
| Flange Type |
Centered |
| Air Filter Material |
Cotton Gauze |
| Length |
11.0000 |
| Width |
10.0000 |
| Height |
20.0000 |
| Weight |
1.0000 |
