OEM Wheels & Tires Fitment: Yes |
| Description_ASC |
Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required) |
| Description_ASC |
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. LIFT HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE. |
| Description_ASC |
APPLICATION NOTE #85: ADVERTISED LIFT HEIGHT RANGES ARE FOR A STOCK EQUIPPED VEHICLE. INCREASING WEIGHT OF VEHICLE DUE TO ACCESSORIES WILL ALTER LIFT RANGE. |
| Description_ASC |
APPLICATION NOTE #142: NOT COMPATIBLE WITH TUNDRA/SEQUOIA EQUIPPED WITH LOAD-LEVELING REAR HEIGHT CONTROL AIR SUSPENSION. |
| Description_ASC |
APPLICATION NOTE #144: NOT COMPATIBLE WITH TRD PRO |
| Description_ASC |
APPLICATION NOTE #149: FOR 4WD MODELS WITHOUT TRD OFF-ROAD PACKAGE ICON RECOMMENDS USING ICON DIFF DROP (PART# 55156) OR USING TOYOTA TRD AXLES (PART# 434200C020 DRIVER / 434100C020 PASS). FAILURE TO DO SO COULD RESULT IN FRONT AXLE DAMAGE. NOT REQUIRED FOR TRD PRO. |
| Description_ASC |
TECH NOTE: Most Sequoia sub-models will have front lift height range of 3-4.5" over stock |
| Description_DEF |
Suspension Lift Kit |
| Description_DES |
23 SEQUOIA 3-4.5" STAGE 8 SUSPENSION SYSTEM TUBULAR |
| Description_FAB |
Vehicle specific design for 2023 Toyota Sequoia |
| Description_FAB |
2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling |
| Description_FAB |
Adjustable front ride heights from 3-4.5" of front lift over stock |
| Description_FAB |
Tubular UCAs for added strength, durability, and alignment correction for better drivability |
| Description_FAB |
UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation |
| Description_FAB |
Included sway bar drop brackets reduce bind in OE sway bar links |
| Description_FAB |
Allows for full wheel travel without overstressing OE components |
| Description_FAB |
Dual rate rear coil springs improve performance and ride quality while providing 3" of rear lift |
| Description_FAB |
Billet rear lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment |
| Description_FAB |
2.5 Aluminum Series rear remote reservoir shocks provide increased performance and balanced tune with coilovers |
| Description_FAB |
All ICON shock absorbers are fully rebuildable and re-tunable |
| Description_EXT |
Stage 8 includes 2.5 Series remote reservoir coilovers for 3-4.5" of front lift, greater performance, and 35" tire fitment. ICON UCAs and links correct alignment while rear coils with 2.5 Series remote res rear shocks balance the tuning. |
| Description_INV |
K53238T |
| Description_TLE |

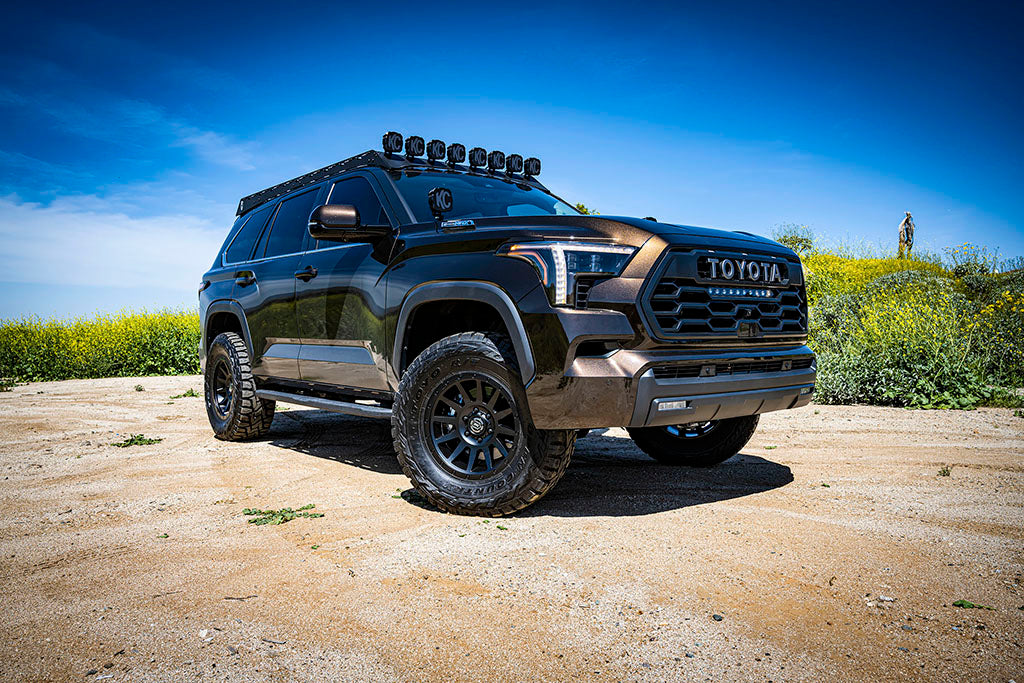

ICON 2023 Toyota Sequoia, 3-4.5" Lift, Stage 8 Suspension System, Tubular |
| Description_MKT |

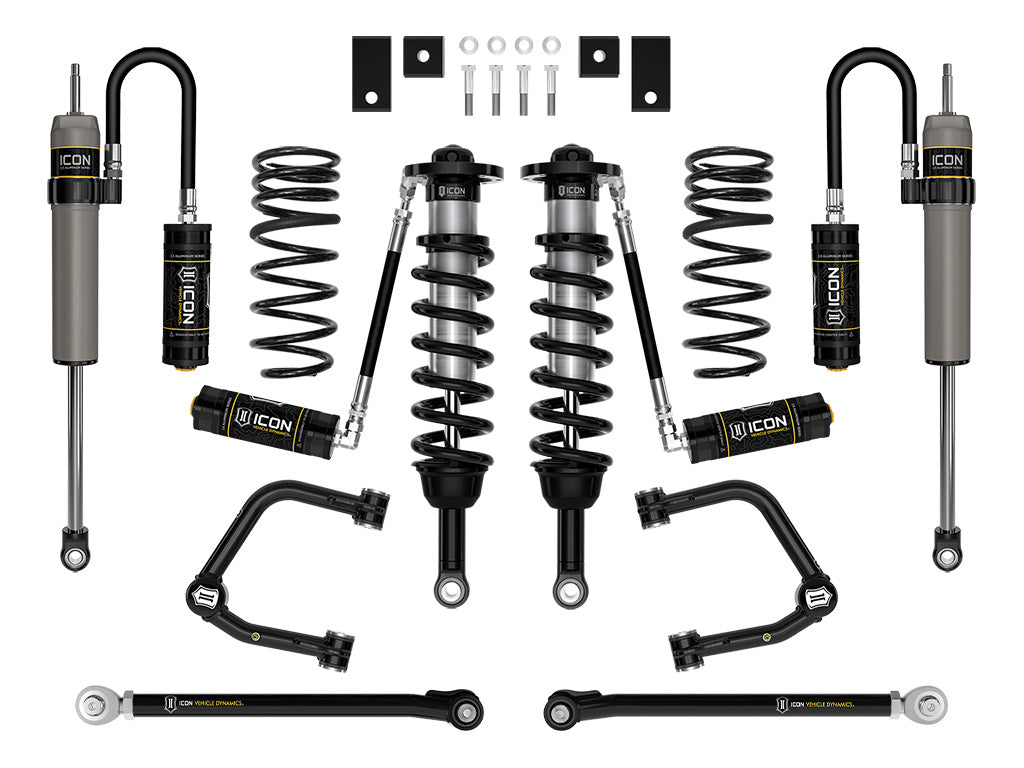

The ICON Vehicle Dynamics Stage 8 complete suspension system for the 2023 Toyota Sequoia helps to free up the rear suspension movement while gaining strength and ground clearance with the addition of ICON billet aluminum rear lower links. This system offers improved on- and off-road performance, with significantly increased rear shock performance and heat dissipation, as well as improved alignment specs and increased front-end lift height range for a proper stance and fitment of up to 35" tires. To compliment the billet aluminum rear lower links, a 2.5 Series remote reservoir front coilover shock and tubular steel front upper control arm combo is included along with a front sway bar drop kit, dual rate rear coil springs and 2.5 Aluminum Series rear remote reservoir shocks. |
| Description_MKT |
This Stage 8 system features the 2023 Toyota Sequoia VS 2.5 Series remote reservoir front coilovers. These adjustable coilovers allow up to 3-4.5" of lift height adjustability over stock when using the ICON billet front upper control arms, allowing the use of larger, more aggressive wheel and tire combinations. ICON's Vehicle-specific shock length and valving along with the larger 2.5" shock body and increased piston area over stock components yield the maximum travel possible (up to 40% increase over stock) along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. |
| Description_MKT |
The included ICON tubular upper control arm kit is designed to improve the overall performance of the 2023 Toyota Sequoia with corrected front-end geometry, built in additional caster, and improved suspension component clearance. Additionally, replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. |
| Description_MKT |
The included sway bar drop brackets help minimize sway bar link bind through the suspension travel range. This helps the suspension move more freely and allows for the full range of wheel travel without overstressing any OE components. |
| Description_MKT |
ICON billet aluminum adjustable rear lower links are made from CNC machined 6061 aluminum and anodized for corrosion resistance. This rear lower link arm kit features PTFE-lined FK rod ends for increased suspension articulation, reduced deflection, and on-vehicle link arm length adjustability using ICON's double adjuster system. Additionally, multi durometer bushings are installed that allow for noise free operation and maximum angularity without the need for periodic greasing and/or other maintenance. |
| Description_MKT |
The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. 3" of rear lift height over stock allows a for level stance front to rear. |
| Description_MKT |
Rounding out the Stage 8 suspension system are 2.5 Aluminum Series rear remote reservoir shocks specially tailored for the 2023 Toyota Sequoia. The 2.5 Aluminum Series shocks' larger diameter offers outstanding performance off-road and a smooth ride on the street. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. They also feature a unique internal Bump Zone that when used creates an additional 20% of damping force to help better control hard bottom outs. Their pairing with the ICON V.S. 2.5 Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Sequoia. |
| Description_SHO |
SUSPENSION SYSTEM |
| Length |
8.0000 |
| Width |
12.0000 |
| Height |
27.0000 |
| Weight |
186.0000 |
