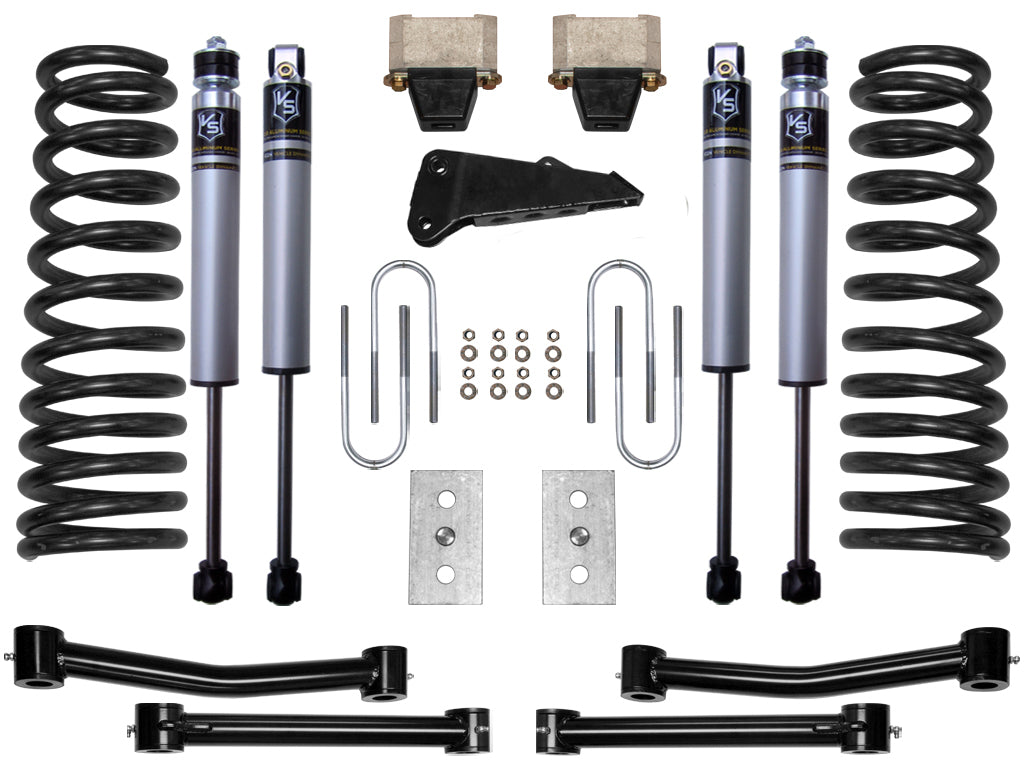

2003-2008 Ram 2500/3500 4.5" Stage 1 Suspension System utilizes the same technology as the 2.5" systems while adding lift height and ground clearance. Additional engineered front end components are added to ensure proper steering geometry with improved function throughout the entire travel range whether on or off road. The Stage 1 System is comprised of dual rate coil springs, tubular steel upper & lower link arms, polyurethane bumpstops w/ billet extension, sway bar drop brackets, forged pitman arm, track bar drop bracket, rear 2.5" lift blocks with u-bolts, and 2.0 Aluminum Series smooth body shocks. ICON steel upper & lower links increase performance, strength, and range of alignment. These link arms decrease the bind found in the factory link bushings. This entry level system with tubular link arms is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. Installing this kit allows proper clearance for 35" tall tires with no modifications, and some 37" tires with minor fender well trimming for clearance. With the endless hours ICON has spent testing and tuning our suspension components and shocks together, you can rest assured you have the best suspension solution on the market.
Specifications:
| Description_ASC |
OEM Wheels & Tires Fitment: Yes |
| Description_ASC |
Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required) |
| Description_ASC |
APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY |
| Description_ASC |
APPLICATION NOTE #30: AN ADJUSTABLE TRACK BAR MAY BE NEEDED TO REALIGN THE AXLE FROM LEFT TO RIGHT, OR TO ADD ADDITIONAL STRENGTH |
| Description_ASC |
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE |
| Description_ASC |
APPLICATION NOTE #126: TRUCKS EQUIPPED WITH 03-06 STYLE STEERING WILL REQUIRE 4" DROP PITMAN ARM (NOT INCLUDED) OR UPGRADE TO 07-12 STEERING SETUP. TRUCKS EQUIPPED WITH 07-12 STYLE STEERING WILL NEED ICON PITMAN ARM PART# 214101 |
| Description_ASC |
Ships in Multiple Boxes |
| Description_DEF |
Suspension Lift Kit |
| Description_DES |
03-08 RAM 2500/3500 4WD 4.5" STAGE 1 SUSPENSION SYSTEM |
| Description_EXT |
2003-2008 RAM 2500/3500 4WD 4.5" LIFT STAGE 1 SUSPENSION SYSTEM |
| Description_INV |
03-08 RAM HD 4WD 4.5" STAGE 1 SUSP SYS |
| Description_FAB |
ICON engineered dual rate coil springs with match tuned 2.0 Aluminum Series remote reservoir shocks |
| Description_FAB |
Heavy-duty steel upper and lower link bars |
| Description_FAB |
Increased wheel travel and ride quality over stock with no change in towing capacity |
| Description_FAB |
Correctly positioned steering and track bar components |
| Description_FAB |
Level stance front to rear |
| Description_FAB |
Less body roll than stock |
| Description_FAB |
No drive shaft modifications needed |
| Description_SHO |
RAM HD 4.5 STG 1 |
| Description_MKT |
2003-2008 Ram 2500/3500 4.5" Stage 1 Suspension System utilizes the same technology as the 2.5" systems while adding lift height and ground clearance. Additional engineered front end components are added to ensure proper steering geometry with improved function throughout the entire travel range whether on or off road. The Stage 1 System is comprised of dual rate coil springs, tubular steel upper & lower link arms, polyurethane bumpstops w/ billet extension, sway bar drop brackets, forged pitman arm, track bar drop bracket, rear 2.5" lift blocks with u-bolts, and 2.0 Aluminum Series smooth body shocks. ICON steel upper & lower links increase performance, strength, and range of alignment. These link arms decrease the bind found in the factory link bushings. This entry level system with tubular link arms is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. Installing this kit allows proper clearance for 35" tall tires with no modifications, and some 37" tires with minor fender well trimming for clearance. With the endless hours ICON has spent testing and tuning our suspension components and shocks together, you can rest assured you have the best suspension solution on the market. |
| Description_TRA |
ICON 2003-2008 Ram 2500/3500 4WD, 4.5" Lift, Stage 1 Suspension System, K214500T |
| Description_TLE |
ICON 2003-2008 Ram 2500/3500 4WD, 4.5" Lift, Stage 1 Suspension System |
| California Proposition 65 |
WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| OEM Wheels & Tires Fitment |
Yes |
| Recommended Aftermarket Wheels |
ICON Alloys |
| Recommended Aftermarket Tires |
35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required) |
| Title |
03-08 RAM 2500/3500 4WD 4.5" STAGE 1 SUSPENSION SYSTEM |
| Dual Rate Coil Springs |
Yes |
| Length |
10.0000 |
| Width |
19.0000 |
| Height |
26.0000 |
| Weight |
221.0000 |
