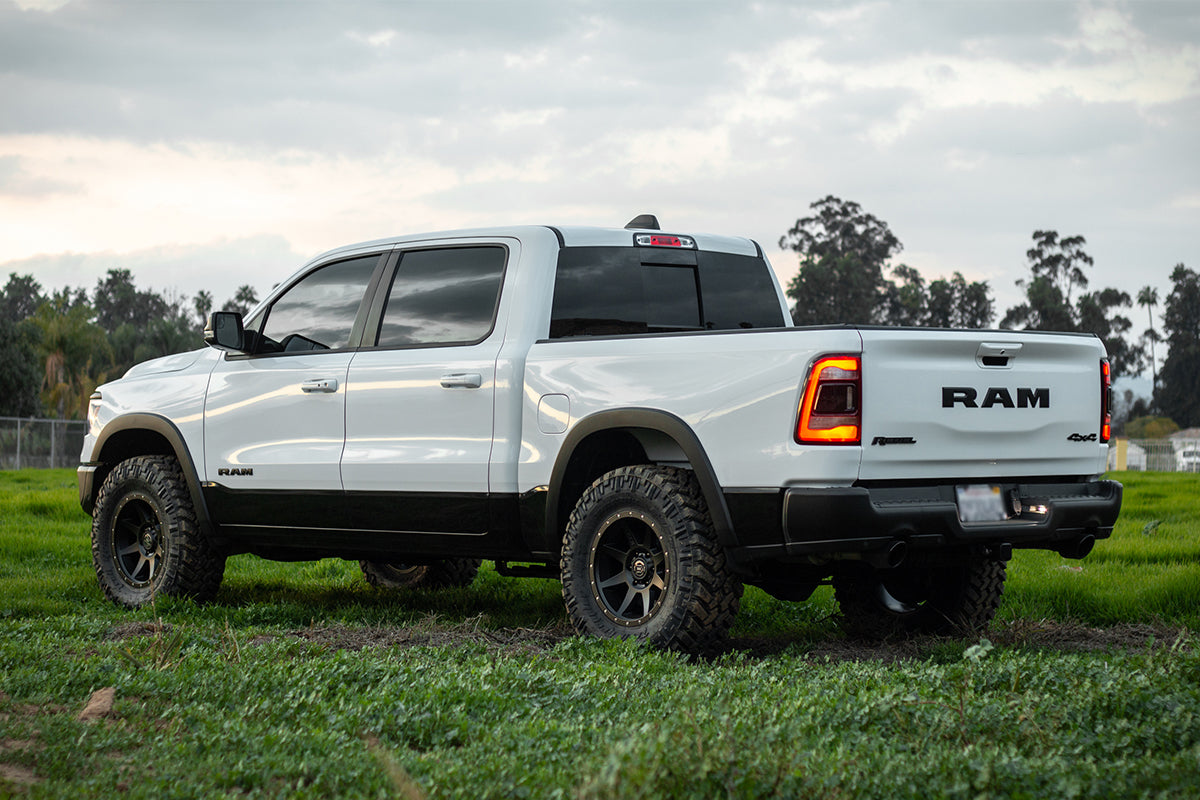

With several changes being made to the 2019 RAM 1500 platform including an all-new frame, increased chassis rigidity, and a lighter overall weight, ICON's R&D department went above and beyond to make sure the new RAM truck was properly analyzed. With these changes made by the factory, the development of new ICON rear shocks (and revised front coilover tuning) was necessary to optimize fitment and performance on this new platform.
Specifications:
| Description_ASC |
OEM Wheels & Tires Fitment: Yes |
| Description_ASC |
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE |
| Description_ASC |
APPLICATION NOTE #99: AIR BAGS RECOMMENDED WITH PERFORMANCE REAR SPRINGS IF VEHICLE USED FOR TOWING |
| Description_ASC |
APPLICATION NOTE #100: SPRINGS NOT RATED FOR ECO DIESEL EQUIPPED TRUCKS |
| Description_ASC |
APPLICATION NOTE #105: NOT FOR VEHICLES WITH REAR FACTORY AIR RIDE |
| Description_ASC |
Ships in Multiple Boxes |
| Description_ASC |
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required) |
| Description_ASC |
TECH NOTE: 2019-Up Ram Rebel lift height range 0-.75" over stock (front) and 1" over stock (rear) |
| Description_ASC |
TECH NOTE: Not compatible with 2019-2022 Ram 1500 Classic models |
| Description_ASC |
TECH NOTE: Not compatible with 2021-UP Ram 1500 TRX trim |
| Description_DEF |
Suspension Lift Kit |
| Description_DES |
19-UP RAM 1500 2/4WD 0-1.5" STAGE 3 SUSPENSION SYSTEM |
| Description_FAB |
Adjustable coilovers from 0-1.5" of lift height allow for fitment of larger and more aggressive tires |
| Description_FAB |
ICON 2.5 Series shocks feature vehicle specific tune for superior performance and ride quality |
| Description_FAB |
1.5" lift, dual rate rear coil springs offer incredible ride quality and increased suspension performance |
| Description_FAB |
Corrosion resistant CAD plated coilover shock bodies with 7/8? shafts |
| Description_FAB |
Rear 2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish |
| Description_FAB |
FK rod end bearings for extended longevity and minimal deflection |
| Description_FAB |
Fits 2WD & 4WD applications |
| Description_FAB |
6061 Aircraft grade aluminum CNC machined components |
| Description_FAB |
Shocks are fully rebuildable and revalvable |
| Description_FAB |
100% Bolt-on system - no drilling, cutting, or welding necessary for install |
| Description_INV |
09-18 RAM 1500 4WD 0-1.5" STAGE 3 |
| Description_EXT |
2019-UP RAM 1500 4WD 0-1.5" LIFT STAGE 3 SUSPENSION SYSTEM |
| Description_TLE |
ICON 2019-Up Ram 1500, 0-1.5" Lift, Stage 3 Suspension System |
| Description_TRA |
ICON 2019-Up Ram 1500, 0-1.5" Lift, Stage 3 Suspension System, K213103 |
| Description_MKT |
With several changes being made to the 2019 RAM 1500 platform including an all-new frame, increased chassis rigidity, and a lighter overall weight, ICON's R&D department went above and beyond to make sure the new RAM truck was properly analyzed. With these changes made by the factory, the development of new ICON rear shocks (and revised front coilover tuning) was necessary to optimize fitment and performance on this new platform. |
| Description_MKT |

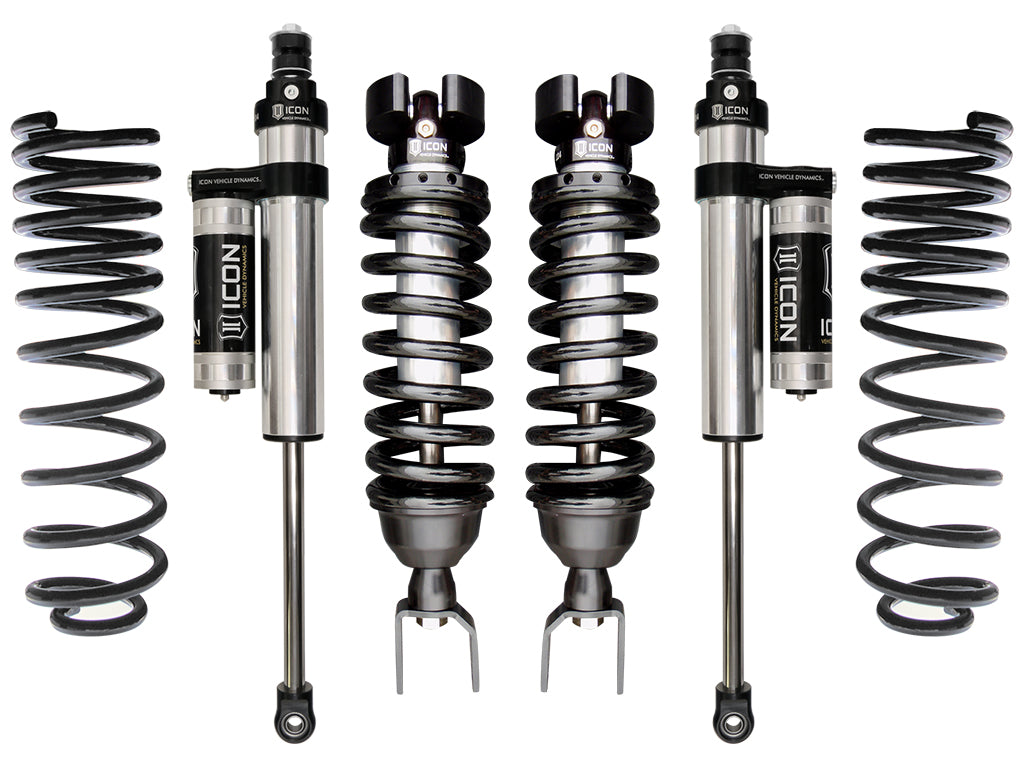

ICON Vehicle Dynamics Dodge Ram 1500 suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers' primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 3 system includes vehicle-specific tuned 2.5" coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle ΓÇ£feel" through the range of travel. These coilovers are also height adjustable from 0-1.5" of lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.5 Aluminum Series piggyback reservoir rear shocks paired with 1.5" lift, dual rate rear coil springs balance the performance of the truck from front to rear. The ICON Vehicle Dynamics 2019-UP Ram 1500 Stage 3 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt. |
| Description_SHO |
RAM SUSP SYS STG 3 |
| Add-On Part |
191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25) |
| OEM Wheels & Tires Fitment |
Yes |
| Title |
19-UP RAM 1500 2/4WD 0-1.5" STAGE 3 SUSPENSION SYSTEM |
| Recommended Aftermarket Wheels |
ICON Alloys |
| California Proposition 65 |
WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Recommended Aftermarket Tires |
33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required) |
| Length |
6.0000 |
| Width |
12.0000 |
| Height |
27.0000 |
| Weight |
107.0000 |
