| Description_ASC |
Factory Wheels & Tires Fitment: Yes |
| Description_ASC |
Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Description_ASC |
TECH NOTE: Only compatible with 4-wheel drive (4WD) models |
| Description_ASC |
TECH NOTE: Lift heights above 2" over stock may require aftermarket front upper control arms to maintain proper alignment |
| Description_ASC |
TECH NOTE: Models equipped with PowerBoost hybrid engines will have lift height range of 0-2.5" over stock |
| Description_ASC |
TECH NOTE: Models equipped with Power-Stroke diesel engines will have lift height range of 0-2.25" over stock |
| Description_ASC |
TECH NOTE: Not compatible with F-150 Tremor or F-150 Raptor |
| Description_ASC |
TECH NOTE: Not compatible with models equipped with Continuously Controlled Damping (CCD) system |
| Description_ASC |
TECH NOTE: Not compatible with models equipped with BlueCruise |
| Description_ASM |

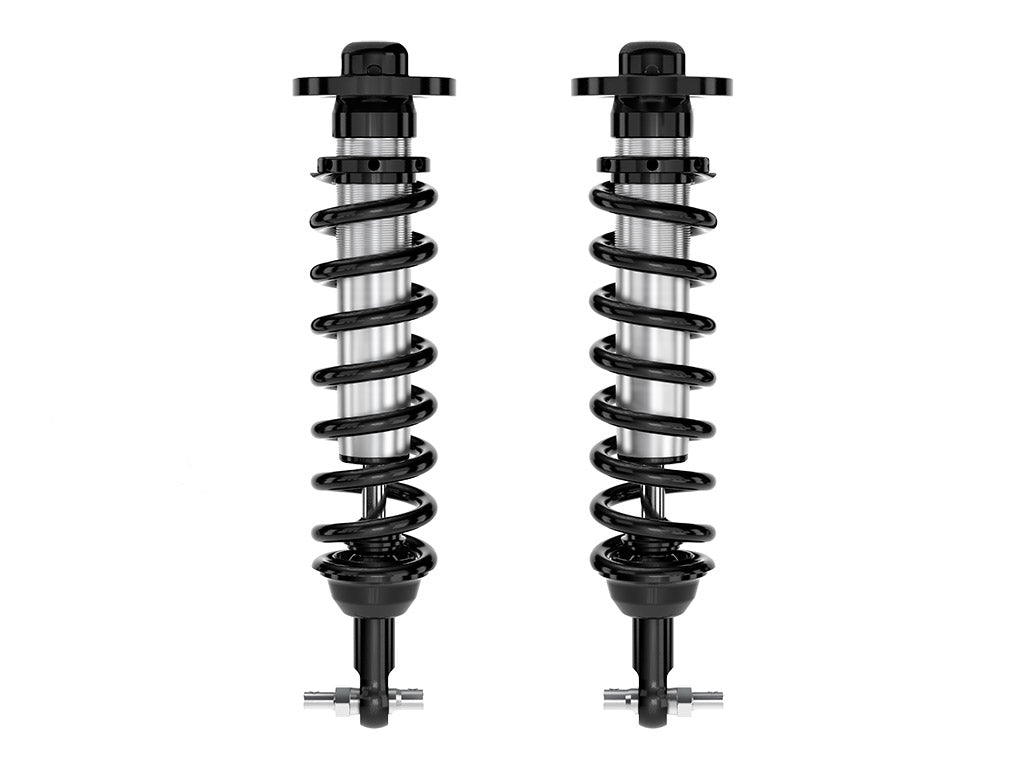

ICON 21-23 F150 4WD 0-2.75" 2.5 VS IR COILOVER KIT |
| Description_DEF |
Coilover Spring and Shock Assembly |
| Description_EXT |
These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock's larger 2.5" body and increased piston area improves damping ability and ride characteristics across varying types of terrain. |
| Description_DES |
21-23 F150 4WD 0-2.75" 2.5 VS IR COILOVER KIT |
| Description_MKT |
ICON Vehicle Dynamics V.S. Series 2.5" coilover shocks are an incredible upgrade for the front end of 2021-2023 Ford F-150 4WD trucks. ICON's Vehicle-specific valving provides a sport tuned feel on and off-road while 0-2.75" of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5" shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your F-150 truck. |
| Description_INV |
91722 |
| Description_FAB |
Increased wheel travel and ride quality over stock |
| Description_FAB |
FK rod end bearings for extended longevity and minimal deflection |
| Description_FAB |
100% Bolt-on - no drilling, cutting or welding necessary for installation |
| Description_FAB |
Unique valving developed for the lighter weight of the 2015+ F-150 |
| Description_FAB |
Vehicle specific tuned for superior shock damping and control |
| Description_FAB |
Adjustable 0-2.75" lift height |
| Description_FAB |
ICON engineered Eibach Springs |
| Description_FAB |
6061 Aircraft grade aluminum CNC machined components |
| Description_FAB |
Corrosion resistant CAD plated shock body with 7/8" shaft |
| Description_FAB |
High strength alloy CNC machined lower bar pin |
| Description_TLE |
ICON 21-23 Ford F150 4WD, 0-2.75" Lift, Front 2.5 VS IR Coilovers, Pair |
| Description_TRA |
ICON 2021-2022 Ford F150 4WD, 0-2.75" Lift, Front 2.5 VS IR Coilovers w/CDCV, Pair, 91722 |
| Description_SHO |
COILOVER KIT |
| Recommended Aftermarket Wheels |
ICON Alloys |
| Grade Type |
Performance |
| Damping Type |
Oil |
| Remote Reservoir |
NO |
| Spring Material |
Steel |
| Shaft Diameter |
0.875 |
| Title |
ICON 21-23 Ford F150 4WD, 0-2.75" Lift, Front 2.5 VS IR Coilovers w/CDCV, Pair |
| OEM Wheels & Tires Fitment |
Yes |
| Dust Shield |
No |
| Recommended Aftermarket Tires |
33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Maximum Lift |
2.75 |
| Service Parts |
252001 - 2.5 FIXED SPANNER WRENCH |
| Spring Color |
Black |
| Coil Over Springs Included |
Yes |
| California Proposition 65 |
WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Adjustable Damping |
NO |
| Add-On Part |
191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5) |
| Length |
7.0000 |
| Width |
13.0000 |
| Height |
31.0000 |
| Weight |
51.0000 |
