| Description_ASC |
Factory Wheels & Tires Fitment: Yes |
| Description_ASC |
Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Description_ASC |
TECH NOTE: Only compatible with 4-wheel drive (4WD) models |
| Description_ASC |
TECH NOTE: Models equipped with Power-Stroke diesel engines will have lift height range of 0-2.13" over stock |
| Description_ASC |
TECH NOTE: Lift heights above 2" over stock may require aftermarket front upper control arms to maintain proper alignment |
| Description_ASM |

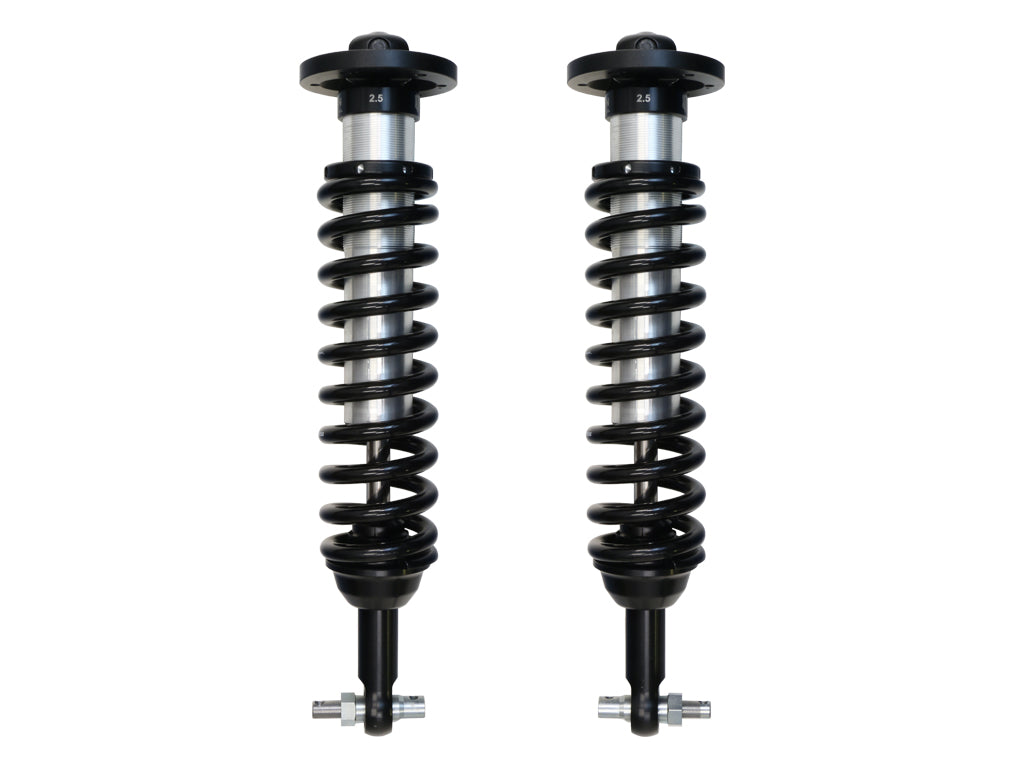

ICON 15-20 F150 4WD 0-2.63" 2.5 VS IR COILOVER KIT |
| Description_DEF |
Coilover Spring and Shock Assembly |
| Description_DES |
15-20 F150 4WD 0-2.63" 2.5 VS IR COILOVER KIT |
| Description_INV |
91711 |
| Description_EXT |
These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock's larger 2.5" body and increased piston area improves damping ability and ride quality across varying types of terrain. |
| Description_MKT |
ICON Vehicle Dynamics V.S. Series 2.5" coilover shocks are an incredible upgrade for the front end of 2015-2020 Ford F-150 4WD trucks. ICON's Vehicle-specific valving provides a sport tuned feel on and off-road while 0-2.63" of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5" shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your F-150 truck. |
| Description_FAB |
Increased wheel travel and ride quality over stock |
| Description_FAB |
100% Bolt-on - no drilling,cutting or welding necessary for installation |
| Description_FAB |
Unique valving developed for the lighter weight of the 2015-2020 F-150 |
| Description_FAB |
Vehicle specific tuned for superior shock damping and control |
| Description_FAB |
Adjustable 0-2.63" lift height |
| Description_FAB |
ICON engineered Eibach Springs |
| Description_FAB |
6061 Aircraft grade aluminum CNC machined components |
| Description_FAB |
Corrosion resistant CAD plated shock body with 7/8" shaft |
| Description_FAB |
High strength alloy CNC machined lower bar pin |
| Description_FAB |
FK rod end bearings for extended longevity and minimal deflection |
| Description_SHO |
F150 COILOVER KIT |
| Description_TRA |
ICON 2015-20 Ford F150 4WD 0-2.63" Lift Front 2.5 VS Coilover Kit, 91711 |
| Description_TLE |
ICON 2015-20 Ford F150 4WD, 0-2.63" Lift, Front 2.5 VS Coilover Kit |
| Recommended Aftermarket Wheels |
ICON Alloys |
| Damping Type |
Oil |
| Title |
15-20 F150 4WD 0-2.63" 2.5 VS IR COILOVER KIT |
| OEM Wheels & Tires Fitment |
Yes |
| Remote Reservoir |
NO |
| Spring Material |
Steel |
| Recommended Aftermarket Tires |
33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Shaft Diameter |
0.875 |
| Grade Type |
Performance |
| Dust Shield |
No |
| Add-On Part |
191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5) |
| Service Parts |
252001 - 2.5 FIXED SPANNER WRENCH |
| Coil Over Springs Included |
Yes |
| Spring Color |
Black |
| Adjustable Damping |
NO |
| California Proposition 65 |
WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Length |
7.0000 |
| Width |
13.0000 |
| Height |
31.0000 |
| Weight |
51.0000 |
