| Description_ASC |
OEM Wheels & Tires Fitment: Yes |
| Description_ASC |
Recommended Aftermarket Tires : 285/70R17 (Larger tires may fit but fender trimming and modifications will be required) |
| Description_ASC |
Recommended Aftermarket Tires: 33"x11.25" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Description_ASC |
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE |
| Description_ASC |
APPLICATION NOTE #110: MINOR TRIMMING REQUIRED FOR RECOMMENDED TIRE SIZE |
| Description_ASC |
TECH NOTE: Extended travel coilovers also require ICON front upper control arms. DO NOT install in conjunction with OE front upper control arms. |
| Description_ASC |
TECH NOTE: Ranger XLT or Lariat models equipped with Tremor package have front lift height range of 0-2.5" over stock. |
| Description_ASC |
TECH NOTE: Not compatible with Ranger Raptor. |
| Description_DEF |
Coilover Spring and Shock Assembly |
| Description_DES |

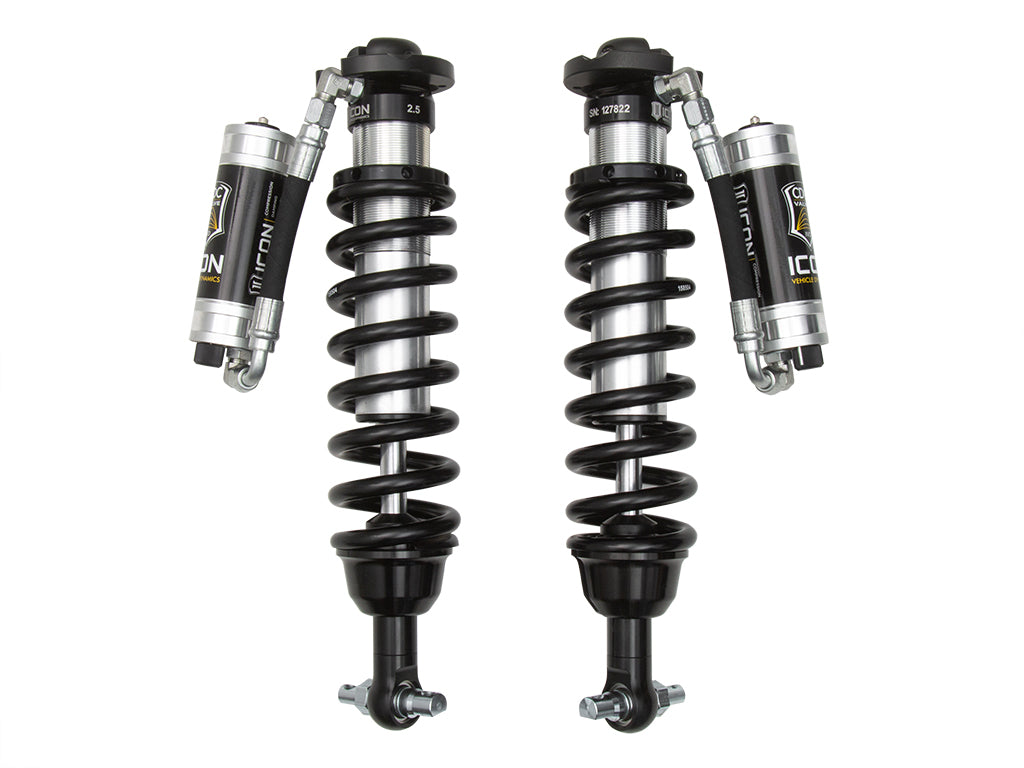

19-23 RANGER EXT TRAVEL 2.5 VS RR CDCV COILOVER KIT |
| Description_EXT |
ICON's Vehicle-specific shock length and valving along with the larger 2.5" shock body and increased piston area over stock yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. |
| Description_MKT |
The ICON Vehicle Dynamics V.S. Series 2.5" remote reservoir coilover shocks w/ CDCV are an incredible upgrade for the front end of the 2019-2023 Ford Ranger truck. ICON's Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3.5" of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5" shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 settings from soft to hard. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your 2019-2023 Ranger. |
| Description_FAB |
Increased wheel travel and ride quality over stock |
| Description_FAB |
Vehicle specific tuned for superior shock damping and control |
| Description_FAB |
External reservoirs to attain cooler operating temperatures during extended off-road use |
| Description_FAB |
ICON CDCV equipped for external tuneability of your shocks |
| Description_FAB |
Adjustable 0-3.5" lift height |
| Description_FAB |
ICON engineered coil springs |
| Description_FAB |
6061 Aircraft grade aluminum CNC machined components |
| Description_FAB |
Corrosion resistant CAD plated shock body with 7/8" shaft |
| Description_FAB |
High strength alloy CNC machined lower bar pin |
| Description_FAB |
FK rod end bearings for extended longevity and minimal deflection |
| Description_FAB |
100% Bolt-on - no cutting or welding necessary for installation |
| Description_INV |
91355C |
| Description_SHO |
COILOVER KIT |
| Description_TLE |
ICON 19-23 Ford Ranger Extended Travel 2.5 VS Remote Reservoir/CDCV Coilover Kit |
| Description_TRA |
ICON 19-21 Ford Ranger Extended Travel 2.5 VS Remote Reservoir/CDCV Coilover Kit, 91355C |
| OEM Wheels & Tires Fitment |
Yes |
| Recommended Aftermarket Wheels |
ICON Alloys |
| Shaft Diameter |
0.875 |
| Material |
Aluminum |
| Spring Material |
Steel |
| Damping Type |
Oil |
| Title |
ICON 19-21 Ford Ranger Extended Travel 2.5 VS Remote Reservoir/CDCV Coilover Kit |
| Dust Shield |
No |
| Adjustable Damping |
Yes |
| Add-On Part |
191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25) |
| Recommended Aftermarket Tires |
285/70/R17 (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Remote Reservoir |
Yes |
| Grade Type |
Performance |
| Service Parts |
191016 - 7.5" FINNED RESI UPGRADE KIT |
| Coil Over Springs Included |
Yes |
| Spring Color |
Black |
| California Proposition 65 |
WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Length |
8.0000 |
| Width |
12.0000 |
| Height |
27.0000 |
| Weight |
55.0000 |
