| Description_ASM |

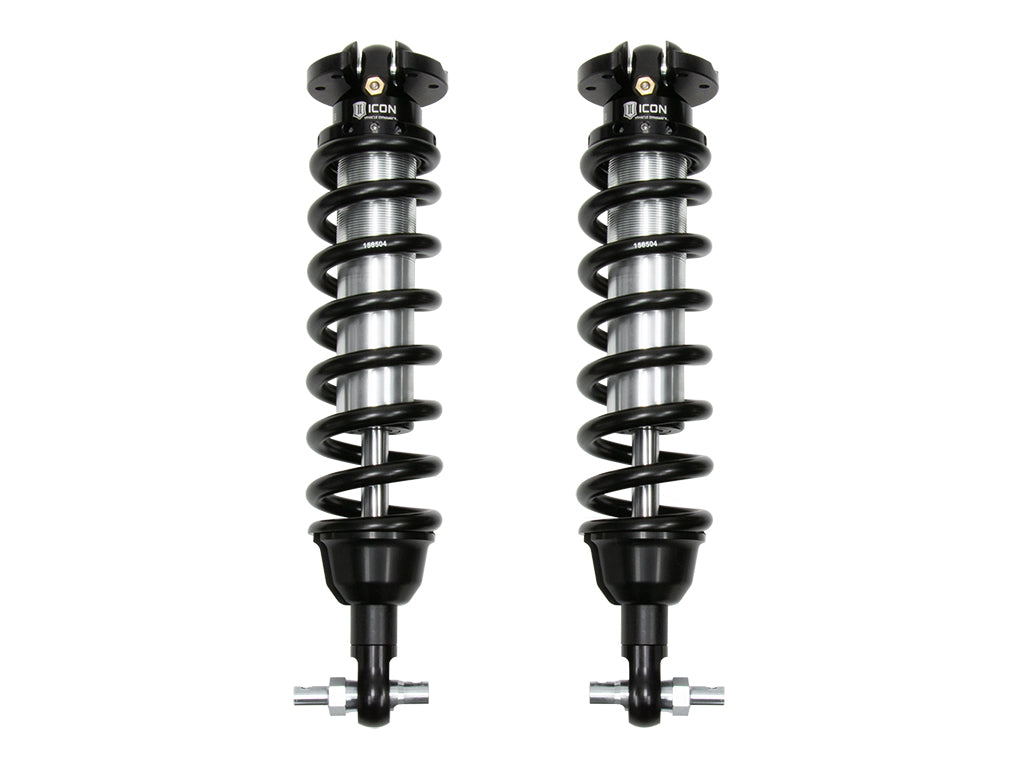

ICON 19-23 RANGER EXT TRAVEL 2.5 VS IR COILOVER KIT |
| Description_ASC |
Factory Wheels & Tires Fitment: Yes |
| Description_ASC |
Recommended Aftermarket Tires: 285/70/R17 (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Description_ASC |
Recommended Aftermarket Tires: 33"x11.25" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Description_ASC |
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE |
| Description_ASC |
APPLICATION NOTE #110: MINOR TRIMMING REQUIRED FOR RECOMMENDED TIRE SIZE |
| Description_ASC |
TECH NOTE: Extended travel coilovers also require ICON front upper control arms. DO NOT install in conjunction with OE front upper control arms. |
| Description_ASC |
TECH NOTE: Ranger XLT or Lariat models equipped with Tremor package have front lift height range of 0-2.5" over stock. |
| Description_ASC |
TECH NOTE: Not compatible with Ranger Raptor. |
| Description_DEF |
Coilover Spring and Shock Assembly |
| Description_DES |
19-23 RANGER EXT TRAVEL 2.5 VS IR COILOVER KIT |
| Description_INV |
91255 |
| Description_EXT |
ICON's Vehicle-specific shock length and valving along with the larger 2.5" shock body and increased piston area over stock yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. |
| Description_FAB |
Adjustable coilovers yield 0-3.5" of front lift height |
| Description_FAB |
Vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use |
| Description_FAB |
Extended travel length requires ICON upper control arms but offers more wheel travel and improved performance |
| Description_FAB |
Superior low speed control reduces body roll and increases on-road stability |
| Description_FAB |
High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage |
| Description_FAB |
Corrosion resistant CAD plated shock body with 7/8" diameter shaft |
| Description_FAB |
Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life |
| Description_FAB |
Bolt-in design makes for an easy install into OEM shock location |
| Description_MKT |
ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2019-2023 Ford Ranger. These adjustable coilovers allow up to 0-3.5" of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON's Vehicle-specific valving along with the larger 2.5" shock body and increased piston area over stock components yield superior ride quality and suspension performance both on- and off-road. Their extended travel length requires ICON front upper control arms and yields increased front wheel travel compared to ICON standard travel coilovers for maximum suspension performance. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ford Ranger. |
| Description_SHO |
COILOVER KIT |
| Description_TLE |
ICON 2019-2023 Ford Ranger, 0-3.5" Lift, Extended Travel 2.5 VS Coilover Kit |
| Description_TRA |
ICON 2019-2021 Ford Ranger 4WD, 0-3.5" Lift, Extended Travel 2.5 VS Coilover Kit, 91255 |
| Shaft Diameter |
0.875 |
| Coil Over Springs Included |
Yes |
| Service Parts |
252001 - 2.5 FIXED SPANNER WRENCH |
| Remote Reservoir |
NO |
| California Proposition 65 |
WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Adjustable Damping |
NO |
| Add-On Part |
191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25) |
| Maximum Lift |
3.5 |
| Minimum Lift |
0 |
| Damping Type |
Oil |
| Title |
ICON 2019-2023 Ford Ranger, 0-3.5" Lift, Extended Travel 2.5 VS Coilover Kit |
| Spring Material |
Steel |
| OEM Wheels & Tires Fitment |
Yes |
| Spring Color |
Black |
| Recommended Aftermarket Tires |
Recommended Aftermarket Tires: 33"x11.25" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Dust Shield |
No |
| Grade Type |
Performance |
| Spring Rate Type |
Linear |
| Recommended Aftermarket Wheels |
ICON Alloys |
| Length |
7.0000 |
| Width |
13.0000 |
| Height |
26.0000 |
| Weight |
45.0000 |
