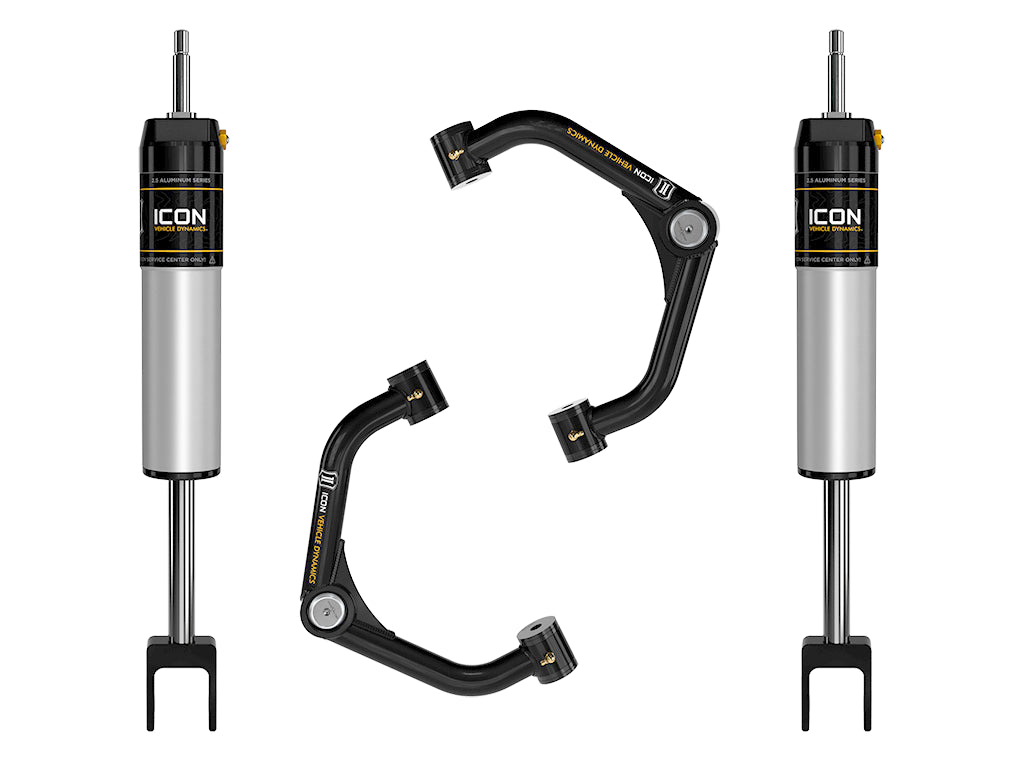

ICON 78732T 20-UP GM HD 0-2" IR SHOCK SYS W/ TUBE UCA

2 sold in last 8 days
ICON
ds_FRDK_78732T
Out of stock
Suspension Control Arm Kit
$2,406.36

customers are viewing this product
ICON 78732T 20-UP GM HD 0-2" IR SHOCK SYS W/ TUBE UCA

Take the performance of your 2020-Up GM HD truck to new levels with the ICON Vehicle Dynamics Delta Joint tubular upper control arm kit. All ICON tubular upper control arms are constructed from CNC bent 1026 DOM steel tubing and then powder coated to a semi-gloss black finish for maximum strength and corrosion resistance. ICON upper control arms are engineered with built-in caster correction for optimal alignment specifications and confidence inspiring handling. A main benefit of ICON upper control arms is the increased wheel travel when paired with our 2.5 series shock absorbers, this translates into superior performance and ride quality for your 2020-Up GM HD.

Specifications:

Description_ASC OEM Wheels & Tires Fitment: Yes
Description_ASC Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
Description_ASC TECH NOTE: The additional down travel provided by an ICON Suspension System can cause clearance issues between the sway bar and the stock splash guard as the suspension approaches full extension. ICON Vehicle Dynamics 2020-UP GM HD Splash Guard Kit, part number 77202 recommended.
Description_DEF Suspension Control Arm Kit
Description_DES 20-UP GM HD 0-2" IR SHOCK SYS W/ TUBE UCA
Description_INV 20-UP GM HD 0-2" IR SHOCK SYS TUBE UCA
Description_FAB Features ICON's Patented Delta Joint (U.S. Patent No. 10,731,700)
Description_FAB Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
Description_FAB 7/8" diameter induction hardened, chrome plated shock shaft
Description_FAB One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
Description_FAB 6061 aircraft grade aluminum CNC machined components
Description_FAB 100% Rebuildable
Description_FAB 100% Revalveable
Description_FAB 1026 DOM Steel Construction
Description_FAB CNC Bent Tubing
Description_FAB CNC Machined Bushing Housings and Sleeves
Description_FAB Built-In Caster Correction
Description_FAB Serviceable Dual Stage Bushings
Description_FAB Black Semi-Gloss Powder Coat Finish
Description_FAB One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
Description_FAB Nitrogen charged monotube design with internal reservoir
Description_EXT 2020-UP GM HD 0-2" LIFT IR SHOCK SYSTEM WITH TUBULAR UCA
Description_MKT Take the performance of your 2020-Up GM HD truck to new levels with the ICON Vehicle Dynamics Delta Joint tubular upper control arm kit. All ICON tubular upper control arms are constructed from CNC bent 1026 DOM steel tubing and then powder coated to a semi-gloss black finish for maximum strength and corrosion resistance. ICON upper control arms are engineered with built-in caster correction for optimal alignment specifications and confidence inspiring handling. A main benefit of ICON upper control arms is the increased wheel travel when paired with our 2.5 series shock absorbers, this translates into superior performance and ride quality for your 2020-Up GM HD.

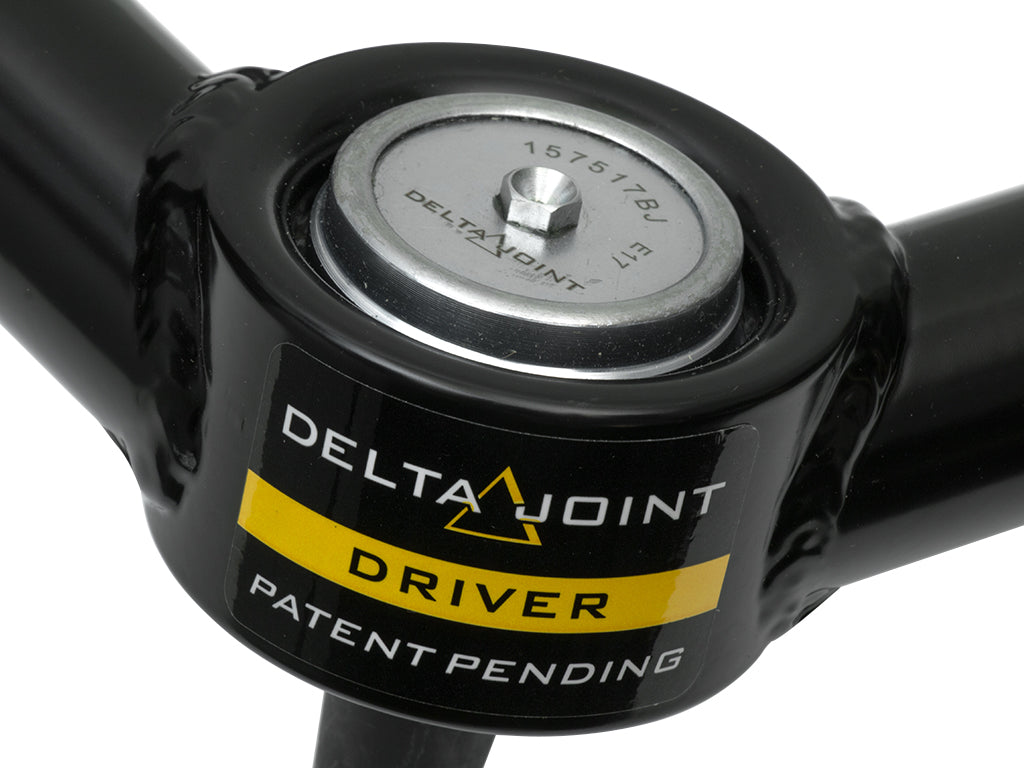

Description_MKT These upper control arms feature ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
Description_MKT To ensure compatibility, ICON is no longer offering GM 2500HD/3500HD upper control arms as individual components. Upper control arms can only be purchased in unison with ICON shock absorbers as a complete system. The included ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. The larger diameter and oil volume of ICON 2.5 IR Series shocks provide better ride quality and heat dissipation properties than the standard 2.0 Aluminum Series IR Shocks. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDC Valve) shocks.
Description_SHO GM HD UCA/SHOCK KIT
Description_TRA ICON 2020-Up GM 2500/3500 HD, 0-2" Lift 2.5 VS Shock System, Tubular UCA, 78732T
Description_TLE ICON 2020-Up GM 2500/3500 HD, 0-2" Lift, 2.5 VS Shock System, Tubular UCA
Add-On Part 191011 - TUBULAR UCA BILLET CAP SET
Service Parts 614519 - DELTA JOINT INSTALL PRESS ADAPTER TUBE
Adjustable Control Arm No
California Proposition 65 WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
OEM Wheels & Tires Fitment Yes
Recommended Aftermarket Wheels ICON Alloys
Title 20-UP GM HD 0-2" IR SHOCK SYS W/ TUBE UCA
Finish Powdercoated
Recommended Aftermarket Tires 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
Bushing Color Black
Length 7.0000
Width 13.0000
Height 31.0000
Weight 42.0000
