| Description_ASC |
OEM Wheels & Tires Fitment: Yes |
| Description_ASC |
Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Description_ASC |
TECH NOTE: The additional down travel provided by an ICON Suspension System can cause clearance issues between the sway bar and the stock splash guard as the suspension approaches full extension. ICON Vehicle Dynamics 2020-UP GM HD Splash Guard Kit, part number 77202 recommended. |
| Description_DEF |
Suspension Control Arm Kit |
| Description_DES |

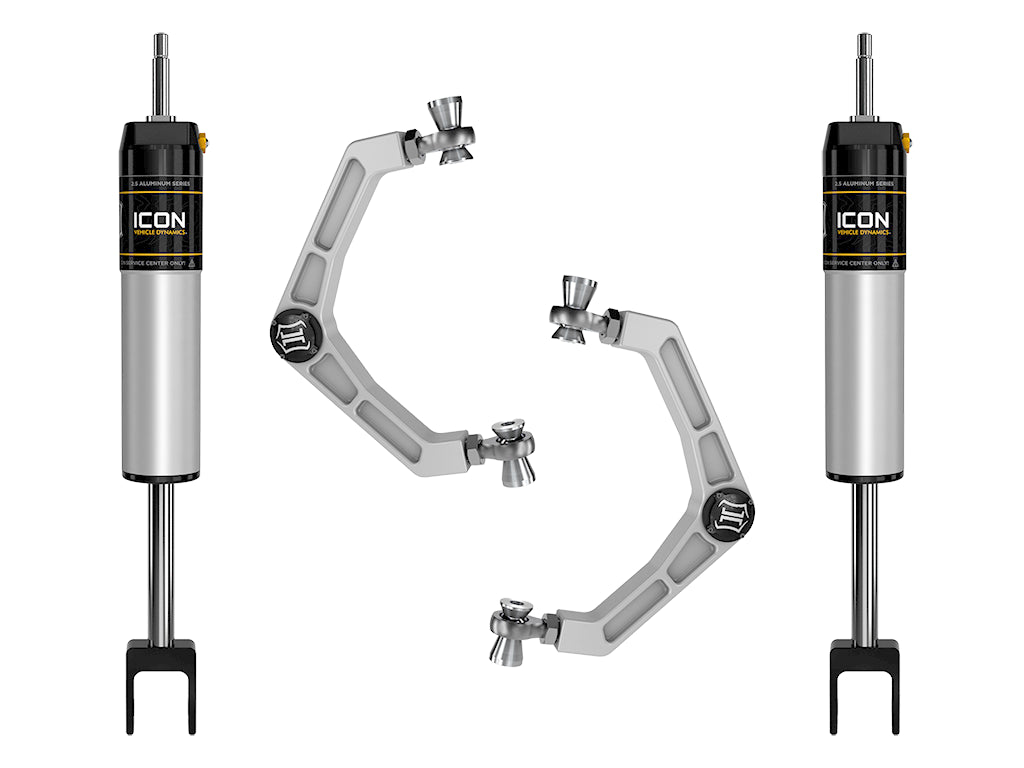

20-UP GM HD 0-2" IR SHOCK SYS W/ BILLET UCA |
| Description_EXT |
2020-UP GM HD 0-2" LIFT INTERNAL RESERVOIR SHOCK SYSTEM WITH BILLET UCA |
| Description_FAB |
Features ICON's Patented Delta Joint (U.S. Patent No. 10,731,700) |
| Description_FAB |
100% Rebuildable |
| Description_FAB |
100% Revalveable |
| Description_FAB |
CNC machined 6061 billet aluminum construction for light weight and exceptional strength |
| Description_FAB |
Additional camber and caster adjustability allows for precise wheel alignment |
| Description_FAB |
PTFE Lined 7/8" FK Rod Ends for improved response |
| Description_FAB |
One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road |
| Description_FAB |
Nitrogen charged monotube design with internal reservoir |
| Description_FAB |
Built in o-ring sealed dust cover cap |
| Description_FAB |
Vehicle specific taper pin provides OE-like fitment |
| Description_FAB |
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range |
| Description_FAB |
7/8" diameter induction hardened, chrome plated shock shaft |
| Description_FAB |
One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish |
| Description_INV |
20-UP GM HD 0-2" IR SHOCK SYS BILLET UCA |
| Description_MKT |
Take the performance of your 2020-Up GM HD truck to new levels with the ICON Vehicle Dynamics Delta Joint billet upper control arm kit. These are constructed of CNC machined 6061 billet aluminum merging light weight with high strength properties. FK Rod End 3/4" heim joints provide precise and smooth function throughout the range of travel while also allowing for additional camber and caster adjustment for optimal alignment specifications and confidence inspiring handling. A main benefit of ICON upper control arms is the increased wheel travel when paired with our 2.5 series shock absorbers, this translates into superior performance and ride quality for your 2020-Up GM HD. |
| Description_MKT |
These upper control arms feature ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint. |
| Description_MKT |
To ensure compatibility, ICON is no longer offering GM 2500HD/3500HD upper control arms as individual components. Upper control arms can only be purchased in unison with ICON shock absorbers as a complete system. The included ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. The larger diameter and oil volume of ICON 2.5 IR Series shocks provide better ride quality and heat dissipation properties than the standard 2.0 Aluminum Series IR Shocks. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDC Valve) shocks. |
| Description_TLE |
ICON 2020-Up GM 2500/3500 HD, 0-2" Lift 2.5 VS Shock System, Tubular UCA |
| Description_TRA |
ICON 2020-Up GM 2500/3500 HD, 0-2" Lift 2.5 VS Shock System, Tubular UCA, 78732 |
| Description_SHO |
GM HD UCA/SHOCK KIT |
| Title |
20-UP GM HD 0-2" IR SHOCK SYS W/ BILLET UCA |
| Bushing Color |
Gold |
| Recommended Aftermarket Wheels |
ICON Alloys |
| Recommended Aftermarket Tires |
35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| California Proposition 65 |
WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Add-On Part |
191013 - NIPPLE GREASING ADAPTER KIT |
| OEM Wheels & Tires Fitment |
Yes |
| Adjustable Control Arm |
yes |
| Control Arm Construction |
Billet |
| Finish |
Anodized |
| Service Parts |
614520 - DELTA JOINT INSTALL ADAPTER AND SHIM |
| Length |
7.0000 |
| Width |
13.0000 |
| Height |
31.0000 |
| Weight |
50.0000 |
