| Description_ASC |
TECH NOTE: Aftermarket upper control arms with high angle ball joint required for install |
| Description_DEF |
Suspension Shock Absorber Set |
| Description_DES |
11-16 GM HD 6-8" FRONT 2.5 VS PB CDCV EXT TRAV PAIR |
| Description_FAB |
ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob |
| Description_FAB |
ICON's internal ΓÇ£Bump Zone" increases damping by 20% to provide more control as the shock approaches full compression |
| Description_FAB |
Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use |
| Description_FAB |
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range |
| Description_FAB |
Nitrogen charged monotube design with piggyback reservoir |
| Description_FAB |
One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road |
| Description_FAB |
7/8" diameter induction hardened, chrome plated shock shaft |
| Description_FAB |
PTFE lined spherical bearings and application specific mounting hardware |
| Description_FAB |
6061 aircraft grade aluminum CNC machined components |
| Description_FAB |
CAD plated, precision machined 1026 DOM steel shock body for maximum durability and corrosion resistance |
| Description_FAB |
100% Rebuildable |
| Description_FAB |
100% Revalveable |
| Description_EXT |
2011-2016 GM HD 6-8" LIFT FRONT 2.5 VS PIGGYBACK CDCV SHOCK EXTENDED TRAVEL PAIR |
| Description_INV |
11-16 GM HD 6-8 FRNT 2.5 PB CDC EXT PAIR |
| Description_MKT |
ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. If you are looking for a more user defined tune, consider looking into the Omega Series bypass shocks. |
| Description_SHO |
FRNT SHOCK ABSORBERS |
| Description_TRA |
ICON 11-16 GM 2500/3500 HD 6-8" Lift Front Ex Travel 2.5 VS RR/CDCV Shocks, Pair, 77738CP |
| Description_TLE |

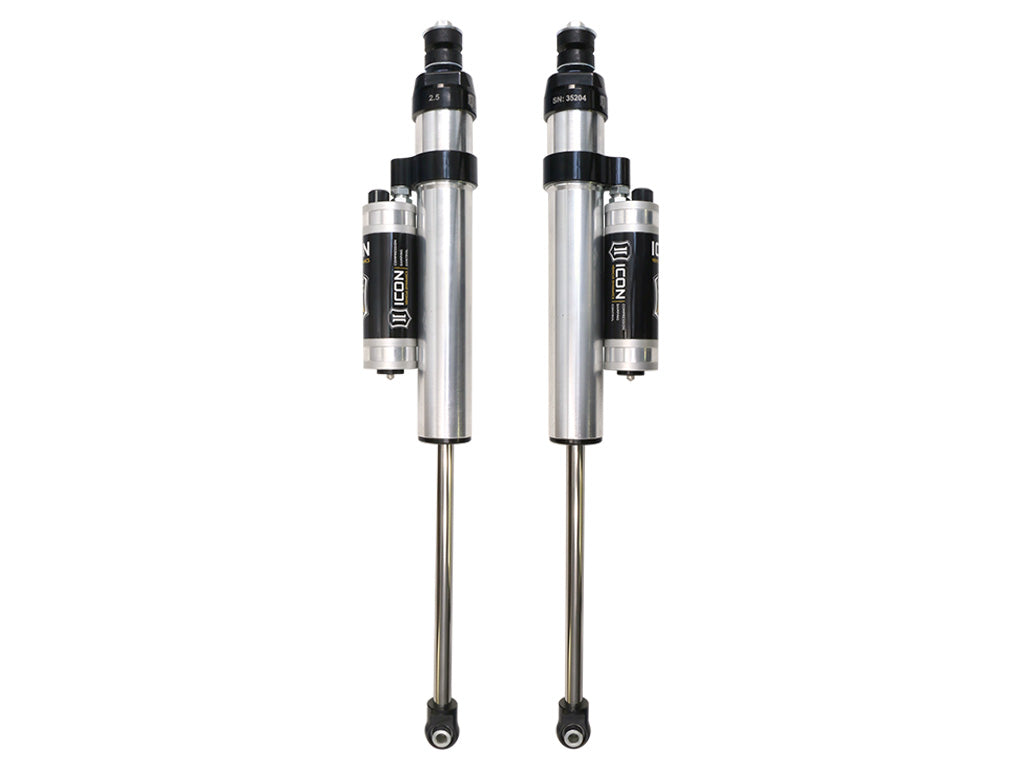

ICON 11-16 GM 2500/3500 HD 6-8" Lift Front Ex Travel 2.5 VS RR/CDCV Shocks, Pair |
| Shaft Material |
Chrome |
| Shaft Diameter |
0.875 |
| Damping Type |
Oil |
| Cylinder Color |
Silver |
| Service Parts |
191016 - 7.5" FINNED RESI UPGRADE KIT |
| Grade Type |
Performance |
| Title |
11-16 GM HD 6-8" FRONT 2.5 VS PB CDCV EXT TRAV PAIR |
| Cylinder Material |
Steel |
| California Proposition 65 |
WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| External Reservoir |
Yes |
| Length |
9.0000 |
| Width |
10.0000 |
| Height |
39.0000 |
| Weight |
28.0000 |
