| Description_ASC |
TECH NOTE: Compatible with 0-1.5" of rear lift on most models |
| Description_ASC |
TECH NOTE: Not compatible with models equipped Magnetic Ride Control |
| Description_ASC |
TECH NOTE: Not recommended for Hybrid models |
| Description_ASC |
TECH NOTE: May require slight modifications to rear shock absorber mounts |
| Description_DEF |
Suspension Shock Absorber Set |
| Description_DES |
07-18 GM 1500 0-1.5 REAR 2.5 VS PB CDCV PAIR |
| Description_MKT |

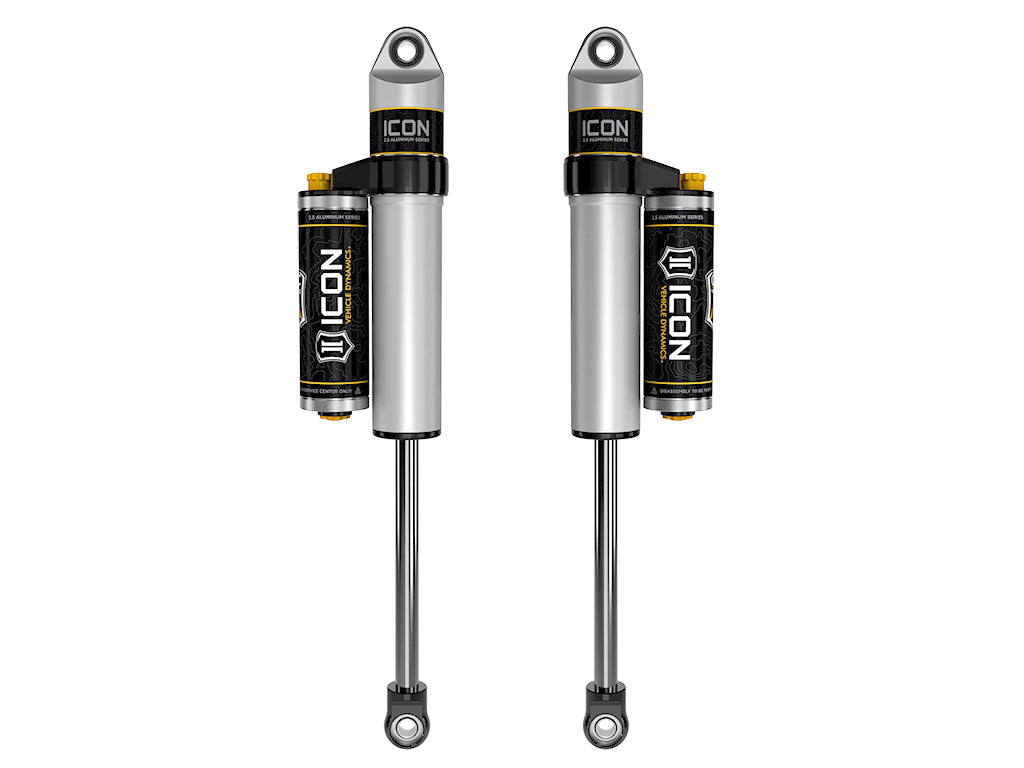

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. |
| Description_FAB |
ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob |
| Description_FAB |
ICON's internal ΓÇ£Bump Zone" increases damping by 20% to provide more control as the shock approaches full compression |
| Description_FAB |
Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use |
| Description_FAB |
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range |
| Description_FAB |
Nitrogen charged monotube design with piggyback reservoir |
| Description_FAB |
One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road |
| Description_FAB |
7/8" diameter induction hardened, chrome plated shock shaft |
| Description_FAB |
PTFE lined spherical bearings and application specific mounting hardware |
| Description_FAB |
6061 aircraft grade aluminum CNC machined components |
| Description_FAB |
One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish |
| Description_FAB |
100% Rebuildable |
| Description_FAB |
100% Revalveable |
| Description_EXT |
2007-2018 GM 1500 0-1.5" LIFT REAR 2.5 VS CDCV PIGGYBACK SHOCK PAIR |
| Description_INV |
07-18 GM 1500 REAR 2.5 PB CDCV PAIR |
| Description_TLE |
ICON 2007-18 GM 1500, 0-1.5" Lift, Rear 2.5 VS Piggyback Res/CDCV Shocks, Pair |
| Description_SHO |
REAR SHOCK ABSORBERS |
| Grade Type |
Performance |
| Shaft Material |
Chrome |
| Title |
07-18 GM 1500 0-1.5 REAR 2.5 VS PB CDCV PAIR |
| Shaft Diameter |
0.875 |
| Add-On Part |
252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR) |
| Cylinder Color |
Silver |
| External Reservoir |
Yes |
| California Proposition 65 |
WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Cylinder Material |
Aluminum |
| Service Parts |
191016 - 7.5" FINNED RESI UPGRADE KIT |
| Length |
9.0000 |
| Width |
10.0000 |
| Height |
39.0000 |
| Weight |
25.0000 |
