| Description_ASC |
OEM Wheels & Tires Fitment: Yes |
| Description_ASC |
Recommended Aftermarket Tires (Silverado 1500): 35"x12.50" (Minor fender trimming and modifications may be required) |
| Description_ASC |
Recommended Aftermarket Tires (Sierra 1500): 34"x12.00" (Minor fender trimming and modifications may be required) |
| Description_ASC |
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE |
| Description_ASC |
APPLICATION NOTE #110: TRIMMING REQUIRED FOR RECOMMENDED TIRE SIZE |
| Description_ASC |
TECH NOTE: EXP Coilovers are sold individually. A quantity of 2 are required per vehicle. |
| Description_ASC |
TECH NOTE: Models equipped with Duramax diesel engines will have front lift height range of 1.75-3" over stock |
| Description_ASC |
TECH NOTE: Not compatible with models equipped with Adaptive Ride Control (ARC) |
| Description_ASC |
TECH NOTE: Not compatible with Silverado 1500 ZR2 or Sierra 1500 AT4X |
| Description_ASC |
TECH NOTE: Not compatible with Silverado 1500 Trail Boss or Sierra 1500 AT4 |
| Description_ASM |

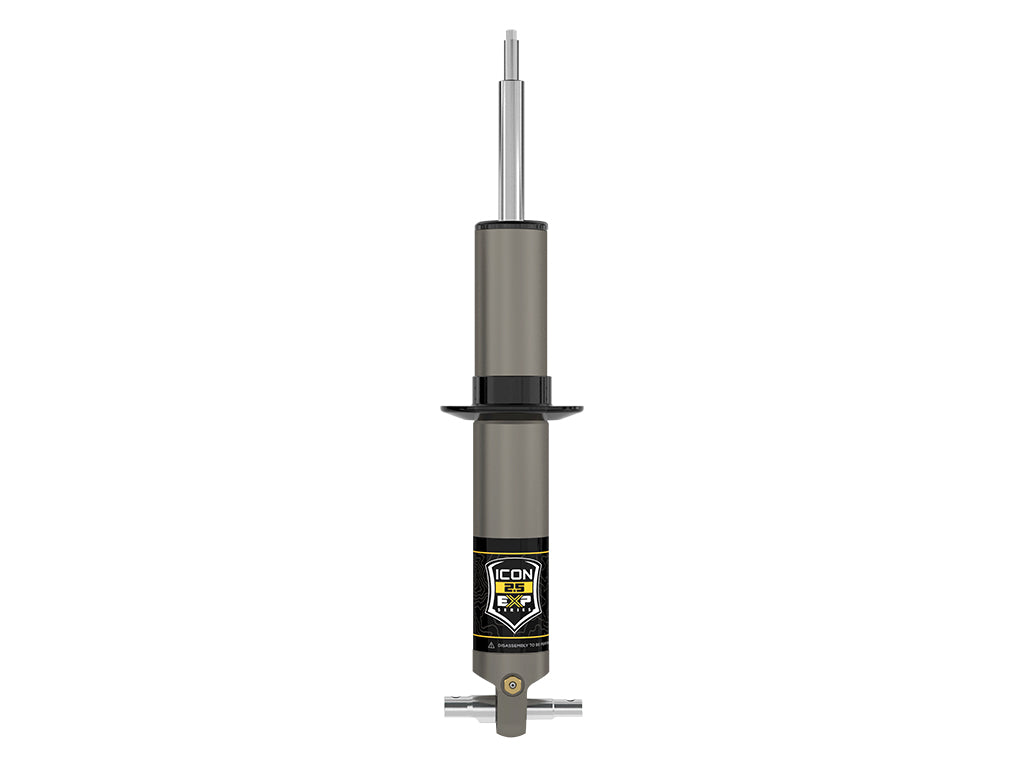

ICON 19-23 GM 1500 FRONT 2.5 EXP COILOVER |
| Description_DEF |
Coilover Spring and Shock Assembly |
| Description_EXT |
EXP Series shock absorbers by ICON combine the performance of a fully rebuildable 2.5-inch diameter premium shock absorber with the convenience and cost-benefits of re-using the vehicle's factory coil spring and other components. |
| Description_DES |
19-23 GM 1500 FRONT 2.5 EXP COILOVER |
| Description_INV |
71607 |
| Description_FAB |
Vehicle specific design for the 2019-2023 GM 1500 trucks |
| Description_FAB |
Adjustable ride heights from 2.375-3.75" of front lift over stock with the use of snap ring |
| Description_FAB |
Utilizes factory coils |
| Description_FAB |
2.5 Aluminum Series Shock with Internal Reservoir |
| Description_FAB |
CNC machined 6061 aluminum components with a black anodize finish |
| Description_FAB |
PTFE lined bearings for extended longevity and minimal deflection |
| Description_FAB |
Inverted shaft up design featuring 7/8" diameter, induction hardened, chrome plated shaft |
| Description_FAB |
One-piece impact extruded aluminum hard anodized cylinders offer excellent corrosion resistance and consistent finish |
| Description_FAB |
100% Bolt-on - no cutting or welding necessary for installation |
| Description_FAB |
Fully rebuildable and re-tunable |
| Description_SHO |
EXP COILOVER |
| Description_MKT |
EXP Series for the 2019-2023 GM 1500 is based on ICON's proven 2.5-inch diameter Aluminum Series shock absorber, featuring a one-piece impact-extruded aluminum shock body. Hard anodizing provides a great-looking, consistent finish with superior resistance to abrasion and corrosion. The massive 7/8-inch diameter shaft is induction hardened and chrome plated. EXP shocks use the factory shaft-up orientation. |
| Description_MKT |
The 6061-billet aluminum coil spring seat is CNC machined to fit the truck's OE coil springs. A series of snap-ring grooves machined into the shock body provide easily-selectable front-end ride height adjustment from 2.375" to 3.75" of lift over stock. |
| Description_MKT |
EXP Series shocks utilize a one-piece digressive piston design and are custom tuned for the 2019-2023 GM 1500 in conjunction with their stock front coil springs to maximize damping performance and provide unsurpassed ride quality, on and off-road. The increased piston size and shock oil volume provided by the 2.5-inch diameter aluminum body also provide superior heat dissipation compared to the smaller, steel bodied OE shocks, resulting in longer-lasting shock performance over prolonged use at higher speeds and through rougher terrain. For those who would like to further tune their suspension, EXP shocks are fully re-valvable (and rebuildable) by any qualified shock technician, with parts available from ICON. |
| Description_TLE |
ICON 2019-2023 GM 1500, Front, 2.38-3.75" Lift, 2.5 EXP Coilover |
| Description_TRA |
ICON 2019-2023 GM 1500, Front, 2.38-3.75" Lift, 2.5 EXP Coilover, 71607 |
| California Proposition 65 |
WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Grade Type |
Performance |
| Material |
Aluminum |
| Damping Type |
Oil |
| Coil Over Springs Included |
No |
| Shaft Diameter |
0.875 |
| Title |
ICON 2019-2023 GM 1500, Front, 2.38-3.75" Lift, 2.5 EXP Coilover |
| Remote Reservoir |
NO |
| Service Parts |
252010 - 2.5 IFP REBUILD KIT |
| Minimum Lift |
2.375 |
| Maximum Lift |
3.75 |
| Adjustable Damping |
NO |
| Length |
5.0000 |
| Width |
6.0000 |
| Height |
32.0000 |
| Weight |
13.0000 |
