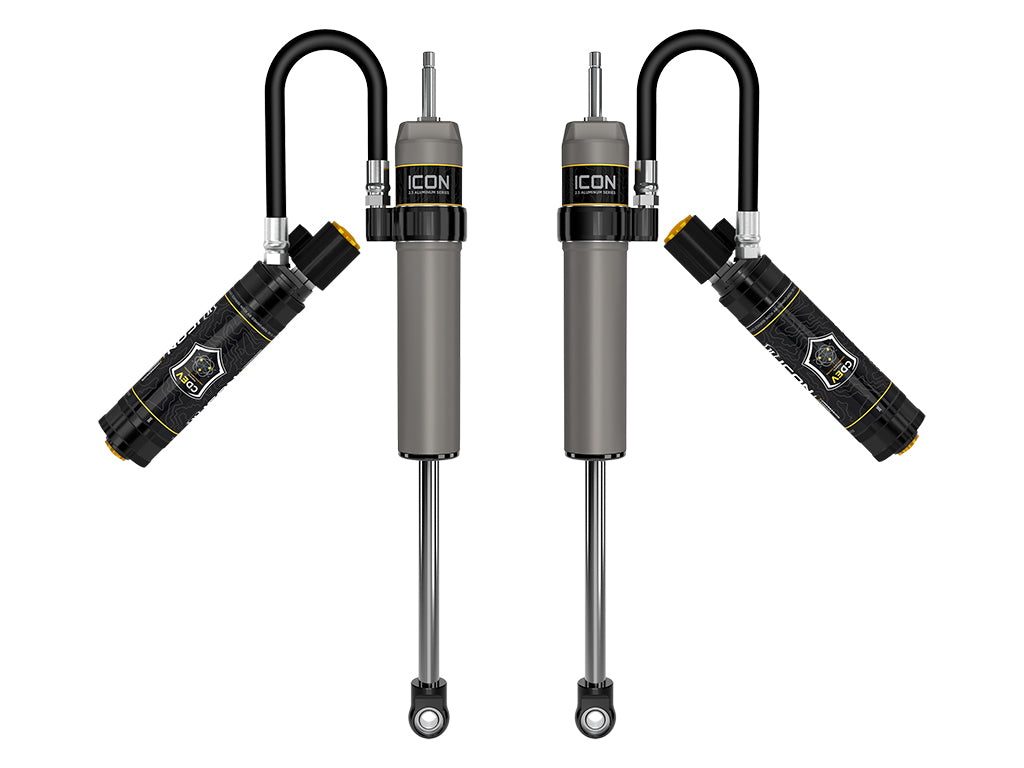

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks with CDEV are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks with CDEV are fully rebuildable and re-tunable. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle.
Specifications:
| Description_ASC |
TECH NOTE: Compatible with 4.5" of front lift over stock, or 2.5" of front lift over stock if equipped with Tremor package |
| Description_ASC |
TECH NOTE: Also requires installation of IIC part number 93500 and CDEV rear shock part number 37701EP |
| Description_ASC |
TECH NOTE: Connectivity to install as secondary front shocks in OE location in addition to CDEV coilovers coming soon! |
| Description_DEF |
Suspension Shock Absorber Set |
| Description_DES |
17-UP FSD 4WD 4.5" FRONT 2.5 VS RR CDEV PAIR |
| Description_EXT |
2017-UP FORD SUPER DUTY 4WD 4.5" LIFT FRONT 2.5 VS REMOTE RESERVOIR CDEV SHOCK ABSORBER PAIR |
| Description_FAB |
ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC) |
| Description_FAB |
ICON's internal ΓÇ£Bump Zone" increases damping by 20% to provide more control as the shock approaches full compression |
| Description_FAB |
One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish |
| Description_FAB |
Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use |
| Description_FAB |
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range |
| Description_FAB |
One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road |
| Description_FAB |
7/8" diameter induction hardened, chrome plated shock shaft |
| Description_FAB |
PTFE lined spherical bearings and application specific mounting hardware |
| Description_FAB |
6061 aircraft grade aluminum CNC machined components |
| Description_FAB |
Fully rebuildable and re-tunable |
| Description_INV |
17-UP FSD 4WD 4.5" FRONT 2.5 CDEV PAIR |
| Description_MKT |
ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks with CDEV are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks with CDEV are fully rebuildable and re-tunable. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. |
| Description_MKT |
Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV's hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly. |
| Description_SHO |
CDEV SHOCK ABSORBERS |
| Description_TLE |
ICON 2017-Up Ford Super Duty 4WD Front 2.5 VS Shocks w/CDEV, 4.5" Lift, Pair |
| Description_TRA |
ICON 2017-Up Ford Super Duty 4WD Front 2.5 VS Shocks w/CDEV, 4.5" Lift, Pair, 67810EP |
| Title |
17-UP FSD 4WD 4.5" FRONT 2.5 VS RR CDEV PAIR |
| Adjustable |
Electronically |
| Shaft Material |
Chrome |
| California Proposition 65 |
WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Cylinder Material |
Aluminum |
| Damping Type |
Oil |
| Grade Type |
Performance |
| Shaft Diameter |
0.875 |
| External Reservoir |
Yes |
| Cylinder Color |
Grey |
| Service Parts |
191016 - 7.5" FINNED RESI UPGRADE KIT |
| Add-On Part |
252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR) |
| Length |
9.0000 |
| Width |
15.0000 |
| Height |
39.0000 |
| Weight |
15.0000 |
