Description_DEF |
Suspension Shock Absorber Set |
Description_DES |
05-UP FSD 4WD 4.5" FRONT 2.5 VS PB CDCV PAIR |
Description_FAB |
ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob |
Description_FAB |
Piggyback reservoir design improves heat dissipation to reduce shock fade during prolonged use |
Description_FAB |
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range |
Description_FAB |
Nitrogen charged monotube design with piggyback reservoir |
Description_FAB |
Double-sealed Schrader caps reduce risk of damage |
Description_FAB |
One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road |
Description_FAB |
7/8" diameter induction hardened, chrome plated shock shaft |
Description_FAB |
PTFE lined spherical bearings and application specific mounting hardware |
Description_FAB |
6061 aircraft grade aluminum CNC machined components |
Description_FAB |
One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish |
Description_FAB |
100% Rebuildable |
Description_FAB |
100% Revalveable |
Description_FAB |
ICON's internal ΓÇ£Bump Zone" increases damping by 20% to provide more control as the shock approaches full compression |
Description_INV |
05-UP FSD 4WD 4.5 FRNT 2.5 PB CDCV PAIR |
Description_EXT |
2005-UP FORD SUPER DUTY 4WD 4.5" LIFT FRONT 2.5 VS PIGGYBACK CDCV SHOCK PAIR |
Description_SHO |
FRNT SHOCK ABSORBERS |
Description_MKT |
ICON's 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Featuring one-piece impact extruded aluminum cylinders, these 2.5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON'S Shock Absorbers, 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below thetop cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. |
Description_TLE |

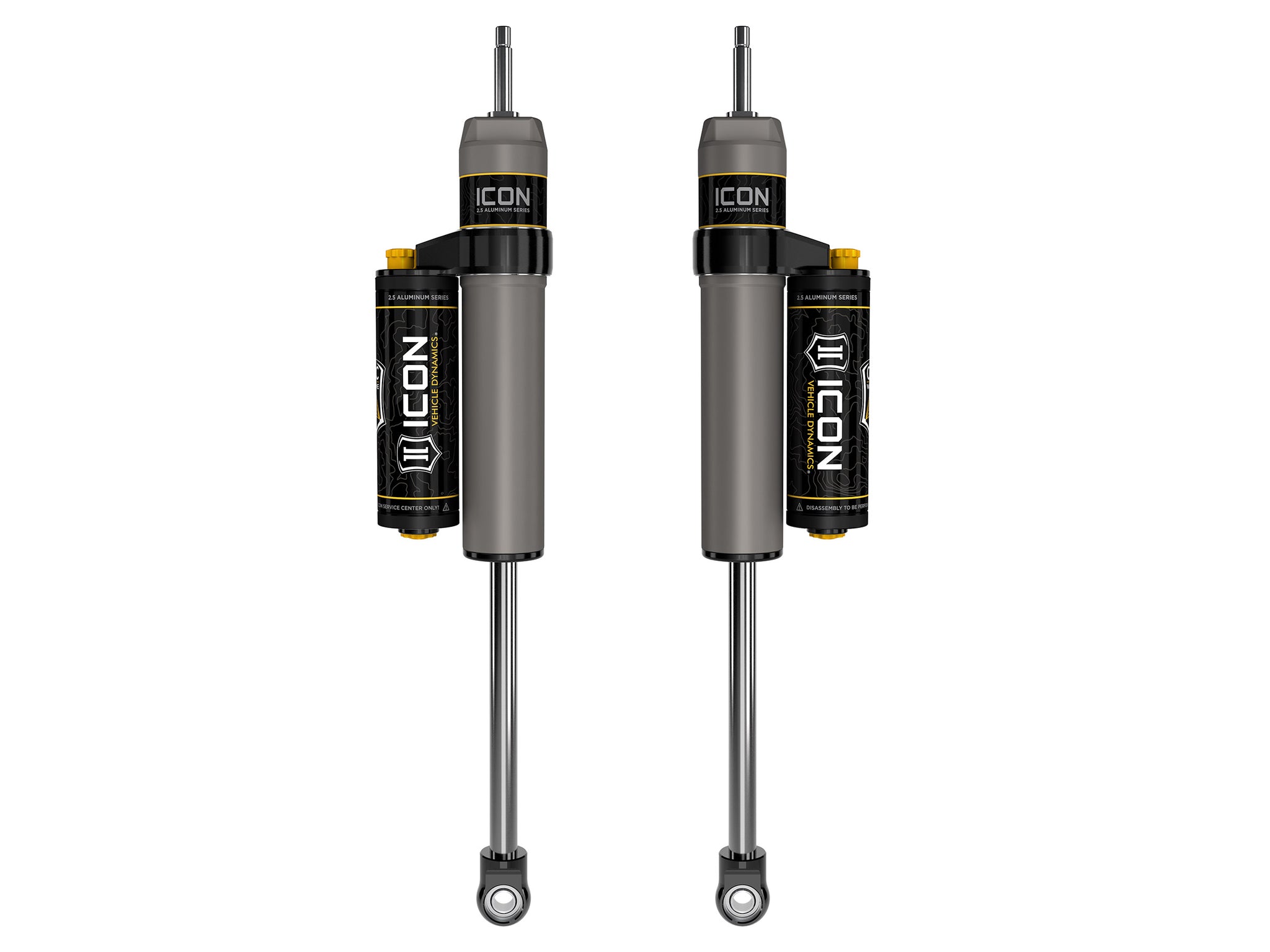

ICON 2005-Up Ford F250/F350 SD 4WD, 4.5" Lift, Front 2.5 VS PB/CDCV Shocks, Pair |
Description_TRA |
ICON 2005-Up Ford F250/F350 SD 4WD, 4.5" Lift, Front 2.5 VS PB/CDCV Shocks, Pair, 67710CP |
Service Parts |
191016 - 7.5" FINNED RESI UPGRADE KIT |
Cylinder Material |
Steel |
External Reservoir |
Yes |
Cylinder Color |
Silver |
California Proposition 65 |
WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
Shaft Diameter |
0.875 |
Shaft Material |
Chrome |
Grade Type |
Performance |
Title |
05-UP FSD 4WD 4.5" FRONT 2.5 VS PB CDCV PAIR |
Damping Type |
Oil |
Length |
9.0000 |
Width |
15.0000 |
Height |
39.0000 |
Weight |
27.0000 |
