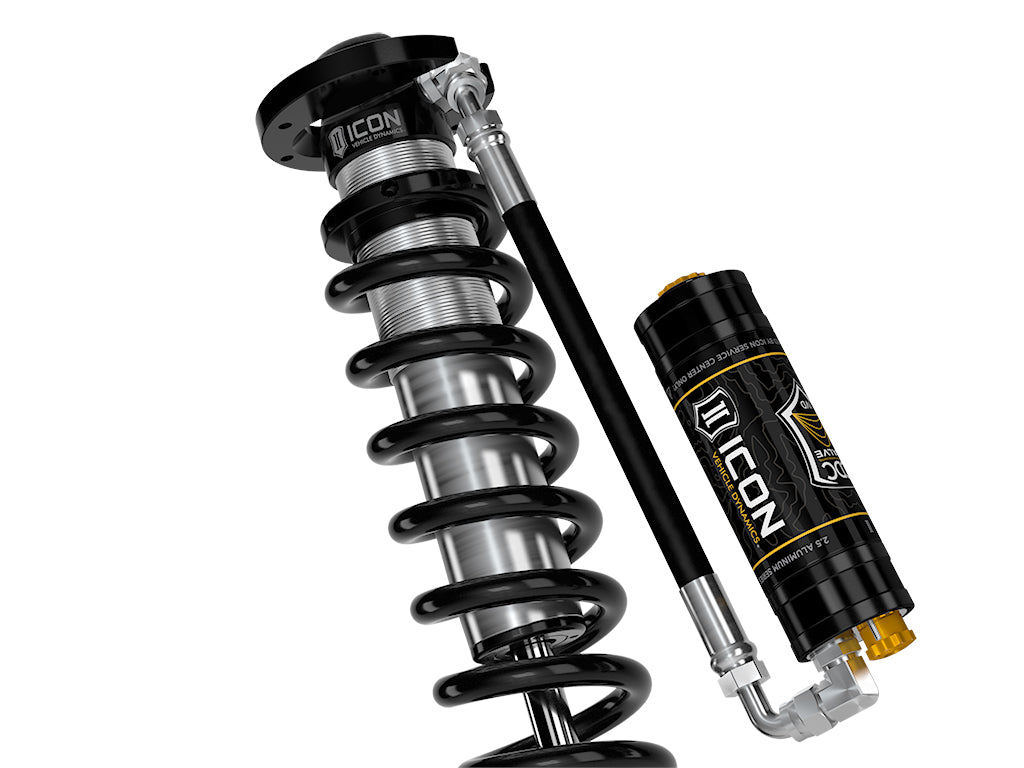

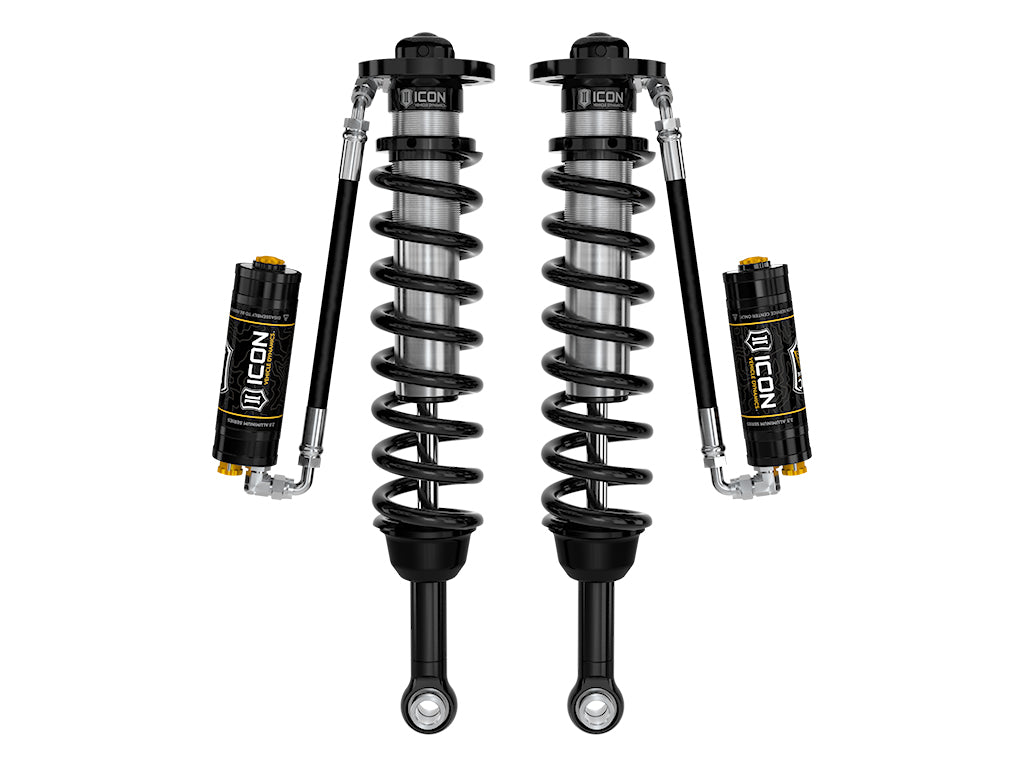

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2022-2023 Toyota Land Cruiser 300 Series. These adjustable coilovers allow up to 1-3" of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON's Vehicle-specific shock length and valving along with the larger 2.5" shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON 2.5 Aluminum Series rear shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Land Cruiser 300 Series.
Specifications:
| Description_ASC |
OEM Wheels & Tires Fitment: Yes |
| Description_ASC |
Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required) |
| Description_ASC |
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. LIFT HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE. |
| Description_ASC |
APPLICATION NOTE #85: ADVERTISED LIFT HEIGHT RANGES ARE FOR A STOCK EQUIPPED VEHICLE. INCREASING WEIGHT OF VEHICLE DUE TO ACCESSORIES WILL ALTER LIFT RANGE. |
| Description_ASC |
APPLICATION NOTE #142: NOT COMPATIBLE WITH VEHICLES EQUIPPED WITH LOAD-LEVELING REAR HEIGHT CONTROL AIR SUSPENSION. |
| Description_DEF |
Coilover Spring and Shock Assembly |
| Description_DES |
22-23 LC 300 2.5 VS RR CDCV COILOVER KIT |
| Description_FAB |
Increased wheel travel and improved ride quality over stock |
| Description_FAB |
Vehicle specific tuned for superior shock damping and control |
| Description_FAB |
Adjustable ride height offers 1-3" of front lift over stock |
| Description_FAB |
Remote reservoirs maintain cooler operating temperatures during extended off-road use |
| Description_FAB |
ICON CDCV equipped for 10 settings of external compression damping adjustment |
| Description_FAB |
ICON engineered coil springs |
| Description_FAB |
6061 Aircraft grade aluminum CNC machined components |
| Description_FAB |
Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts |
| Description_FAB |
FK rod end bearings for extended longevity and minimal deflection |
| Description_FAB |
Fully rebuildable and re-tunable |
| Description_INV |
58761C |
| Description_EXT |
ICON's Vehicle-specific shock length and valving along with the larger 2.5" shock body and increased piston area over stock yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. |
| Description_TLE |
2022-2023 Toyota Land Cruiser 300 Series, 2.5 VS Remote Reservoir CDCV Coilover Kit, Front |
| Description_MKT |
ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2022-2023 Toyota Land Cruiser 300 Series. These adjustable coilovers allow up to 1-3" of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON's Vehicle-specific shock length and valving along with the larger 2.5" shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON 2.5 Aluminum Series rear shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Land Cruiser 300 Series. |
| Description_SHO |
COILOVER KIT |
| Length |
7.0000 |
| Width |
13.0000 |
| Height |
31.0000 |
| Weight |
52.0000 |
