Description_ASC |
OEM Wheels & Tires Fitment: Yes |
Description_ASC |
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) |
Description_ASC |
TECH NOTE: Aftermarket front upper control arms required for installation |
Description_ASC |
TECH NOTE: Also requires installation of IIC kit (Part # 53504) and CDEV rear shocks (Part # 57810EP) |
Description_ASC |
TECH NOTE: Only compatible with models equipped with 4.0L V6 engine |
Description_DEF |
Coilover Spring and Shock Assembly |
Description_DES |
10-UP 4RUNNER EXT TRAVEL 2.5 VS RR CDEV COILOVER KIT |
Description_FAB |
ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC) |
Description_FAB |
Increased wheel travel and ride quality over stock |
Description_FAB |
Vehicle specific tuned for superior shock damping and control |
Description_FAB |
Adjustable for 0-3.5" of lift height over stock |
Description_FAB |
ICON engineered Eibach Springs |
Description_FAB |
External reservoirs to attain cooler operating temperatures during extended off-road use |
Description_FAB |
6061 Aircraft grade aluminum CNC machined components |
Description_FAB |
Corrosion resistant CAD plated shock bodies with 7/8" induction hardened, chrome plated shafts |
Description_FAB |
FK rod end bearings for extended longevity and minimal deflection |
Description_FAB |
Bolt-on kit - no cutting or welding necessary for installation |
Description_FAB |
100% Rebuildable |
Description_FAB |
100% Revalveable |
Description_EXT |
2010-UP TOYOTA 4RUNNER EXTENDED TRAVEL 2.5 VS REMOTE RESERVOIR CDEV COILOVER KIT |
Description_INV |
10-UP 4RUNNER EXT 2.5 RR CDEV CO KIT |
Description_SHO |
CDEV COILOVER KIT |
Description_MKT |

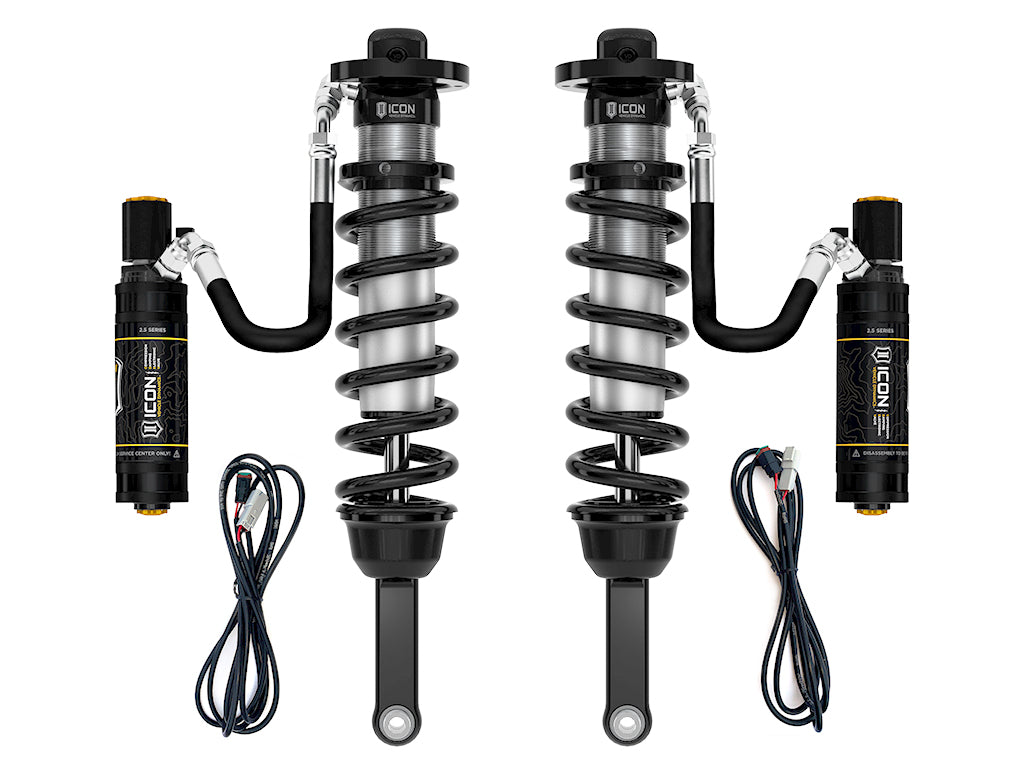

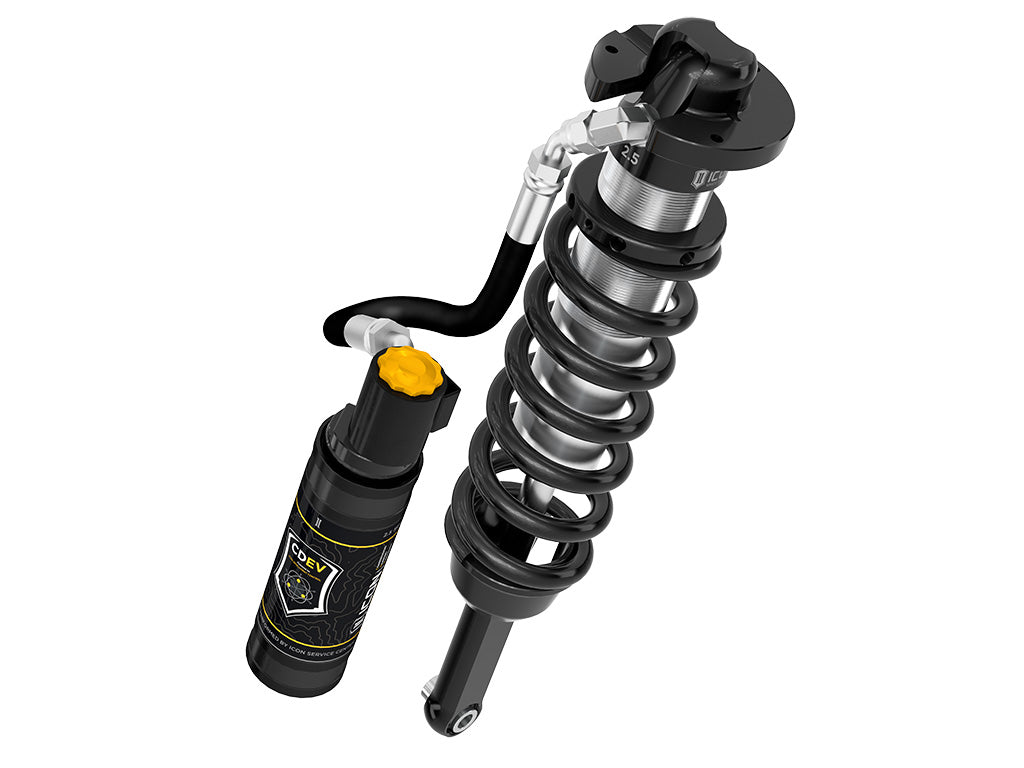

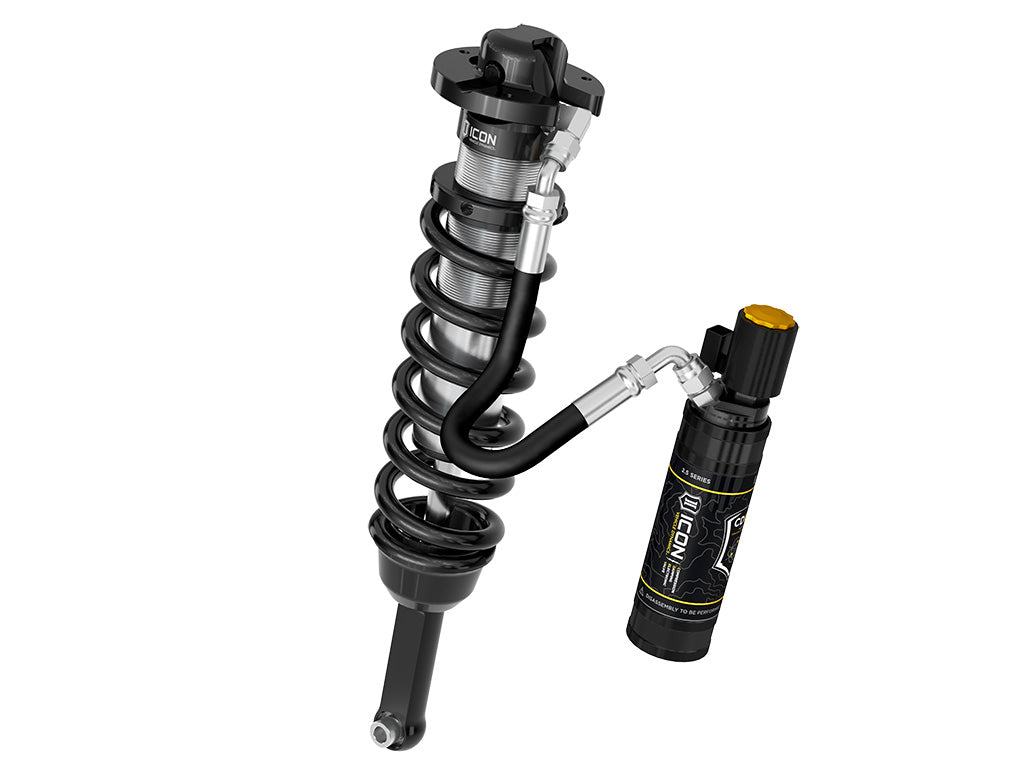

The ICON Vehicle Dynamics V.S. Series 2.5" remote reservoir coilover shocks w/ CDCV are an incredible upgrade for the front end of the 2010-UP Toyota 4runner. ICON's Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3.5" of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5" shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. |
Description_MKT |

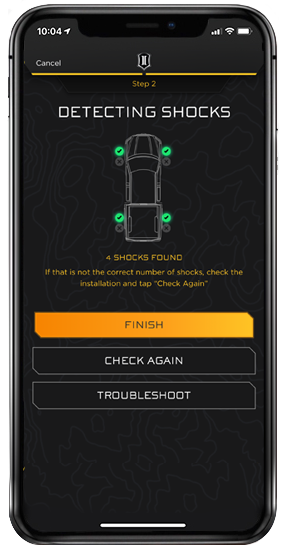

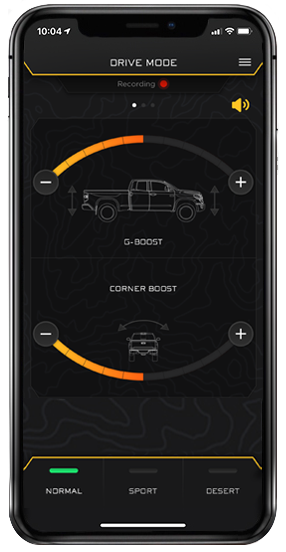

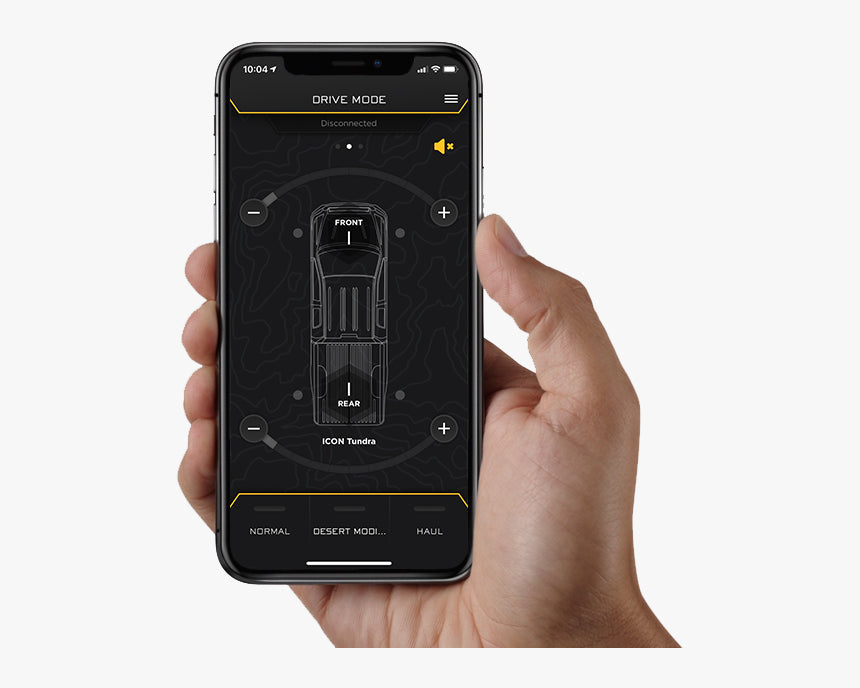

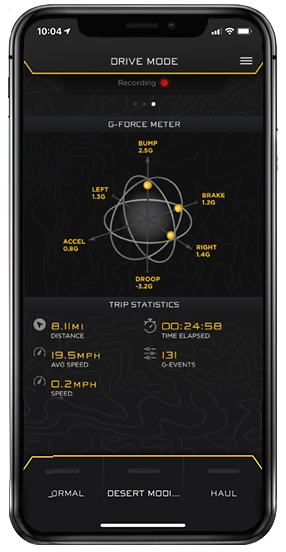

Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV's hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly. |
Description_TRA |
ICON 2010-Up Toyota 4Runner, 2.5 VS RR/CDEV Extended Travel Coilover Kit, 58747E |
Description_TLE |
ICON 2010-Up Toyota 4Runner, 2.5 VS RR/CDEV Extended Travel Coilover Kit |
Recommended Aftermarket Wheels |
ICON Alloys |
Coil Over Springs Included |
Yes |
Remote Reservoir |
Yes |
Damping Type |
Oil |
Service Parts |
191016 - 7.5" FINNED RESI UPGRADE KIT |
Adjustable Damping |
Electronically |
Add-On Part |
191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25) |
Recommended Aftermarket Tires |
33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required) |
Maximum Lift |
3.5 |
Shaft Diameter |
0.875 |
Title |
10-UP 4RUNNER EXT TRAVEL 2.5 VS RR CDEV COILOVER KIT |
Spring Material |
Steel |
Material |
Aluminum |
Spring Rate |
650 |
Spring Color |
Black |
OEM Wheels & Tires Fitment |
Yes |
California Proposition 65 |
WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
Dust Shield |
No |
Grade Type |
Performance |
Length |
8.0000 |
Width |
12.0000 |
Height |
27.0000 |
Weight |
59.0000 |
