| Description_ASC |
Factory Wheels & Tires Fitment: Yes |
| Description_ASC |
Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Description_ASC |
TECH NOTE: Aftermarket front upper control arms required for installation |
| Description_ASC |
TECH NOTE: 700lb/in spring rate only recommended for trucks with additional weight added to front end. See ICON Help Center for information. |
| Description_DEF |

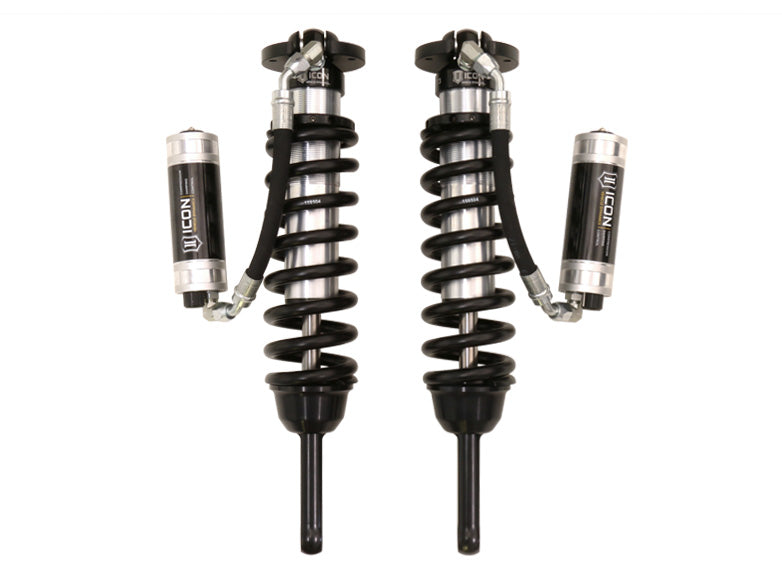

Coilover Spring and Shock Assembly |
| Description_DES |
07-09 FJ/03-09 4RNR/03-09 GX EXT TRAVEL CDCV COILOVER KIT 700LB |
| Description_EXT |
2007-2009 FJ CRUISER/2003-2009 4RUNNER/2003-2009 GX470 EXTENDED TRAVEL CDCV COILOVER KIT WITH 700LB COILS |
| Description_MKT |
The ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir coilover shocks are an incredible upgrade for the front end of the Toyota FJ Cruiser, 4Runner, and Lexus GX platforms. ICON's Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3.5" of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5" shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 adjustment settings from soft to hard. Upgraded coil springs are included to better support added weight from accessories such as front bumpers and winches. These extended length versions offer increased wheel travel but also require the installation of aftermarket upper control arms in conjunction with the coilovers. |
| Description_MKT |
When paired with ICON 2.0 Aluminum Series or 2.5 Series rear shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your Toyota or Lexus SUV. |
| Description_FAB |
Adjustable coilovers yield 0-3.5" of front lift height |
| Description_FAB |
Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use |
| Description_FAB |
Extended Travel length requires installation of aftermarket front upper control arms |
| Description_FAB |
Superior low speed control reduces body roll and increases on-road stability |
| Description_FAB |
External reservoir to attain cooler operating temperatures during extended off-road use |
| Description_FAB |
ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob |
| Description_FAB |
High quality ICON-engineered coil springs with higher spring rate included to better support added weight to front end |
| Description_FAB |
Corrosion resistant CAD plated shock body with 7/8" shaft |
| Description_FAB |
FK Rod End bearings provide extended longevity and minimal deflection |
| Description_FAB |
Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life |
| Description_FAB |
Bolt-in design makes for an easy install into OEM shock location |
| Description_INV |
FJ/T4R/GX EXT CDCV COILOVER KIT 700LB |
| Description_TLE |
ICON 07-09 Toyota FJ/03-09 4Rnr/03-09 GX, Ext Travel RR/CDCV Coilover Kit, 700lb |
| Description_TRA |
ICON 07-09 Toyota FJ/03-09 4Rnr/03-09 GX, Ext Travel RR/CDCV Coilover Kit, 700lb, 58747C-700 |
| Description_SHO |
FJ/T4R/GX COILOVERS |
| Coil Over Springs Included |
Yes |
| Service Parts |
191016 - 7.5" FINNED RESI UPGRADE KIT |
| Remote Reservoir |
Yes |
| Spring Color |
Black |
| California Proposition 65 |
WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Add-On Part |
191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25) |
| Recommended Aftermarket Tires |
33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required) |
| OEM Wheels & Tires Fitment |
Yes |
| Spring Rate |
700 |
| Title |
07-09 FJ/03-09 4RNR/03-09 GX EXT TRAVEL CDCV COILOVER KIT 700LB |
| Material |
Aluminum |
| Adjustable Damping |
Yes |
| Spring Material |
Steel |
| Grade Type |
Performance |
| Recommended Aftermarket Wheels |
ICON Alloys |
| Dust Shield |
No |
| Damping Type |
Oil |
| Shaft Diameter |
0.875 |
| Length |
8.0000 |
| Width |
12.0000 |
| Height |
27.0000 |
| Weight |
60.0000 |
