| Description_ASC |
OEM Wheels & Tires Fitment: Yes |
| Description_ASC |
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Description_ASC |
TECH NOTE: Aftermarket front upper control arms required for installation |
| Description_ASC |
TECH NOTE: 2017-UP Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock |
| Description_ASM |

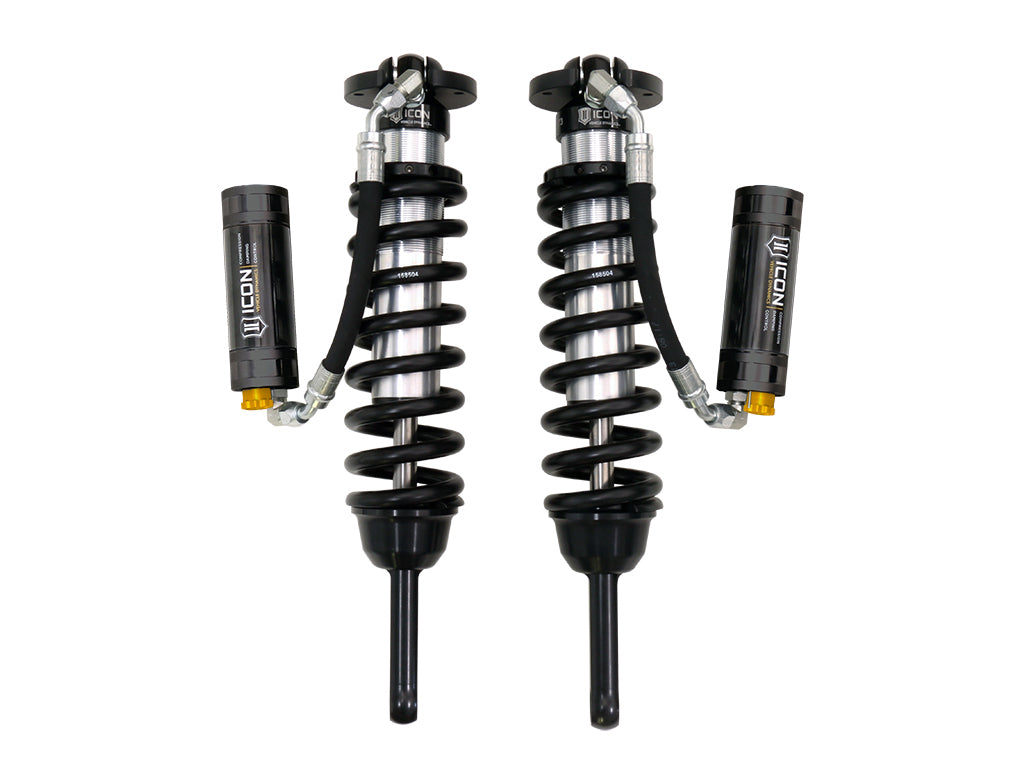

ICON 05-UP TACOMA EXT TRAVEL 2.5 VS RR CDCV COILOVER KIT |
| Description_DEF |
Coilover Spring and Shock Assembly |
| Description_DES |
05-UP TACOMA EXT TRAVEL 2.5 VS RR CDCV COILOVER KIT |
| Description_EXT |
These ICON extended-travel coilovers feature 2.5 Series shocks with remote reservoirs and coil springs optimized per application. These hardcore units are outfitted with ICON's CDCV which offers 10 points of adjustability. |
| Description_FAB |
Adjustable ride height from 0" - 3.5" |
| Description_FAB |
Race shock piston with flutter stack compression valving |
| Description_FAB |
External reservoir ensures maximum cooling |
| Description_FAB |
ICON CDCV provides 10 points of adjustability |
| Description_FAB |
Cad-plated threaded body / Extreme Weather Plating Option Available |
| Description_FAB |
Billet aluminum upper mount |
| Description_FAB |
5/8" PTFE-lined spherical bearing |
| Description_FAB |
Completely re-buildable |
| Description_FAB |
Hose Length Optimized for Increased Fluid Transfer |
| Description_FAB |
Mounting Bracket Orients Reservoir for Optimum Tire Clearance |
| Description_FAB |
Chrome-silicon spring |
| Description_FAB |
250 PSI nitrogen-charged internal reservoir |
| Description_MKT |
These ICON coilovers feature 2.5 Series shocks with remote reservoirs and coil springs optimized per application. These hardcore units are outfitted with ICON's CDCV which offers 10 points of adjustability. |
| Description_INV |
58735C |
| Description_TLE |
ICON 2005-Up Toyota Tacoma, 2.5 VS Extended Travel, RR/CDCV Coilover Kit |
| Description_TRA |
ICON 2005-Up Toyota Tacoma, 2.5 VS Extended Travel, Remote Reservoir/CDCV Coilover Kit, 58735C |
| Description_SHO |
TACOMA COILOVERS |
| Remote Reservoir |
Yes |
| Recommended Aftermarket Tires |
33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required) |
| Add-On Part |
191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25) |
| Shaft Diameter |
0.875 |
| California Proposition 65 |
WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Adjustable Damping |
Yes |
| Service Parts |
191016 - 7.5" FINNED RESI UPGRADE KIT |
| Damping Type |
Oil |
| Spring Color |
Black |
| OEM Wheels & Tires Fitment |
Yes |
| Recommended Aftermarket Wheels |
ICON Alloys |
| Grade Type |
Performance |
| Material |
Aluminum |
| Dust Shield |
No |
| Spring Rate |
650 |
| Title |
05-UP TACOMA EXT TRAVEL 2.5 VS RR CDCV COILOVER KIT |
| Spring Material |
Steel |
| Length |
8.0000 |
| Width |
12.0000 |
| Height |
27.0000 |
| Weight |
50.0000 |
