| Description_ASC |
OEM Wheels & Tires Fitment: Yes |
| Description_ASC |
Recommended Aftermarket Wheels: 17x8.5" w/ 5.75" Backspace / 25mm Offset |
| Description_ASC |
Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required) |
| Description_ASC |
Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required) |
| Description_ASC |
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. LIFT HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE. |
| Description_ASC |
APPLICATION NOTE #85: ADVERTISED LIFT HEIGHT RANGES ARE FOR A STOCK EQUIPPED VEHICLE. INCREASING WEIGHT OF VEHICLE DUE TO ACCESSORIES WILL ALTER LIFT RANGE. |
| Description_ASC |
APPLICATION NOTE #144: NOT COMPATIBLE WITH TRD PRO |
| Description_ASC |
APPLICATION NOTE #148: ICON DOES NOT RECOMMEND LIFTING ABOVE 2.25" (TUNDRA)/3.75" (SEQUOIA) WITHOUT AN ICON UPPER CONTROL ARM, FAILURE TO DO SO CAN RESULT IN IMPROPER WHEEL ALIGNMENT AND CAUSE DAMAGE TO FRONT AXLES ON 4WD MODELS |
| Description_ASC |
APPLICATION NOTE #149: FOR 4WD MODELS WITHOUT TRD OFF-ROAD PACKAGE ICON RECOMMENDS USING ICON DIFF DROP (PART# 55156) OR USING TOYOTA TRD AXLES (PART# 434200C020 DRIVER / 434100C020 PASS). FAILURE TO DO SO COULD RESULT IN FRONT AXLE DAMAGE. NOT REQUIRED FOR TRD PRO. |
| Description_ASC |
TECH NOTE: If upgrading a vehicle equipped with Adaptive Variable Suspension (AVS) all other vehicle systems remain functional |
| Description_ASC |
TECH NOTE: Tundra lift heights above 2.25" require sway bar drop bracket kit part number 55154. Required for all lift heights on Sequoia. |
| Description_ASC |
TECH NOTE: Tundra SR5 equipped with TRD Sport packages will have lift height range of 1-4" over stock |
| Description_ASC |
TECH NOTE: Most Sequoia sub-models will have front lift height range of 0-2.13" over stock |
| Description_ASC |
TECH NOTE: EXP Coilovers are sold individually. A quantity of 2 are required per vehicle. |
| Description_ASM |

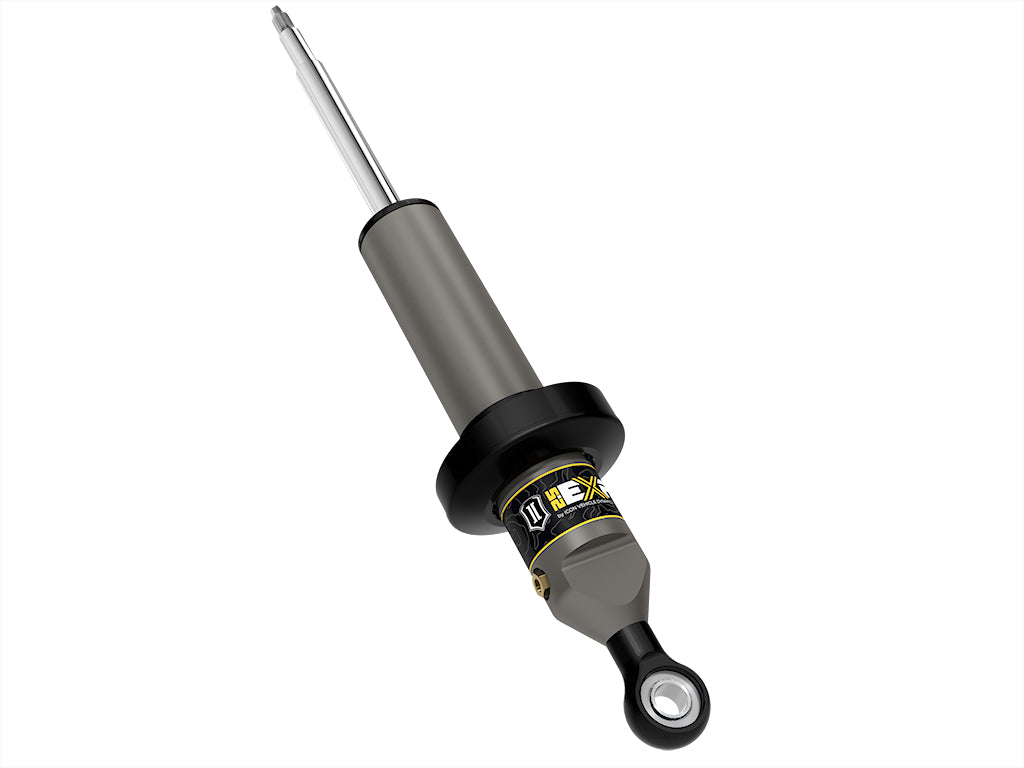

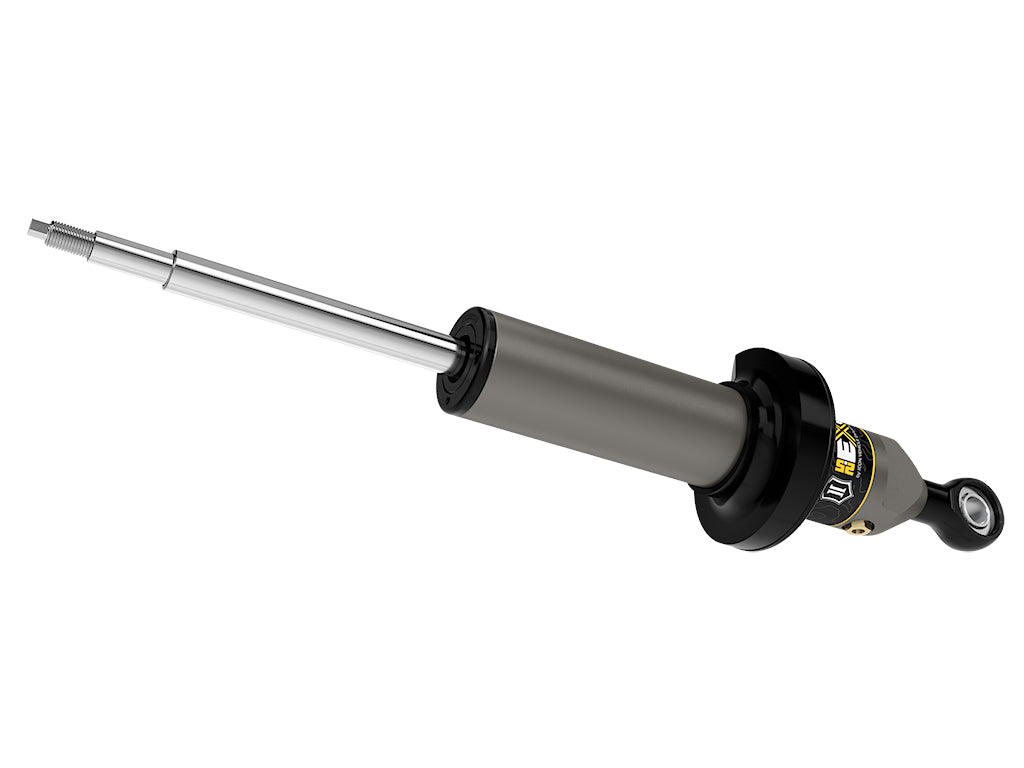

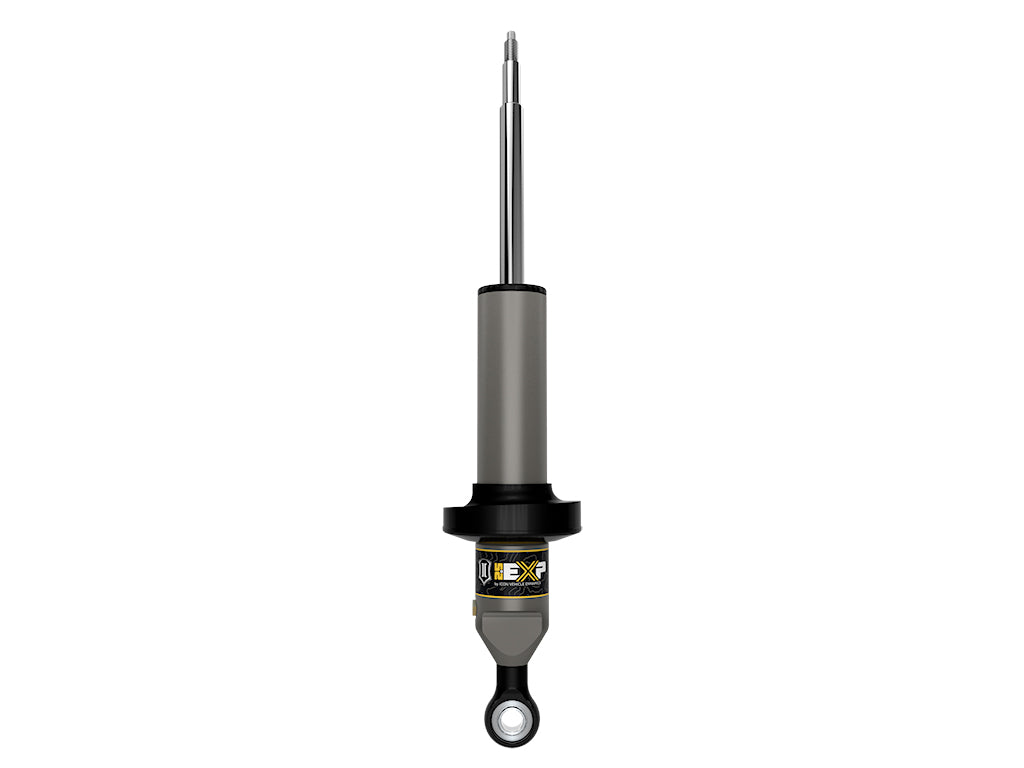

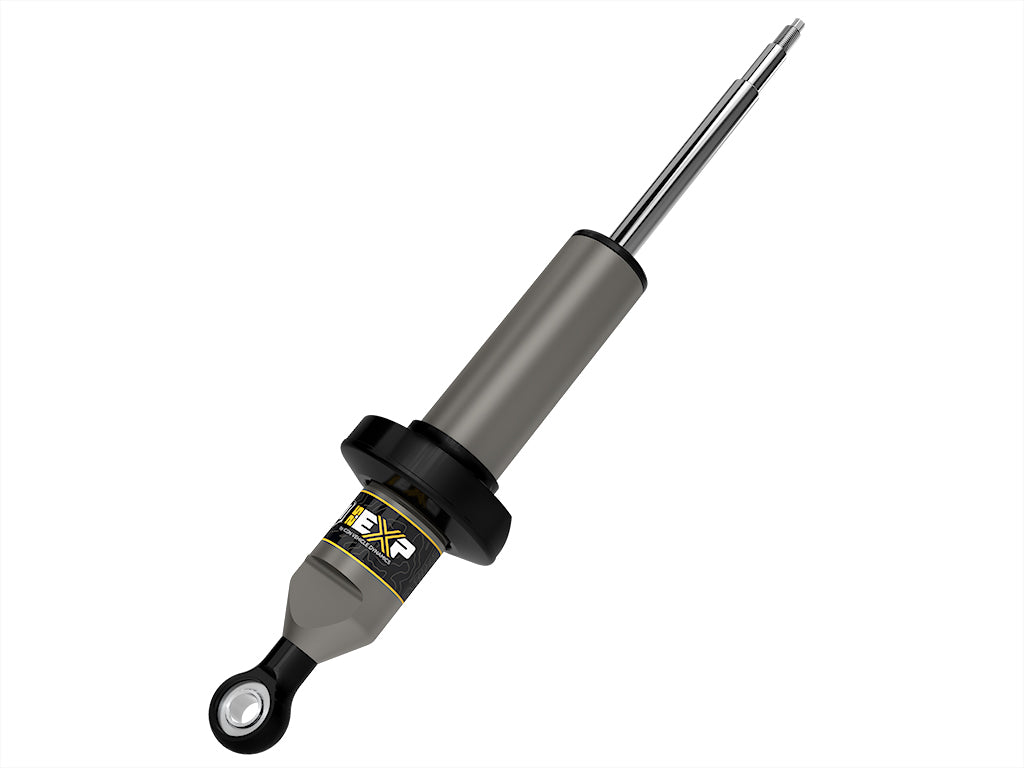

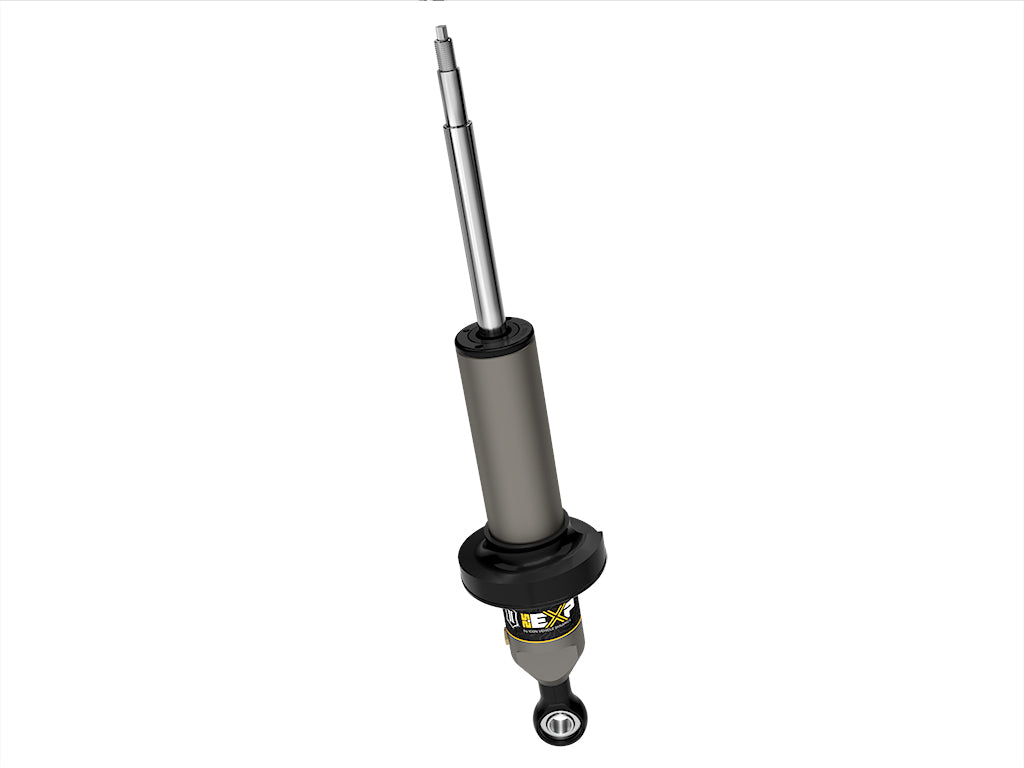

ICON 22-23 TUNDRA/23 SEQUOIA FRONT 2.5 EXP COILOVER |
| Description_DEF |
Coilover Spring and Shock Assembly |
| Description_DES |
22-23 TUNDRA/23 SEQUOIA FRONT 2.5 EXP COILOVER |
| Description_EXT |
Based on ICON's 2.5 Series, these EXP shocks bridge the gap between spacer lifts and threaded bodied coilovers, providing suspension lift, custom-tuned performance, and maximum travel, all in one economical package. |
| Description_INV |
58671 |
| Description_MKT |

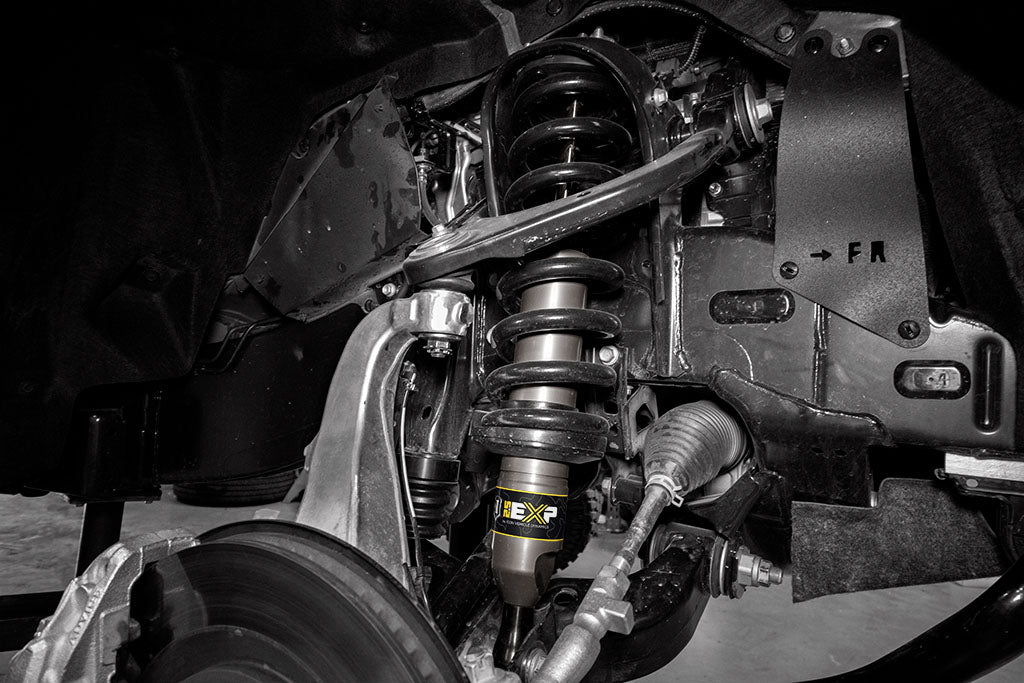

The 2022-2023 Toyota Tundra/2023 Toyota Sequoia EXP Series front shock absorbers by ICON Vehicle Dynamics combine the performance of a fully rebuildable 2.5-inch diameter premium shock absorber with the convenience and cost-benefits of re-using the truck's factory coil spring and other components. EXP bridges the gap between spacer lifts and threaded bodied coilovers, providing suspension lift, custom-tuned performance and maximum travel, all in an economical package. EXP Series is based on ICON's proven 2.5-inch diameter Aluminum Series shock absorber, featuring a one-piece impact-extruded aluminum shock body. Hard anodizing provides a great-looking, consistent finish with superior resistance to abrasion and corrosion. The massive 7/8-inch diameter shaft is induction hardened and chrome plated. EXP shocks use the factory shaft-up orientation, with the shaft ends machined to re-use the Tundra's OE upper shock and spring mounts. The 6061-billet aluminum coil spring seat is CNC machined to fit the molded heavy duty urethane coil spring seat that is specifically designed to fit the vehicle's OE coil spring. A series of snap-ring grooves machined into the shock body provide easily-selectable front-end ride height adjustment from 0" to 3" of lift over stock. EXP Series shocks utilize a one-piece digressive piston design and are custom tuned for the Tundra/Sequoia in conjunction with their stock front coil springs to maximize damping performance and provide unsurpassed ride quality, on and off-road. The increased piston size and shock oil volume provided by the 2.5-inch diameter aluminum body also provide superior heat dissipation compared to the smaller, steel bodied OE shocks, resulting in longer-lasting shock performance over prolonged use at higher speeds and through rougher terrain. For those who would like to further tune their suspension, EXP shocks are fully re-valvable (and rebuildable) by any qualified shock technician, with parts available from ICON. |
| Description_FAB |
Vehicle specific design for 2022-2023 Toyota Tundra and 2023 Sequoia |
| Description_FAB |
Vehicle specific tuned for superior shock damping and control |
| Description_FAB |
2.5 Aluminum Series Shock with Internal Reservoir |
| Description_FAB |
Adjustable ride heights from 0-3" of front lift over stock with the use of snap ring |
| Description_FAB |
Utilizes factory coil and coil hardware |
| Description_FAB |
Inverted shaft up design featuring 7/8" diameter, induction hardened, chrome plated shaft |
| Description_FAB |
Impact extruded, hard anodized aluminum cylinder offers excellent corrosion resistance and consistent finish |
| Description_FAB |
CNC machined 6061 aluminum components with a black anodized finish |
| Description_FAB |
PTFE lined spherical bearing for extended longevity and minimal deflection |
| Description_FAB |
Fully rebuildable and re-tunable |
| Description_TLE |
ICON 2022-2023 Toyota Tundra/2023 Toyota Sequoia Front EXP Coilover |
| Description_TRA |
ICON 2022-2023 Toyota Tundra/2023 Toyota Sequoia Front EXP Coilover,58671 |
| Description_SHO |
EXP COILOVER |
| Remote Reservoir |
NO |
| Grade Type |
Performance |
| Dust Shield |
No |
| OEM Wheels & Tires Fitment |
Yes |
| Title |
ICON 2022-2023 Toyota Tundra Front EXP Coilover |
| Recommended Aftermarket Tires |
35" x 12.50" (Minor fender trimming and modifications may be required) |
| Material |
Aluminum |
| Shaft Diameter |
0.875 |
| Recommended Aftermarket Wheels |
17x8.5" with 5.75" Backspace / 25mm Offset |
| Damping Type |
Oil |
| Coil Over Springs Included |
No |
| California Proposition 65 |
WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Maximum Lift |
3 |
| Adjustable Damping |
NO |
| Service Parts |
252010 - 2.5 IFP REBUILD KIT |
| Add-On Part |
55154 - 22-UP TUNDRA SWAY BAR DROP KIT |
| Length |
5.0000 |
| Width |
6.0000 |
| Height |
32.0000 |
| Weight |
10.0000 |
